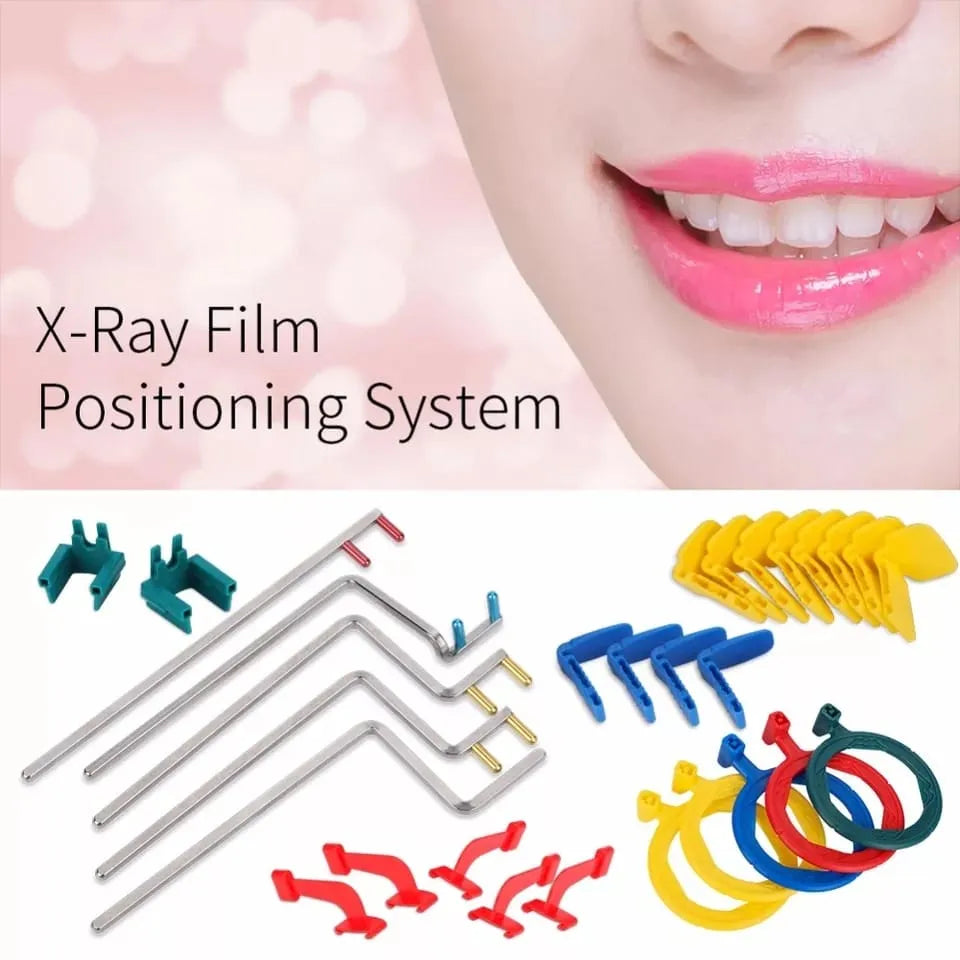

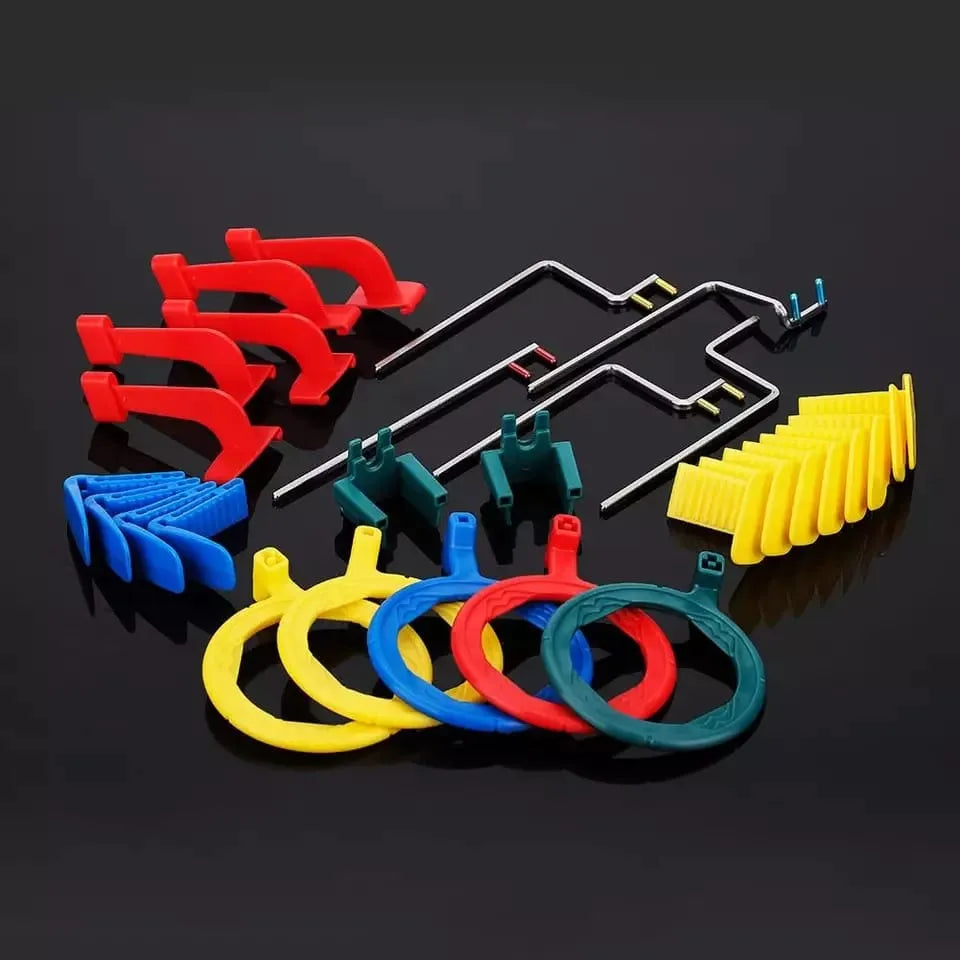

Dental Intra-Oral Film Positioning System

• Fully color-coded and user friendly, and lightweight for patient comfort and easy assembly.
• Aligns film to prevent cone cutting.
• Rounded bite blocks with no sharp edges improves comfort.
• Open bite block design offers patients a soft bite.
• New bitewing shape with same-arch biting for a more closed bite.
• Can be used for anterior, posterior, bitewing and endodontic procedures.
• Can be used for all intra-oral dental x-ray film size #0, #1, #2 and #3.
• Endodontic instrument safely straddles the subject tooth, providing precise film alignment without obstruction.
• Shorter arms fit all intraoral x-ray units.
• As always, all components are fully autoclavable, designed to endure repeated sterilization without discoloration or brittleness.

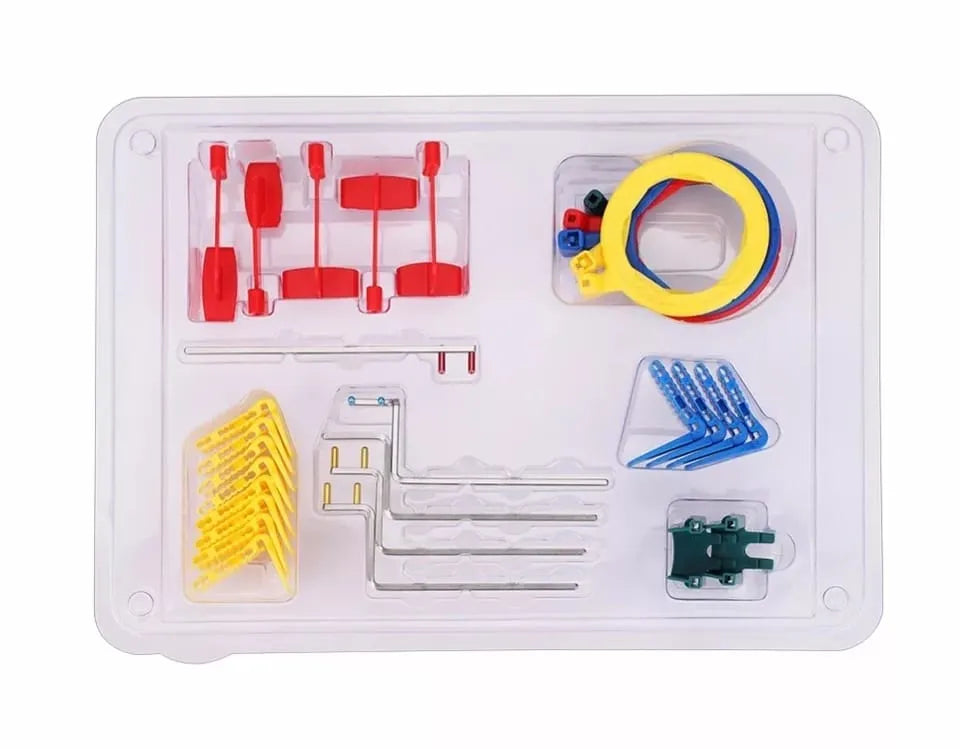

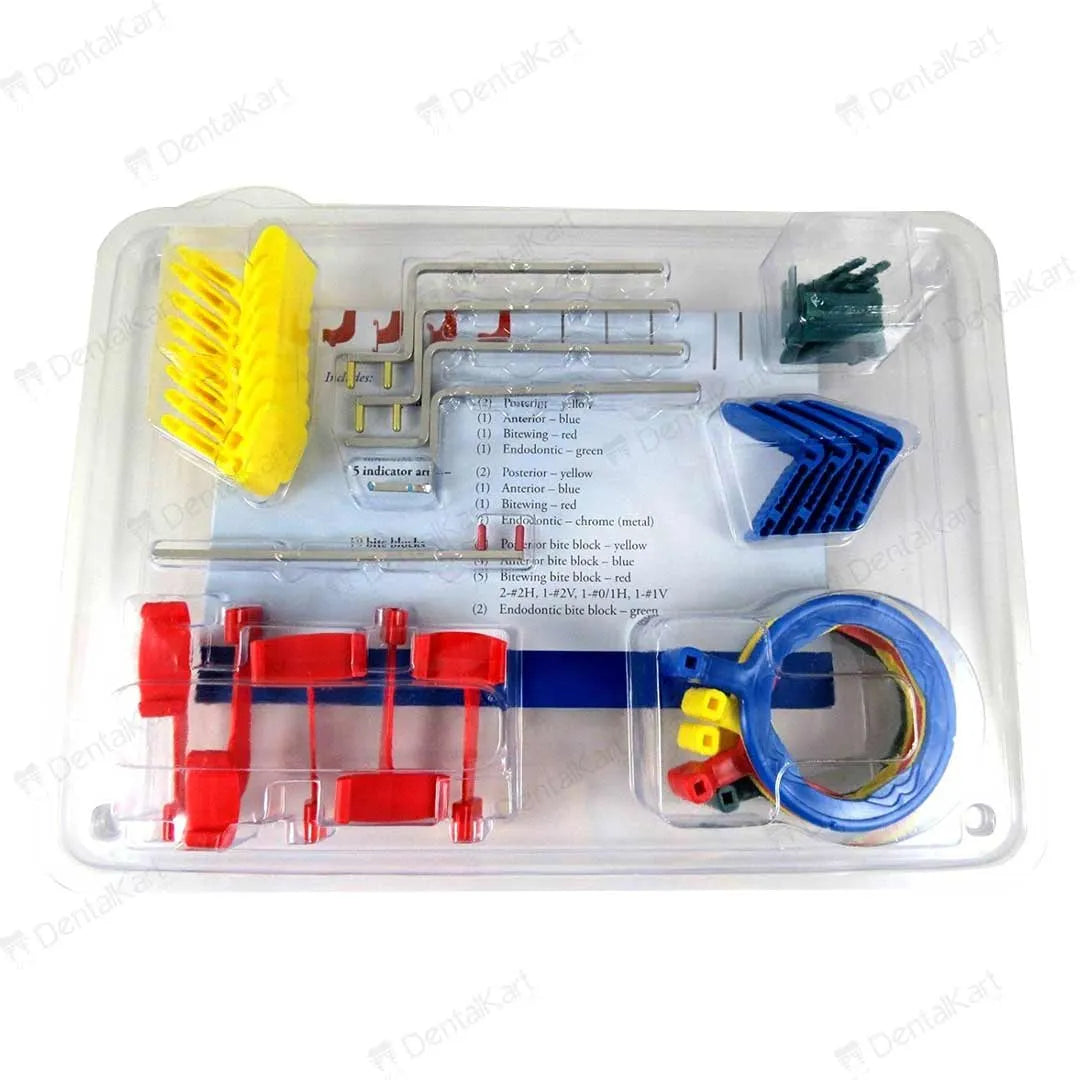

• Available in complete kit or as individual components.

Cleaning & Sterilization :

• Disassemble instrument (s).
• Remove debris from components with hot water or soap.
• Place components in sterlization pouches, and place in the middle tray. Plastic parts must be in a separate pouch from metal arms, to avoid melting or warping.
• Cycle per autoclave manufacturer's instructions.  DO NOT CHEMICLAVE OR DRY-HEAT STERILIZE. DO NOT COLD STERILIZE.
• NOTE : Plastic parts have a limited life and should be replaced periodically. Any method of sterilization will shorten the life of plastic parts.

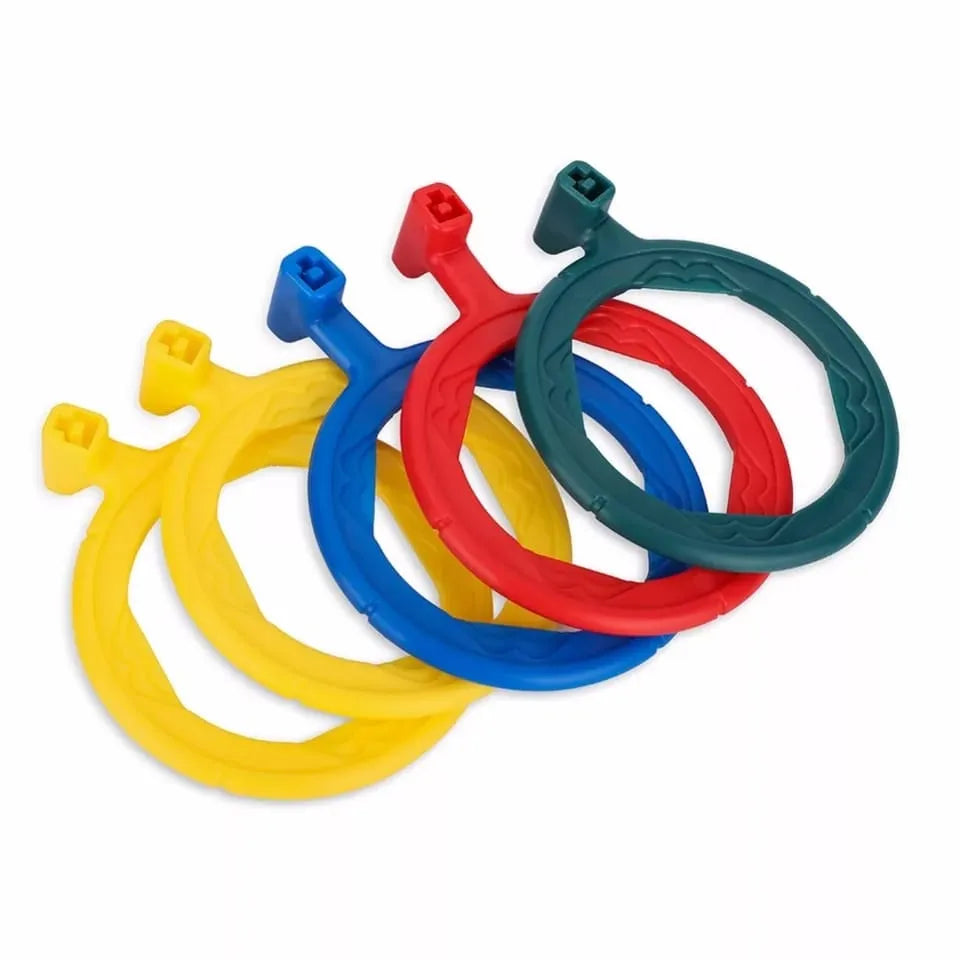

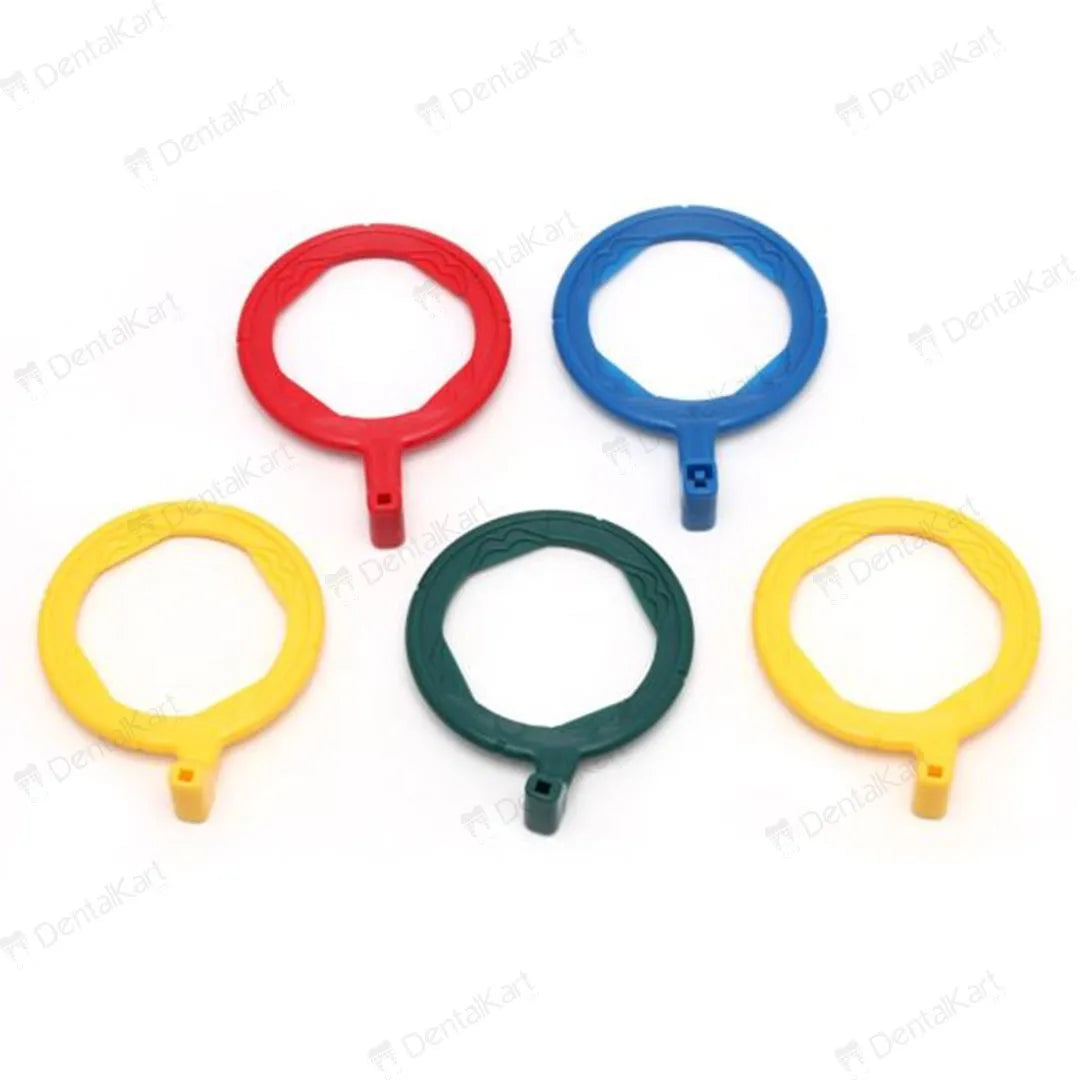

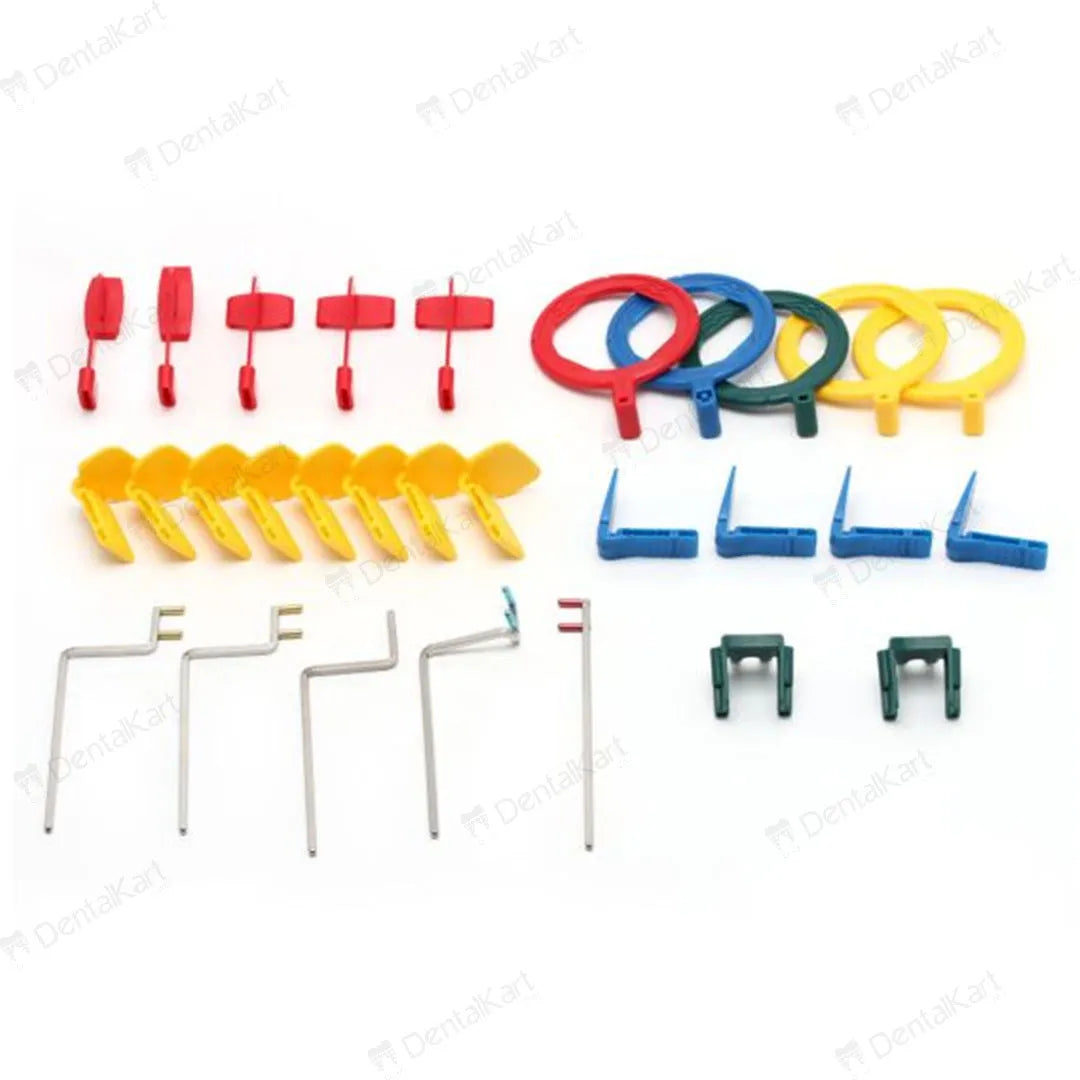

5 Aiming Rings :

• 2 x Posterior - Yellow
• 1 x Anterior - Blue
• 1 x Bitewing - Red
• 1 x Endodontic - Green

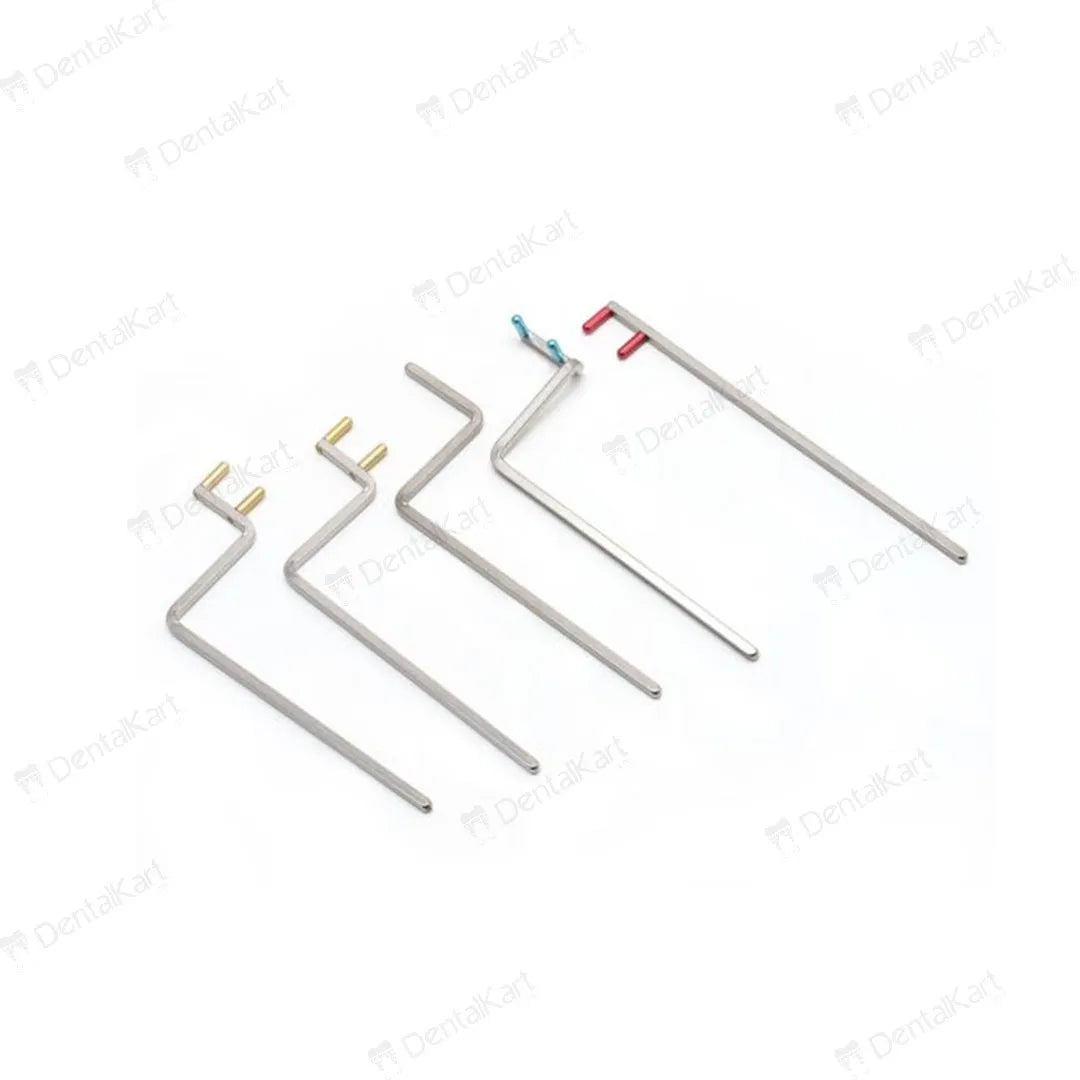

5 Indicator Arms :

• 2 x Posterior - Yellow
• 1 x Anterior - Blue
• 1 x Bitewing - Red
• 1 x Endodontic - Chrome (Metal)

19 Bite Blocks :

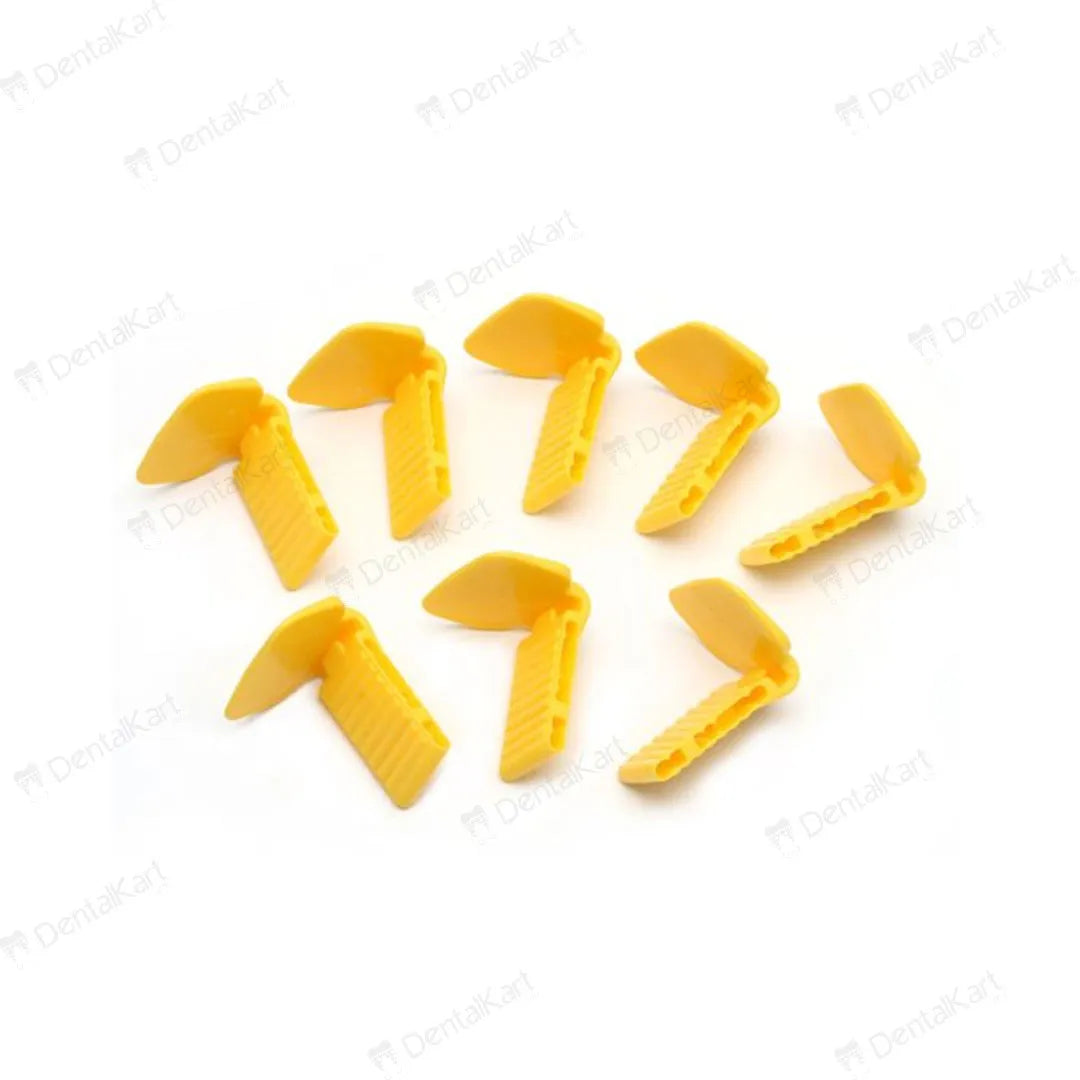

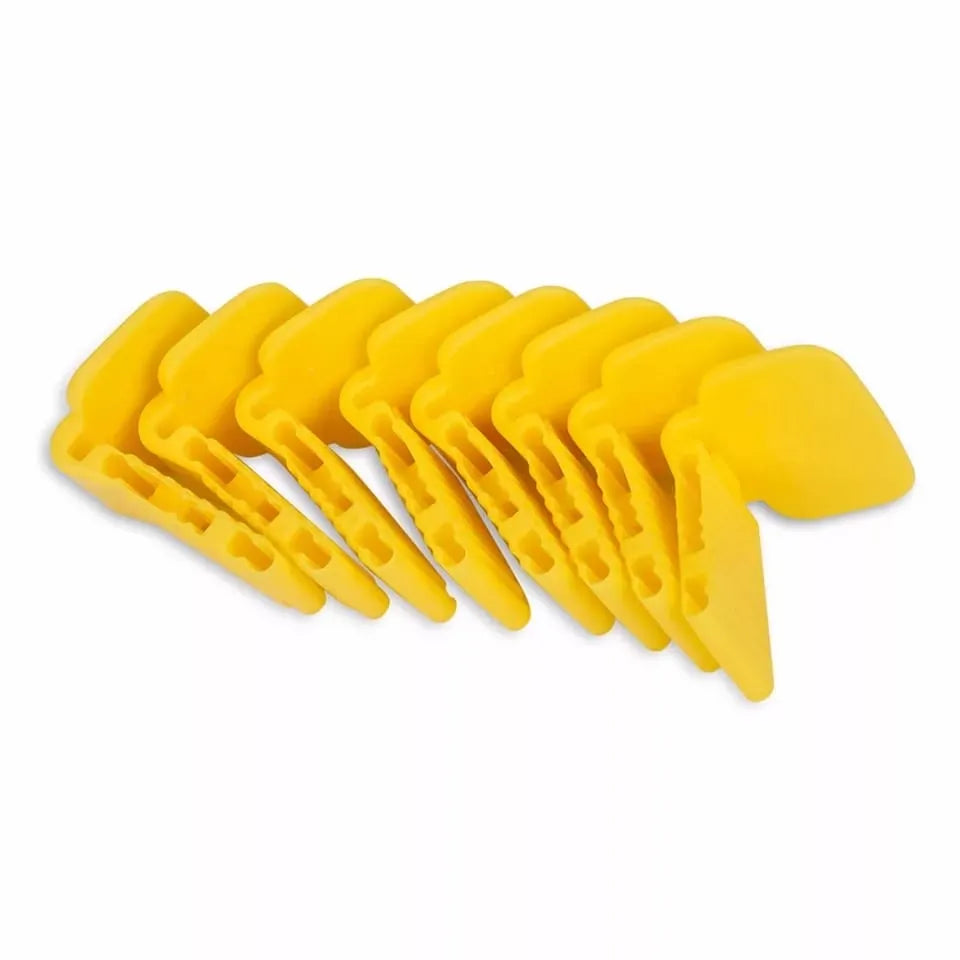

• 8 x Posterior Bite Block - Yellow

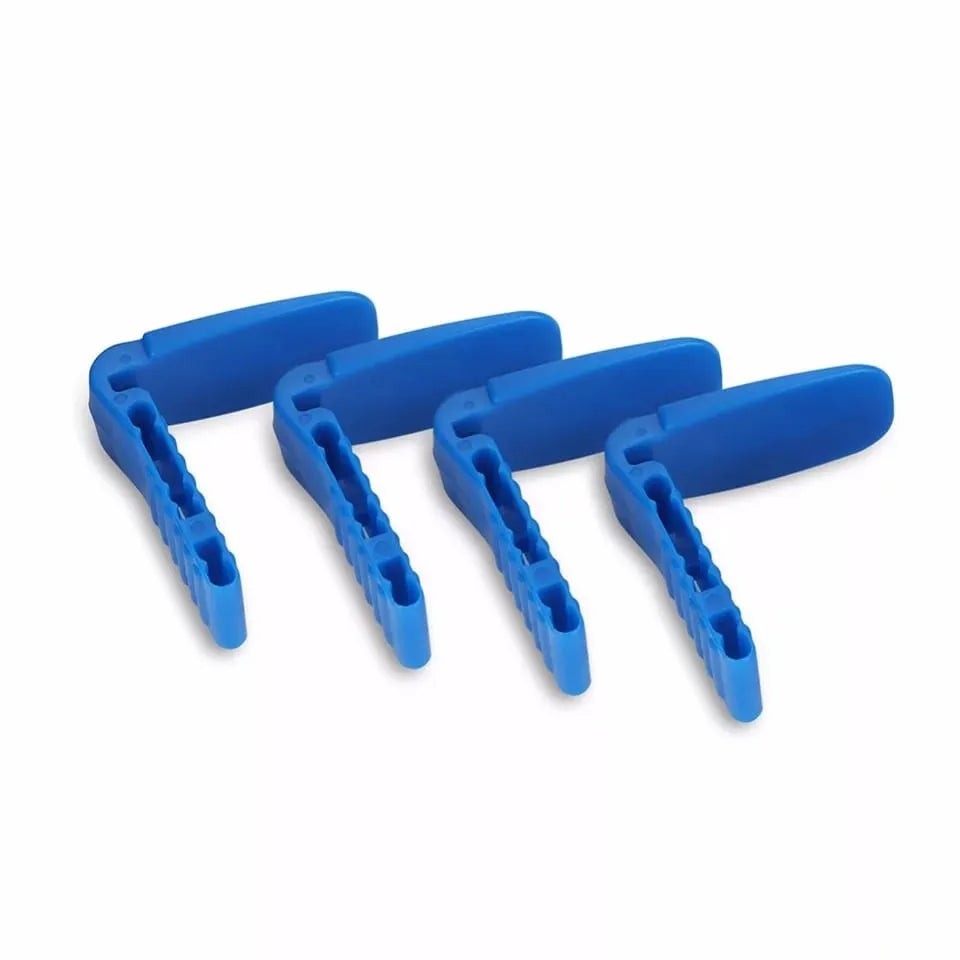

• 4 x Anterior Bite Block - Blue
• 5 x Bitewing Bite Block - Red (2-#2H,1-#2V,1-#0/1H,1-#1V)
• 2 x Endodontic Bite Block - Green

Positioning Instructions:

• Assemble instrument. Be sure the bite-block is centred in aiming ring .
• Place appropriate size film in instrument with imprinted side of film away from x-ray tube head.

1."White toward light" - place plain or white side of film toward x-ray tube head.
2. Do not bend back the bite block when inserting the film.

• Position instrument in patient's mouth as posterior as possible, away from the teeth and in the mid-palatinal or mid-tongual area. Center film on the teeth to be radiographed.

1.  "Lean and tip"- lean the chair back just a little and/ or tip the patients chin up to facilitate placement of the FPS instruments into the center of the patient's mouth.For exposure, the occlusal surface should be parallel to the ground.

2.  For bitewing exposures, the patient should be biting on the same arch as the teeth being radiographed. When assembled correctly, the bitewing instrument should hold the film with the plain side facing the bite-block's bite surface and the x-ray tubehead.

3. For endo, place the instrument over the tooth, files and clamps, resting on the adjacent teeth. If using a rubber dam, release the top or bottom of the dam from the frame. The dam and frame do not need to be removed.

• Instruct patient to close slowly and bite . A cotton roll can be placed between the bite-block and the opposite teeth for added comfort and stability.

1. "Gentle ; Breath " - ask the patient to gently bite down and then several breaths; it gives them something to concentrate on other than the radiograph procedure.

• Position tubehead parallel to indicator arm and centered on aiming ring.
• Make exposure.

• Country of Origin: Made in PRC

• Warranty is not applicable for this product.

Question: Is it compatible with RVG sensor ?
Answer: The Dental Intra-Oral Film Positioning System is designed specifically for positioning radiographic films and is not compatible with RVG sensors. Its functionality is tailored for traditional radiographic film usage.

Question: Is this system compatible with all types of dental X-ray machines?
Answer: The system is designed for use with dental X-ray machines, but compatibility may vary. It's essential to ensure that your X-ray machine is suitable for this positioning system.

Question: Are there any precautions I should be aware of when sterilizing the Dental Intra-Oral Film Positioning System?
Answer: Plastic parts have a limited lifespan and should be replaced periodically. Any sterilization method may shorten the life of plastic parts.

Question: What components are included in the kit?
Answer: The kit includes bite blocks, aiming rings, and indicator arms for different types, such as Anterior, Posterior, Endodontic, and Bitewing.

Question: What is the Dental Intra-Oral Film Positioning System Complete used for?
Answer: The system is used for X-ray film positioning in dental radiography, specifically for the Paralleling technique.
