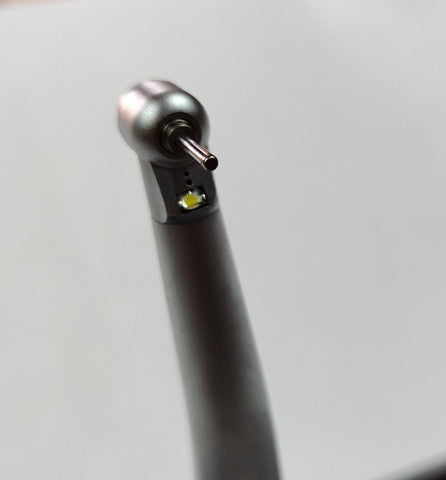

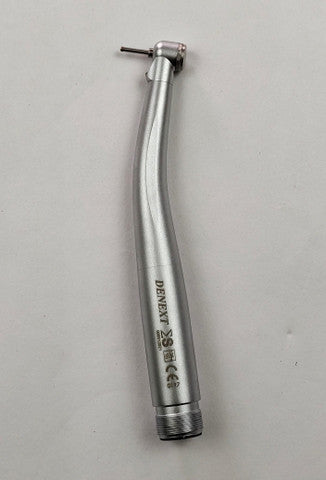

Denext Mini Head LED Airotor Handpiece

Denext Mini Head LED Airotor Handpiece

Rs. 4,200.00
Rs. 5,500.00 Rs. 4,200.00
Sale Sold out

The Denext Mini Head LED Airotor Handpiece is a premium, high-speed dental handpiece engineered to provide dental professionals with superior access, maneuverability, and visibility during clinical procedures. Specially designed with a compact mini head, this airotor is ideal for pediatric dentistry, geriatric cases, and patients with limited mouth opening.

Equipped with an integrated self-luminous LED light source, it delivers focused, day-light quality brightness directly to the operative site, reducing eye strain and improving clinical outcomes. Constructed from high-quality, corrosion-resistant alloy, this handpiece features a push-button chuck mechanism for easy bur changes, high rotation speed of up to 350,000 RPM, and is fully autoclavable at temperatures up to 135°C to meet strict clinical sterilization standards.

Features

  • Compact Mini Head: Small head design offers exceptional visibility and access to hard-to-reach posterior regions and restricted oral cavities.
  • Self-Luminous LED Light: Integrated LED provides shadow-free, intense illumination directly on the treatment field for enhanced precision.
  • Push-Button Chuck Mechanism: Safe and easy bur changing system allows for quick and effortless insertion and removal of burs.
  • High-Speed Performance: Powerful rotation speed of up to 350,000 RPM ensures clean, rapid, and efficient cutting.
  • Fully Autoclavable: Designed to withstand repeated autoclave sterilization at temperatures up to 135°C, ensuring patient safety.
  • Ergonomic Design & Grip: Lightweight body with an ergonomic anti-slip grip reduces hand fatigue during long restorative or surgical sessions.

Description

Specification

  • Brand: Denext
  • Product Type: High-Speed Airotor Handpiece
  • Head Size: Mini Head
  • Illumination: Integrated LED
  • Chuck Type: Push-button chuck
  • Operating Speed: 300,000 - 350,000 RPM
  • Air Pressure: 0.22 - 0.25 MPa
  • Bur Compatibility: 1.59 - 1.60 mm standard FG burs
  • Sterilization: Autoclavable up to 135°C (275°F)
  • Coupling Type: Standard 2-hole / 4-hole connection (Borden/Midwest)

Packaging

  • 1 x Denext Mini Head LED Airotor Handpiece
  • 1 x Back Cap Wrench / Bur Key
  • 1 x User Operation & Care Manual

Direction to use

  • Connection: Align and securely connect the handpiece to your dental chair's tubing coupling (2-hole or 4-hole). Tighten the metal nut firmly.
  • Bur Insertion: Press the push-button on the back cap of the handpiece head firmly. Insert the compatible FG bur into the chuck, then release the button. Pull the bur gently to ensure it is locked in place.
  • Operation: Depress the foot control pedal on your dental unit to start the airotor. Ensure that the water spray and air pressure are regulated within the recommended 0.22 - 0.25 MPa.
  • Bur Removal: Wait for the handpiece to come to a complete stop. Press the push-button cap and pull the bur out from the head.
  • Maintenance & Lubrication: After every clinical use, clean the handpiece exterior. Apply 2-3 drops of high-quality handpiece lubricant oil into the air drive line. Run the handpiece for 10 seconds to distribute the oil and purge excess residue.
  • Sterilization: Place the lubricated handpiece into a sterilization pouch. Autoclave at 134°C for standard cycle. Do not chemical disinfect or dry heat sterilize.
