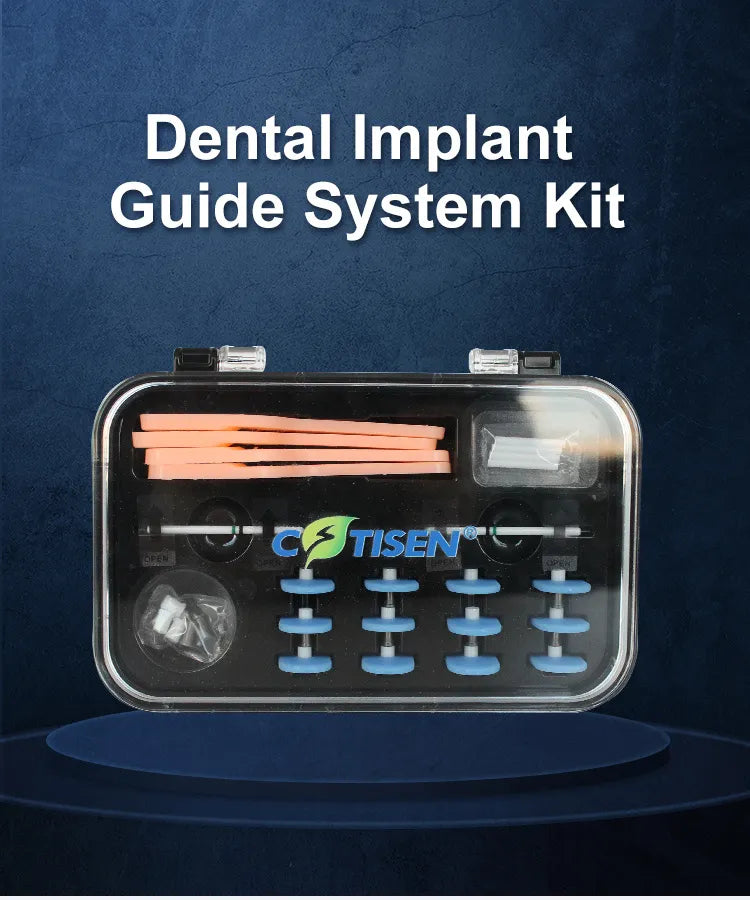

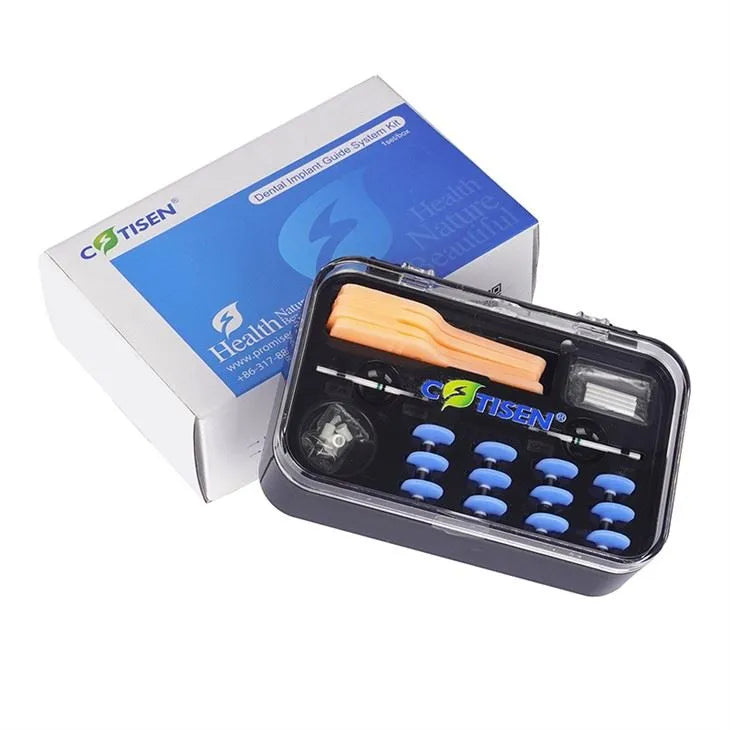

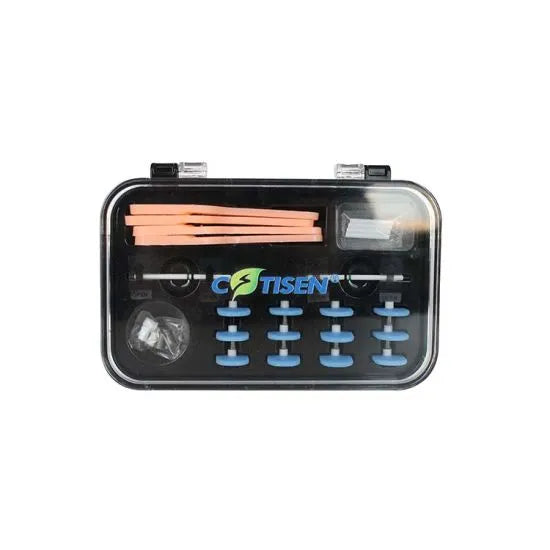

Cotisen Dental Implant Guide System Kit

• Autoclavable Drills at 134°C.
• Easy to use
• Light-weighted
• Corrosion resistance
• Surgical guide is easy to fabricate on a study model in minutes using hot water alone.
• Surgical guide can be used for single or multiple implant sites.

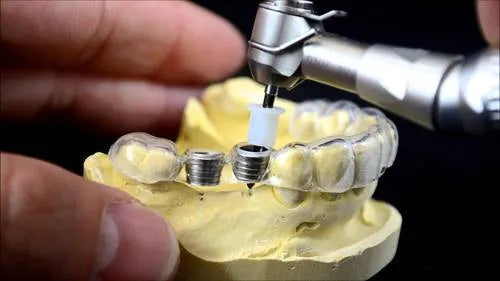

• Surgical guide provides accurate point of entry, angulation and depth control during surgery.

Dimensions : 150 x 100, 7 x 45mm

Positioning Poreclain Ring : diameter 2.3mm & 3.0mm

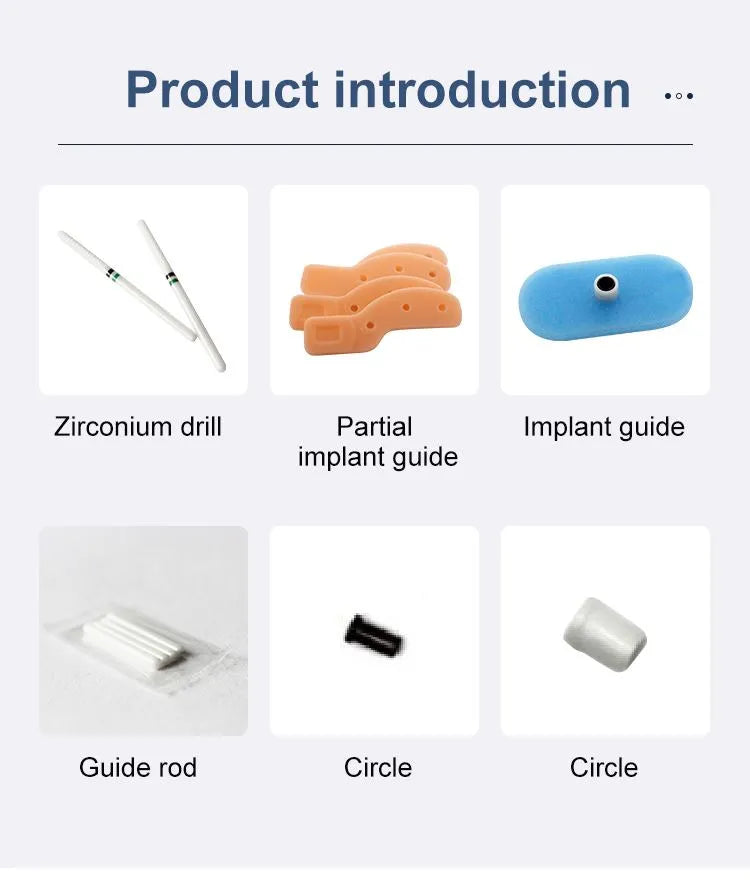

• 2 x Zirconium Drills,

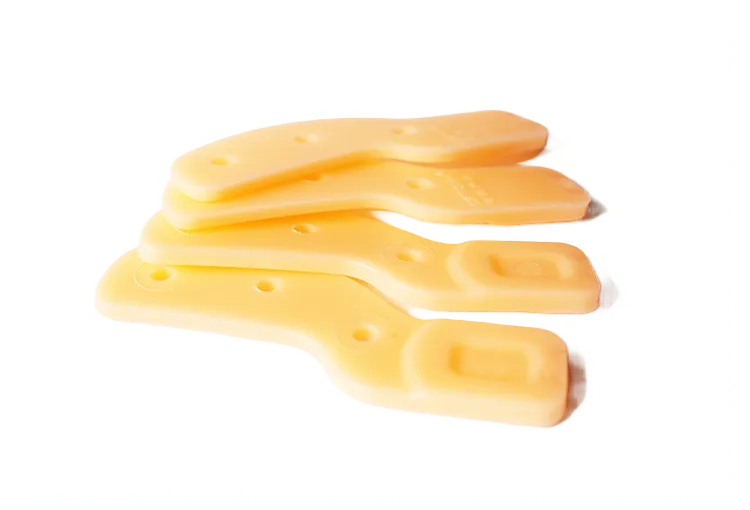

• 4 x Partial Implant Guide

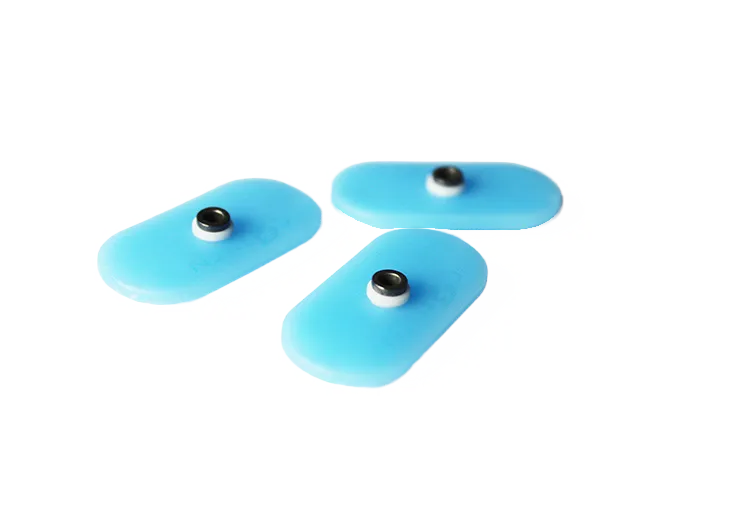

• 12 x Thermoplastic Implant Guide
• 4 x Guide Rod
• 6 x Positioning poreclain Ring

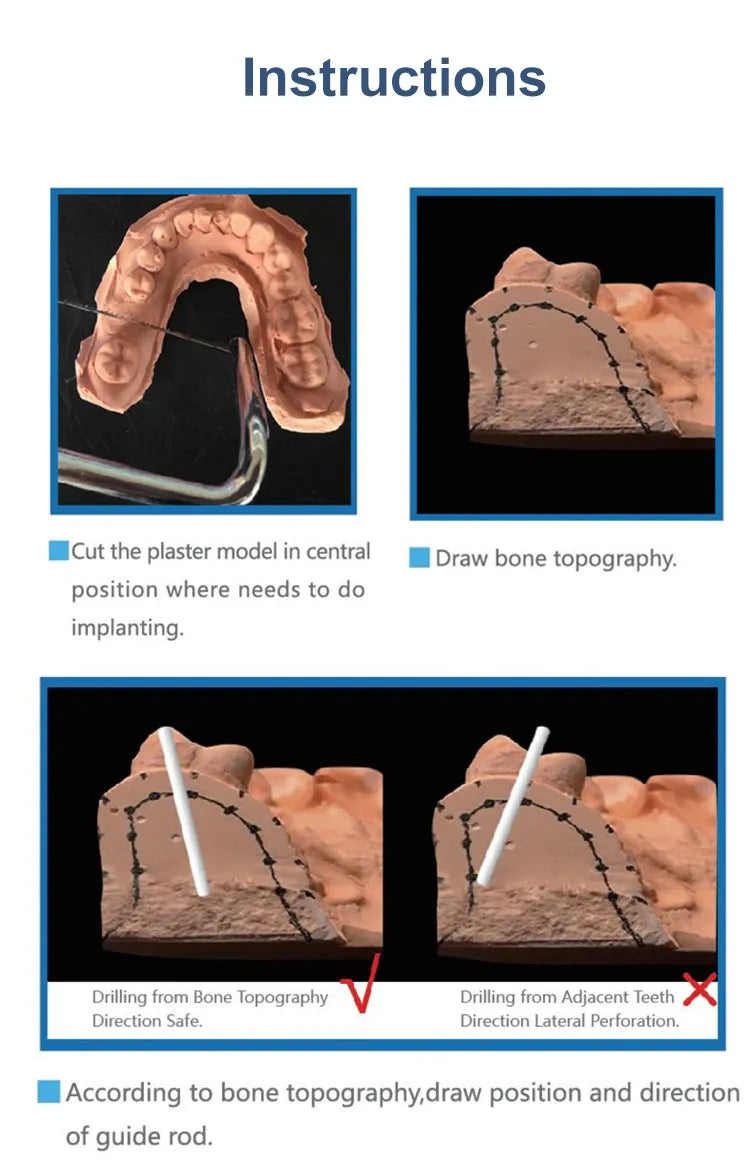

• Make the research plaster model according to the topo-bone condition, the direction of the long axis of adjacent teeth, the occlusal state and so on, indicate the position of the implantation on the section of the model, and measure the angle & direction of the implant model visually.
• Use a 2.3mm drill to enter the specified position , then insert with a guide rod to determine the ideal hole track .
• Use tweezers to place the system in a glassware with hot water at about 70°C untill the color of the thermoplastic surgical guide becomes completely transparent.
• Take out the surgical guide , pass the positioning porcelain ring through the guide rod, cover and make the retention on the adjacent teeth.
• Pull out the guide rod, remove the surgical implant guide system from the research plaster model after it sets, try it on the patient's mouth, check its position and retention, test the range of the implant site and the efect of positioning, then adjust and modify, and sterilize for use. (dipping slerilization). Surgical guide should be cold sterilized prior to usage and is for single use only.

• Country of Origin: Made in PRC

Question : Is there any specific maintenance or care required for the kit components?
Answer: The Zirconia Drills can be autoclaved for sterilization. The surgical guide should be cold sterilized before use. Ensure that all components are properly cleaned and sterilized to maintain hygiene.

Question : Can this system be used for both single-tooth and multiple-teeth implants?
Answer: Yes, based on the location and quantity of implants, the Cotisen Dental Implant Guide System Kit is suitable for both single-tooth and multiple-teeth implant procedures.

Question : How is the Thermoplastic Implant Surgical Guide for Pilot-Drilling used?
Answer: The Thermoplastic Surgical Guide can be softened after immersion in hot water. It can then be molded to cover and retain adjacent teeth, creating an accurate surgical guide. Please note that the surgical guide should be cold sterilized before usage and is for single-use only

Question : What are the advantages of using Zirconia Drills in this kit?
Answer: Zirconia drills have several advantages, including autoclavability at 134°C, high hardness, high strength, wear resistance, and oxidation resistance. They positively influence bone healing compared to stainless steel drills.

Question : How does the Positioning Porcelain Ring work in this system?
Answer: The Positioning Porcelain Ring serves as a panoramic X-ray or CBCT marker. It helps dentists determine whether the position and angle of the drill are suitable for implant placement.

Question : What is the Cotisen Dental Implant Guide System Kit used for?
Answer: The Cotisen Dental Implant Guide System Kit is designed for dental implant surgery. It helps in the placement of single teeth or multiple teeth implants, allowing dentists to determine implant location more accurately and quickly.
