Coltene Diatech Inlay & Crown Preparation Kit (250006AA)
Coltene Diatech Inlay & Crown Preparation Kit (250006AA)
Couldn't load pickup availability
The Coltene Diatech Inlay & Crown Preparation Kit (250006AA) is a meticulously designed dental bur kit engineered for swift, uncomplicated, and precise tooth preparation necessary for a wide array of crown and bridge restorations, veneers, and Onlays. This kit is meticulously crafted to ensure an exceptional marginal fit, a crucial factor in the long-term success and durability of dental restorations. The kit comprises 14 multilayered gold-plated diamond burs, thoughtfully curated for their effectiveness in crown and bridge preparation procedures. These burs feature a friction grip shank configuration and are constructed with a stainless steel shank coated with diamond particles. Additionally, they are autoclavable at temperatures of up to 134°C, guaranteeing sterility and safety in dental practice. The Coltene Diatech Inlay & Crown Preparation Kit comes in premium packaging, reflecting its commitment to quality and precision in dental procedures.
Features
Features
- High-quality diamond burs.
- Autoclavable at 134C.
- Premium packaging.
- Friction grip shank configuration.
Description
Description
Specification
Specification
Shank type - Friction grip
Material - Stainless steel Shank Coated with diamond particles
Autoclavable upto 134°C
Color band on shank :
- Regular - Blue
- Fine - Red
Packaging
Packaging

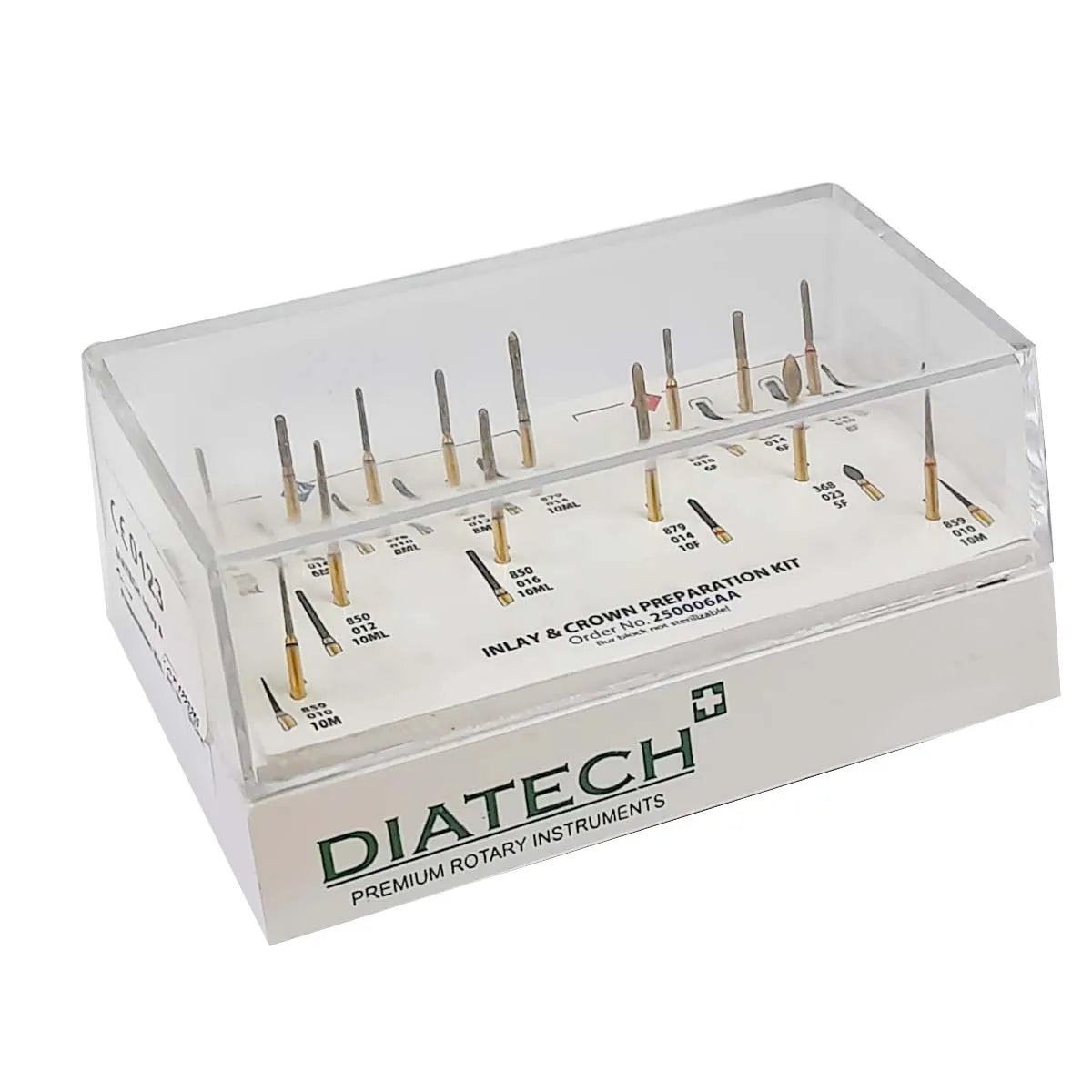

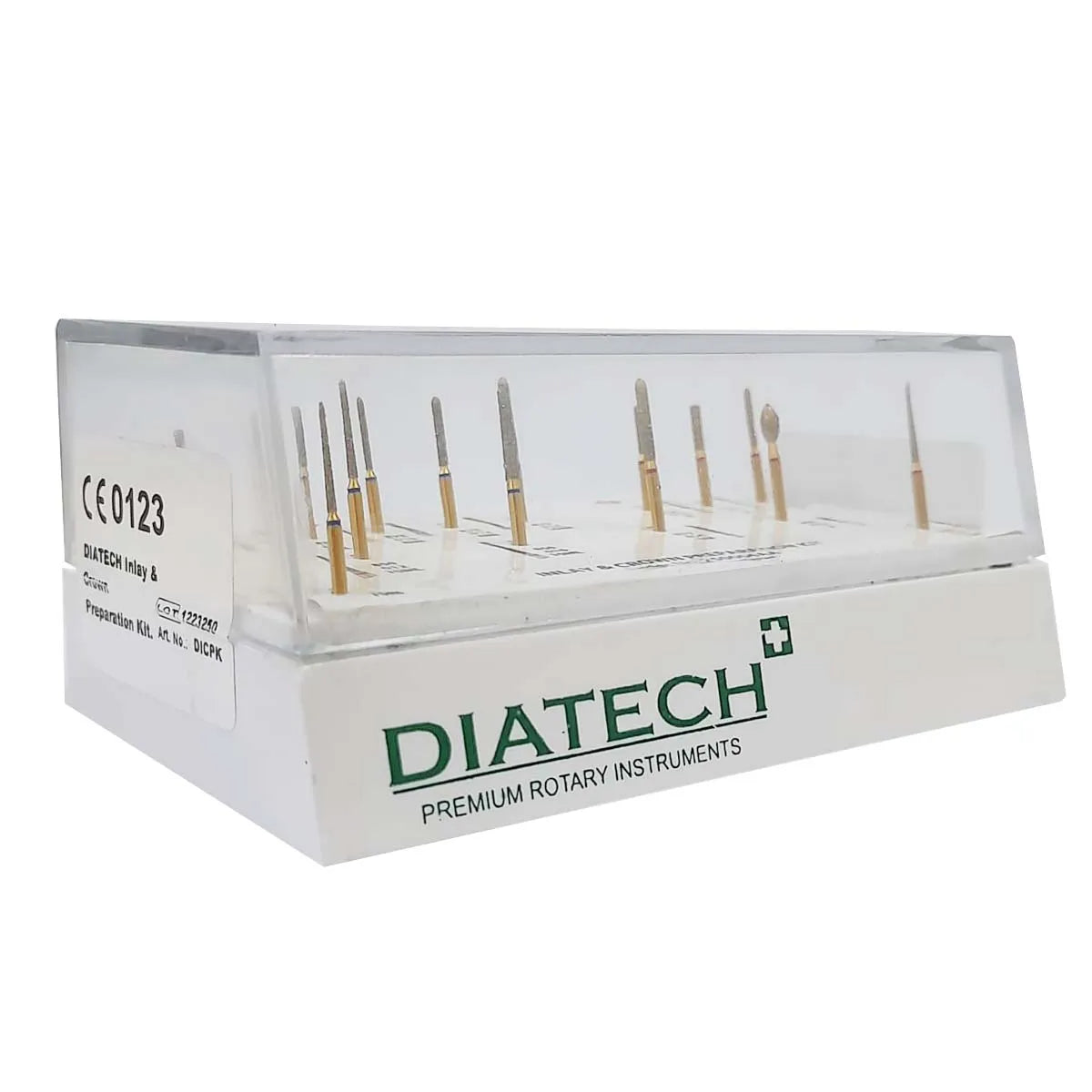

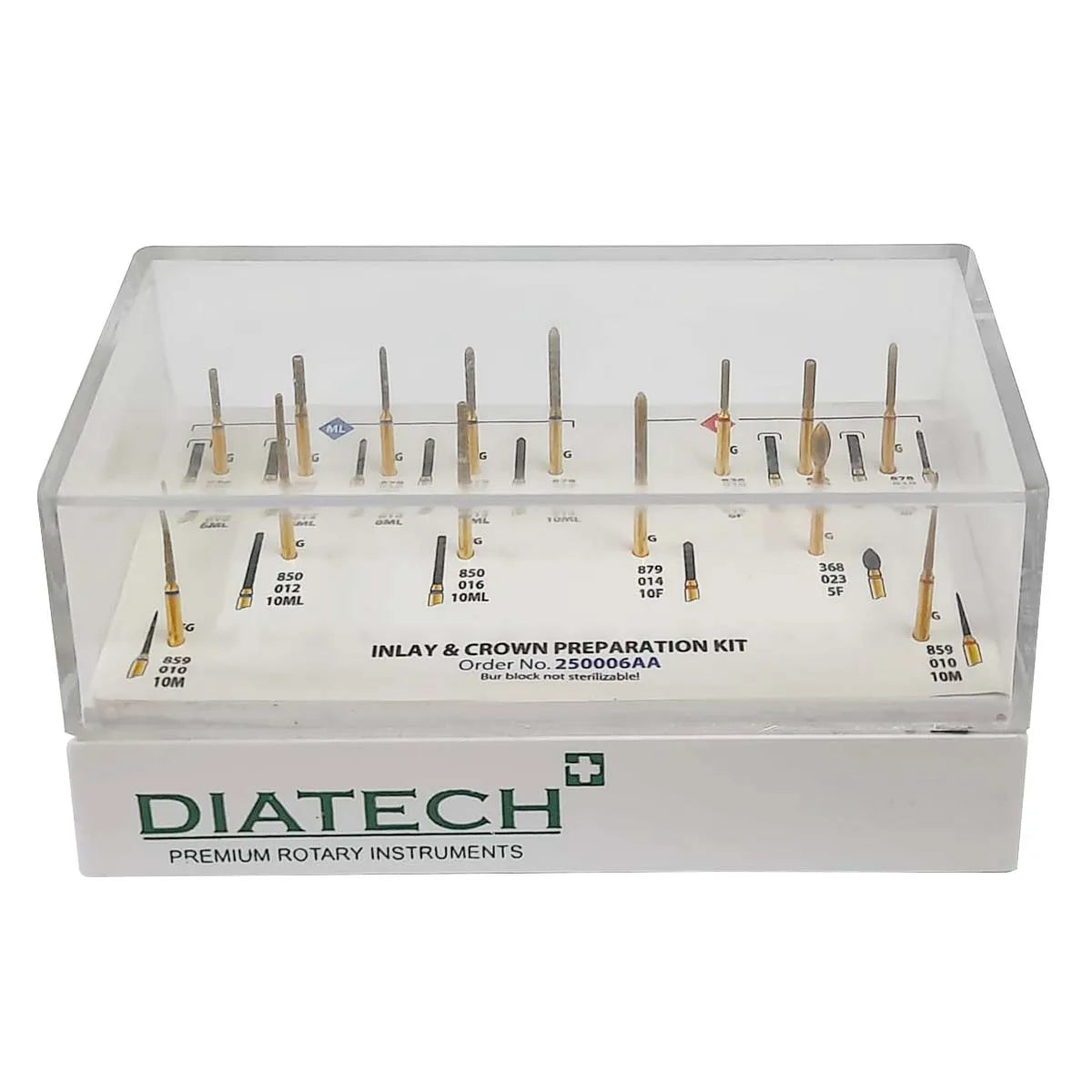

Kit of 14 Burs:
- 1 x 836-010-6ML
- 1 x 836-014-6ML
- 1 x 878-010-8ML
- 1 x 878-012-8ML
- 1 x 879-014-10ML
- 1 x 836-010-6F
- 1 x 836-014-6F
- 1 x 878-010-8F
- 1 x 850-012-10ML
- 1 x 850-016-10ML
- 1 x 879-014-10F
- 1 x 368-023-5F
- 1 x 859-010-10ML
- 1 x 859-010-10F
Direction to use
Direction to use
- Insert the instrument as deeply as possible into the chuck (Friction Grip).
- Set the handpiece at the required working speed before applying the instrument to the treated area.
- Apply a maximum operating force of 0.4 [N] and do not exceed a speed of 230'000 [rpm].
- Activate water spray during the entire treatment (minimum 50 mL/min).
- Regulate water flow in case of water excess or shortage.
- It is recommended to use a dental dam.
- Use the instruments over the entire length of their working part and not just at the tip, so as to avoid an unconscious increase of the contact pressure causing local overheating.
- Once the preparation has been completed, remove the instrument from the site and allow it to come to a standstill.
- It is recommended to wear gloves and safety glasses.
Additional info
Additional info
Warranty
Warranty
- Warranty is not applicable for this product.
Product Related Questions
Product Related Questions
Question: Can these burs be used for pediatric or specialized dental procedures?
Answer: These burs are primarily designed for crown and bridge procedures in adult dentistry.
Question: What is the recommended autoclave temperature and sterilization procedure for these burs?
Answer: The recommended autoclave temperature for sterilization is up to 134°C. Please follow standard dental sterilization procedures.
Question: Can you provide more details about the materials used in the kit's construction?
Answer: The burs are constructed with a stainless steel shank coated with diamond particles for durability and precision.
Question: What type of shank configuration do the diamond burs have?
Answer: The diamond burs in this kit have a friction grip shank configuration.
Question: Are the diamond burs in this kit suitable for single-use or can they be sterilized and reused?Answer: These diamond burs are intended for single-use and are not recommended for sterilization or reuse.
Question: What does the Coltene Diatech Inlay & Crown Preparation Kit include?
Answer: The kit includes 14 premium diamond burs specially designed for crown and bridge tooth preparation.
