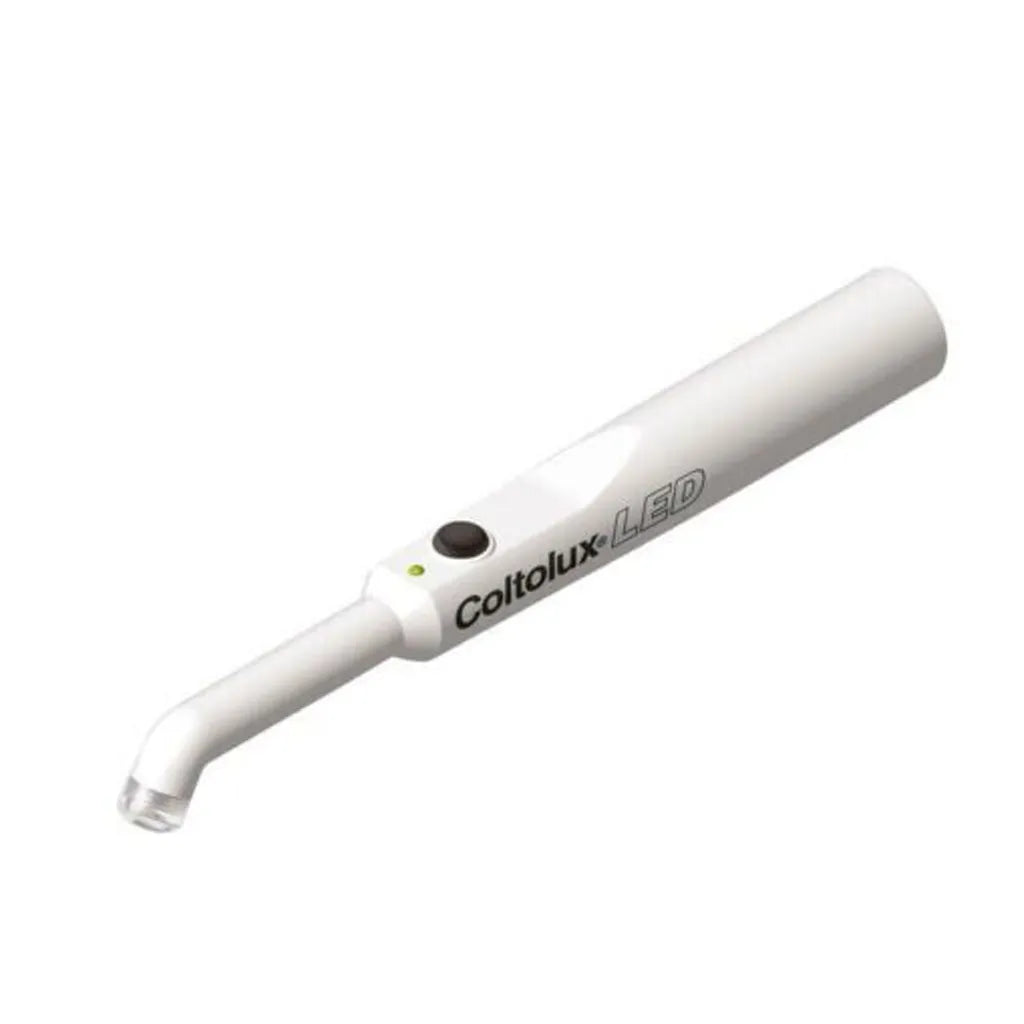

Coltene Coltolux Led Light Cure

• High output LED for fast cures. Cures 2 mm in only 10 s.
• Dome shaped lens minimizes light diffusion.
• LED light output matches the absorption spectrum of Camphorquinone (CQ) Photoinitiators.
• Audible signal every 10 s and automatic power saving sleep mode after 20 s of operation.
• Hundreds of 10-s cures with a fully charged power cell.

Technical Data

• Handpiece wavelength range: 450 nm/470 nm
• Peak wavelength range: 460 nm
• Light output diameter: 9.0 mm

Dimensions

• Curing probe: 0.48 (1.22 cm)diameter
• Body: 1.0 (2.5 cm) diameter
• Length: 8.7" (22 cm) long
• Weight: 022 lb. (100 grams)

Charger Base Dimensions

• Height: 2.9" (74 cm)
• Width: 2.5" (6.4 cm)
• Depth: 3.5" (8.9 cm)

Power Supply

• Input Voltage: 100-240 watt

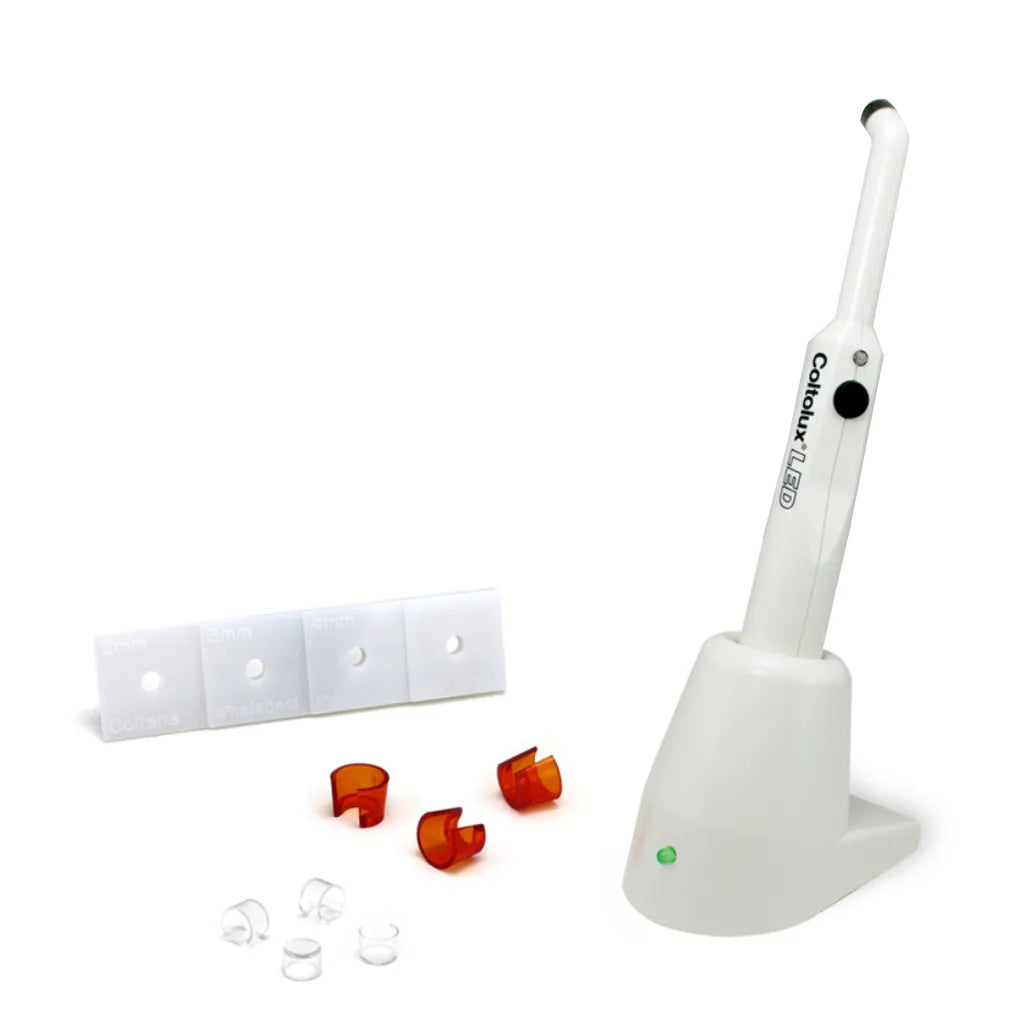

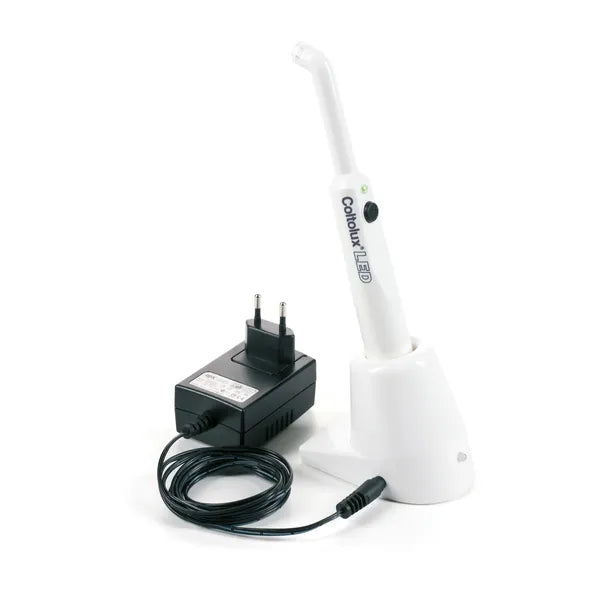

• 1 x Handpiece
• 1 x Charger Base
• 1 x Power Supply
• 3 x Light Shields
• 5 x Light Lenses
• 100 x Barrier Sleeves

SET-UP AND ASSEMBLY

• Remove the protective insert by first sliding the release button in the direction indicated by the arrow. Hold the button in this position while removing the insert from the supply.
• Angle the top of the new adapter into the recess of the supply. Slide the release button in the direction indicated while simultaneously pressing the new adapter into place.

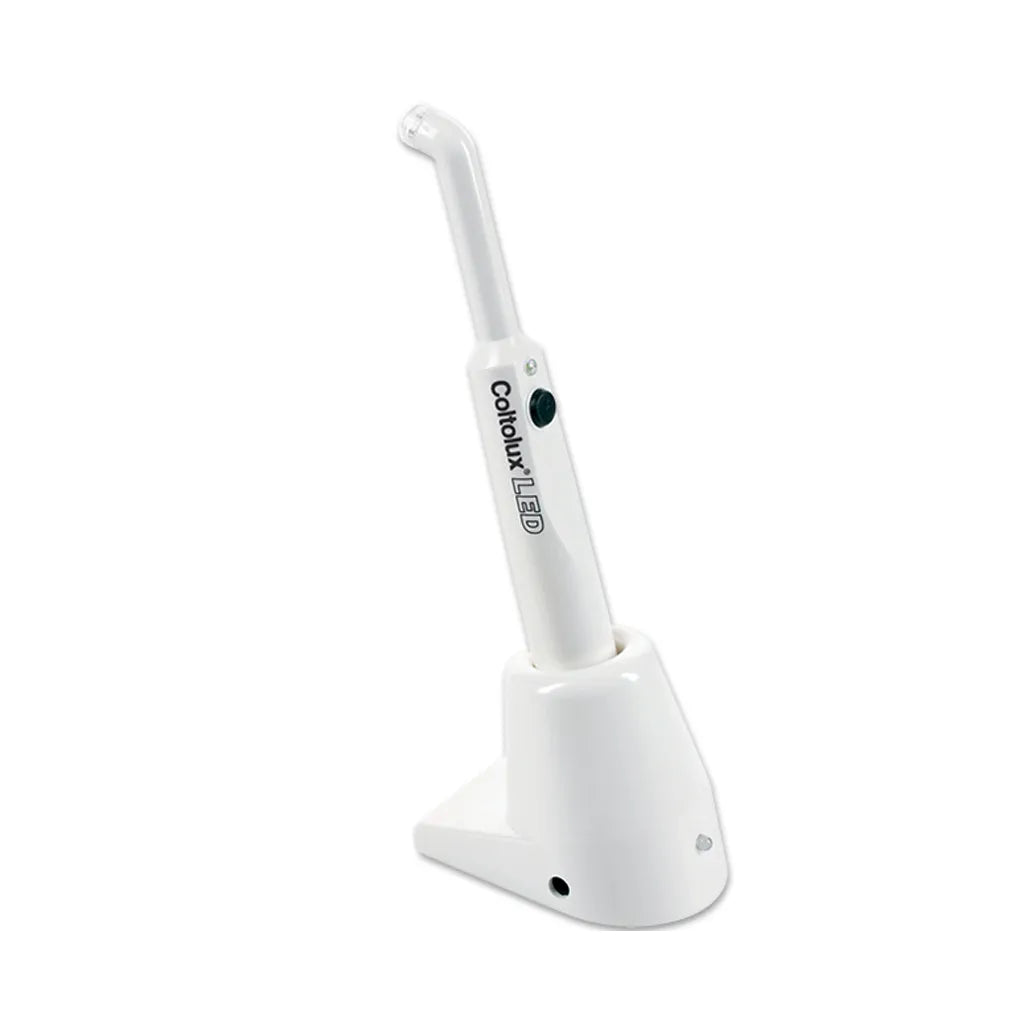

• Insert the handpiece into the charger base. When the handpiece is being charged, the light on the charger base will be orange. When the handpiece is fully charged and ready, the orange light
  on the charger base will turn green. The initial charging of the handpiece will require approximately 3 hours to fully charge.
• When the handpiece is removed from the charger base the small light above the On/Off button on the handpiece will be green, indicating the unit is ready for use.

FUNCTION CHECK

• Activate/Deactivate Light - Depressing the On/Off button on the handpiece activates or
  deactivates the curing light. Do not hold the button continuously throughout the curing cycle. During operation an audible beep will be emitted every 10 seconds. The unit shuts off
  automatically after 20 seconds.
• Measuring the Light’s Effectiveness - To ensure complete polymerization at all times, it is critical to periodically test the light intensity output.
• Radiometer Display - A reading of 300 mW/cm2 or higher indicates that the light output
  is acceptable for the polymerization of material up to a 2.0 mm depth. Follow the dental material manufacturer’s instructions for recommended exposure time, and check using the supplied test block. A reading below 300 mW/cm2 or a reduction of intensity of the light output in comparison to the original value, indicates that corrective action should be taken.

CLINICAL APPLICATION

• Polymerization: Determine the exposure time in accordance with the dental material manufacturer’s instructions using the test block provided. If the exposure time exceeds 20 sec,
  COLTENE recommends including a cooldown time before initiating another cycle. Failure to do so increases the risk of tissue burns and inadvertent heating of the dental pulp.
• Remove the charged handpiece from the charger base; position the light shield; slide the single use barrier sleeve over the light; attach the light shield direct the tip of the light
  lens as close to the restorative material as possible without touching.
• Activate Coltolux® LED with a momentary push of the button. Avoid contact with un-polymerized restorative material, glass ionomer, liquid resin or bonding agent because direct
  contact will cause these materials to adhere to the light lens. This will block the light transmission and result in improper polymerization.
• To safely terminate procedure, press and release activation button.

• Country of Origin: United States
• Manufacturer: Coltene/ whaledent Inc.

• Manufacturer/Importer warranty of 24 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What is the function of the thermal protection circuitry?
Answer: The thermal protection circuitry inactivates the unit if it becomes too hot during operation and will reactivate once it cools to a safe temperature.

Question: How often should the light intensity output be tested, and how is it done?
Answer: Periodically test the light intensity output. A reading of 300 mW/cm² or higher indicates acceptable output. Follow dental material manufacturer's instructions for exposure time and use the supplied test block.

Question: What is the significance of the audible beep during operation?
Answer: The audible beep is emitted every 10 seconds during operation to signal proper curing intervals, ensuring accurate results.

Question: How does the Coltolux LED ensure proper curing of dental materials?
Answer: It matches the absorption spectrum of Camphorquinone (CQ) photoinitiators, ensuring efficient and rapid polymerization of dental materials.

Question: What is the expected battery life of the cordless unit?
Answer: The Coltolux LED can perform hundreds of 10-second curing cycles with a fully charged battery.

Question: Who are the intended users of the Coltene Coltolux LED Curing Light?
Answer: The intended users are dentists and registered dental assistants. It is not intended for use by the general population.

Question: What are the indications for use of this device?
Answer: The Coltolux LED is intended to seal and protect decayed tooth enamel and dentin, bond dental braces, and repair or restore enamel and dentin damaged by physical trauma.

Question: Can the Coltolux LED be used for both intraoral and extraoral restorations?
Answer: Yes, the Coltolux LED is indicated for the polymerization of both intraoral and extraoral restorations.

Question: How does the heat sink technology in the Coltolux LED benefit users?
Answer: The heat sink technology reduces heat emission, enhancing patient comfort during procedures and eliminating the need for a fan, which improves the device's durability.

Question: What is the Coltene Coltolux LED Light Cure used for?
Answer: The Coltene Coltolux LED Light Cure is used for the polymerization of dental restorations made from materials containing Camphorquinone as the photoinitiator. It is commonly used for curing dental composites and adhesives.
