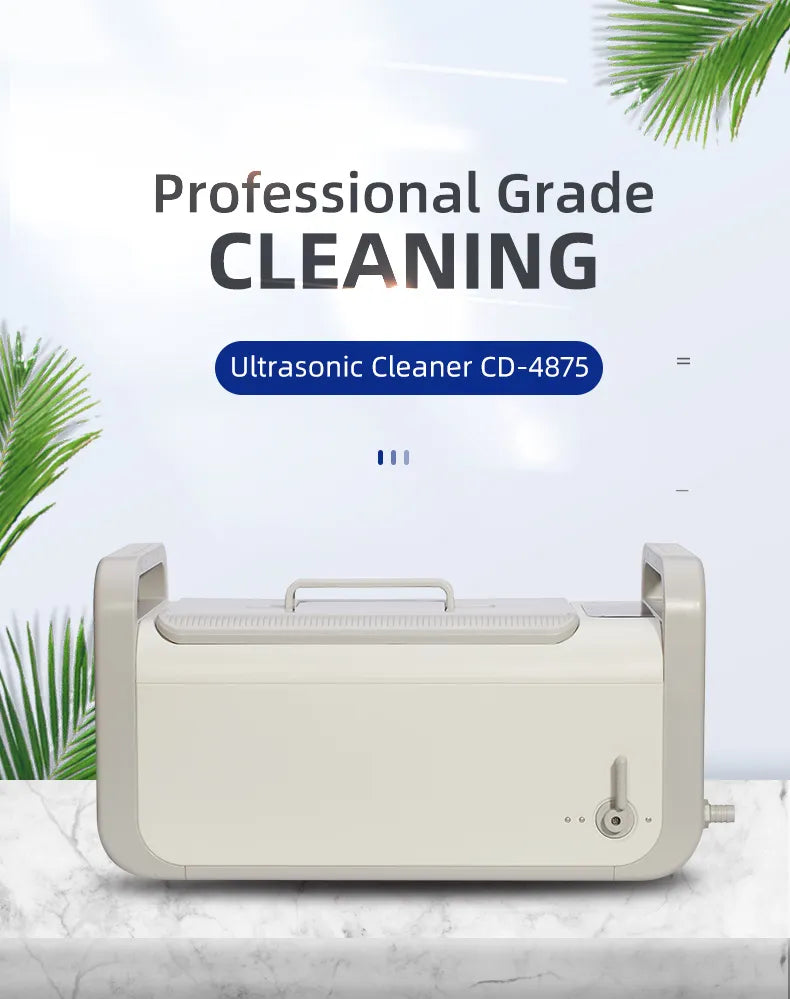

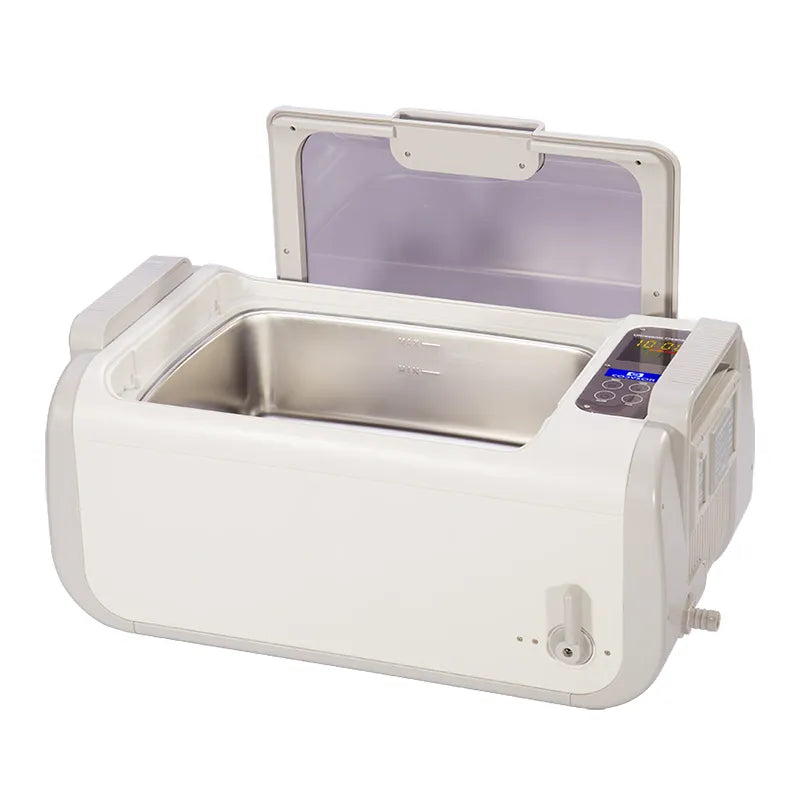

Codyson Ultrasonic Cleaner CD-4875

Intuitive Display: 3-color LED display for user-friendly operation.

Flexible Timer: 1 to 30-minute timer for adaptable cleaning sessions.

Temperature Settings: 3 options for customized cleaning efficiency.

Enhanced Cleaning: Degas function for improved performance.

Continuous Operation: 3 cooling fans ensure prolonged use.

Generous Capacity: 7500ml space for accommodating various items.

Medical-Grade Certification: Rigorous medical certifications for reliability.

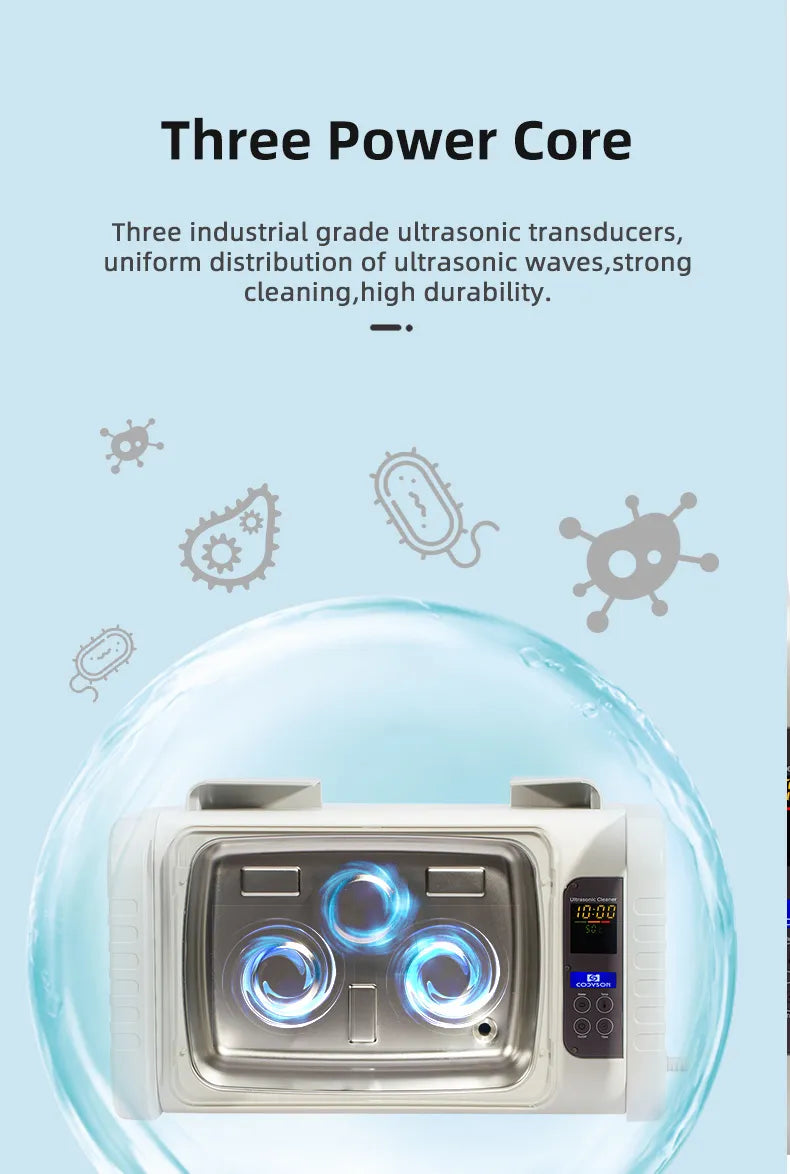

Industrial Transducers: 3 robust transducers for effective cleaning.

Durable Design: Moisture-proof PCB and IC for extended lifespan.

User-Friendly Cord: Detachable power cord for convenience.

Innovative Basket Design: Patented folding handles and locking mechanism for drainage.

Safety Assurance: Holds multiple safety certifications for secure operation.

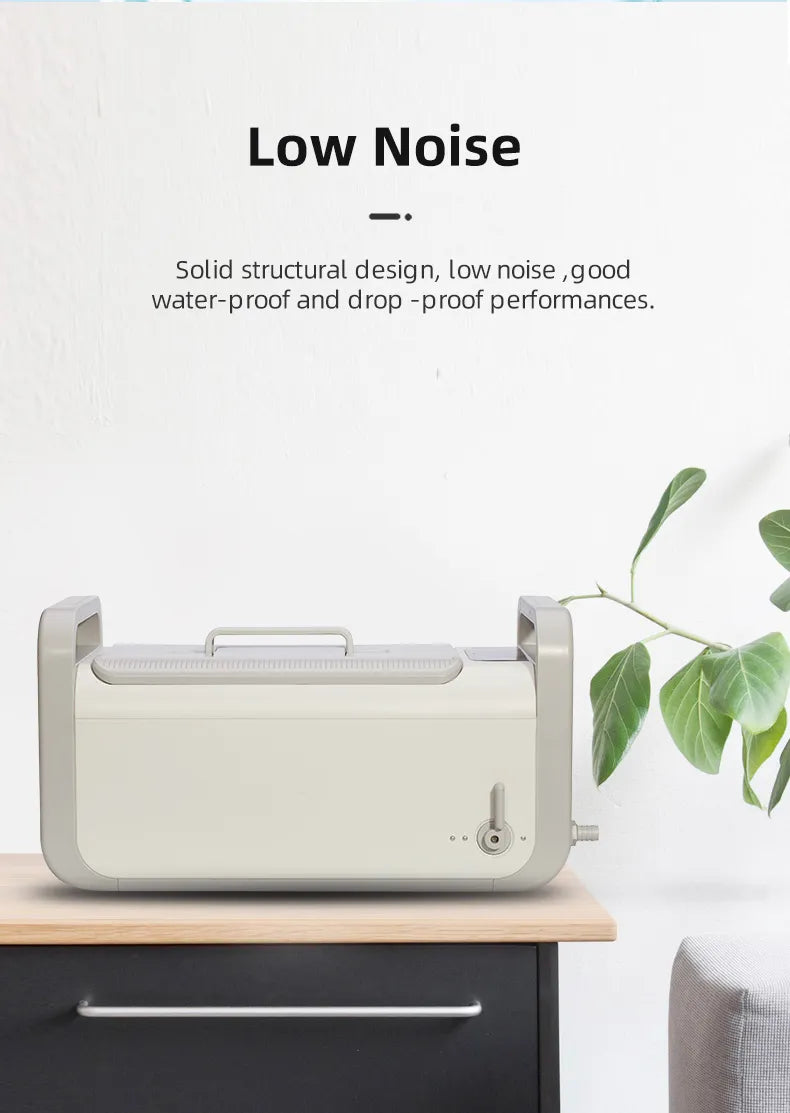

Quiet Technology: Solid-state circuitry ensures a tranquil working environment.

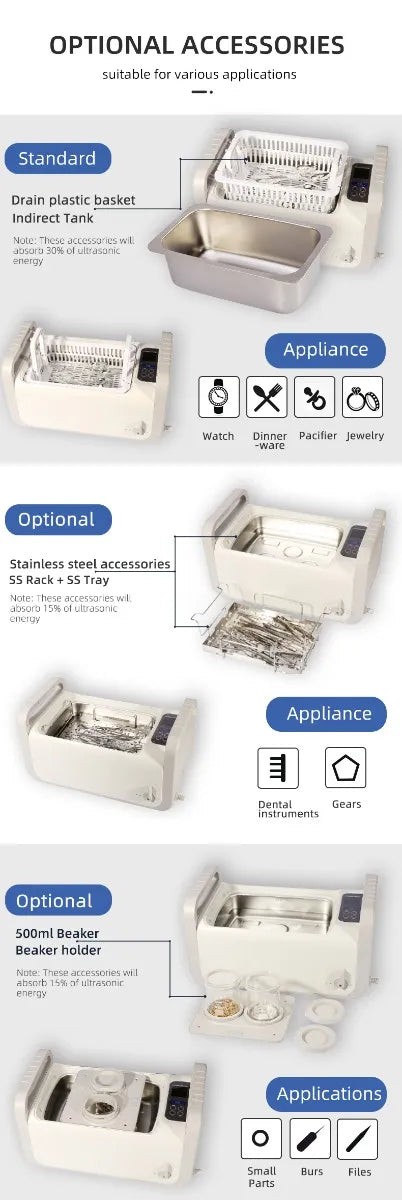

Customization Options: Various optional accessories for personalized use.

• Capacity: 7.5 liters
• Tank Size/Basket Size: 33.1x23.8x10.5cm
• Whole Unit Size: 54.1X33.7X27.7cm
• Ultrasonic Frequency: 35,000Hz
• Power Supply: 410w
• Transducers: 3 industrial-grade ultrasonic transducers
• Timer: 1 to 30-minute full-range timer
• Temperature Settings: 3 settings
• Cooling System: 3 cooling fans for continuous operations
• Housing Material: ABS 4.5mm thick housing wall. Durable and resistant to water and harsh chemicals
• Power Cord: Detachable for convenience
• Safety: Multiple safety certifications, quiet operation, solid-state circuitry
• Design: Patented design for the plastic basket with folding handles and a locking mechanism for water drainage
• Extras: Moisture-proofed PCB and industrial IC for improved durability

• 1 x Ultrasonic Cleaner Unit
• 1 x Top Cover
• 1 x Indirect Cleaning Tank
• 1 x Stainless Steel Rack and Tray
• 1 x Beaker and Beaker Holder
• 1 x Power Cord
• 1 x Hose
• 1 x User Manual

OPERATION GUIDELINES:

1.Remove the cover and put it on the cover holder vertically. Put items in the basket then put them in the cleaning tank. Add water to a level between MIN and MAX and above the area to be cleaned.
Caution: If the unit is turned on without water, ultrasonic energy will not be absorbed. This model also has high power. Once on for over 15 seconds, it may damage the unit or severely reduce the life of the unit.
10:00
2. Connect the power cord to an outlet and turn the switch on. LED display shows 10:00 This is the most common timer setting. If the timer needs to be adjusted, press Time button.
Select desired time setting by pressing Time button:
→10min-15min-20min-25min-30min →5min
Prolonged cleaning time may result in:
a. Loosening of the screws if used.
b. If items are plated and have existing cracks, the cracks may become more pronounced.
c. Coating with preexisting damages may experience more peeling.
3. Press On/Off button to start cleaning. During cleaning, buzzing sound can be heard from the cleaning tank, indicating that the cleaning is underway. Closing the lid will reduce the noise level.
The digital timer will count down to show the remaining cleaning time. When it displays 00:00, the cleaning is done.
To stop cleaning at any time, press On/Off button.
If The unit is equipped with overheat protector. If the unit has been running for too long, the red warning light will illuminate, indicating the unit is under overheat protection. The unit can not be operated until idling for about 15 to 20 minutes. The warning light turns off and the operation can be resumed.
4.Select one of the four cleaning methods recommended in the manual.
a. When the heater is needed, press TEMP button to select one of the 3 preset temperatures. Press Heater button, flashes, indicating the heater is turned on. When the water reaches the set temperature, dims, indicating the heater is turned off.
To ensure safety, the unit is designed with dual protections. The heater will be turned off automatically if it has been running for 50 minutes.
b. When debris "smoke" is no longer visible, cleaning is done. If additional cleaning is needed, reset the timer and repeat the steps above.
5.When cleaning is completed, switch off the power, open the lid and retrieve the basket and the items. Alternatively, raise and suspend the basket above water as illustrated in the Optional Accessories section to drain water in the manual.
Connect the hose to the drainage pipe as shown.
Open the drainage valve to drain the dirty water.
Clean and wipe the tank dry.
Close the drainage valve.
