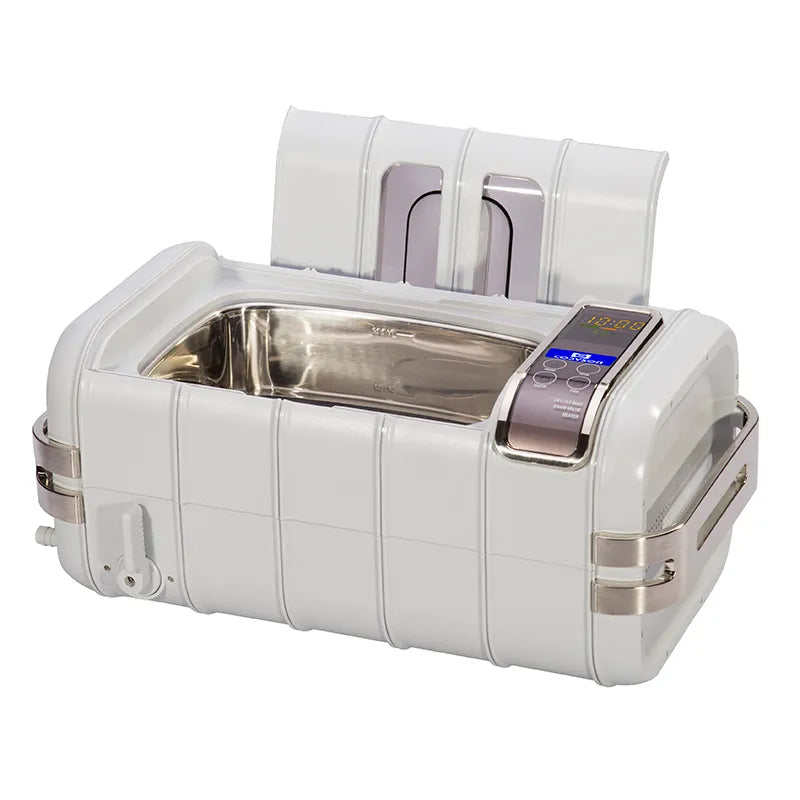

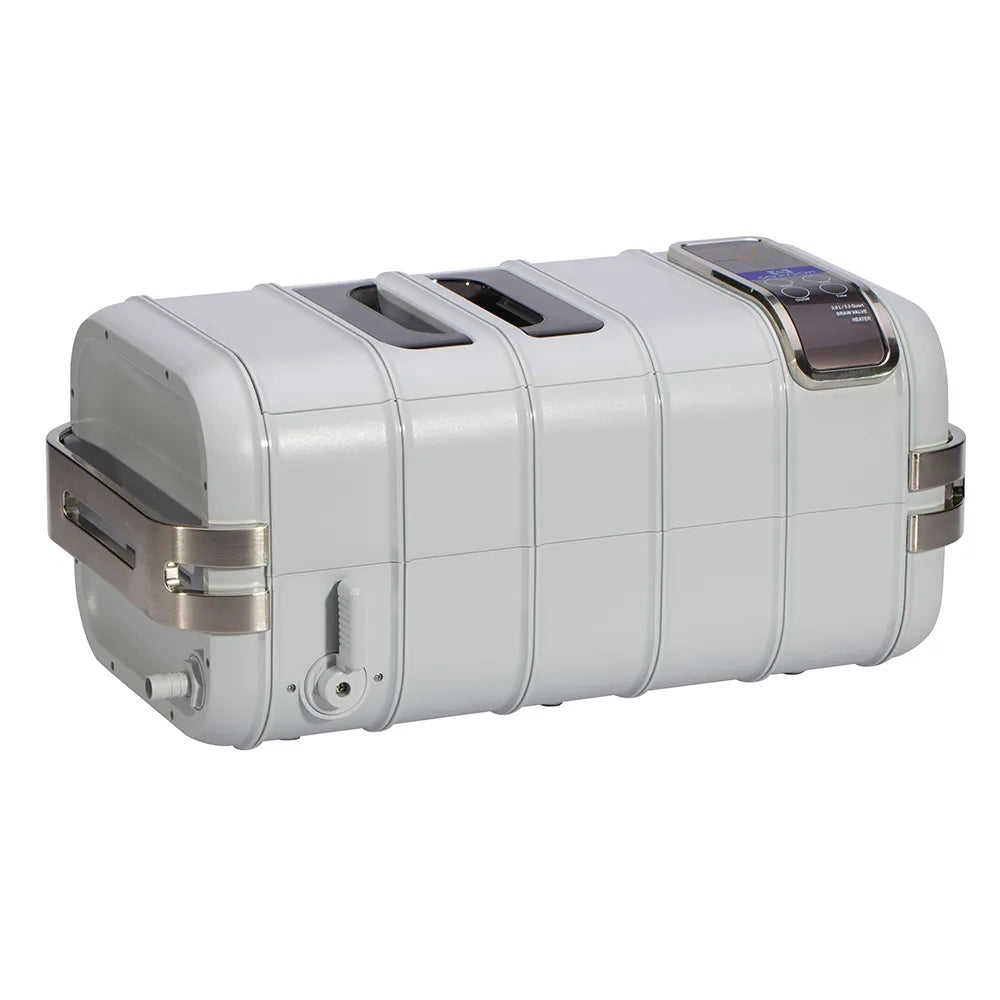

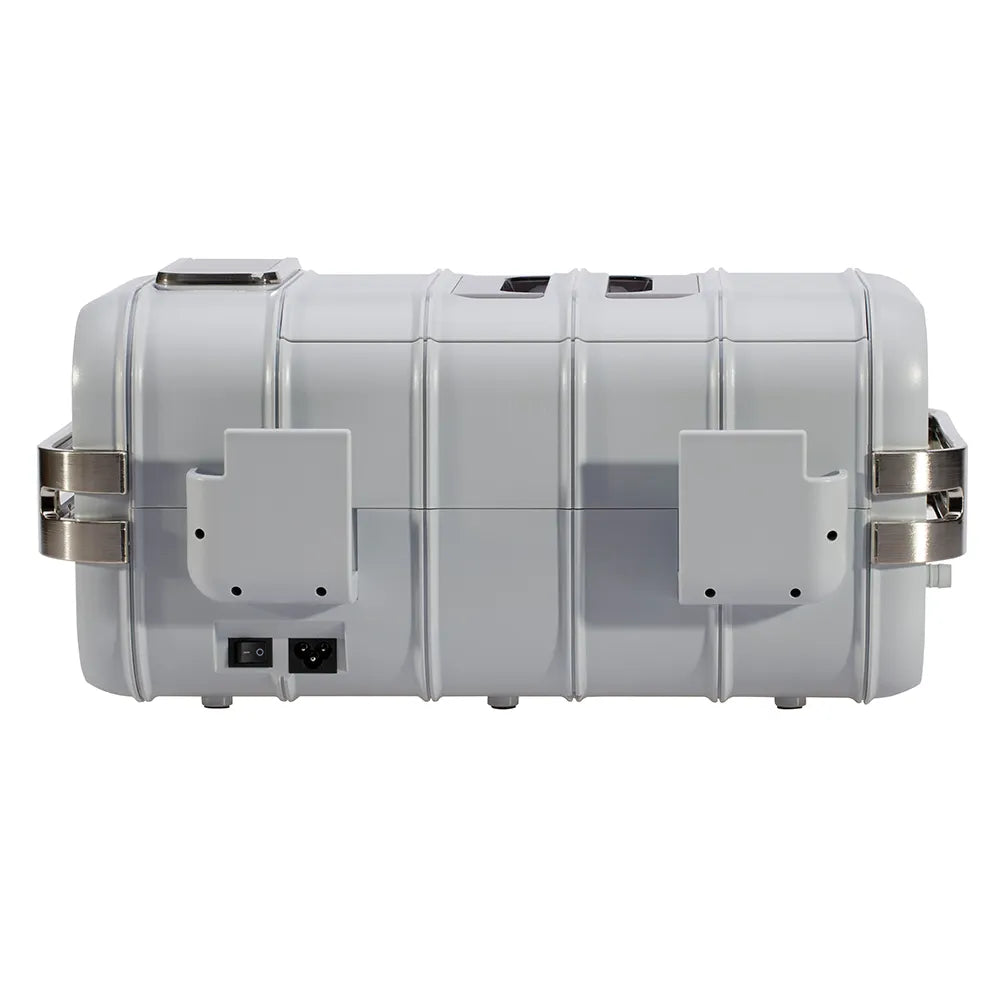

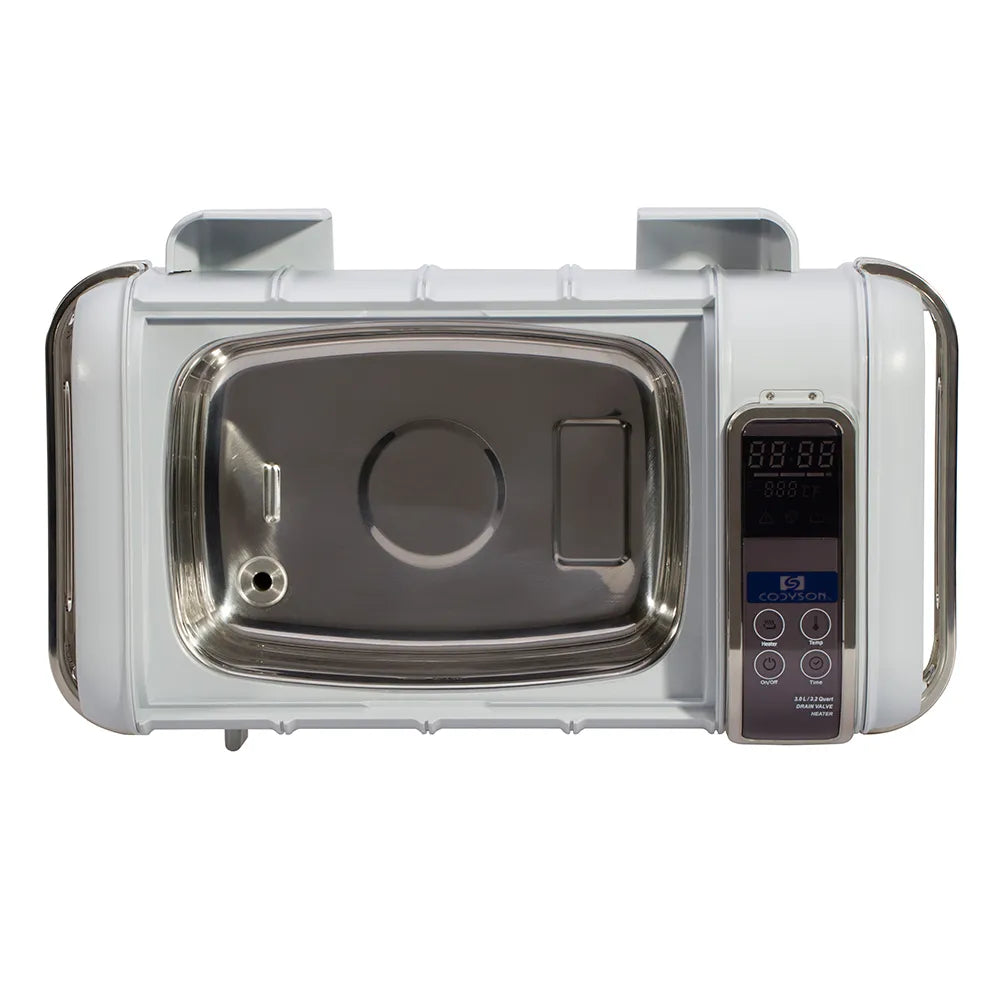

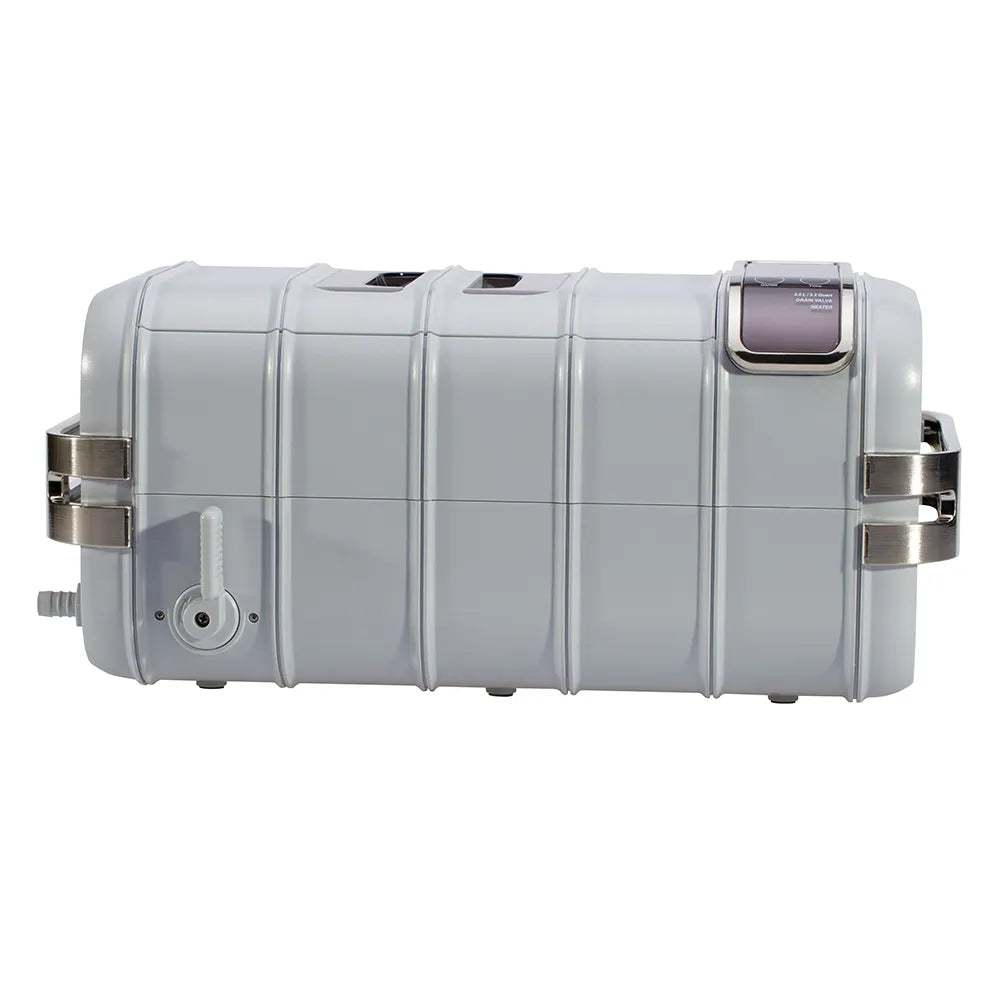

Codyson Ultrasonic Cleaner CD-4831

1. A 3.0L stainless steel tank for efficient cleaning.
2. Precise temperature control (50-60°C) for optimal results.
3. User-friendly touch screen for easy operation.
4. Durable 4.5mm engineering plastic housing ensures longevity.
5. Efficient double fixing structure for stability.
6. Built-in drainage valve for seamless cleanup.
7. Suited for medium and small practices.

• Tank Capacity: 3.0L
• Tank Size/Basket Size:25x17.4x7.8cm
• Whole Unit Size:45.5x27.5x21cm
• Power Supply: 170W
• Tank Material: SUS304 stainless steel
• Transducer Type: Industrial-grade Φ45/80W
• Frequency: 35KHz
• Heating Element: Ceramic heater (100W)
• Temperature Settings: 50°C, 55°C, 60°C
• Control: Digital control with capacitive touch screen
• Timer Settings: 6 options
• Housing Material: 4.5mm engineering plastic
• Fixing Structure: Double fixing for water resistance
• Display: 3-color LED

• 1 x Ultrasonic Cleaner Unit
• 1 x Top Cover
• 1 x Stainless Steel Rack and Tray
• 1 x Beaker and Beaker Holder
• 1 x Power Cord
• 1 x Hose
• 1 x User Manual

OPERATION GUIDELINES1.Remove the cover and put it on the cover holder vertically. Put items in the basket then put them in the cleaning tank. Add water to a level between MIN and MAX and above the area to be cleaned.
Caution: If the unit is turned on without water, ultrasonic energy will not be absorbed. This model also has high power. Once on for over 15 seconds, it may damage the unit or severely reduce the life of the unit.
10:00
2. Connect the power cord to an outlet and turn the switch on. LED display shows 10:00 This is the most common timer setting. If the timer needs to be adjusted, press Time button.
Select desired time setting by pressing Time button:
→10min-15min-20min-25min-30min →5min
Prolonged cleaning time may result in:
a. Loosening of the screws if used.
b. If items are plated and have existing cracks, the cracks may become more pronounced.
c. Coating with preexisting damages may experience more peeling.
3. Press On/Off button to start cleaning. During cleaning, buzzing sound can be heard from the cleaning tank, indicating that the cleaning is underway. Closing the lid will reduce the noise level.
The digital timer will count down to show the remaining cleaning time. When it displays 00:00, the cleaning is done.
To stop cleaning at any time, press On/Off button.
If The unit is equipped with overheat protector. If the unit has been running for too long, the red warning light will illuminate, indicating the unit is under overheat protection. The unit can not be operated until idling for about 15 to 20 minutes. The warning light turns off and the operation can be resumed.
4.Select one of the four cleaning methods recommended in the manual.
a. When the heater is needed, press TEMP button to select one of the 3 preset temperatures. Press Heater button, flashes, indicating the heater is turned on. When the water reaches the set temperature, dims, indicating the heater is turned off.
To ensure safety, the unit is designed with dual protections. The heater will be turned off automatically if it has been running for 50 minutes.
b. When debris "smoke" is no longer visible, cleaning is done. If additional cleaning is needed, reset the timer and repeat the steps above.
5.When cleaning is completed, switch off the power, open the lid and retrieve the basket and the items. Alternatively, raise and suspend the basket above water as illustrated in the Optional Accessories section to drain water in the manual.
Connect the hose to the drainage pipe as shown.
Open the drainage valve to drain the dirty water.
Clean and wipe the tank dry.
Close the drainage valve.
