Bio-Art Plastvac P7-Plus (Digital Timer)

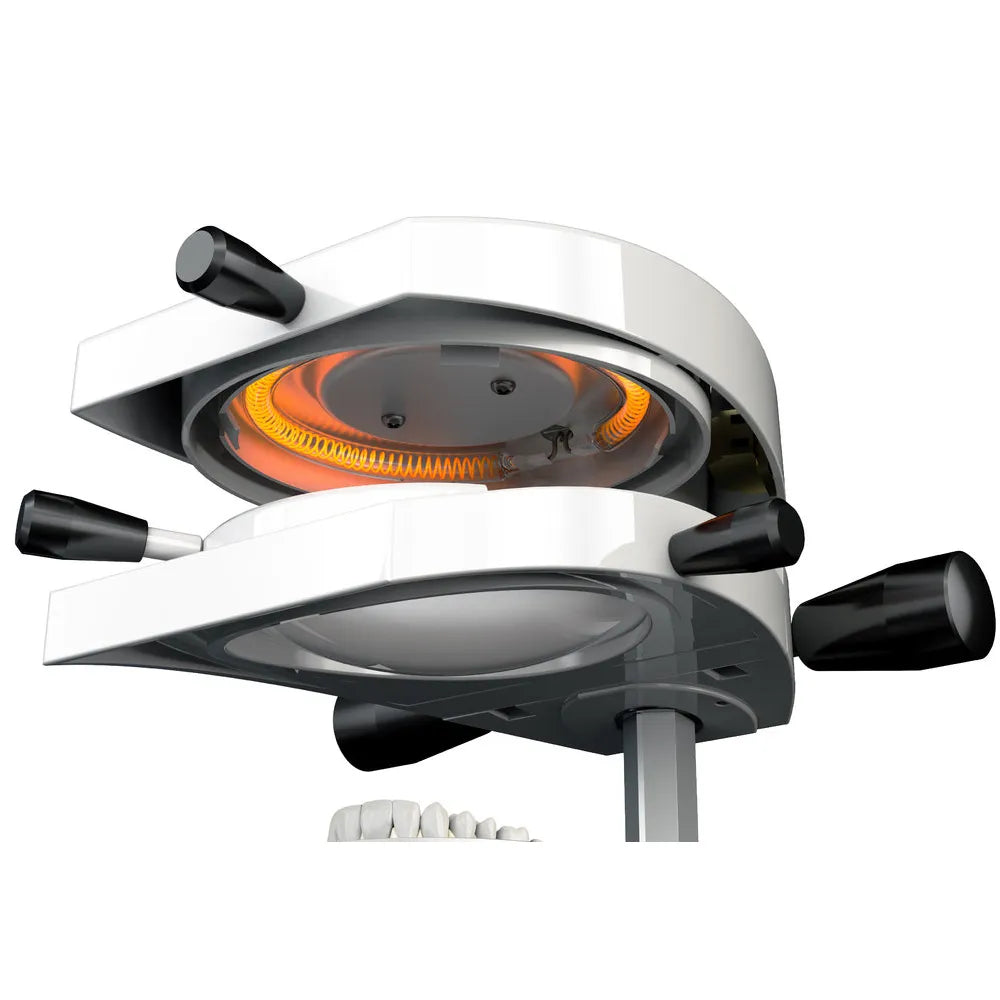

• Unique heating system (carbon fiber resistance) makes the plasticizing process faster (~2 minutes)
• Unique rotative sheet support allows heating both sides of the sheets (uniform heating)

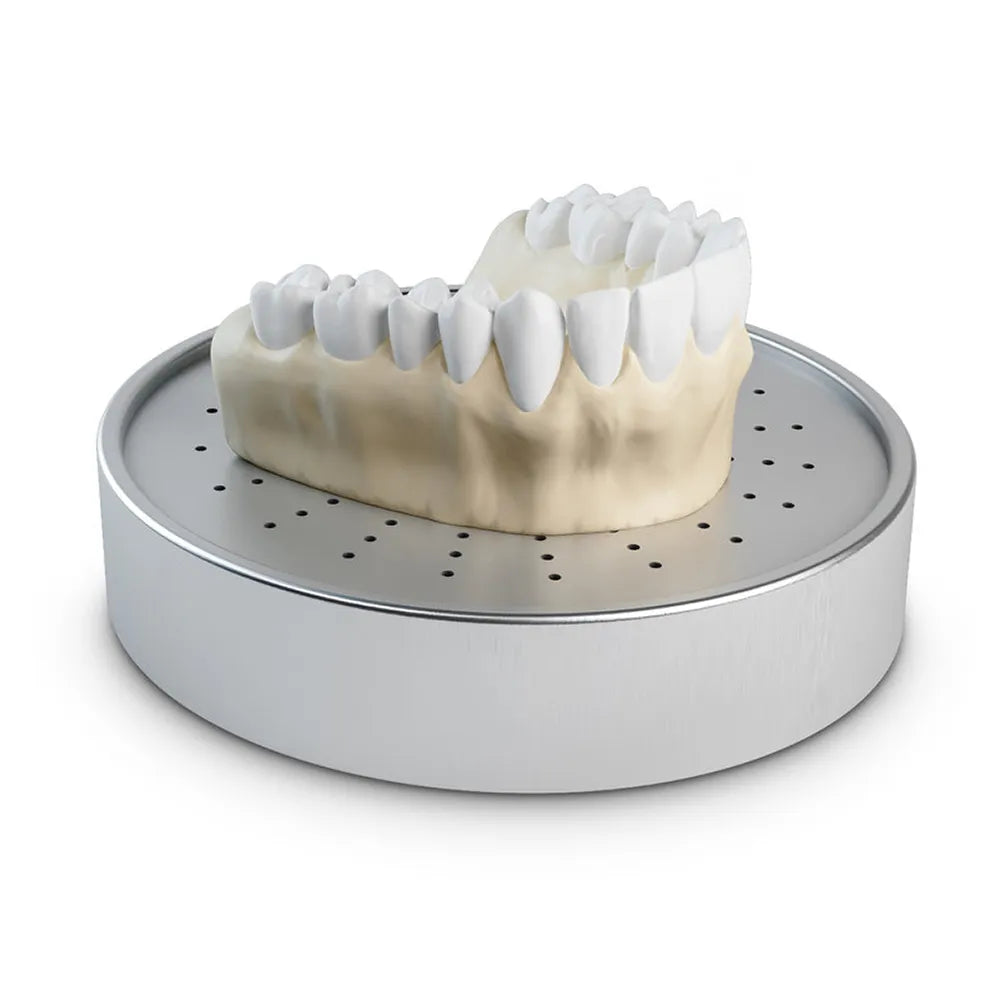

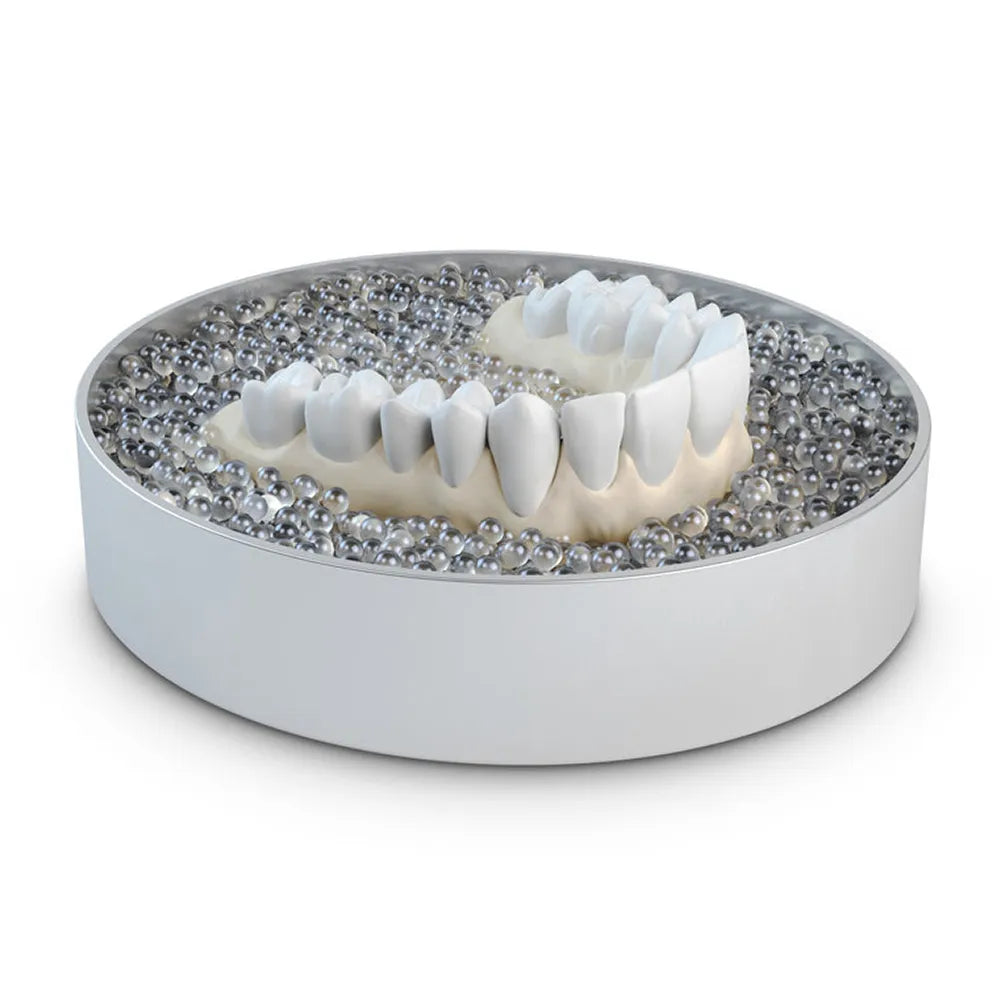

• Double-sided cast rack: Tray for bead and flat surface; facilitates the cast removal and finishing
• Perfect reproduction of the cast. Powerful motor with automatic system that turns off the heating and starts the vacuum.
• P7 Plus Model: The digital timer allows programming of the heating time according to the sheet material and thickness. Its beeps warn the end of the programmed time, providing greater control of the process.

• Voltage: 220V ~ 50/60 Hz
• Power consumption: 925W
• Heating power: 450 W
• Motor power: 1400 W.
• Dimensions: 18 x 23 x 29 cm (L / W / H)
• Weight: 5.4kg
• Degree of protection: IPX1 (splash-proof)
• Volume: Motor 80/90 dB at 0.50M

• 1 x Main Supply Cord
• 1 x Allen Wrench 4mm
• 1 x Sheet Display
• 1 x Double-Sided Cast rack
• 1 x Platvac p7 220v
• 1 x Vacuum Action & Heat Unit Handle
• 1 x Larger Ring Handles

Setup:

• Place the machine on a stable surface.
• Connect the machine to the office or laboratory electrical network.

Sheet Preparation:

• Select a suitable round or square sheet of the desired material, dimensions, and thickness for your application.

Loading the Sheet:

• Place the selected sheet onto the rotative sheet support.
• Ensure that the sheet is properly positioned for uniform heating.

P7 Plus Model:

• Use the digital timer to program the heating time based on the sheet material and thickness.
• Audible alerts will signal the end of the programmed time, providing greater control over the process.

Application:

• Use the formed tray for various applications such as whitening, surgical guides, bruxism appliances, mouthguards, copings, temporary bridges, orthodontic retainers, and more.

Vacuum Forming:

• The machine's powerful motor, with an automatic system, will turn off the heating and start the vacuum.
• The rotative sheet support allows both sides of the sheet to be uniformly heated, ensuring a perfect reproduction of the cast.

Cast Removal:

• The double-sided cast rack facilitates the removal and finishing of the cast.

• Manufacturer: Bio-Art Eqpt Odontologicos.
• Country Of Origin: Brazil

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What is the purpose of the Plastvac P7-Plus in dental practices?
Answer: The Plastvac P7-Plus is designed for efficient vacuum forming, creating items like temporary bridges, bite/bleaching splints, face masks, etc., in the dental office, reducing dependence on external laboratories.

Question: What is the average recovery time for the professional's investment with the Plastvac P7-Plus?
Answer: On average, professionals recover their investment by making approximately 30 plates with the Plastvac P7-Plus.

Question: What kind of sheets can be used with the Plastvac P7-Plus?
Answer: The machine accommodates round and square sheets of different materials, dimensions, and thicknesses, offering flexibility for various applications in dental procedures.

Question: What does the rotatable model plate and swiveling heating element feature offer?
Answer: These features enable the heating of thicker foils on both sides and simplify the removal process, allowing for trouble-free processing of various thermoforming foils.

Question: Why are carbon fiber heating resistors mentioned, and how do they benefit the user?Answer: The carbon fiber heating resistors ensure rapid and even heating, making the plasticizing process faster (around 2 minutes) and more efficient.
