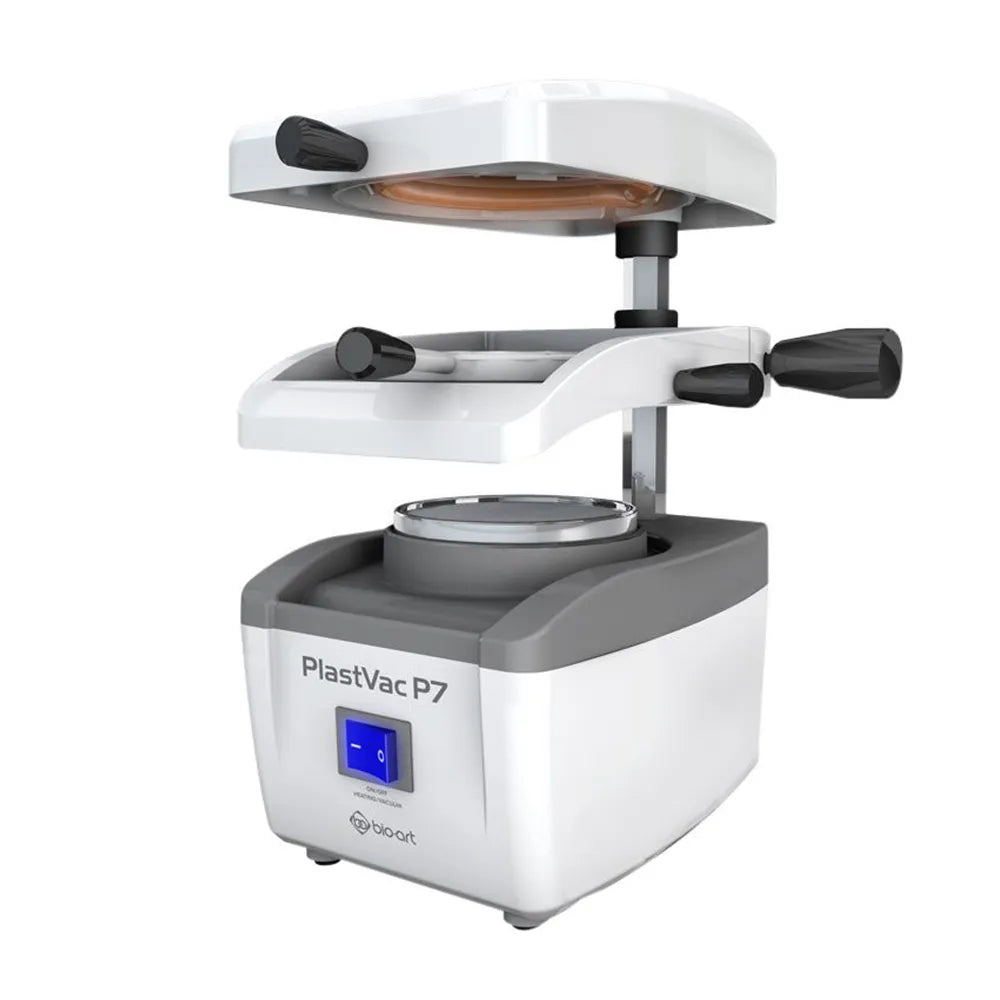

Bio-Art Plast Vac P7 Vacuum Forming Machine

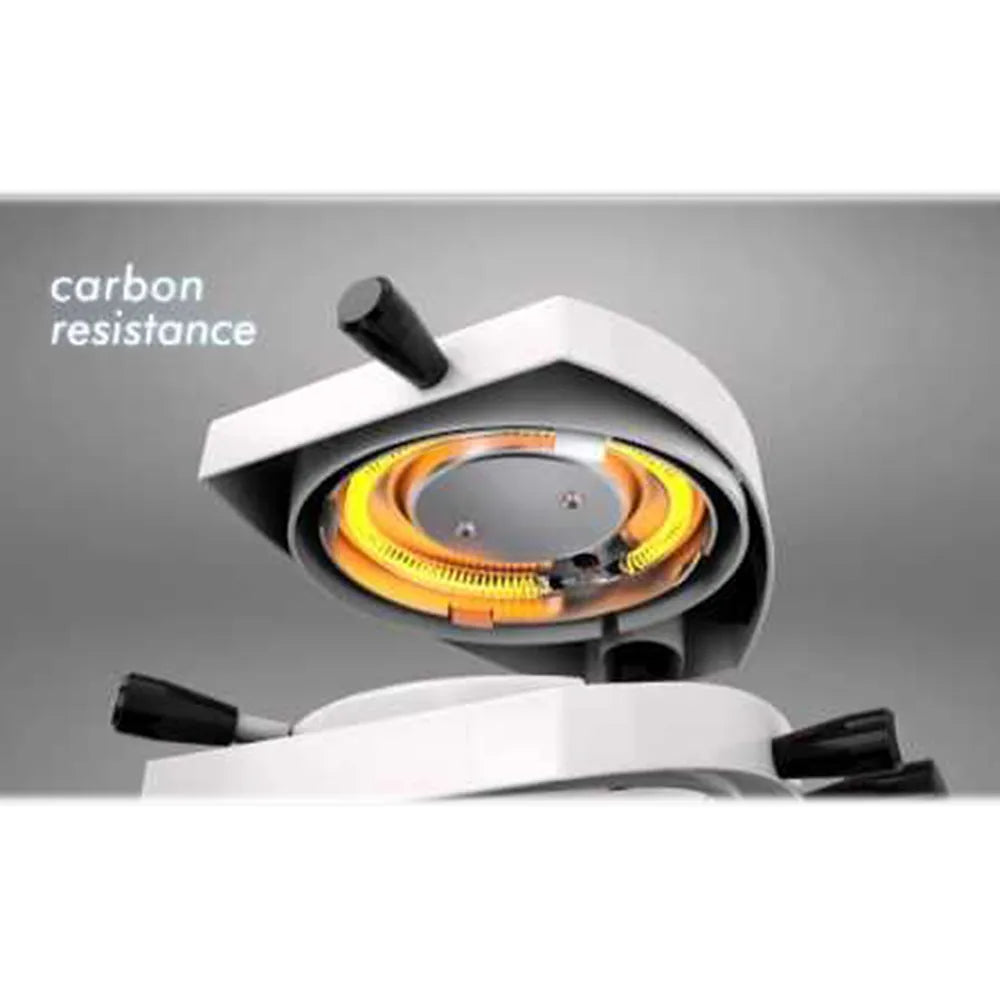

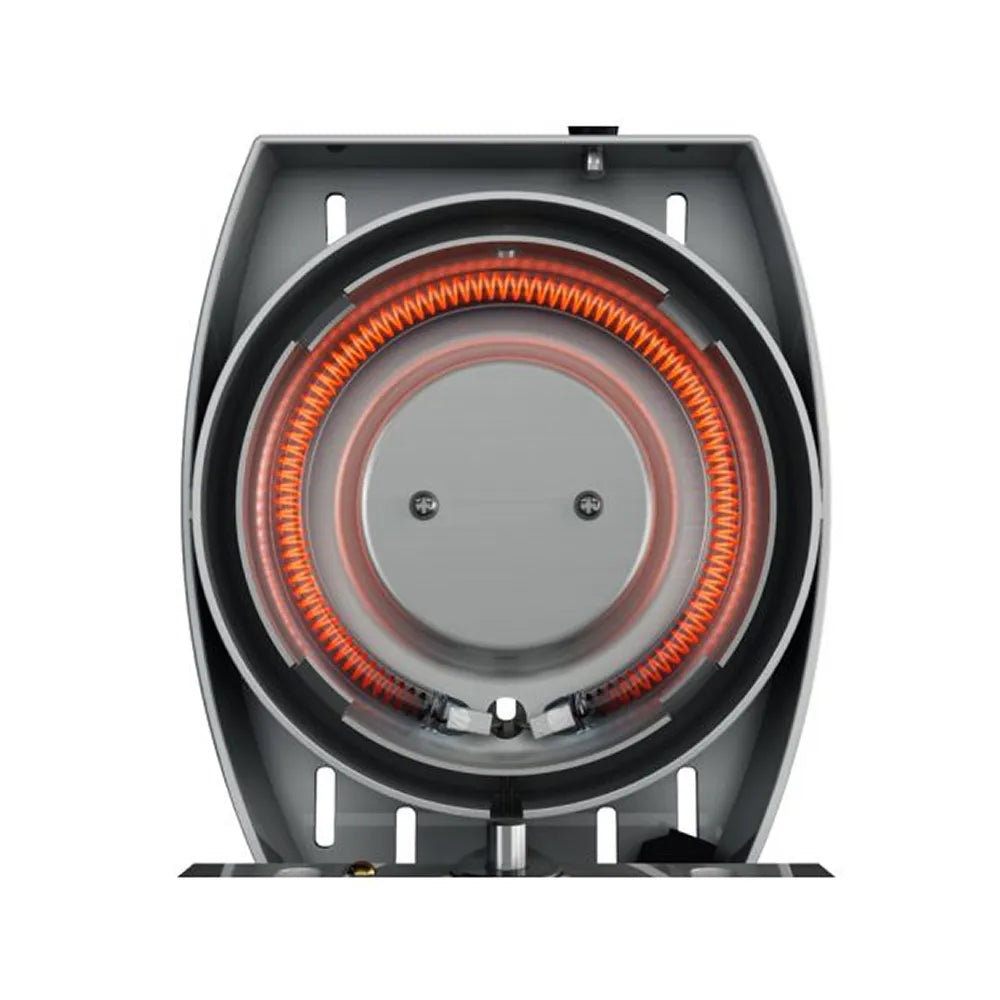

• A unique heating system (carbon fiber resistance) makes the plasticizing process faster (~2 minutes)

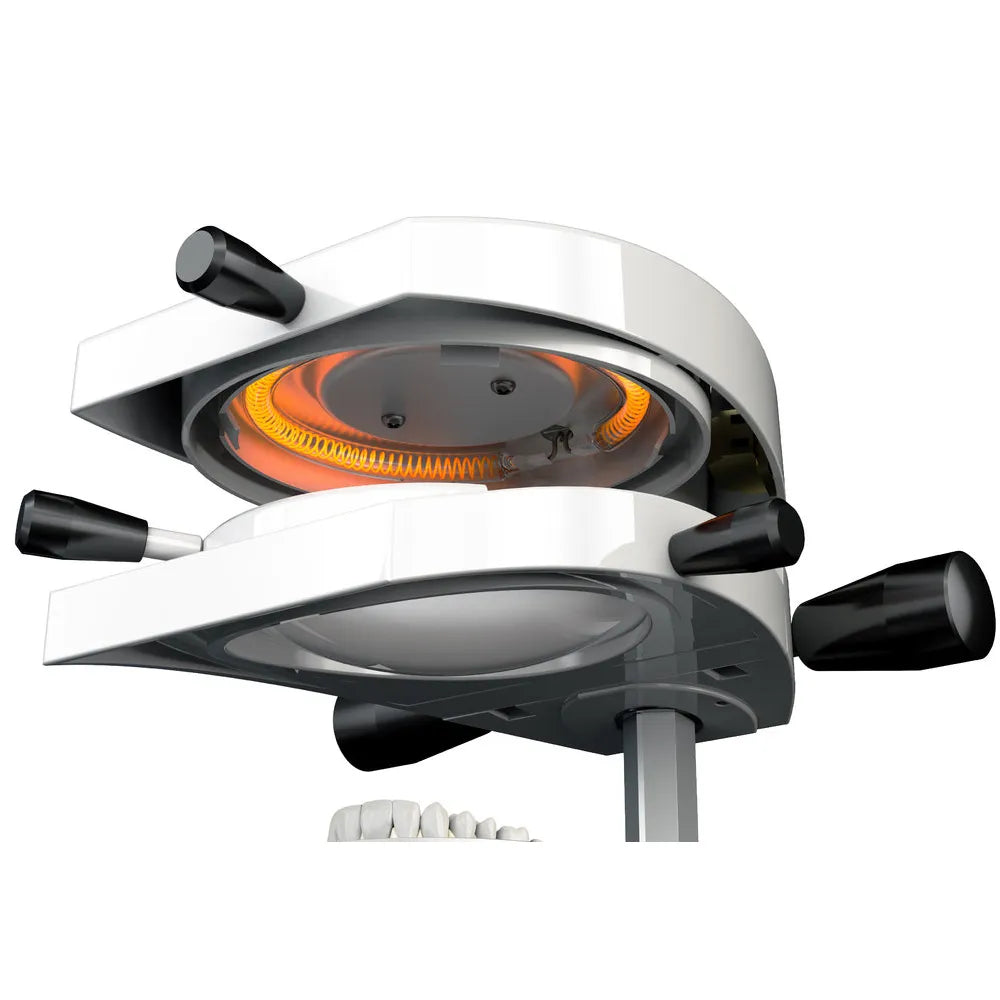

• Unique rotative sheet support allows heating both sides of the sheets (uniform heating)

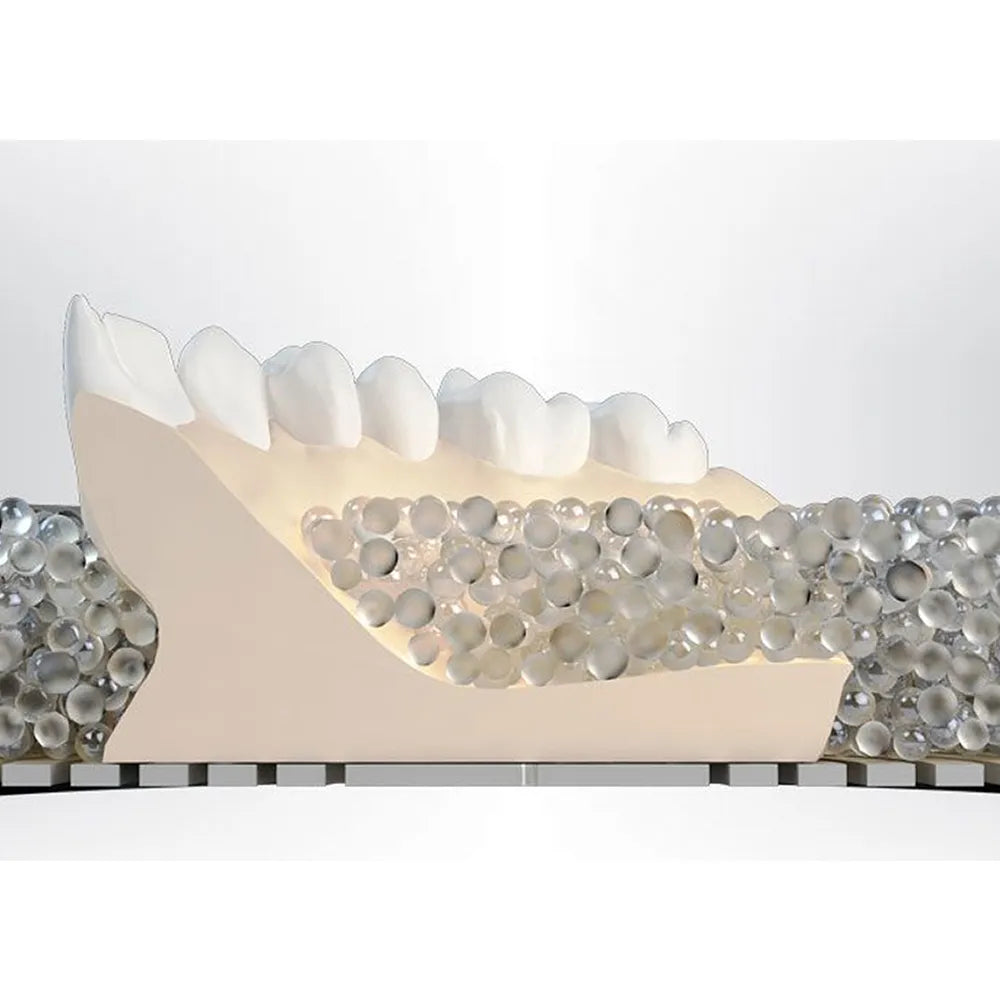

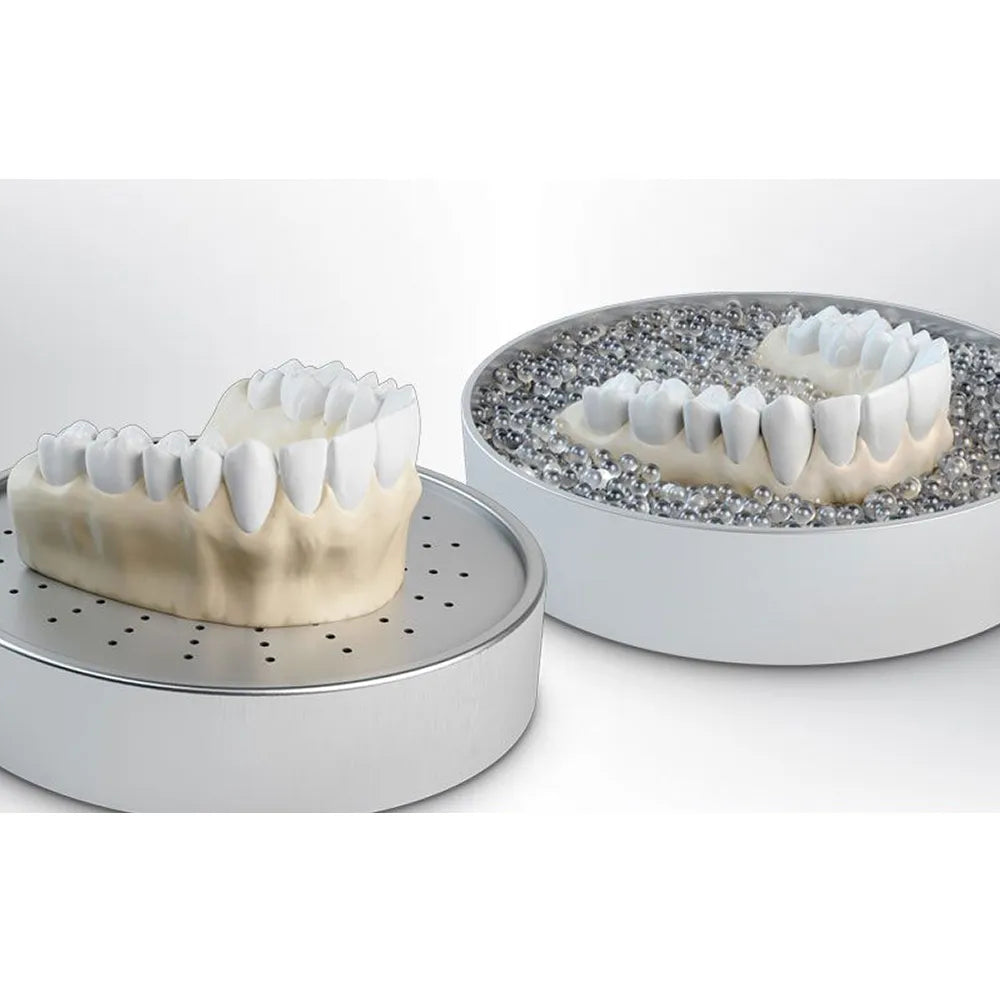

• Double-sided cast rack: tray for bead and flat surface; facilitates the cast removal and finishing

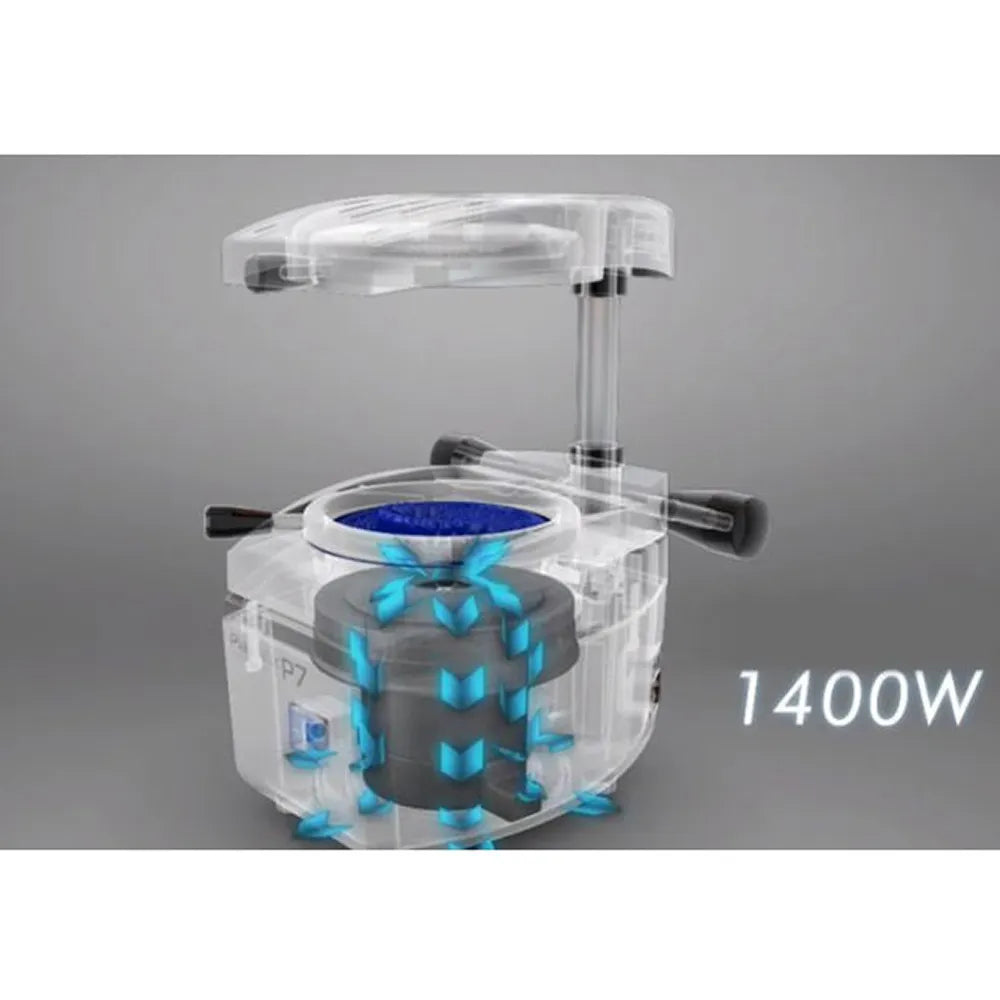

• Perfect reproduction of the cast. Powerful motor with an automatic system that turns off the heating and starts the vacuum.

TECHNICAL SPECIFICATION:

• Voltages: Unique voltage 127V- or 220V- 50/60 Hz
• Consumption Power: 925W
• Heating Power: 450 W
• Motor Power: 1400 N
• Sheet Dimensions: Up to 6 mm thick
• Round Sheet: from 0120 to 0134mm/Square sheet: From 120x120mm to 130x130mm
• Dimensions: (WxDxH): 180 x 230 x 290 mm (without packaging) / 200 x 250 x 300 mm (with packaging)
• Weight: 4.500 kg (without packaging)/5.235 kg (with packaging9)
• Pollution Degree: 2
• Protection Degree: IPx1 (Protected against splatter)
• Noise Level: Motor-90 dB to 0.50M

• 1 x Main Supply Cord
• 1 x Allen Wrench 4mm
• 1 x Sheet Display
• 1 x Double-Sided Cast rack
• 1 x Platvac p7 220v
• 1 x Vaccum Action & Heat Unit Handle
• 1 x Larger Ring Handle

Setup:

• Place the machine on a stable surface.
• Connect the machine to the office or laboratory electrical network.

Sheet Preparation:

• Select a suitable round or square sheet of the desired material, dimensions, and thickness for your application.

Loading the Sheet:

• Place the selected sheet onto the rotative sheet support.
• Ensure that the sheet is properly positioned for uniform heating.

Heating Process:

• Turn on the machine.
• The unique heating system with carbon fiber resistance will initiate the plasticizing process. This typically takes around 2 minutes.

Vacuum Forming:

• The machine's powerful motor, with an automatic system, will turn off the heating and start the vacuum.
• The rotative sheet support allows both sides of the sheet to be uniformly heated, ensuring a perfect reproduction of the cast.

Cast Removal:

• The double-sided cast rack facilitates the removal and finishing of the cast.

P7 Plus Model (Optional):

• If you have the P7 Plus Model, use the digital timer to program the heating time based on the sheet material and thickness.
• Audible alerts will signal the end of the programmed time, providing greater control over the process.

Application:

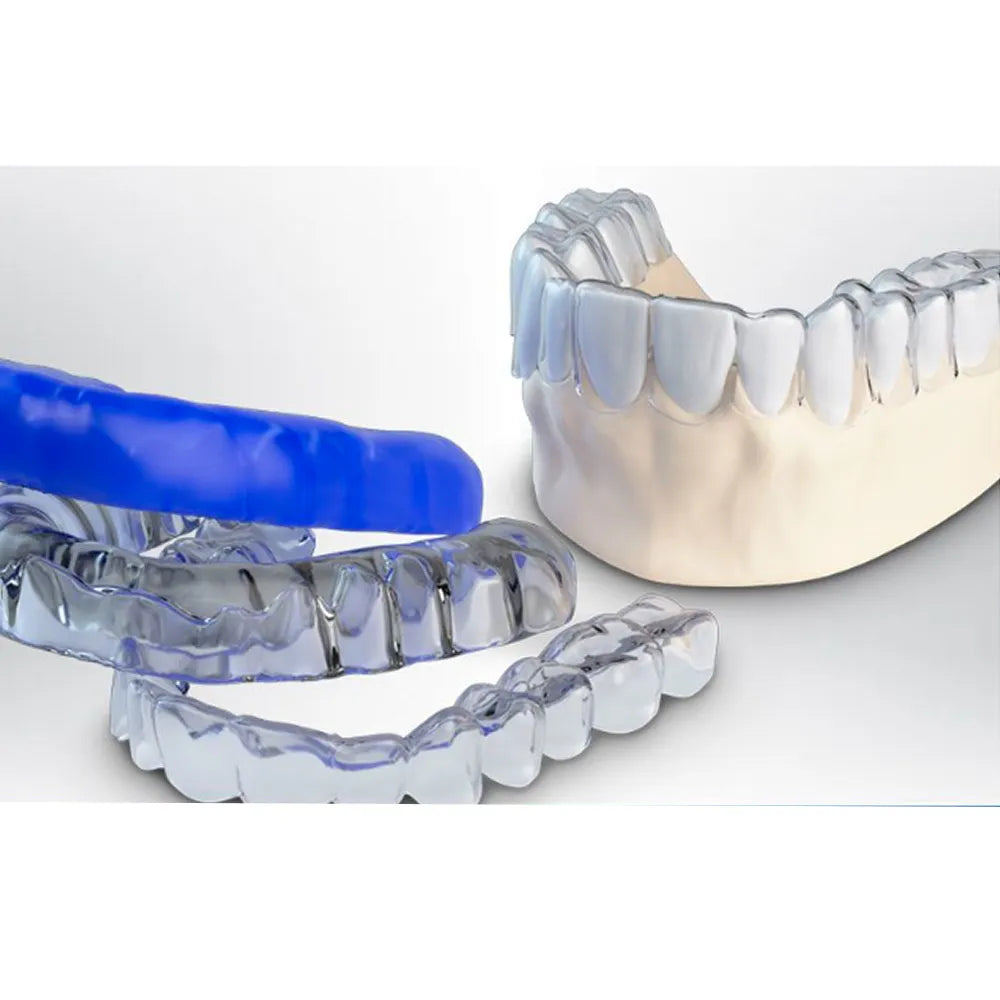

• Use the formed tray for various applications such as whitening, surgical guides, bruxism appliances, mouthguards, copings, temporary bridges, orthodontic retainers, and more.

• Country of Origin: Made in Brazil

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What sheet dimensions are compatible with the Plast Vac P7?
Answer: The machine can handle sheets up to 6mm thick and supports both round sheets (from 0.120 to 0.134mm) and square sheets (ranging from 120x120mm to 130x130mm).

Question: What is the power consumption of the Plast Vac P7?
Answer: The machine consumes 925W of power, with a heating power of 450W and a motor power of 1400N.

Question: What applications is the Plast Vac P7 suitable for?
Answer: The Plast Vac P7 is versatile and can be used for mouth guards, matrixes for composite resin, provisional bridges, casquets, brackets, molds for fluoridation, surgical guides, bite plates (for bruxism), base plates, individual molds, trays for home whitening, and packing study models.

Question: What are the key features of the Plast Vac P7?
Answer: The Plast Vac P7 features a 1400W motor, automatic vacuum generation, and compatibility with various tray types and sizes without the need for special installation.

Question: What is the Bio-Art Plast Vac P7 Vacuum Forming Machine?
Answer: The Bio-Art Plast Vac P7 is a powerful vacuum forming machine designed for dental applications, offering practical and efficient tray preparation.
