Bio Art Broadrick Flag

• Exclusive Technique: Provided with an exclusive technique, the Bow compass facilitates a specialized analysis of the posterior occlusal plane for cases of oral rehabilitation.
• Reference Radius Mark: The Bow compass utilizes the Flag mark on the reference radius taken from the center of the articulator condyle as a crucial reference point for analysis.
• Articulator Compatibility: Designed to work seamlessly with dental articulators, ensuring accurate and precise measurements for oral rehabilitation cases.
• Centrally Aligned Compass: The Bow compass is designed for accurate alignment, with its center corresponding to the center of the condyle for reliable measurements.
• Visual Reference Images: Provided images and diagrams serve as visual references for correct positioning and alignment of the Bow compass with the Flag mark, aiding in user guidance.
• Precision in Occlusal Analysis: Enables a meticulous analysis of the posterior occlusal plane, contributing to the precision required for effective planning in oral rehabilitation procedures.
• Durable Construction: Both the Flag and Bow compass are constructed with durability in mind, ensuring longevity and sustained performance in clinical settings.
• Stability during Analysis: Secure installation and stability during the analysis process ensure consistent and accurate measurements, crucial for comprehensive rehabilitation planning.
• Versatile Application: Suited for various oral rehabilitation cases, offering versatility in addressing different occlusal dynamics and requirements.
• Ease of Use: With clear instructions and reference images, the set is user-friendly, making it accessible for dental professionals in prosthodontic work.
• Professional-Grade Analysis: Tailored for professional use, the set provides a professional-grade solution for detailed occlusal plane analysis, contributing to enhanced patient care.
• Quality Assurance: Backed by Bio Art's commitment to quality, ensuring that the Flag Set with Bow Compass meets high standards in dental instrumentation for reliable outcomes.

• Dimensions: 10X3X7 in
• Main materials used in the manufacture of the Broadrick Flag: Aluminum with anodized surface finishes, attachment knob of PAinjected brass insert.
• Compass: Aluminum with anodized surface finishes, Nickel-plated carbon steel leads.

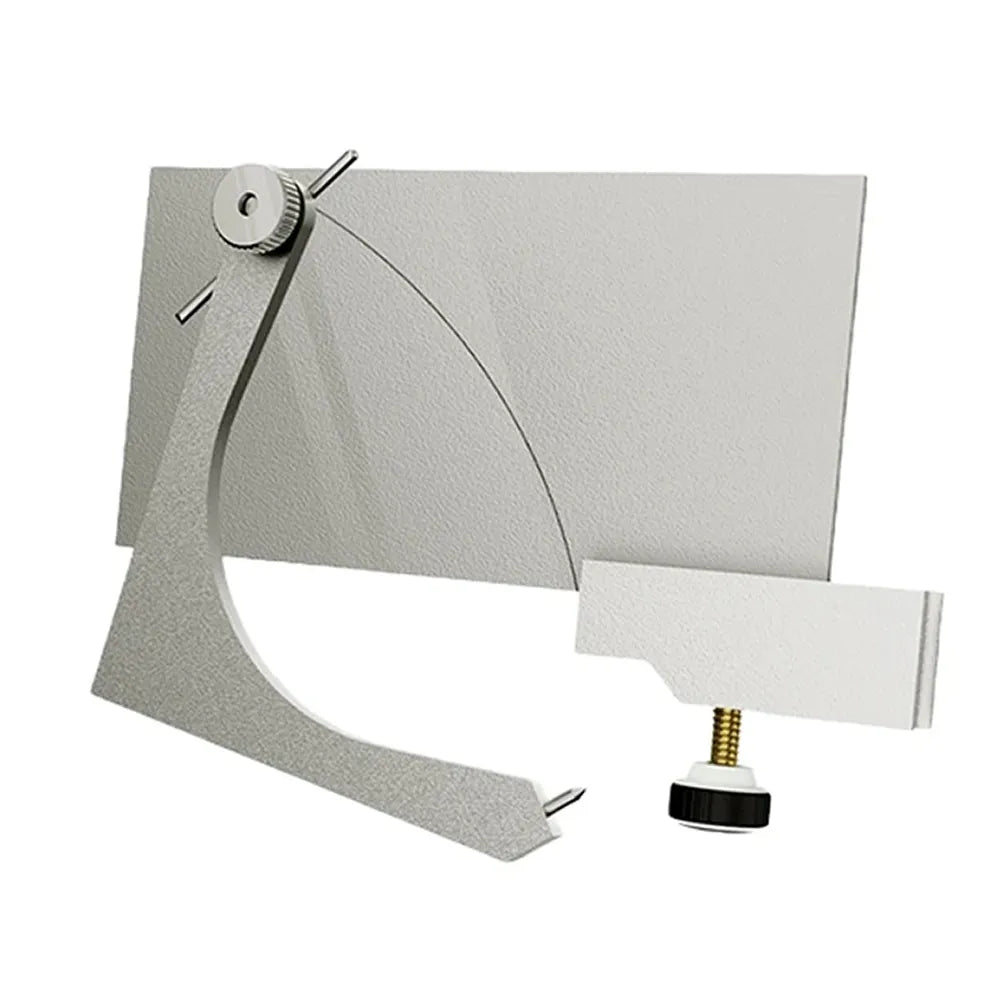

• 1 x Broadrick Flag with Attachment Knob
• 1 x Bow Compass
• 1 x Instruction Manual

• Preparation: Ensure the Bio Art Broadrick Flag is correctly installed on the upper frame of the articulator as per the provided installation instructions.
• Identify Reference Radius Mark: Locate the Flag mark on the reference radius taken from the center of the articulator condyle. This mark is crucial for the subsequent analysis.
• Inspect Bow Compass: Check the Bow compass for any damage or irregularities. Confirm that it is in good condition and functions smoothly.

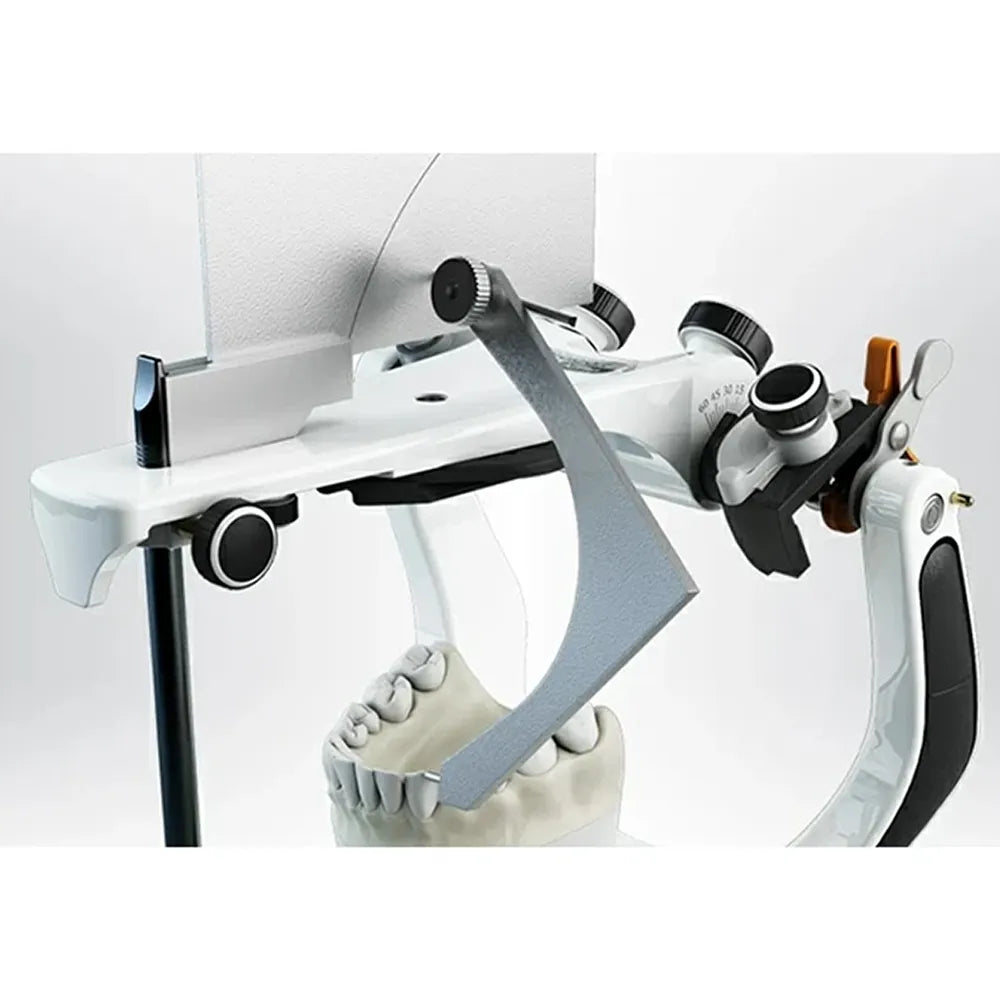

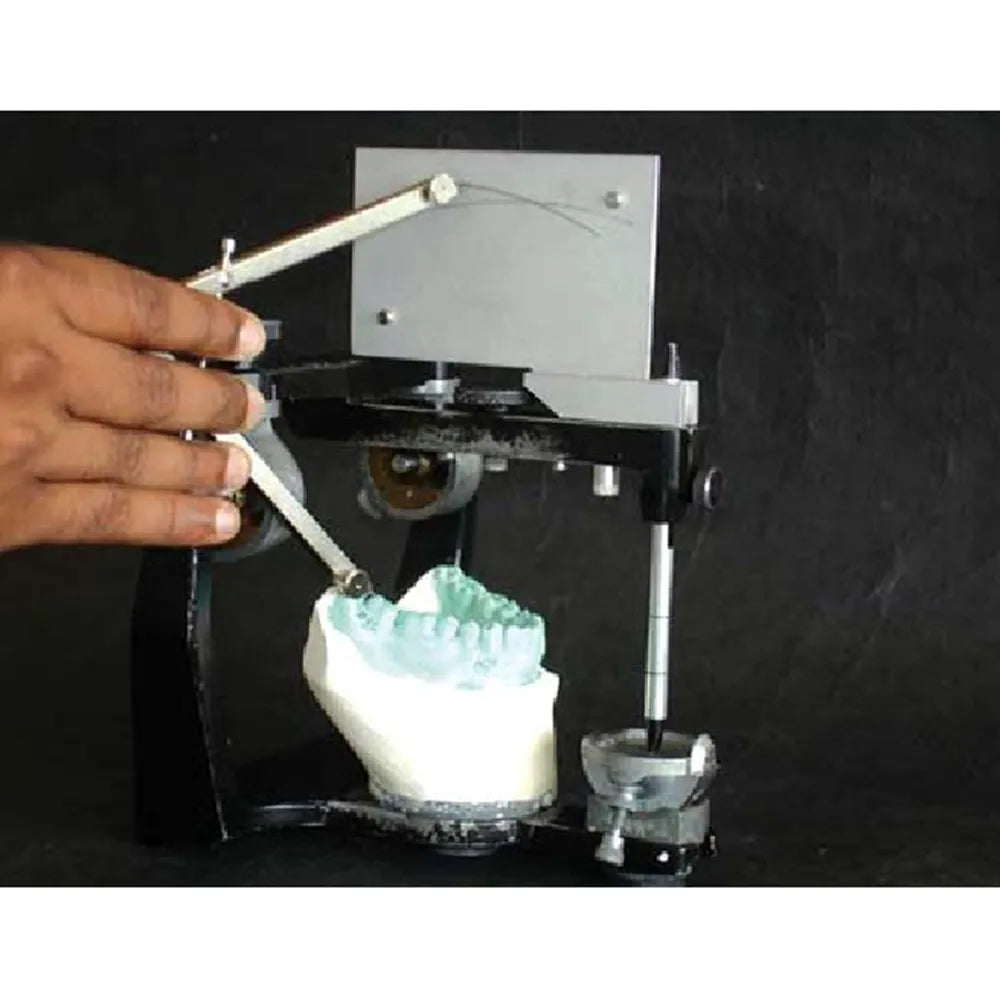

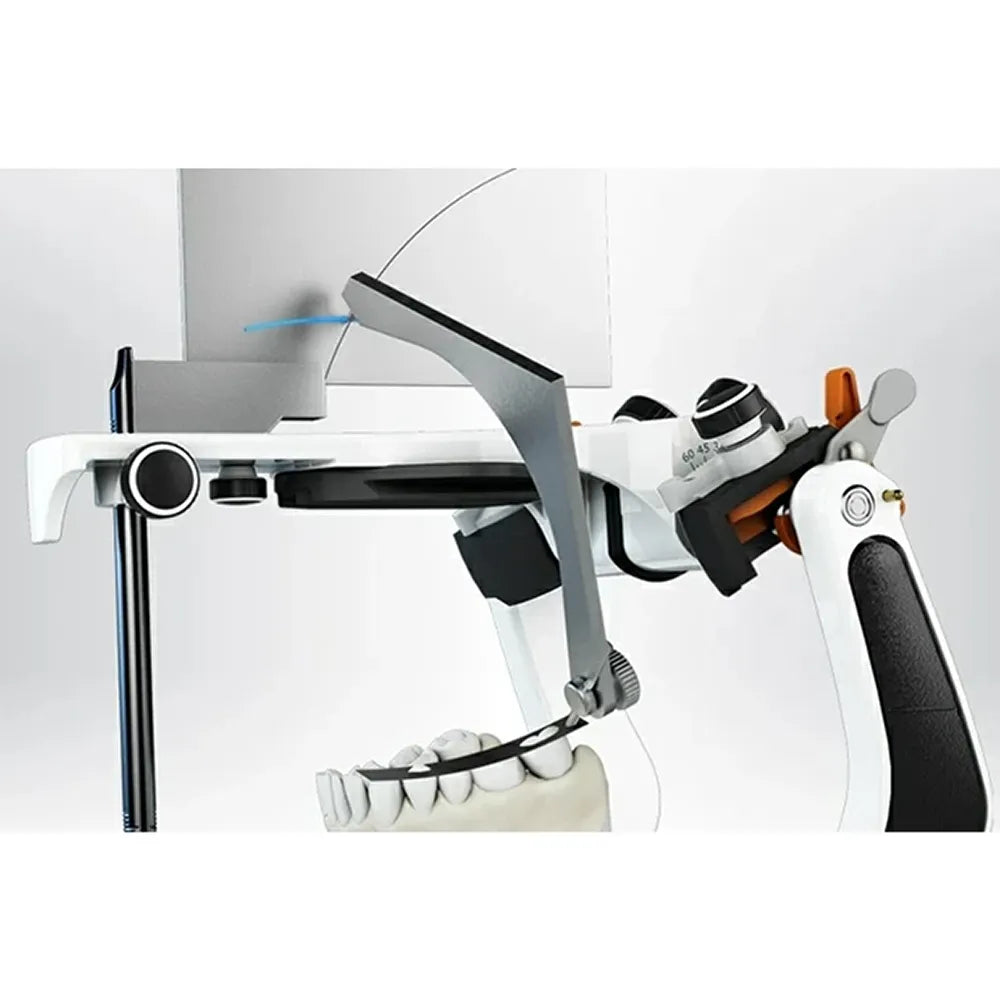

• Align Bow Compass with Flag Mark: Align the Bow compass with the Flag mark on the reference radius. Ensure that the center of the Bow compass corresponds to the center of the condyle.
• Secure Position: Once aligned, securely position the Bow compass on the articulator, ensuring stability during the analysis process.
• Perform Analysis: Execute the analysis of the posterior occlusal plane by following the exclusive technique provided. Use the Bow compass in conjunction with the Flag mark for precise measurements.
• Reference Images: Refer to the images or diagrams provided with the set, depicting the correct positioning and alignment of the Bow compass with the Flag mark.
• Maintain Stability: Throughout the analysis, maintain stability in the Bow compass position to ensure accurate and consistent measurements.
• Record Findings: Record the findings of the posterior occlusal plane analysis, taking note of any relevant measurements or observations.
• Clean and Store: After use, clean the Bow compass and Flag carefully. Store them in a secure place, protecting them from damage.
• Seek Professional Guidance: If you encounter any difficulties or uncertainties during the process, seek guidance from Bio Art's official documentation or customer support.

• Country of Origin: Made in Brazil

Warranty is not applicable for this product

Question: What is the primary purpose of the Bio Art Broadrick Flag Set with Bow Compass?
Answer: The set is designed for analyzing the posterior occlusal plane in cases of oral rehabilitation, providing crucial measurements for treatment planning.

Question: How is the Bow compass aligned with the Flag for analysis?
Answer: Align the Bow compass with the Flag mark on the reference radius, ensuring that the center of the Bow compass corresponds to the center of the articulator condyle.

Question: Is there a specific technique recommended for using the Bow compass in analysis?
Answer: Yes, an exclusive technique is provided for using the Bow compass in conjunction with the Flag for posterior occlusal plane analysis.

Question: Can the set be used with any dental articulator?
Answer: The set is specifically designed to work with dental articulators, ensuring compatibility for accurate occlusal analysis.
