Bio-Art Articulator A7 Plus & Elite Face-Bow - COA7EF

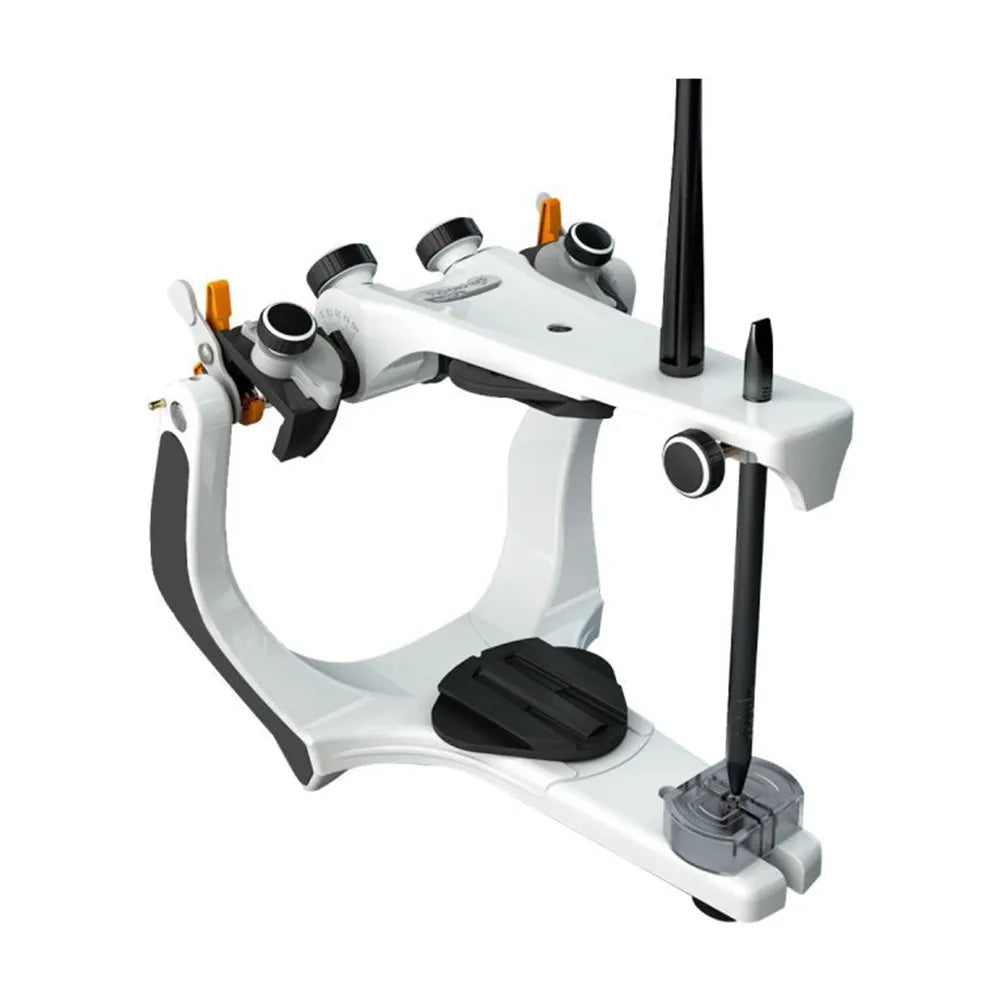

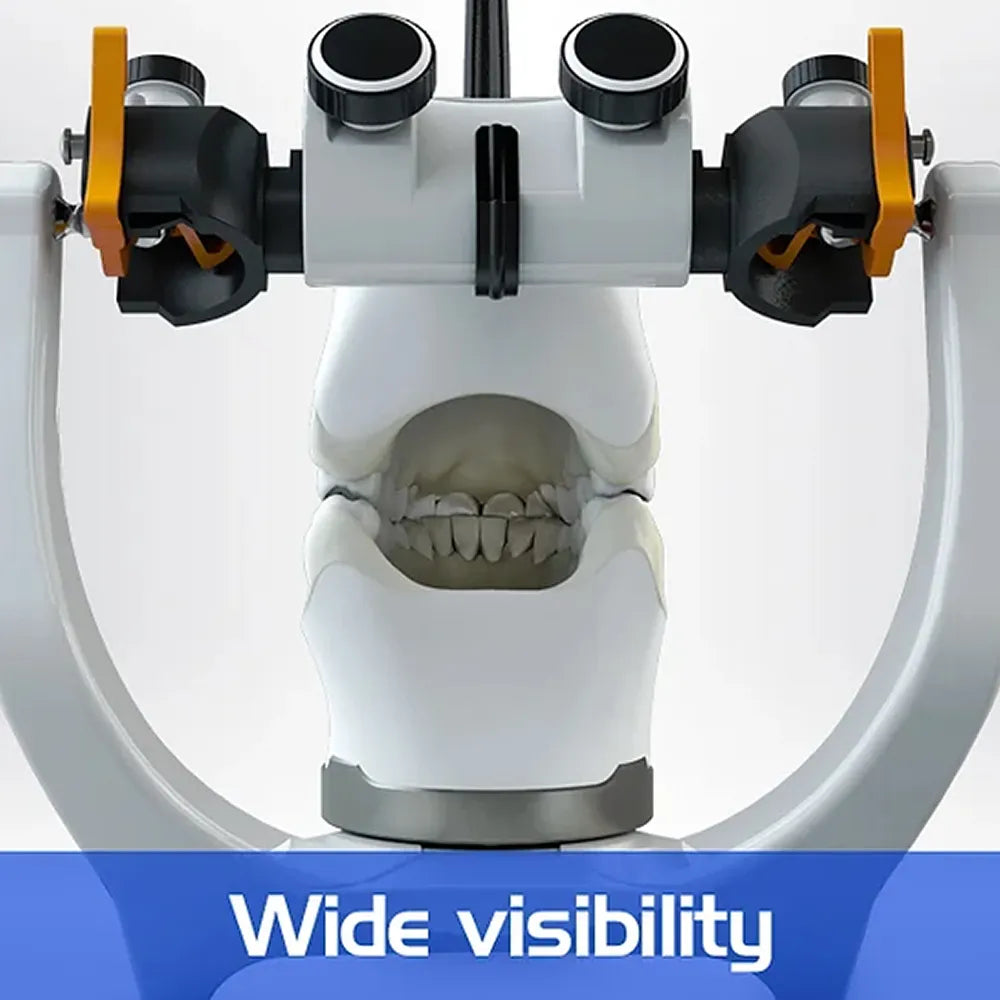

Bio-Art Articulator A7 Plus:

• Semi-adjustable/Arcon type for academic and professional use.
• Fixed intercondylar distance at 110mm.

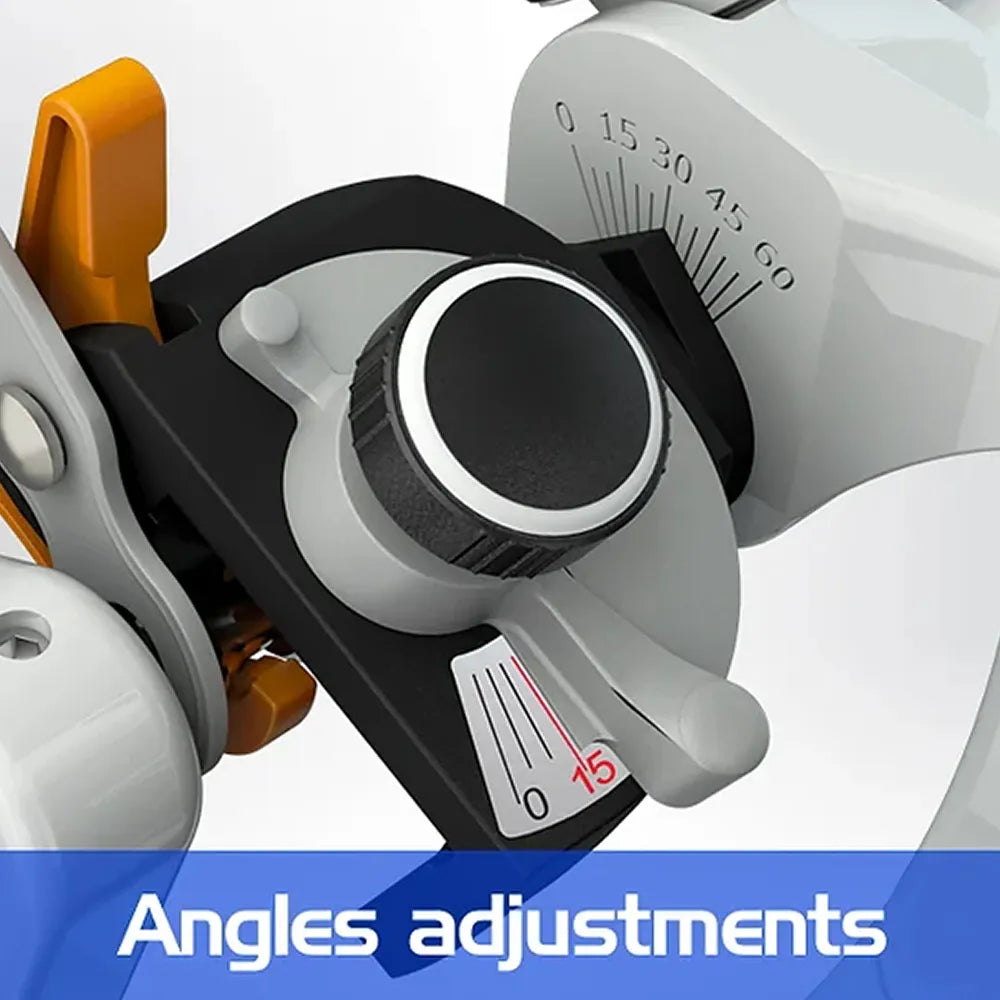

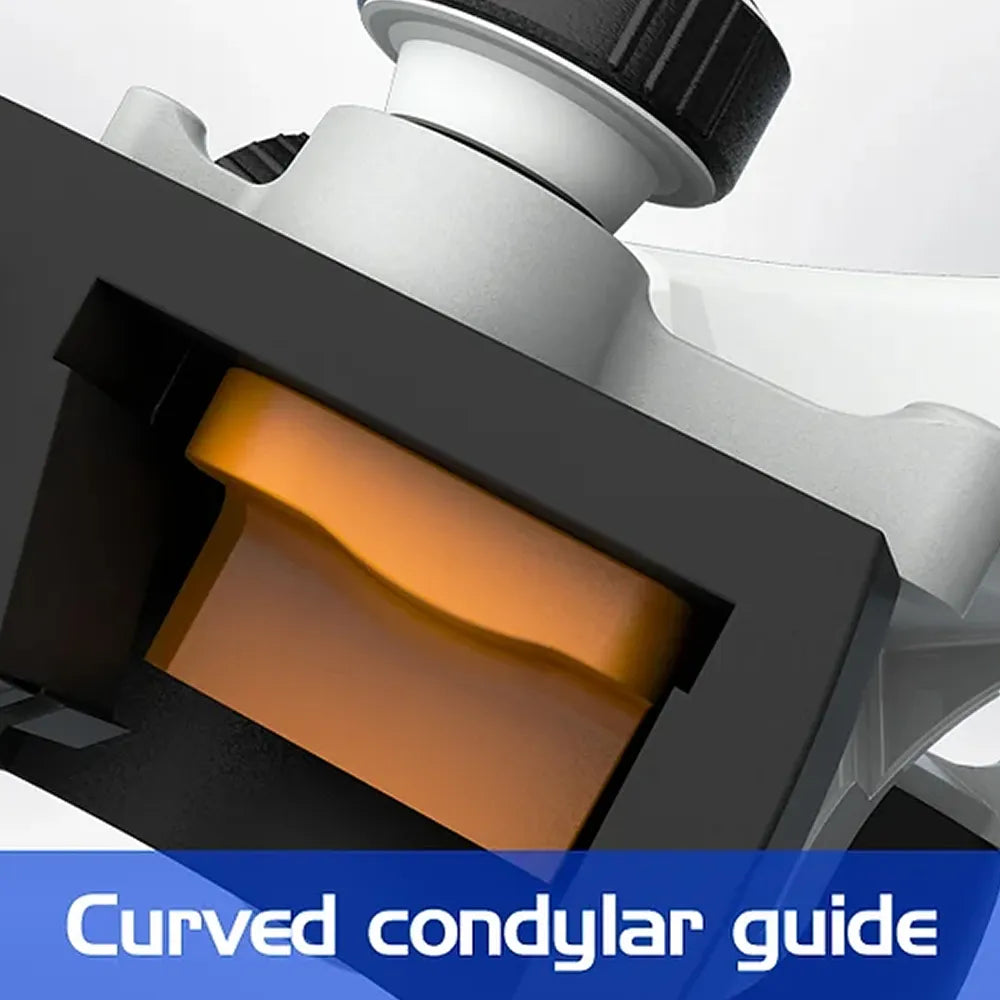

• Curved condylar guide with adjustable angles.

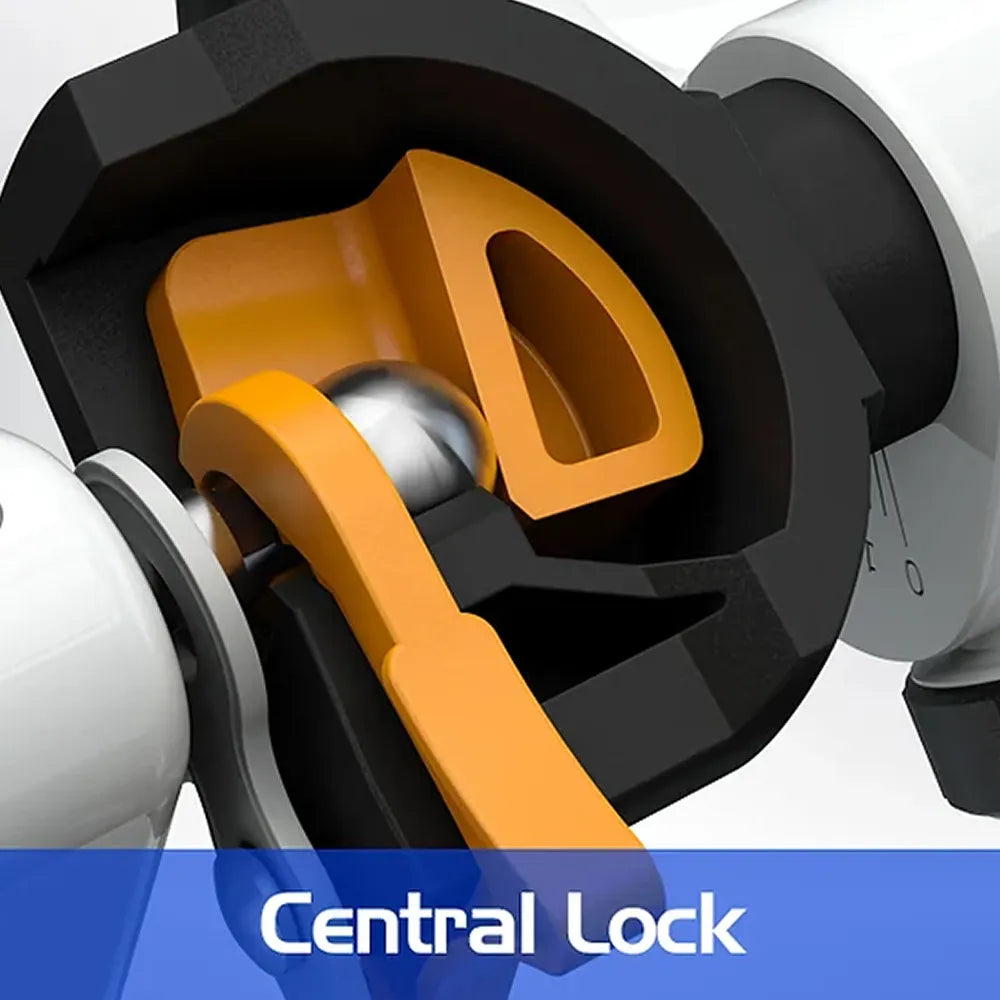

• Central locking system for stability.
• Motion stabilizer system with silicone joint.
• Upper branch support pin for open position.

Elite Facebow:

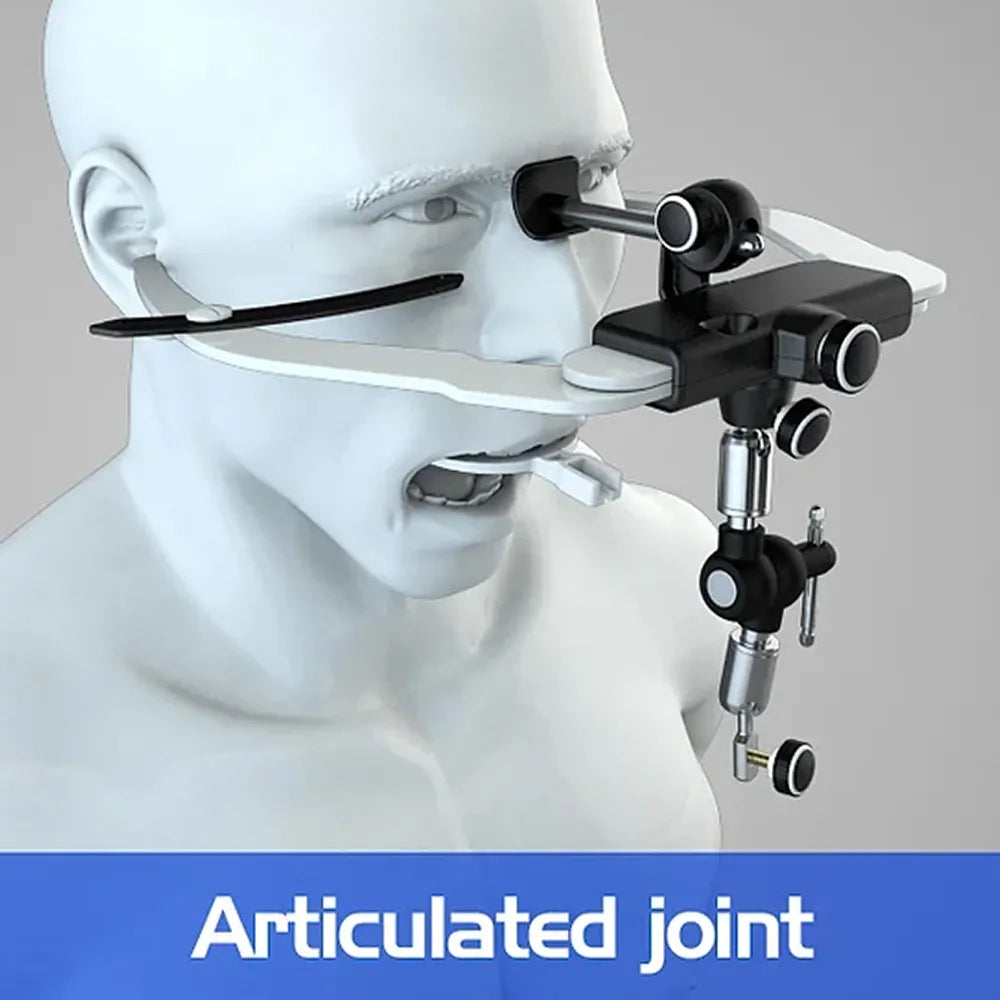

• Fork articulation and fixation for fast registration.

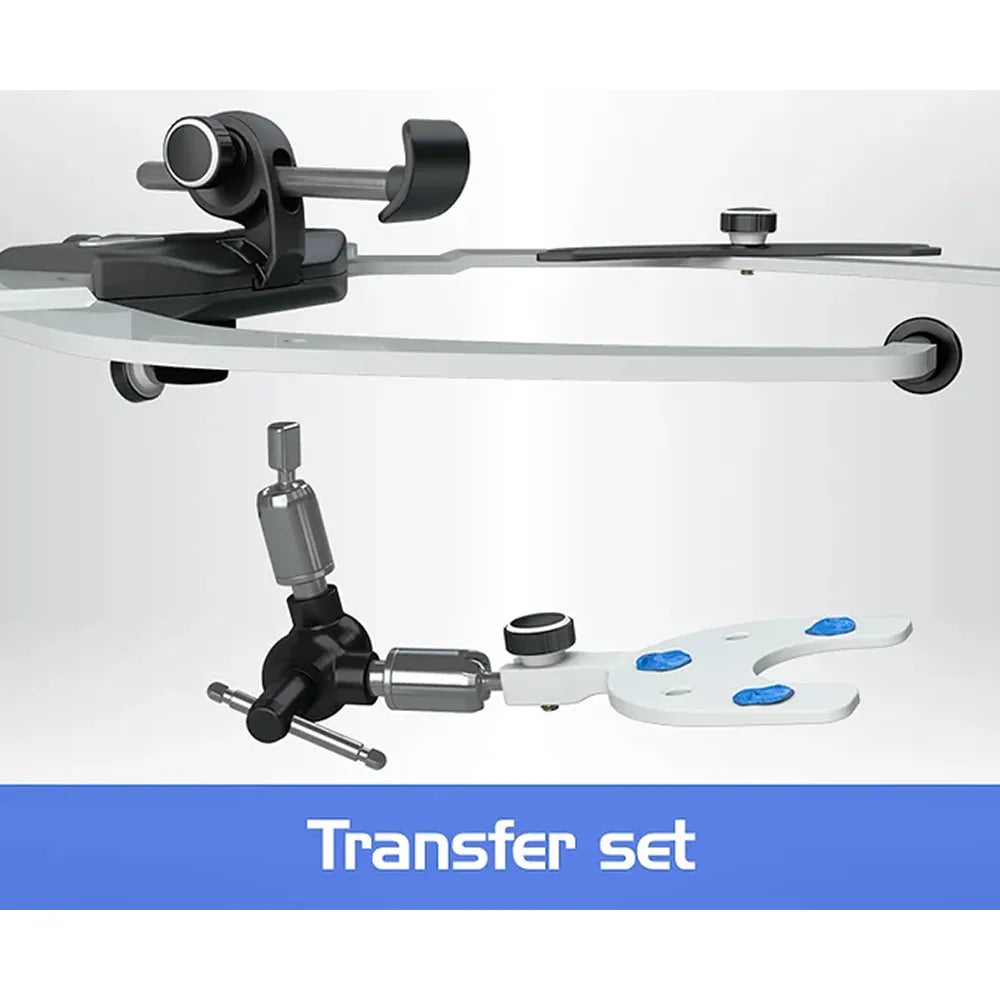

• Transfer set eliminates the need for a facebow in assembly.
• Adjustable Naziun Rapporteur for precise registration.
• Infra-orbital indicator for added accuracy.
• Smooth lateral movement with a sliding system.
• Anatomical, removable, autoclavable earpieces.

• Articulator Material: Made of Aluminum
• Made in: Brazil
• Use: Dental Lab Articulation of Denture Prosthesis
• Category: Articulator

Articulator A7 Plus & Elite Face-Bow Set 1 :

• 1 x Articulator A7 Plus
• 1 x Elite Facebow
• 1 x Nasal Nose piece Assembly
• 1 x Jig Transfer Assembly
• 1 x Transfer Set Support
• 1 x Fork for Dentate Patient
• 1 x Allen wrench 2mm

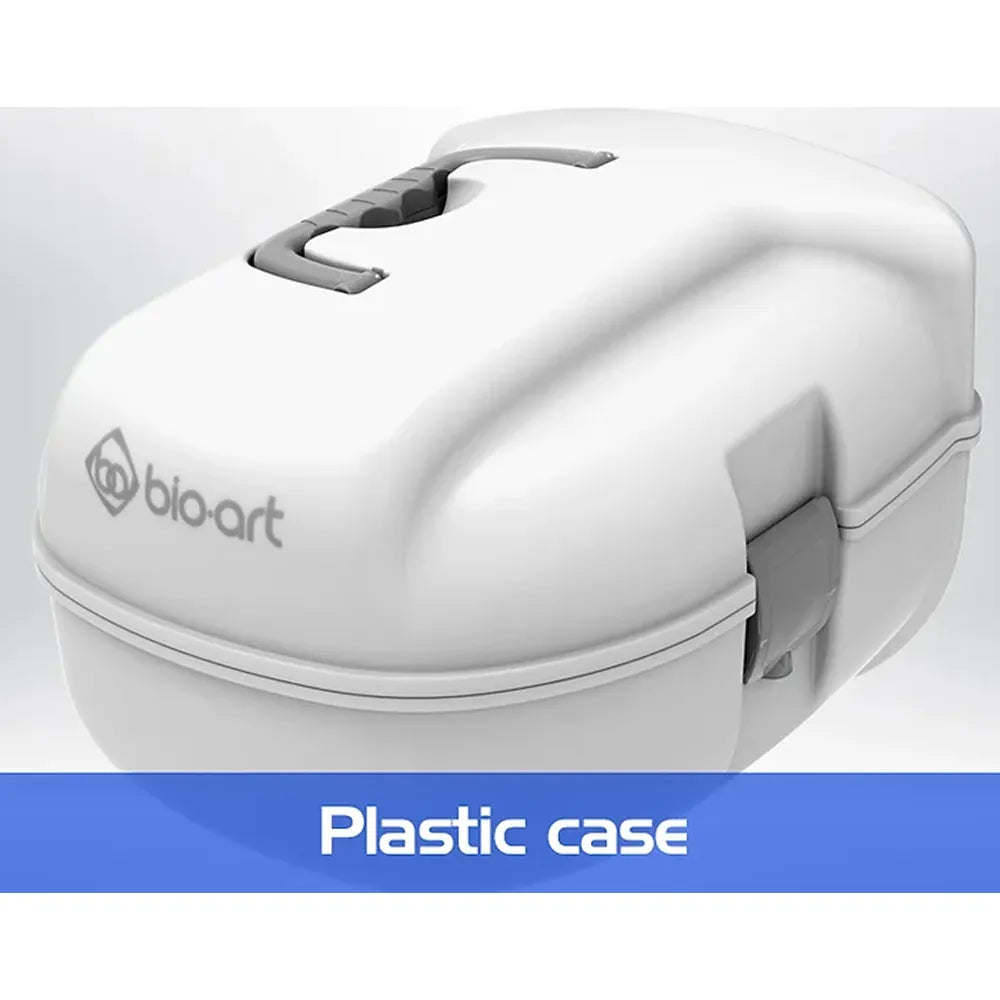

• 1 x Plastic Case
• 1 x Frame Support Pin
• 1 x Mounting Plate Knob
• 1 x Instruction manual

• Nazium Relator Removal: Remove the Nazium Relator from the facebow.
• Articulator Preparation: Remove the pin and the incisal table from the articulator.
• Transfer Set Placement: Place the support of the transfer set.
• Fixation Screw Tightening: Tighten the fixation screw securely.
• Transfer Set Removal: Remove the transfer set from the facebow.
• Cast Attachment: Attach the plaster cast to the fork.
• Transfer Set Positioning: Position the transfer set in the support.
• Fork Support Placement: Place the fork support on the articulator.
• Cast Hydration: Hydrate the plaster cast.
• Plaster Application: Apply plaster on the cast and mounting plate.
• Rail Penetration: Ensure the plaster penetrates the rail retention.
• Articulator Opening: Once the plaster hardens, open the articulator.
• Repositioning Components: Reposition the incisal table, incisal pin, and mounting plate.
• Incisal Pin Adjustment: Adjust the incisal pin to zero.
• Lower Cast Repositioning: Reposition the lower cast.
• Mounting Plate Fixation: Securely fix the lower cast to the mounting plate.

• Country of Origin: Made in Brazil

• Manufacturer/Importer warranty of 12 months as applicable for this product.
• Physical Damage is not covered in any case.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered with as the case may be.

Question: Condylar angel is fixed or it has range?Answer: The Bio-Art Articulator A7 Plus & Elite Face-Bow features an adjustable condylar guide angle, allowing for customization and fine-tuning of the condylar angle to replicate different jaw movements accurately during dental procedures.

Question: Are the earpieces of the Elite Facebow removable and autoclavable?
Answer: Yes, the earpieces are anatomical, removable, and autoclavable for hygiene.

Question: What is the material of construction for the A7 Plus?
Answer: The A7 Plus has a robust structure made of aluminum, ensuring stability.

Question: What is the intercondylar distance of the A7 Plus Articulator?
Answer: The A7 Plus has a fixed intercondylar distance of 110mm.

Question: Can the angles of the Condylar and Bennet guides be adjusted in the A7 Plus?
Answer: Yes, both the Condylar and Bennet guides on the A7 Plus are adjustable.

Question: Can the lateral movement of the Elite Facebow be smoothly controlled?
Answer: Yes, the bow is equipped with a sliding system for smooth lateral movement.
