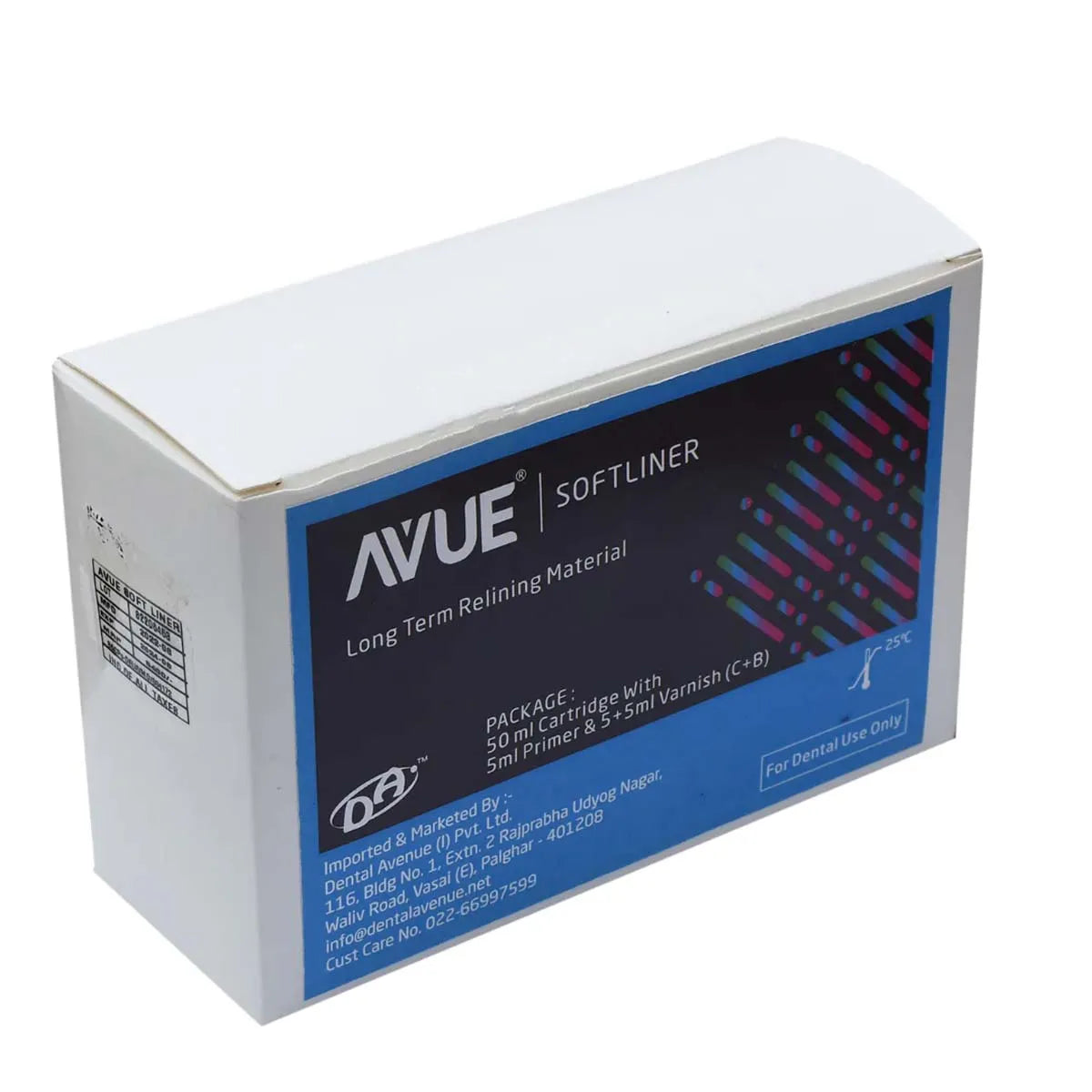

Avue Soft Liner (DAV-j33-01)

• Permanently soft for lasting comfort
• Uniform force distribution for enhanced mastication
• Ideal for ridge atrophy and thin mucosa
• High bond strength (2.2 MPa)
• Long-lasting tear strength for durability
• Color stable with no taste or odor
• User-friendly AUTOMIX-cartridge for easy application

Mixing Time  Automix
Working time (23 °C) 0:55-1:20min
Recommended s.time in mouth 4:00min
Setting time (35 °C) 4:00-5:00min Adhesive strength 2.2 Mpa

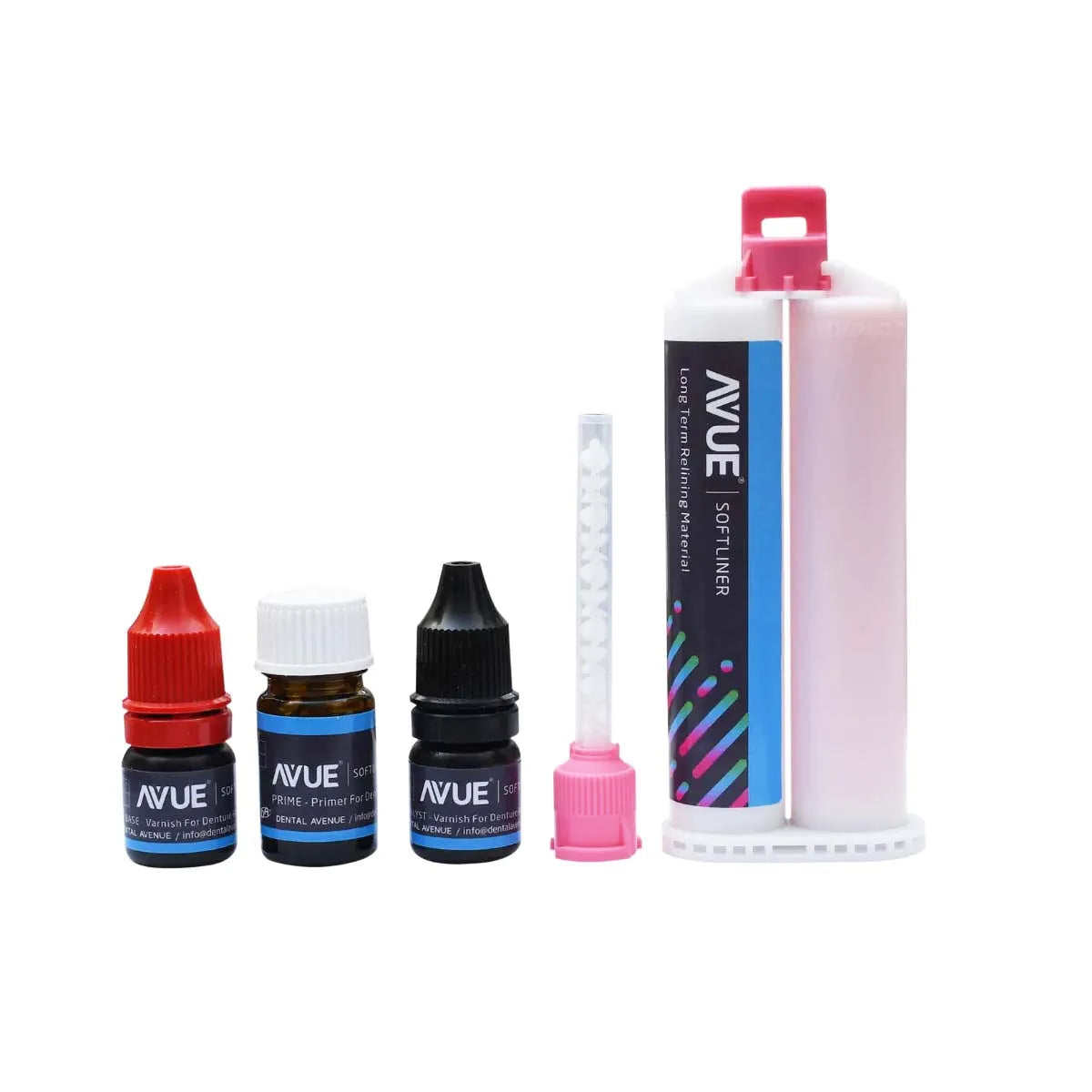

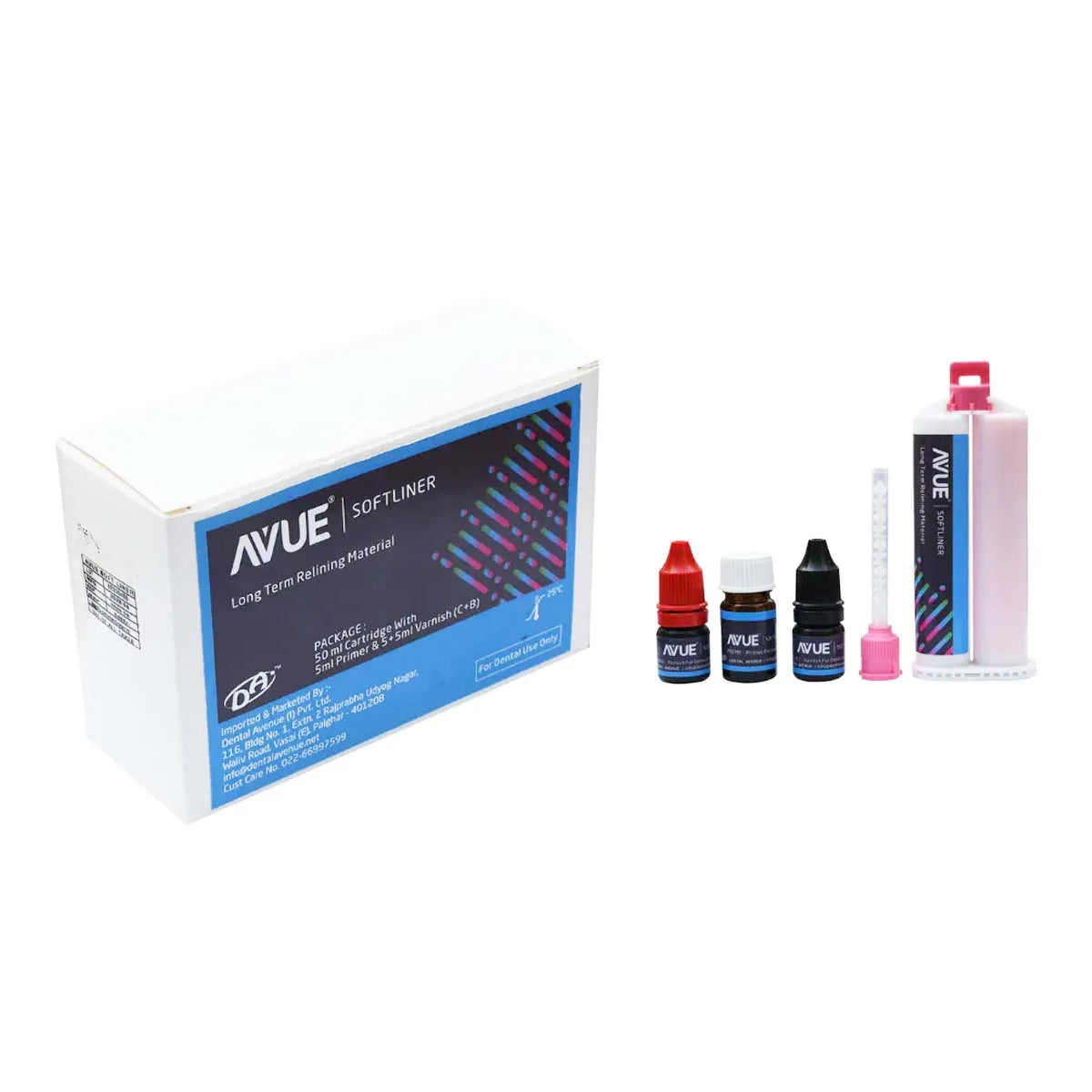

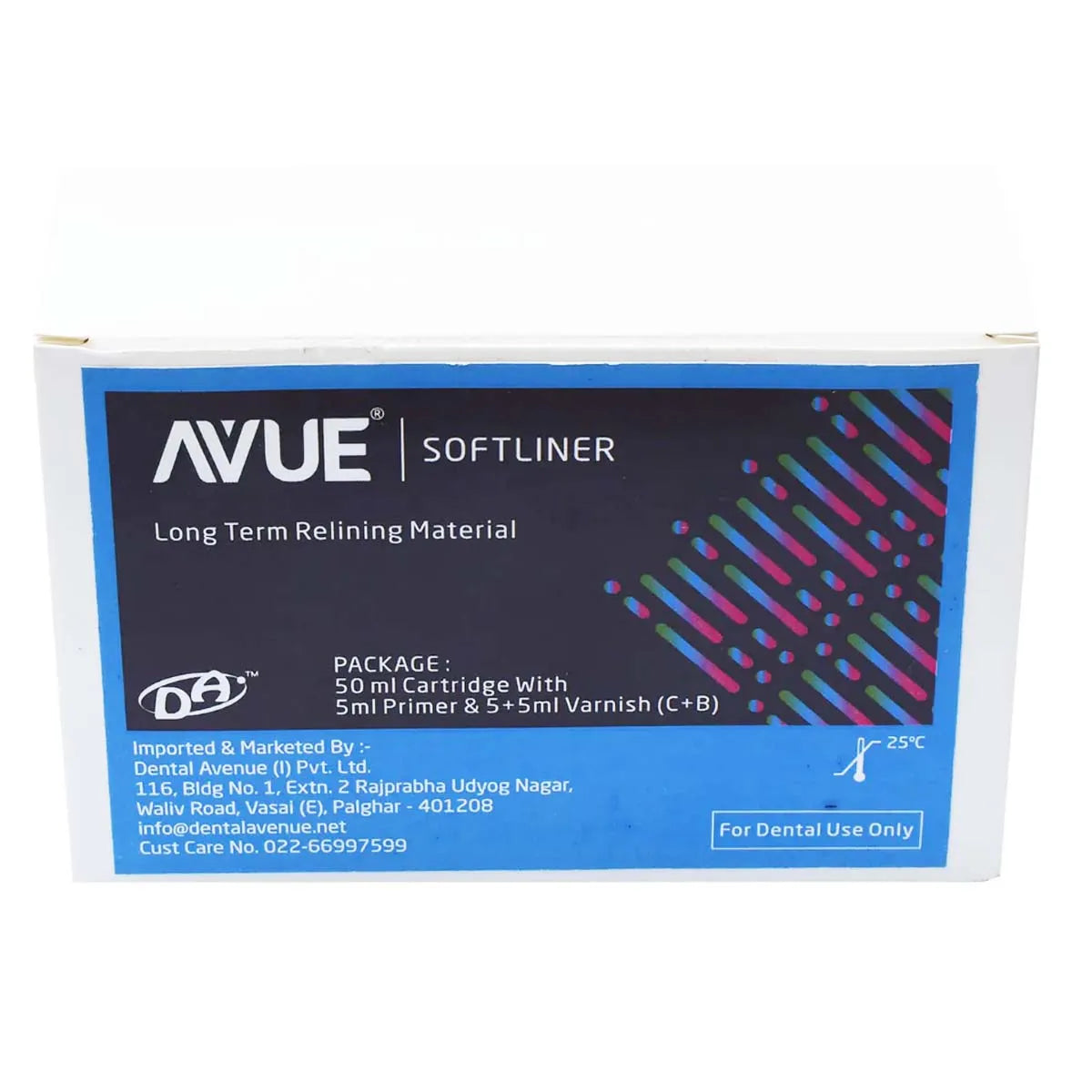

• 1 x 50ml Avue Softliner Cartridge
• 1 x 5ml Primer
• 1 x 5ml Varnish Base
• 1 x 5ml Varnish Catalyst
• Accessories

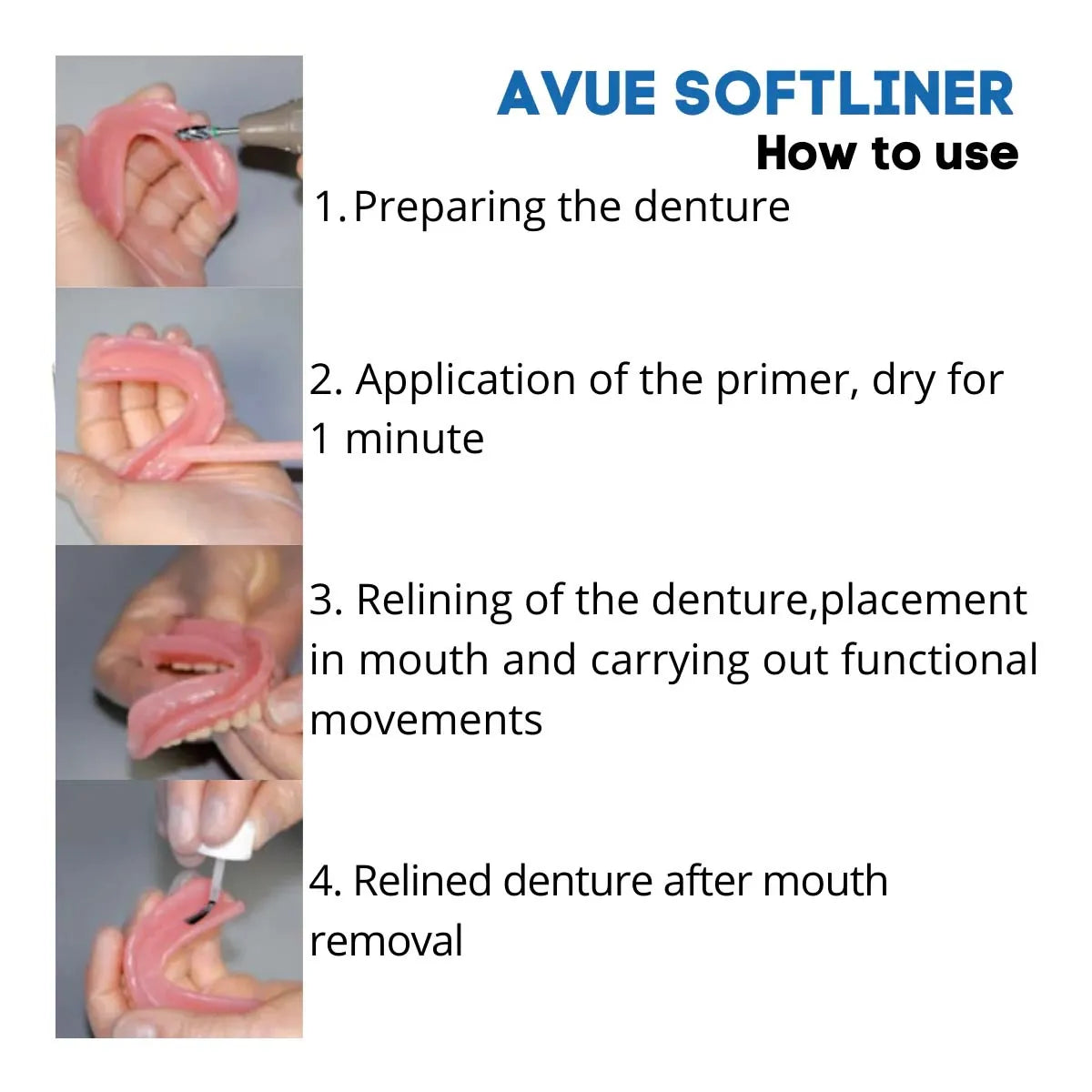

Avue Soft Liner (DAV-j33-01) - Usage Directions

Preparation:

• Ensure a clean and dry working environment.
• Inspect the denture for any damage or debris; clean if necessary.
• If using on an existing denture, remove any existing soft liner material.

Surface Preparation:

• Roughen the bonding surface of the denture using air particle abrasion for improved bond strength.
• Pretreat the denture base resin with monomer and acetone to enhance the strength of the bond.

Primer Application:

• Apply a thin layer of A-SOFT PRIMER to the prepared denture surface.
• Allow the primer to dry completely before proceeding.

Mixing Avue Soft Liner:

• Use the AUTOMIX-cartridge for convenient and precise mixing.
• Dispense equal amounts of both components onto a mixing pad.
• Mix thoroughly until a homogenous consistency is achieved.

Application of Avue Soft Liner:

• Apply the mixed Avue Soft Liner evenly onto the primed denture surface.
• Ensure a uniform layer, covering all necessary areas.
• Use appropriate instruments to shape and contour the soft liner as needed.

Curing:

• Allow the Avue Soft Liner to cure according to the manufacturer's recommendations.
• This typically involves an addition curing process; follow the specified time and temperature guidelines.

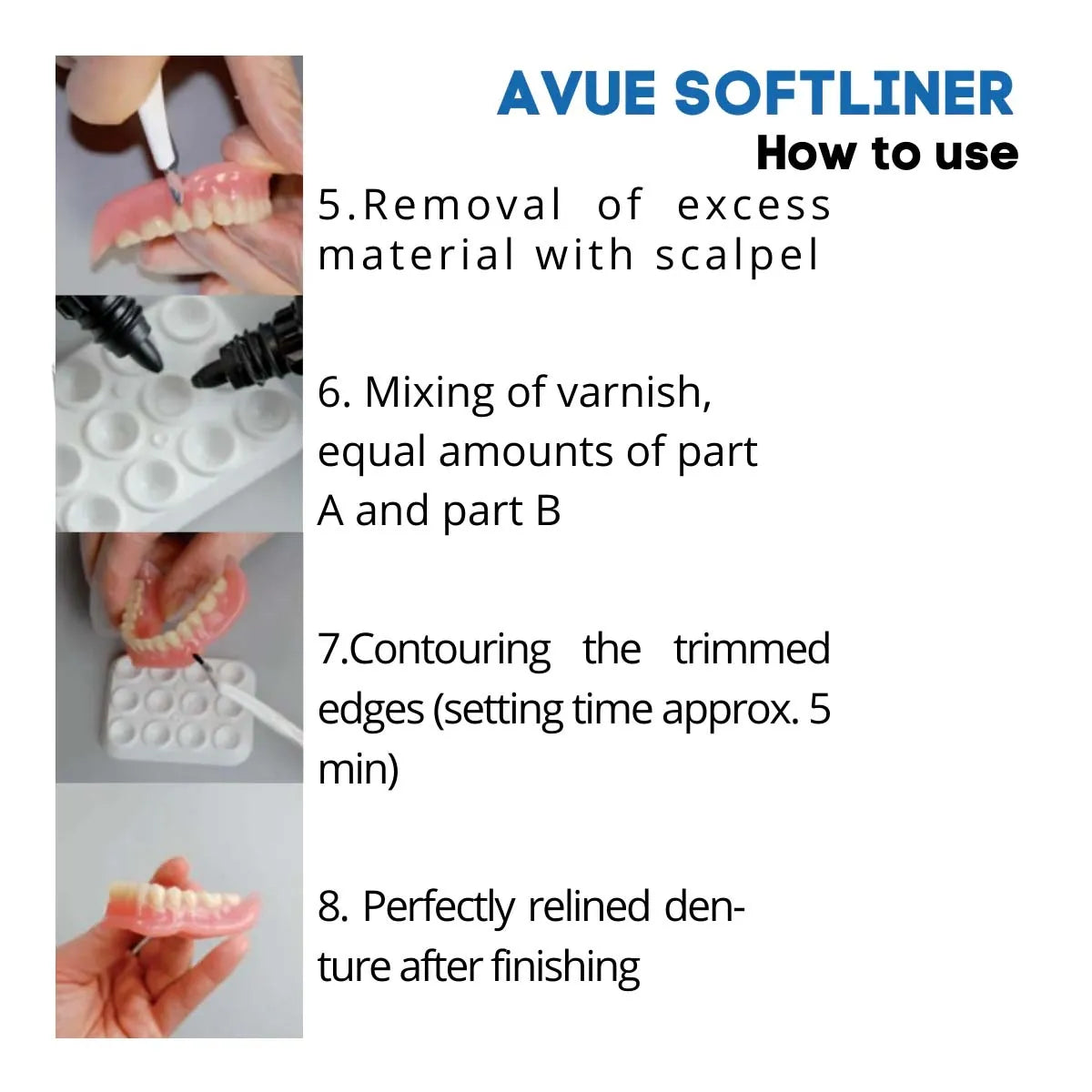

Trimming and Finishing:

• Trim excess material carefully from the denture after curing.
• Use AVUE SOFTLINER VARNISH to coat and seal the trimmed edges.

Final Inspection:

• Inspect the finished denture for any irregularities.
• Ensure the soft liner is comfortable and properly adhered.

Patient Instructions:

• Instruct the patient on proper care and maintenance of the denture with the soft liner.
• Provide any additional information relevant to the patient's specific needs.

• Warranty is not applicable for this product.

Question: What is Avue Soft Liner used for?
Answer: Avue Soft Liner is designed for fabricating permanently soft denture relinings in dental practices.

Question: What dental conditions does it address?Answer: Ideal for ridge atrophy, thin mucosa, bony undercuts, bruxism, and xerostomia.

Question: How does it distribute masticatory forces?
Answer: The soft liner evenly distributes forces, improving oral comfort and masticatory efficiency.

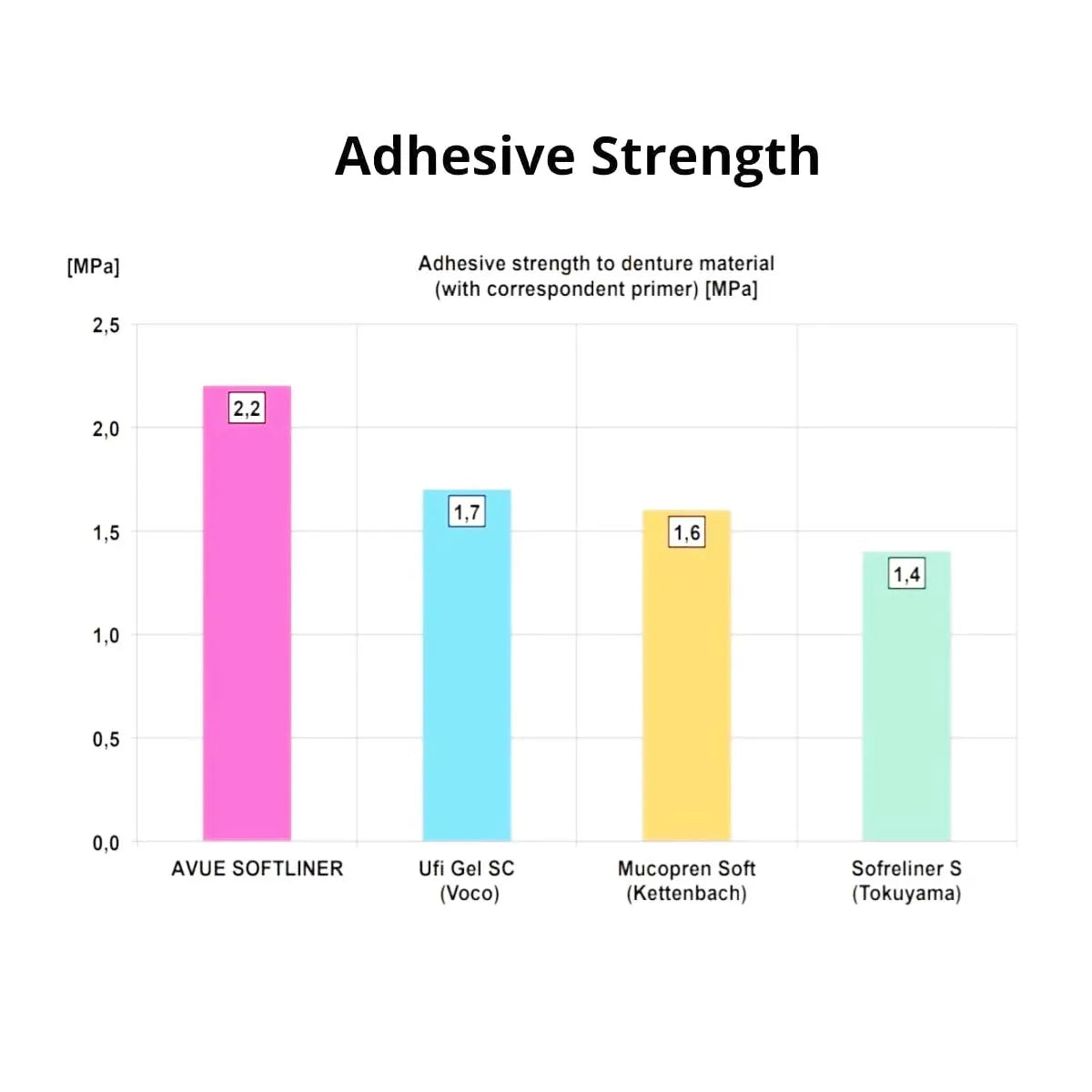

Question: What is the bond strength of Avue Soft Liner?
Answer: Avue Soft Liner boasts a high bond strength of 2.2 MPa, surpassing many competitors.

Question: How is the bond strength achieved?Answer: Bond strength is enhanced through surface roughening and resin pretreatment.

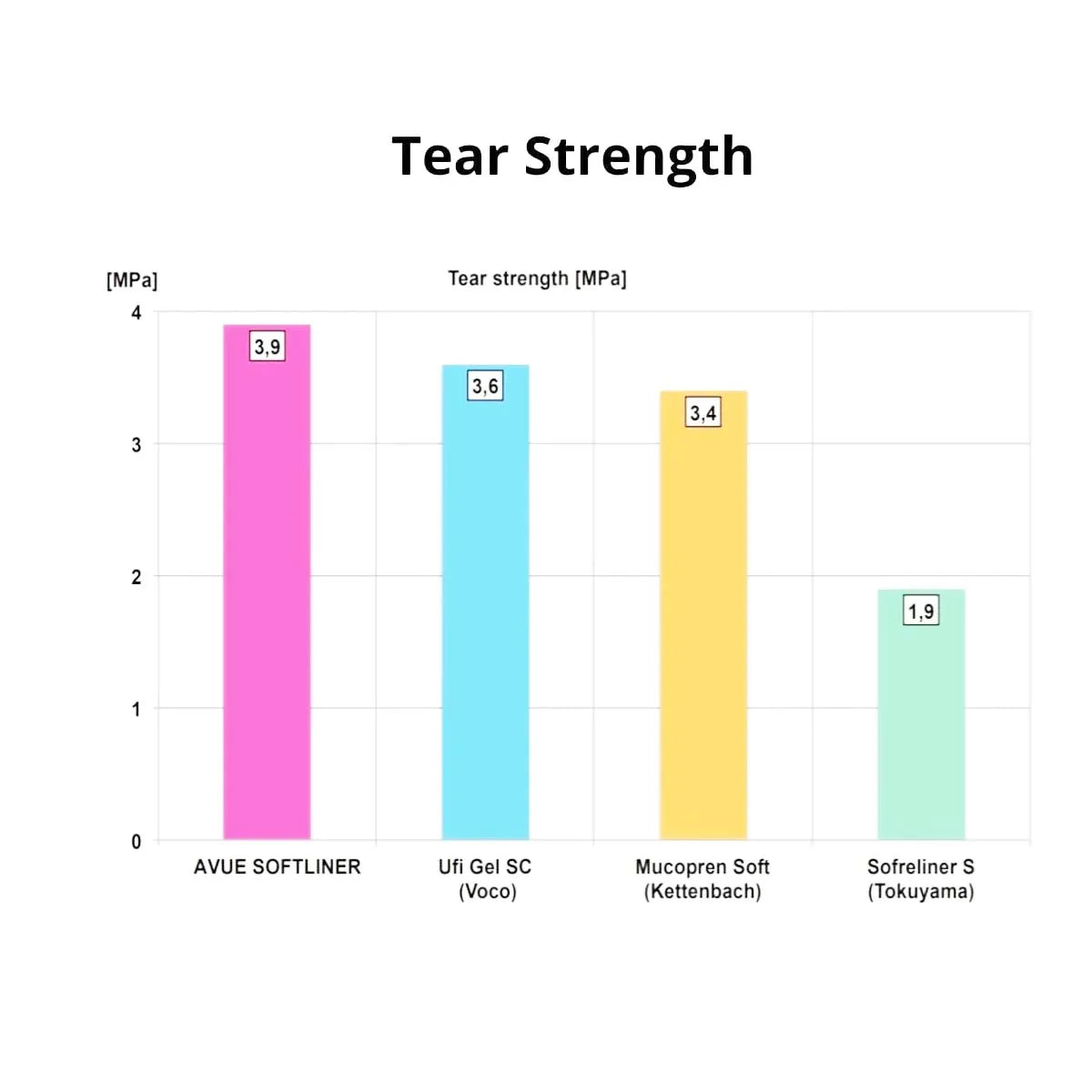

Question: What is the tear strength of the material?Answer: The silicone elastomers provide high tear strength, ensuring long-term durability.

Question: Is it suitable for all standard resin prostheses?
Answer: Yes, Avue Soft Liner is suitable for application on all standard resin prostheses.
