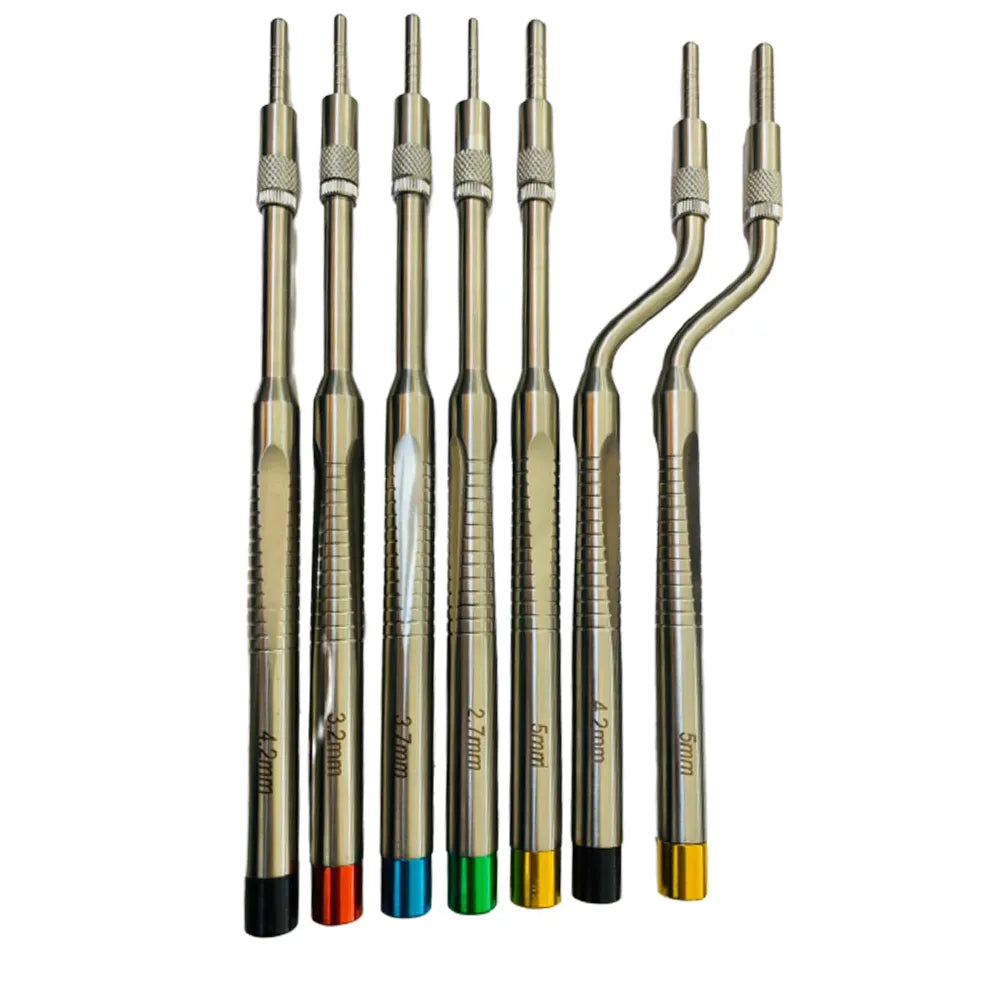

Api+ Osteotomes Convex With Stoppers
Api+ Osteotomes Convex With Stoppers
Couldn't load pickup availability
The dental osteotome is a versatile surgical instrument designed for precise bone cutting and preparation, featuring an offset design suitable for anterior and posterior use.Equipped with a safety double stop screw, it allows adjustment of the working depth to ensure controlled procedures. Used notably in sinus lift techniques, these osteotomes elevate the sinus floor to accommodate implants and additional bone concurrently, offering a less invasive alternative to traditional sinus augmentation surgery.
This approach requires minimal pre-existing bone beneath the maxillary sinus floor, enhancing patient comfort during recovery. Additionally, osteotomes are pivotal for bone condensation, enhancing implant stability in cancellous bone by reinforcing it radially.
Available in various types corresponding to endosteal implant diameters, they are made from durable stainless steel, feature a rounded apex for precision, and are autoclavable for rigorous sterilization at 134°C, ensuring safety and reliability
Features
Features
Api+ Osteotomes Convex With Stoppers
- Offset design for use in both anterior and posterior areas during dental surgeries.
- Rounded apex ensures smooth and precise surgical maneuvers.
- Safety double stop screw enables precise adjustment of working depth.
- Ideal for sinus lift procedures, facilitating gradual elevation of the sinus floor.
- Enhances implant stability through effective bone condensation in cancellous bone.
- Made from durable stainless steel for reliability and longevity.
- Laser-marked depth indexation for accurate surgical depth control.
- Autoclavable at 134°C for thorough sterilization between uses.
Description
Description
Specification
Specification
Api+ Osteotomes Convex With Stoppers
- Type: Sinus Lift Instruments
- Category: Osteotomes
- Material: Stainless Steel
- Disposable/ Re-usable: Re-Usable
- Autoclavable: Yes
- Lightweight and durable
- Colour - coded for easy identification
Packaging
Packaging
- 1 x Osteotome Convex with stopper
Direction to use
Direction to use
Prepare Instrument: Ensure the osteotome is clean and sterilized (autoclaved at 134°C) before use.
Positioning: Use the offset design appropriately for anterior or posterior areas as needed.
Depth Adjustment: Utilize the safety double stop screw to set the desired working depth according to surgical requirements.
Sinus Lift Technique: Identify and access the sinus floor beneath the maxilla.
- Insert the osteotome carefully and begin lifting the sinus floor gradually.
- Monitor depth using the depth indexation markings for precision.
Bone Condensation:
- Place the osteotome carefully in the cancellous bone around the implant site.
- Apply controlled pressure to condense bone radially around the implant for improved stability.
Completion:
- Once procedures are completed, clean the osteotome thoroughly.
- Store in a secure, clean environment for future use.
Safety Note: Ensure all movements are gentle and controlled to minimize patient discomfort and optimize surgical outcomes.
