Adin Touareg Dental Implants

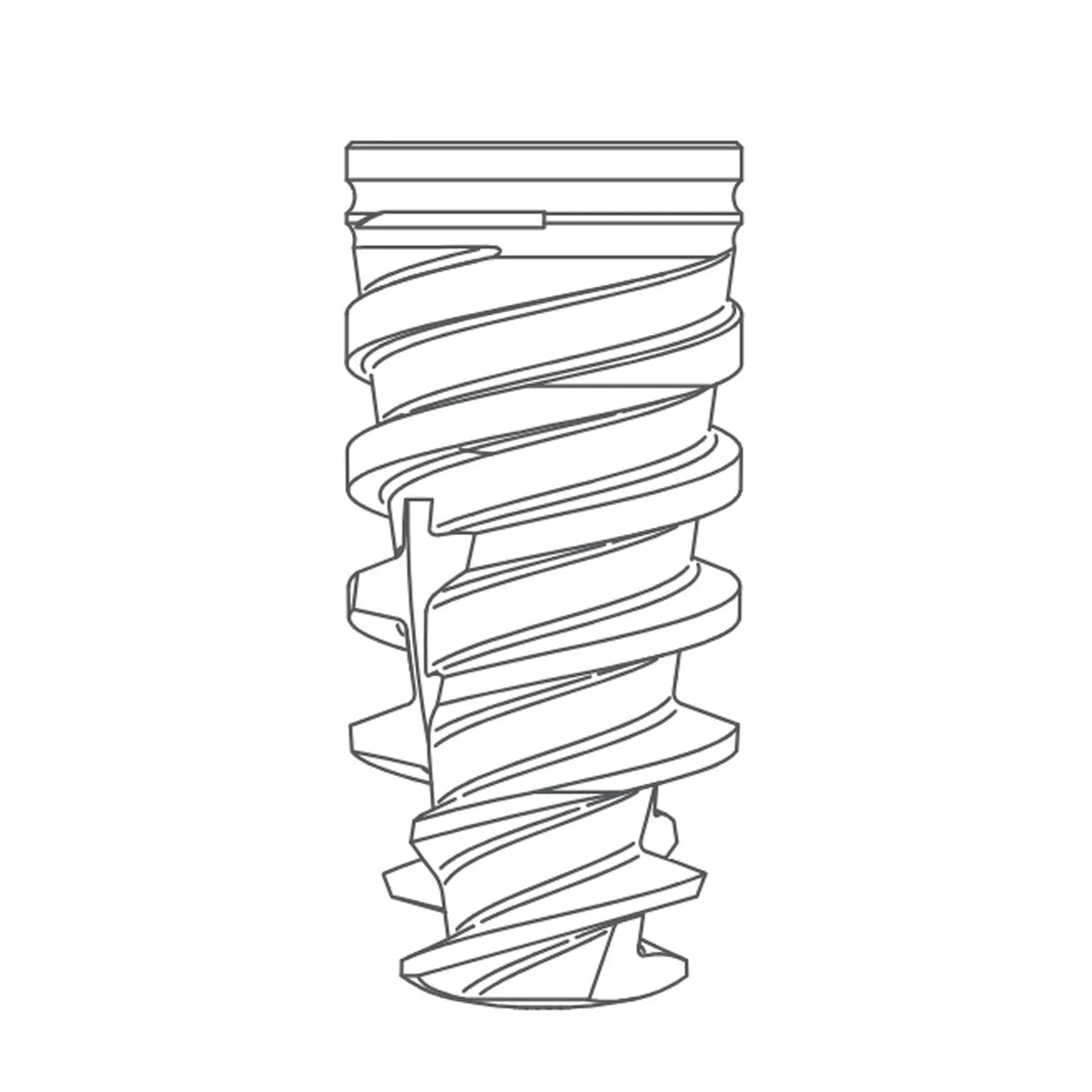

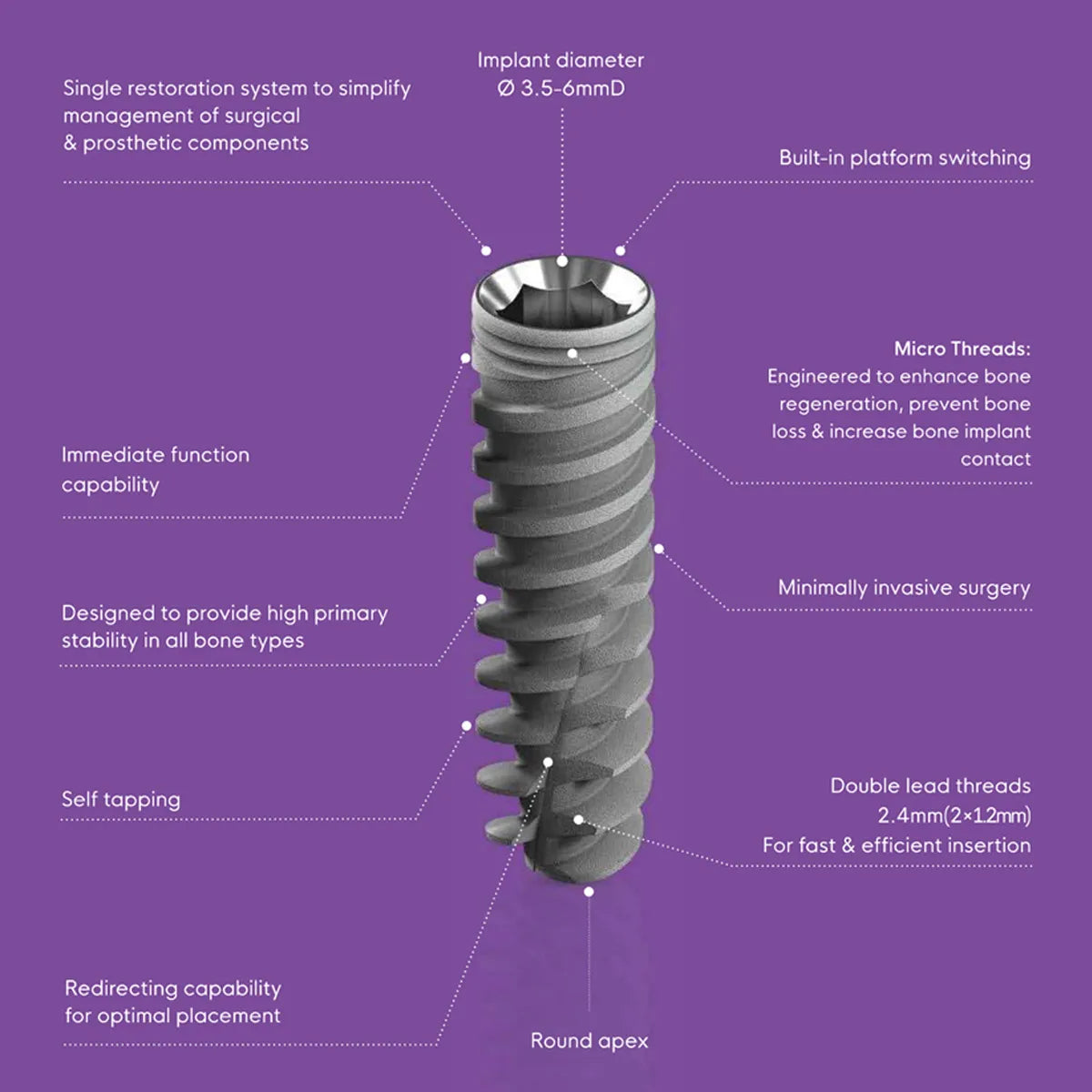

• Spiral Design: Condenses bone during placement for enhanced immediate stability.
• Double Lead Threads: 2x1.2mm threads promote efficient and secure placement.
• Tapered Core: Ensures precise placement and optimal load distribution.
• Round Shaped Apex: Minimizes trauma to anatomical structures and effectively pushes bone graft material.
• Surface Treatments:

Clinical Advantages:

• High Primary Stability: Achieves immediate stability, suitable for all bone types.
• Bone-Condensing Property: Enhances stability, particularly in softer bone types.
• Self-Tapping Capability: Facilitates easier insertion and adjustments.
• Redirecting Capability: Allows for optimal placement in challenging anatomical conditions.
• Platform Switching: Promotes bone preservation and supports long-term success.
• Minimally Invasive Surgery: Reduces patient recovery time and discomfort.
• Immediate Function/Loading: Supports immediate loading for enhanced patient satisfaction.
• Single Restorative/Prosthetic Platform: Simplifies restoration, ensuring consistent results.

• Type: Dental Implant
• Material: Titanium
• Available Implant: Touareg-S, Touareg-OS
• Recommended Torque: 50 Ncm
• Apex Type: Round

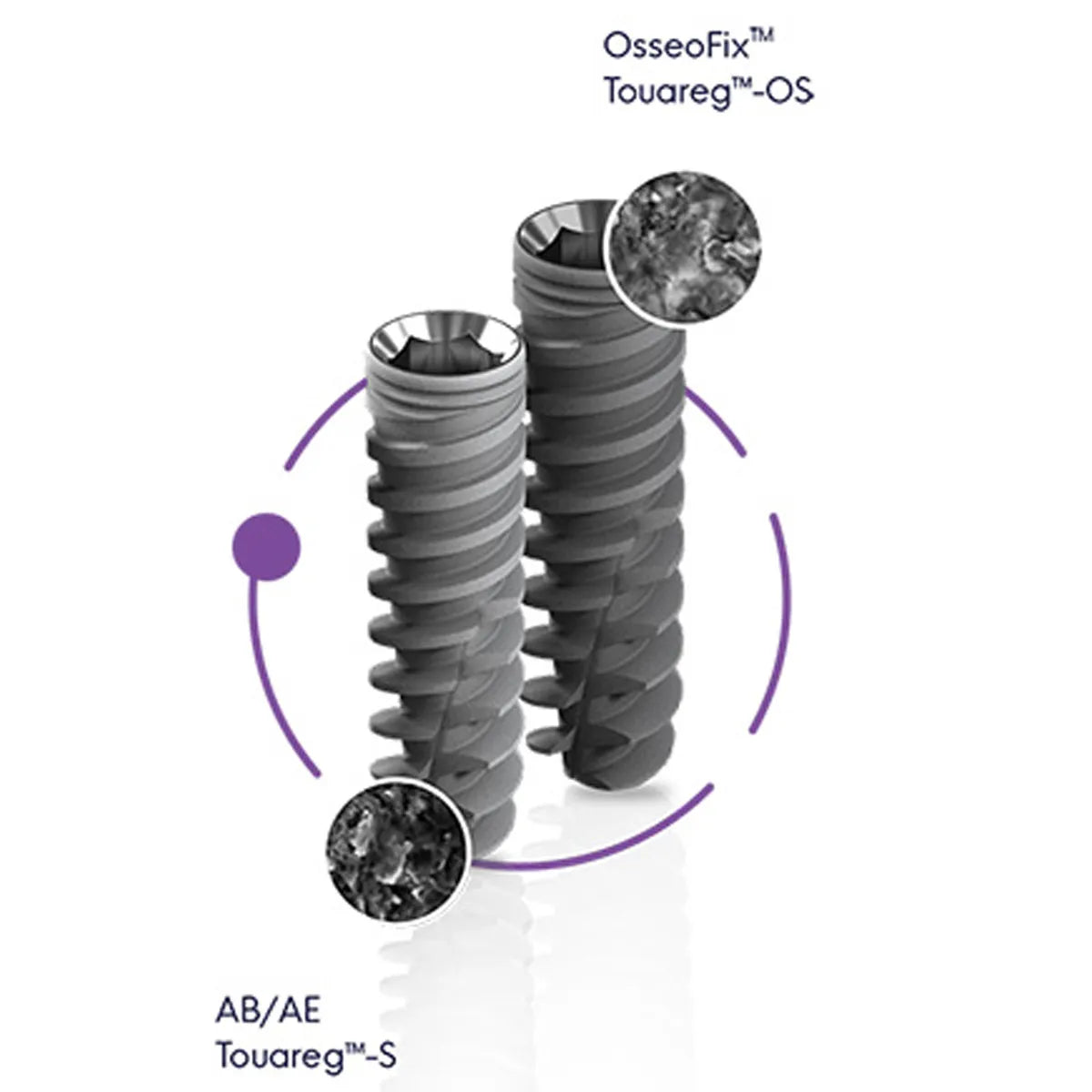

Surface Treatment:

• Touareg-S: Alumina Oxide Blast/ Acid Etched Surface Treatment (AB/AE)
• Torareg-OS: Calcium Phosphate Blasted Surface Treatment

• 1 x Touareg Implant

Pre-Operative Planning:

• Patient Evaluation: Conduct a thorough clinical and radiographic examination to assess bone quality, quantity, and anatomical structures.
• Treatment Planning: Develop a detailed treatment plan, considering the type of implant (Touareg™-OS or Touareg™-S) and the prosthetic requirements.

Surgical Procedure:

• Anesthesia: Administer local anesthesia to ensure patient comfort.
• Incision and Flap Design: Make a precise incision to expose the bone at the implant site.
• Osteotomy Preparation:
• Implant Placement:

• Final Seating:

Post-Operative Care:

• Flap Closure: Suture the flap to ensure proper healing.
• Immediate Loading (if applicable): Attach the temporary restoration if immediate function is planned.
• Instructions to Patient: Provide detailed post-operative care instructions, including oral hygiene practices and dietary recommendations.

Restorative Phase:

• Healing Period: Allow appropriate healing time if immediate loading is not performed.
• Prosthetic Attachment:


Follow-Up:

• Regular Check-Ups: Schedule follow-up appointments to monitor the implant's integration and the patient's overall oral health.
• Maintenance: Advise the patient on regular oral hygiene and professional cleaning to maintain the implant's health and longevity.

• Country of Origin: Israel
• Manufacturer: Adin

• Lifetime warranty is applicable on this product.

Question : How do the Touareg™-OS and Touareg™-S differ?
Answer: The main difference lies in their surface treatments: Touareg™-OS features the OsseoFix™ Calcium Phosphate blasting for enhanced osseointegration, while Touareg™-S has the standard SLA™ Alumina Oxide Blasted/Acid Etched surface treatment.

Question : Can these implants be used in all types of bone?
Answer: Both Touareg™-OS and Touareg™-S implants are designed to achieve high primary stability and are suitable for Type IV bone.

Question : What makes the Touareg™ implants user-friendly?
Answer: The implants feature a self-tapping design, double lead threads for easy placement, and a single restorative platform for simplified restoration. They also allow for minimally invasive procedures and immediate function.

Question : How do the implants ensure minimal trauma to anatomical structures?
Answer: The round shaped apex of the implants minimizes trauma by pushing bone graft material gently and avoiding significant impact on anatomical structure

Question : What surgical techniques are recommended for these implants?
Answer: A minimally invasive surgical approach is recommended. Proper osteotomy preparation with sequential drilling and adequate irrigation is essential. The implants can be placed using a handpiece or ratchet.

Question : What kind of post-operative care should be provided to patients?
Answer: Patients should be given detailed oral hygiene instructions, dietary recommendations, and scheduled for regular follow-up appointments to monitor healing and integration.
