Adin Swell Dental Implants
Adin Swell Dental Implants
Couldn't load pickup availability
The Swell dental implant by Adin is a hybrid implant designed to meet the highest standards of precision and aesthetics. Featuring a parallel body and a tapered apex, this implant ensures accurate positioning and stability. Its V-shaped thread design enhances load distribution, making it particularly effective for use in the mandibular arch. One of the standout features of the Swell™ implant is its Alumina Oxide Blasted/Acid Etched (AB/AE) surface treatment. This advanced surface treatment promotes superior osseointegration, ensuring a strong and stable connection with the surrounding bone. The hybrid design not only supports optimal placement but also contributes to improved aesthetic results, meeting the demands of modern dental practices. Ideal for various dental restoration needs, the Swell™ implant combines innovative design and reliable performance, making it a preferred choice for dental professionals aiming for excellent clinical outcomes and patient satisfaction.
Indications:
- Single Tooth Replacement: Ideal for replacing a single missing tooth
- Multiple Tooth Replacement: Suitable for restoring multiple adjacent missing teeth
- Full Arch Rehabilitation: Effective for full arch restorations using implant-supported dentures
- Bone Loss Cases: Designed for patients with moderate to severe bone loss
- Aesthetic Considerations: Provides natural-looking results for enhanced smile aesthetics
- Long-Term Stability: Offers durable solutions for long-lasting dental restoration
- Osseointegration Support: Promotes strong integration with the jawbone for stability
- Functional Restoration: Restores chewing function and improves overall oral health
- Customizable Options: Compatible with various abutments for tailored treatment plans
- Minimally Invasive Procedures: Facilitates less invasive surgical techniques for patient comfort
Features
Features
- Hybrid Design: Combines a parallel body with a tapered apex for precise positioning and enhanced stability
- V-Shaped Thread Design: Improves load distribution, ensuring optimal support and long-term success
- Double Lead Thread (2×0.6mm): Facilitates faster insertion and enhances primary stability during placement
- Self-Tapping: Allows for easy insertion without the need for pre-drilling, simplifying the surgical procedure
- Single Restorative/Prosthetic Platform: Streamlines the restoration process, making it easier for dental professionals to work with

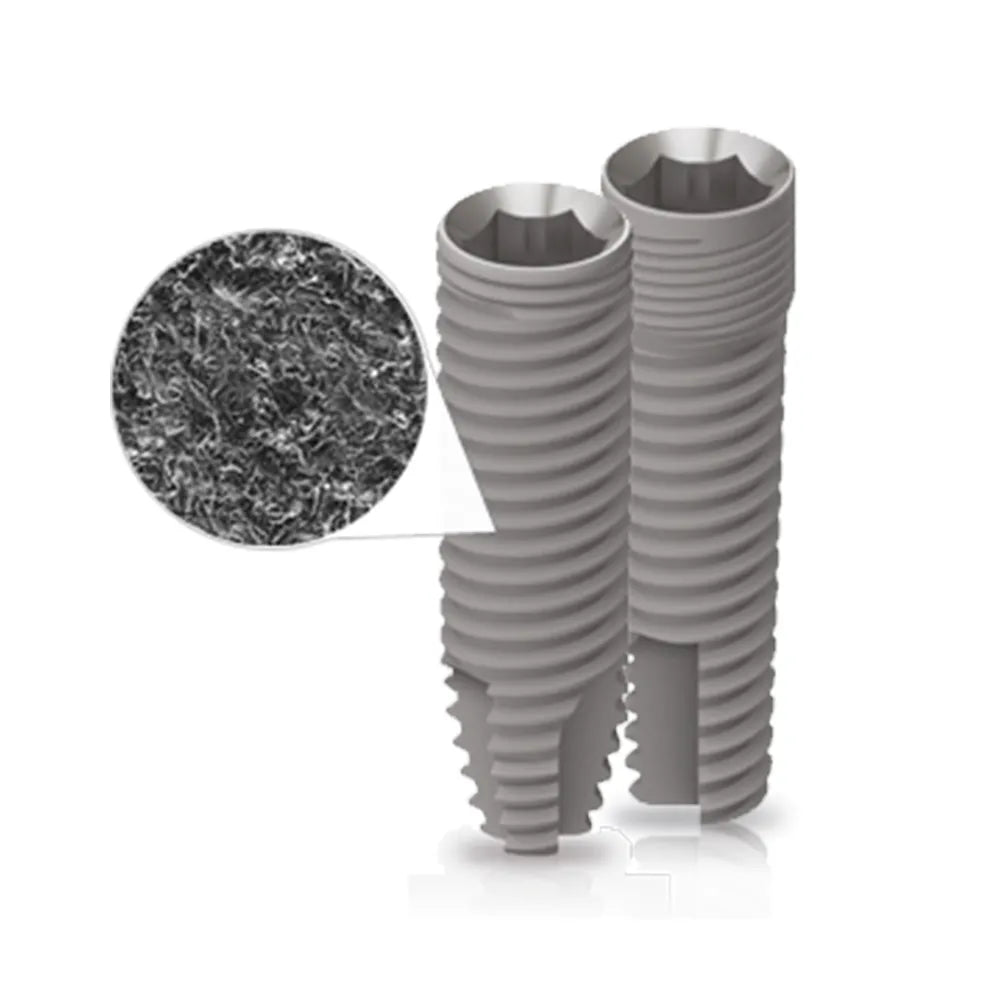

- Alumina Oxide Blasted/Acid Etched (AB/AE) Surface Treatment: Promotes superior osseointegration and a strong, stable connection with the surrounding bone
- Recommended for Mandibular Arch: Particularly effective for use in the lower jaw, providing reliable performance and improved aesthetic outcomes
Description
Description
Specification
Specification
- Connection Type: Hexagon
- Material: Titanium
- Sterile/ Non Sterile: Sterilized
- Surface Treatment: S.L.A. (Sandblasted and Acid-Etched) for enhanced osseointegration
- Thread Design: V-shaped double lead thread (2x0.6 mm) for improved load distribution and stability
- Implant Shape: Straight, parallel-walled with a slightly tapered design
- Prosthetic Platform: Single restorative/prosthetic platform for compatibility across implant diameters
Packaging
Packaging
- 1 x Swell Dental Implant
Direction to use
Direction to use
- Pre-Surgical Planning: Assess the patient's dental and medical history. Conduct imaging studies to evaluate bone quality and quantity, ensuring adequate space for implant placement
- Sterilization: Ensure all surgical instruments and tools are sterilized. Adin implants are provided sterile and intended for single use only
- Anesthesia: Administer local anesthesia to the patient to ensure comfort during the procedure
- Implant Site Preparation: Use a surgical guide if necessary. Create an osteotomy site by drilling into the jawbone, following the recommended protocols for depth and width
- Implant Placement: Insert the Adin Swell implant into the prepared site. The implant can be placed manually or with a contra-angle at a speed not exceeding 25-30 RPM. Ensure the implant is positioned correctly, avoiding excessive torque (maximum 50 Ncm)
- Healing Protocol: Allow for appropriate healing time based on the implant's initial stability and bone quality. Follow the recommended loading protocols to ensure osseointegration
- Prosthetic Considerations: Once healing is complete, attach the abutment and prosthesis. Ensure a passive fit of the prosthesis over the implants
- Post-Operative Care: Provide the patient with post-operative instructions, including care for the surgical site and follow-up appointments
Additional info
Additional info
- Country of Origin: Israel
- Manufacturer: Adin
Warranty
Warranty
- Warranty is not applicable for this product.
Product Related Questions
Product Related Questions
Question : What is the Swell™ dental implant?
Answer: The Swell™ dental implant is a hybrid implant with a parallel body, tapered apex, and V-shaped thread design, providing precise positioning, improved aesthetics, and superior load distribution.
Question : How does the AB/AE surface treatment benefit the implant?
Answer: The Alumina Oxide Blasted/Acid Etched surface treatment promotes superior osseointegration, ensuring a strong and stable connection with the surrounding bone.
Question : How does the double lead thread benefit the implant?
Answer: The double lead thread facilitates faster insertion and enhances primary stability during placement.
Question : What are the main features of the Swell™ implant?
Answer: Key features include a double lead thread (2×0.6mm), self-tapping design, single restorative/prosthetic platform, and Alumina Oxide Blasted/Acid Etched (AB/AE) surface treatment.
