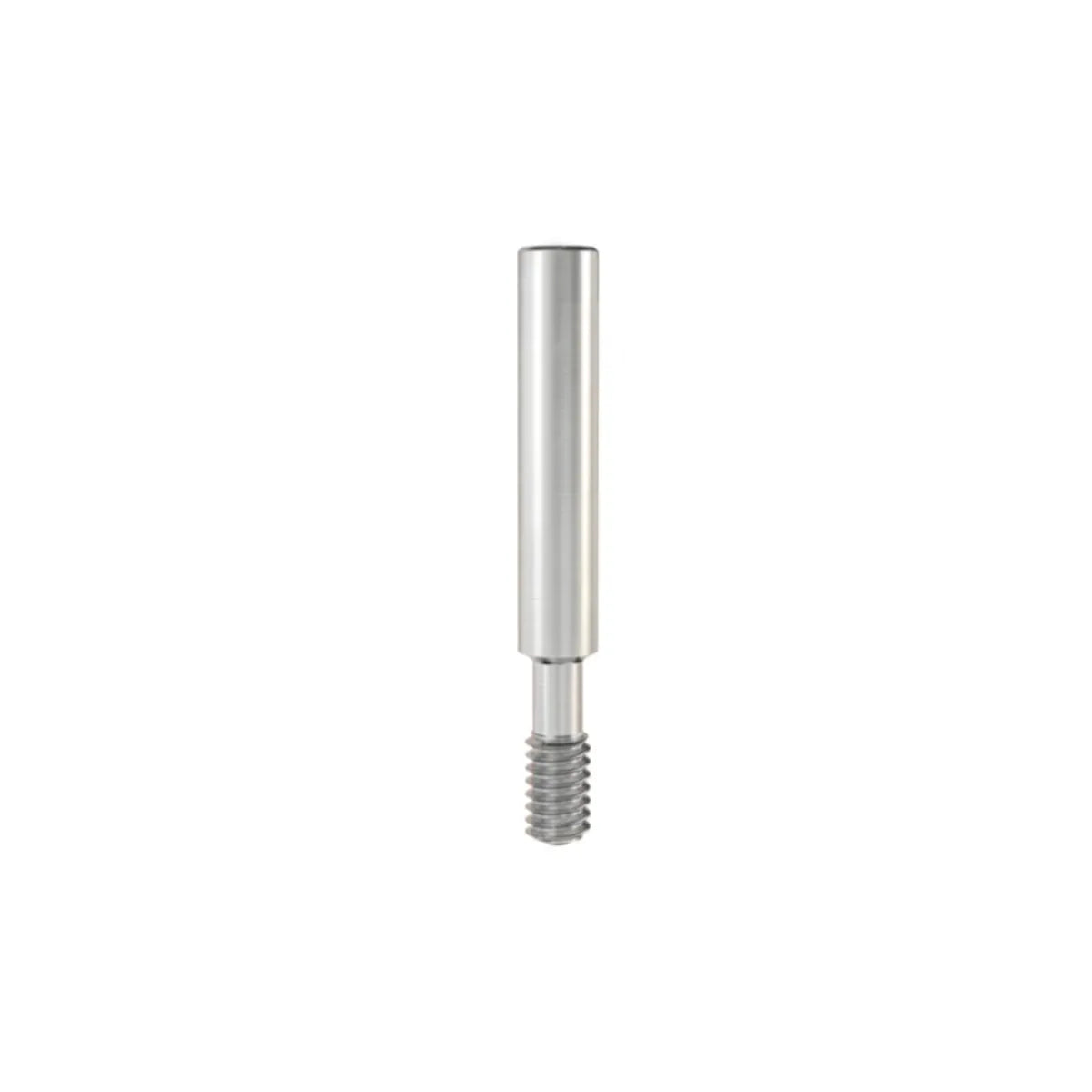

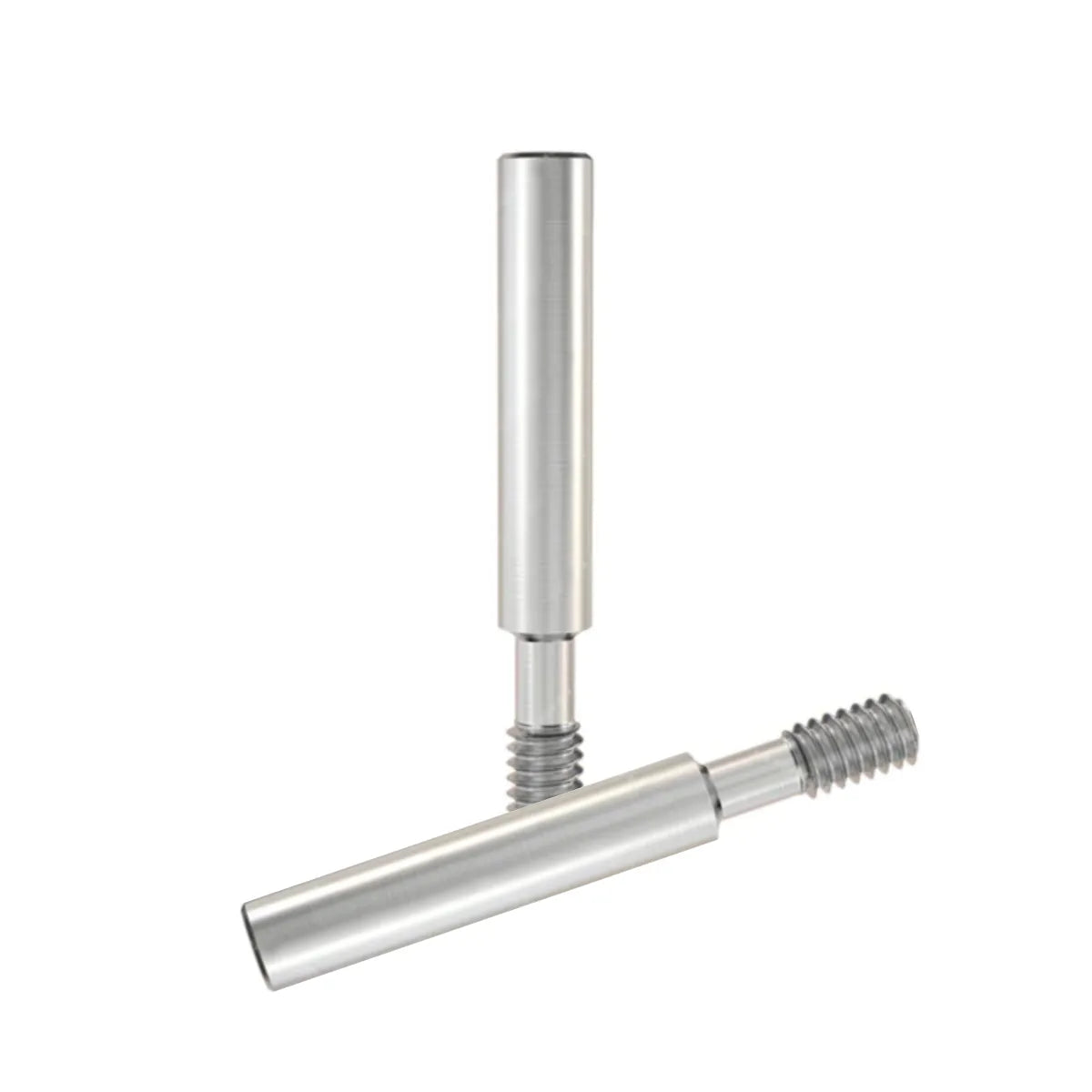

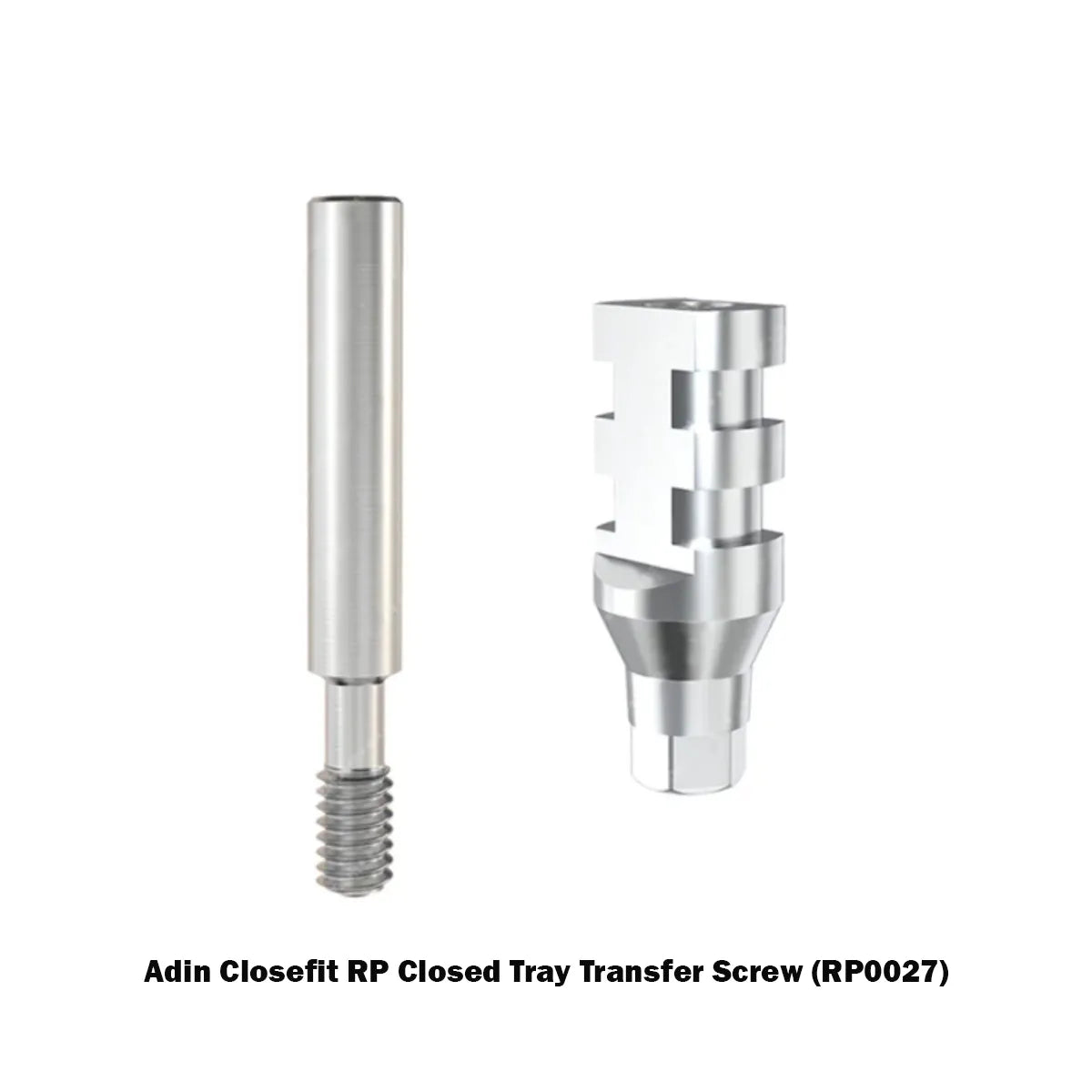

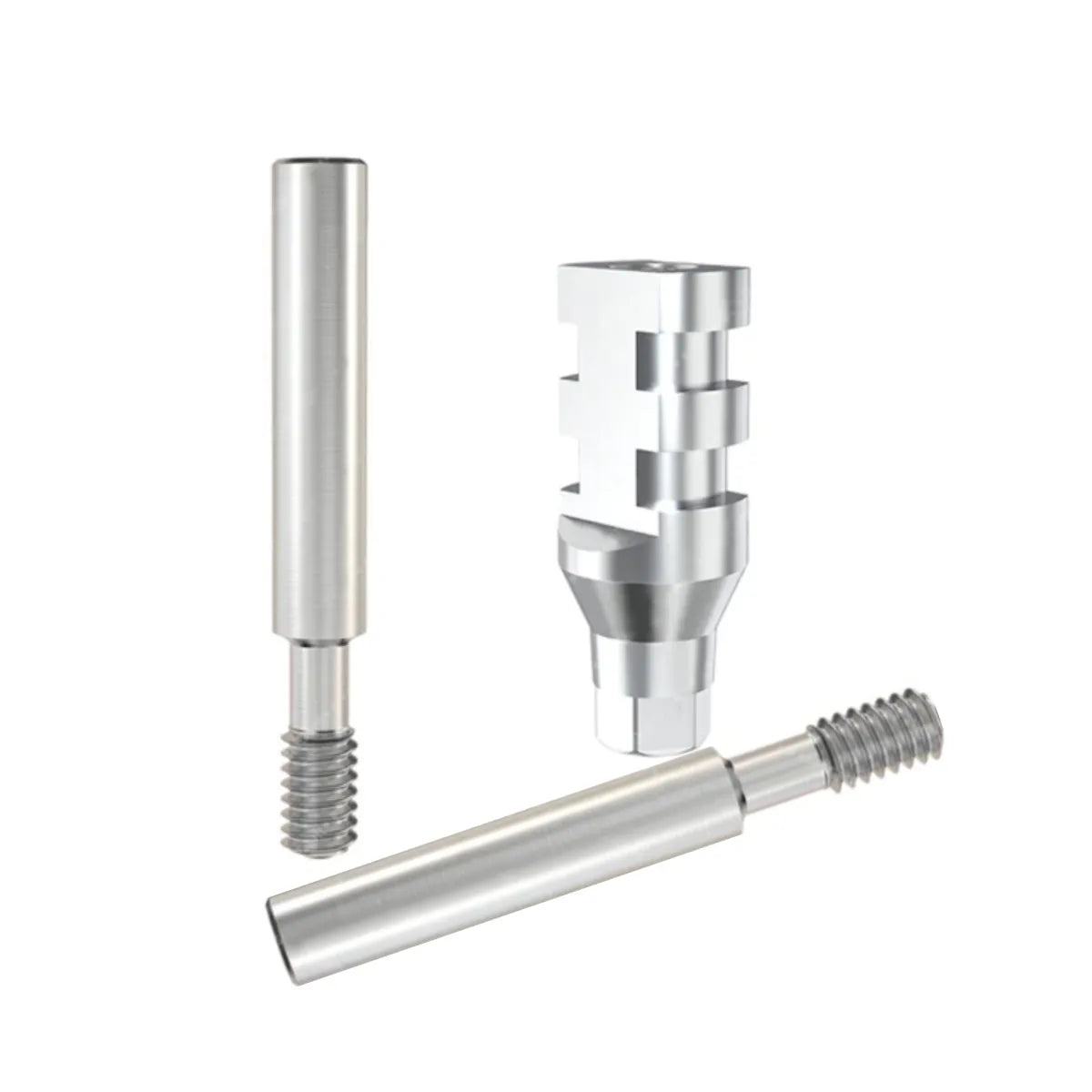

Adin Closefit RP Closed Tray Transfer Screw (RP0027)
Adin Closefit RP Closed Tray Transfer Screw (RP0027)
Adin Closefit RP Closed Tray Transfer Screw (RP0027) is an essential tool for capturing accurate impressions in dental implant procedures. Constructed from high-quality Titanium Grade 5, it ensures durability and biocompatibility in the oral environment. With a conical connection featuring a hex of 2.65mm, this screw provides a secure fit to the implant, enhancing stability during the impression process. Its regular platform diameter of Ø4.3mm and length of 14mm are designed to accommodate various clinical situations effectively. The closed tray design minimizes distortion during impression removal, making it particularly beneficial when maintaining the integrity of the impression is crucial. This transfer screw facilitates precise replication of the implant position, contributing to the successful planning and execution of implant restorations in dental care.
Features
Features
- Material: Made from Titanium Grade 5, ensuring durability and biocompatibility in the oral environment
- Connection Type: Features a conical connection with a hex size of 2.65mm for secure attachment to implants
- Platform Compatibility: Specifically designed for regular platform (RP) implants, allowing for versatile use in various clinical scenarios
- Diameter: Ø4.3mm, providing a precise fit for accurate impression capture
- Length: 14mm, optimized for effective positioning and stability during the impression process
- Closed Tray Design: Minimizes distortion during impression removal, enhancing the integrity of the captured impression
- Ease of Use: Facilitates straightforward handling and re-insertion into the impression material, ensuring accurate replication of implant positions
Description
Description
Specification
Specification
- Type: Closed Tray Transfer Screw
- Connection: Conical Connection Hex 2.65mm
- Platform: Regular Platform (RP)
- Diameter: Ø4.3mm
- Material: Titanium Grade 5
- Length (L): 14mm
Packaging
Packaging
- 1 x Closefit RP Closed Tray Transfer Screw (RP0027)
Direction to use
Direction to use
Preparation:
- Patient Assessment: Confirm the patient's suitability for implant procedures and review their medical history
- Sterilization: Ensure all instruments, including the transfer screw, are properly sterilized before use
Implant Exposure:
- If the implant is submerged, carefully retract the soft tissue or make a small incision to expose it
Attach the Transfer Screw:
- Screw the closed tray transfer screw onto the implant using a torque wrench or hand-tighten it securely, ensuring not to exceed the recommended torque limit
Impression Material Application:
- Cover the screw access hole with wax to prevent impression material from entering
- Fill the impression tray with appropriate elastomeric material and seat it over the transfer screw
Remove Impression:
- Once the impression material has set, carefully remove the tray from the mouth, ensuring that the transfer screw remains attached to the impression
Post-Procedure Care:
- Inspect the impression for accuracy and send it along with the transfer screw to the laboratory for further processing
Additional info
Additional info
- Country of Origin: Israel
- Manufacturer: Adin
Warranty
Warranty
- Warranty is not applicable for this product
