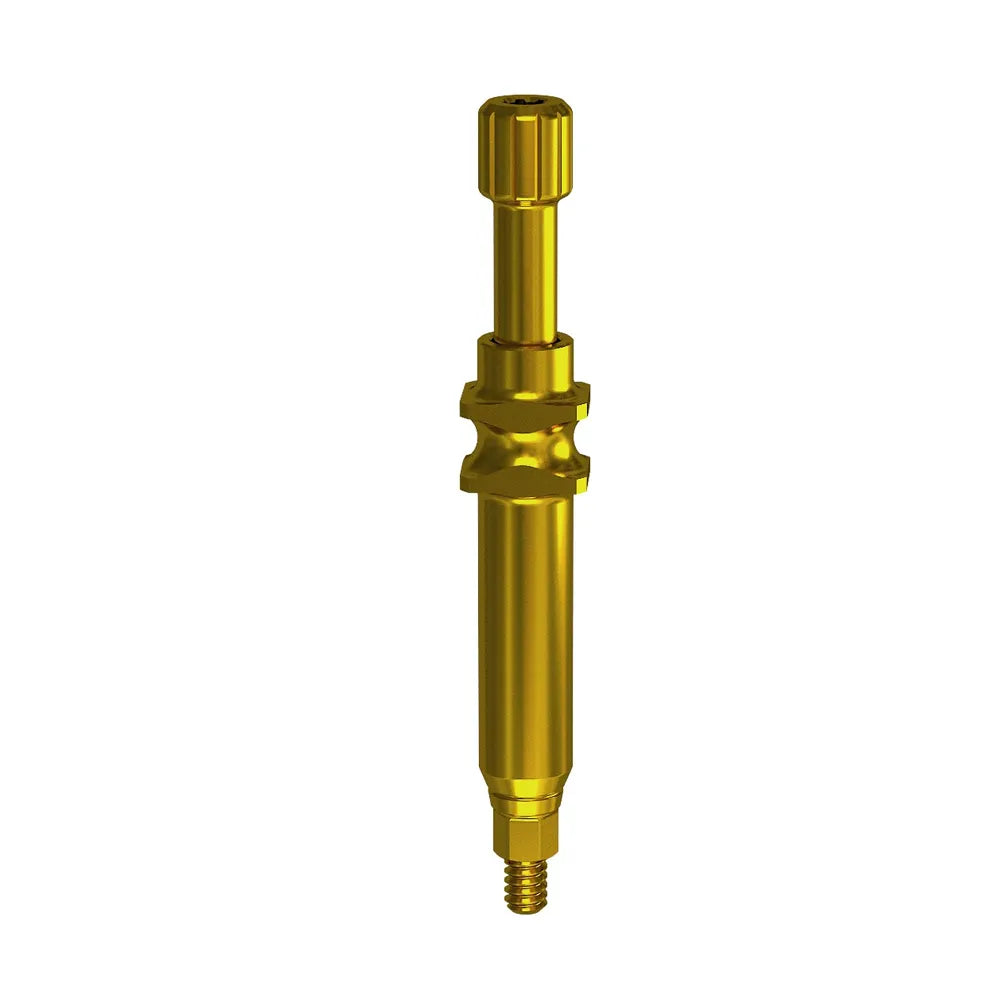

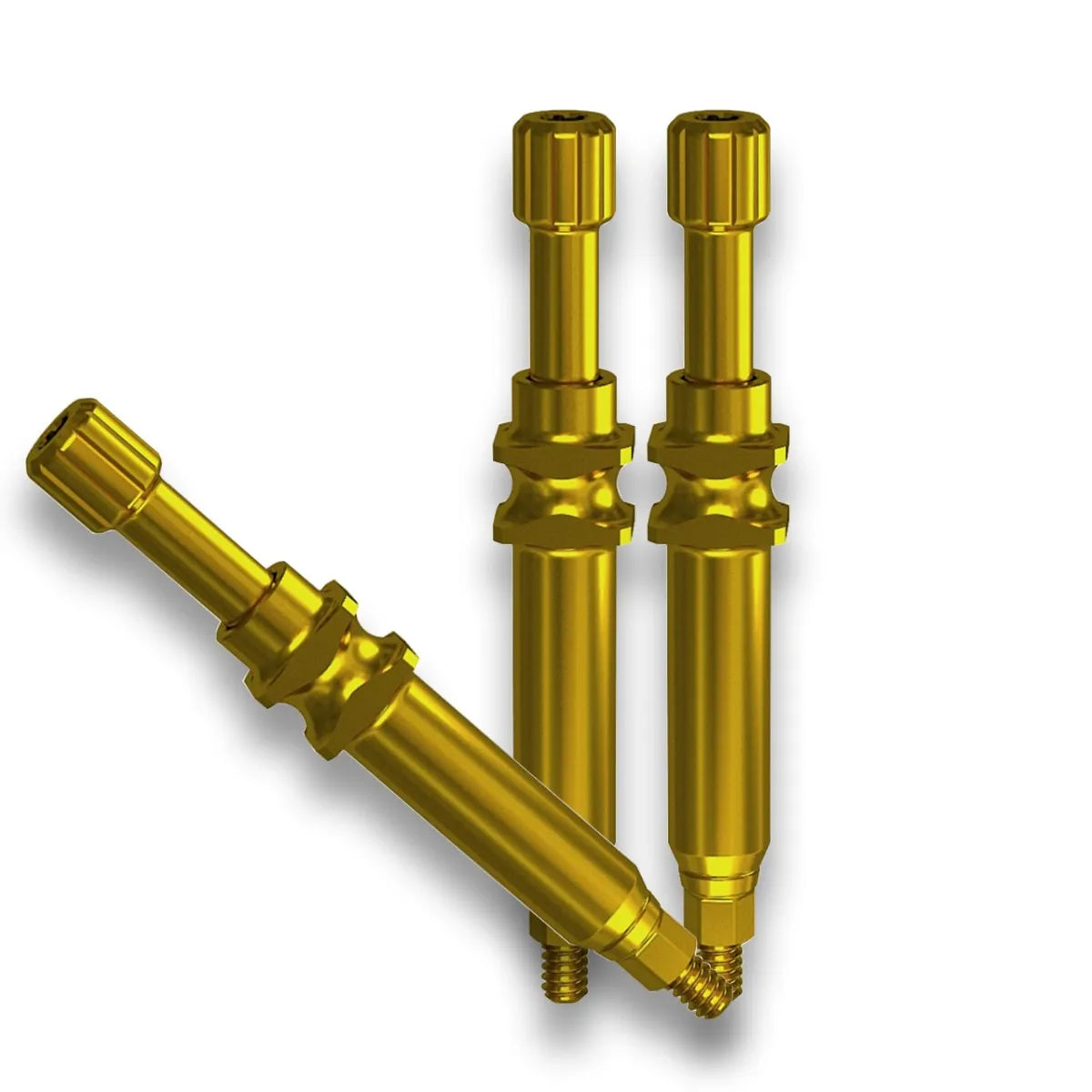

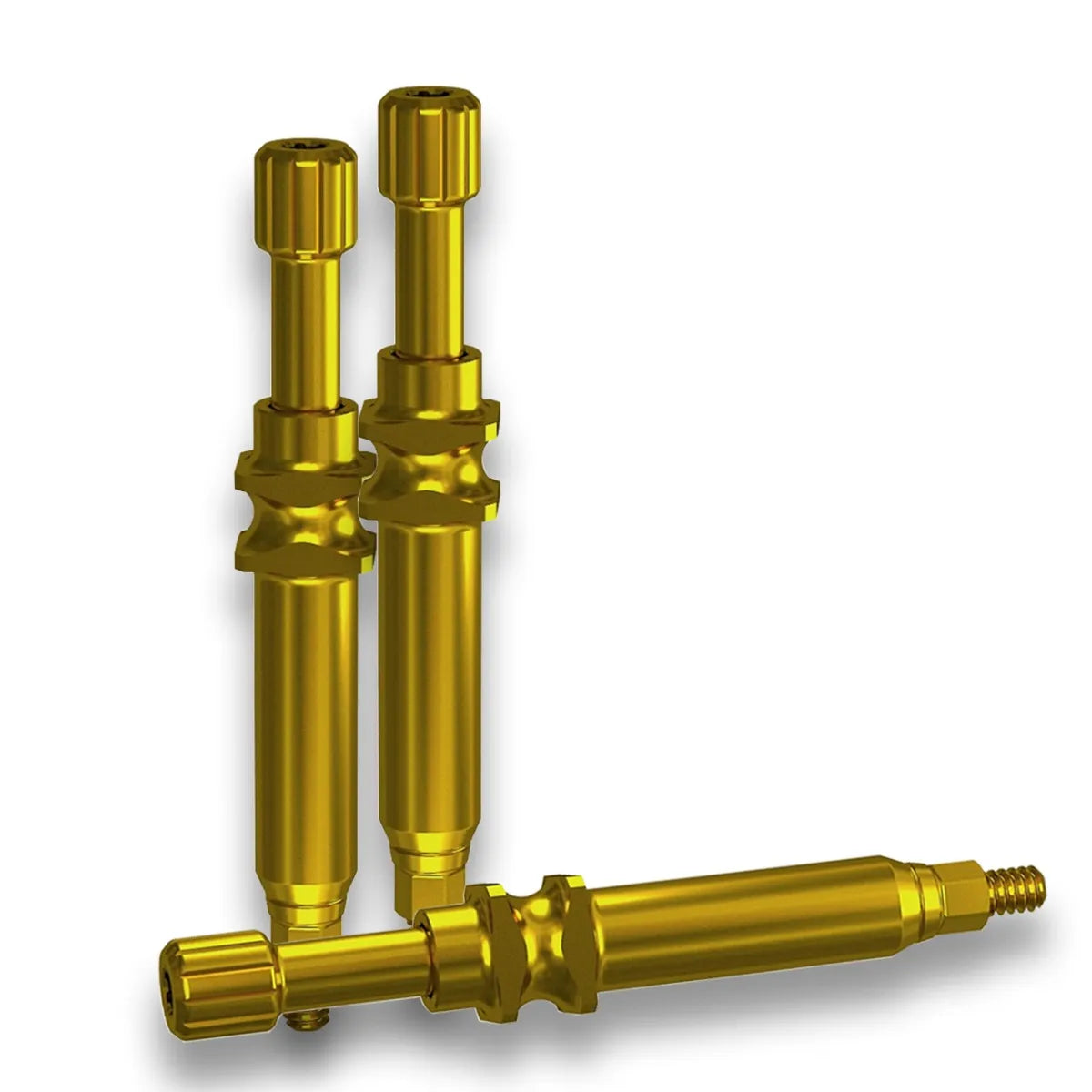

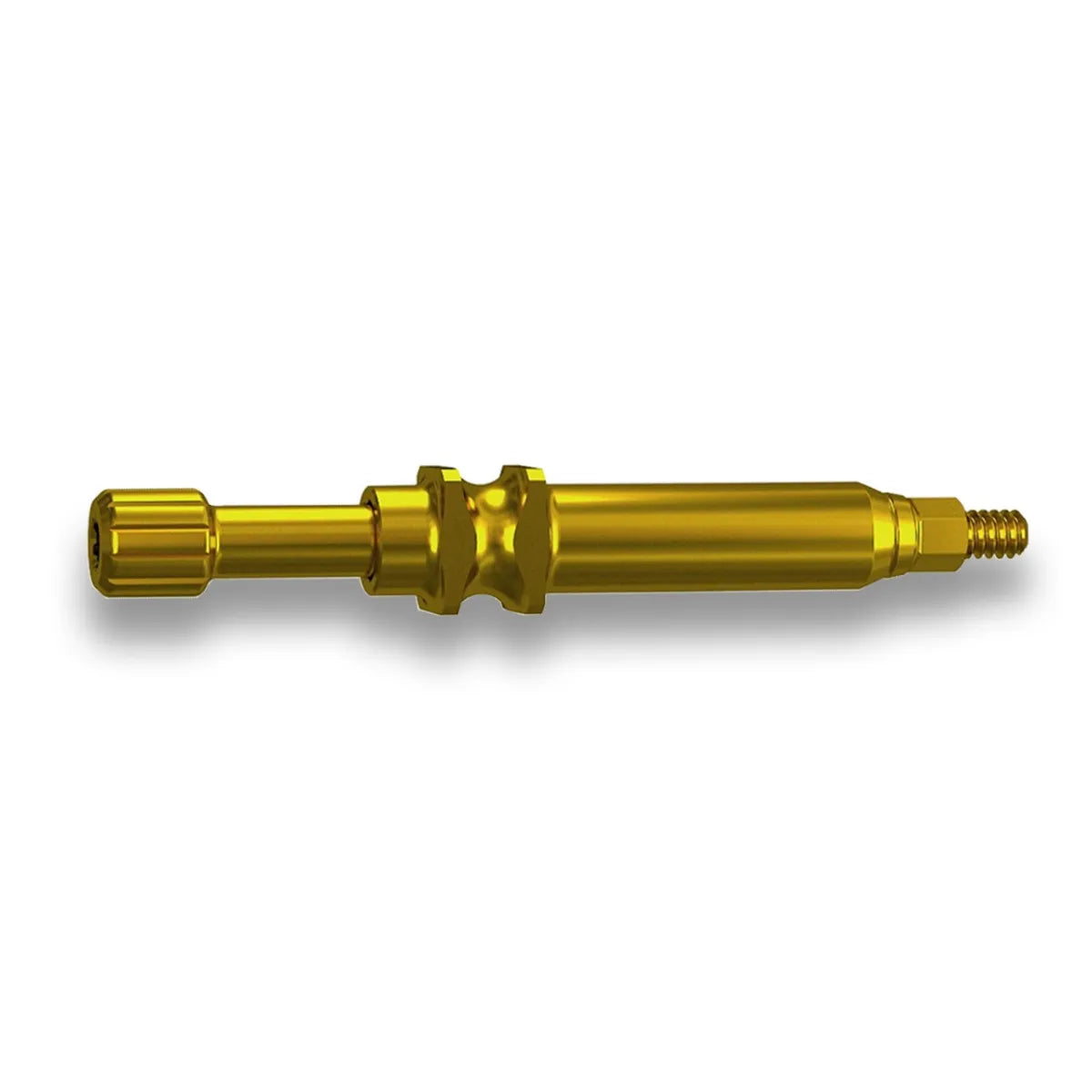

Adin CloseFit NP Slim Open Tray Transfer Impression Coping 5mm x 18mm (NP5614)

• Open Tray Design: Specifically engineered for the open tray impression technique, facilitating accurate transfer of implant positions
• Secure Fit: Ensures a stable and precise connection to the implant abutment, enhancing impression accuracy
• Slim Profile: The slim design is ideal for cases with limited interocclusal space, allowing easier access during impression taking
• Material Composition: Made from high-quality titanium alloy, ensuring durability and biocompatibility
• Compatibility: Designed to work seamlessly with Adin's CloseFit implants, ensuring reliable integration in restorative procedures
• Versatile Application: Suitable for various clinical scenarios, particularly when multiple implants are involved or when implants are not parallel
• Easy Handling: The coping can be easily attached and detached from the implant, streamlining the impression process
• Radiographic Verification: Allows for radiographic checks to confirm proper seating before the impression material sets

• Type: Open Tray Transfer Impression Coping
• Platform: Narrow Platform (NP)
• Material: Titanium Grade 5
• Diameter: 5mm
• D1: 2.5mm
• Height: 14mm
• Length: 18mm
• Connection Type: Conical connection
• Compatibility: Designed for Adin CloseFit implants
• Design: Slim profile for enhanced access and secure fit

• 1 x Transfer impression coping

Preparation

• Gather Materials: Ensure you have the necessary materials, including the impression coping, impression tray, impression material, torque wrench, and a foot switch if applicable
• Prepare the Patient: Seat the patient comfortably and explain the procedure. Ensure proper visibility and access to the implant sites
• Remove Healing Abutments: Carefully remove any healing abutments from the implants to expose the implant fixtures

Attaching the Coping

• Select the Coping: Choose the appropriate Adin CloseFit NP Slim Open Tray Transfer Impression Coping for each implant
• Attach the Coping: Securely screw the coping onto each implant using a torque wrench. Ensure it is fully seated and stable

Impression Taking

• Prepare the Tray: Apply adhesive to the impression tray to enhance retention of the impression material
• Load Impression Material: Fill the impression tray with heavy-body impression material, ensuring an adequate amount for complete coverage
• Express Light-body Material: Use light-body impression material around the copings to capture detailed soft tissue contours
• Position the Tray: Carefully place the loaded impression tray into the patient’s mouth, ensuring it is properly seated over the copings
• Check for Proper Seating: Verify that all copings are correctly positioned within the tray before proceeding
• Allow Material to Set: Wait for the impression material to polymerize according to manufacturer instructions

Final Steps

• Remove the Impression: Once set, gently loosen and remove any screws from each coping and carefully take out the impression tray, ensuring that all copings remain attached to it
• Inspect for Accuracy: Check the impression for completeness and accuracy, ensuring all details of the implants and surrounding tissues are captured

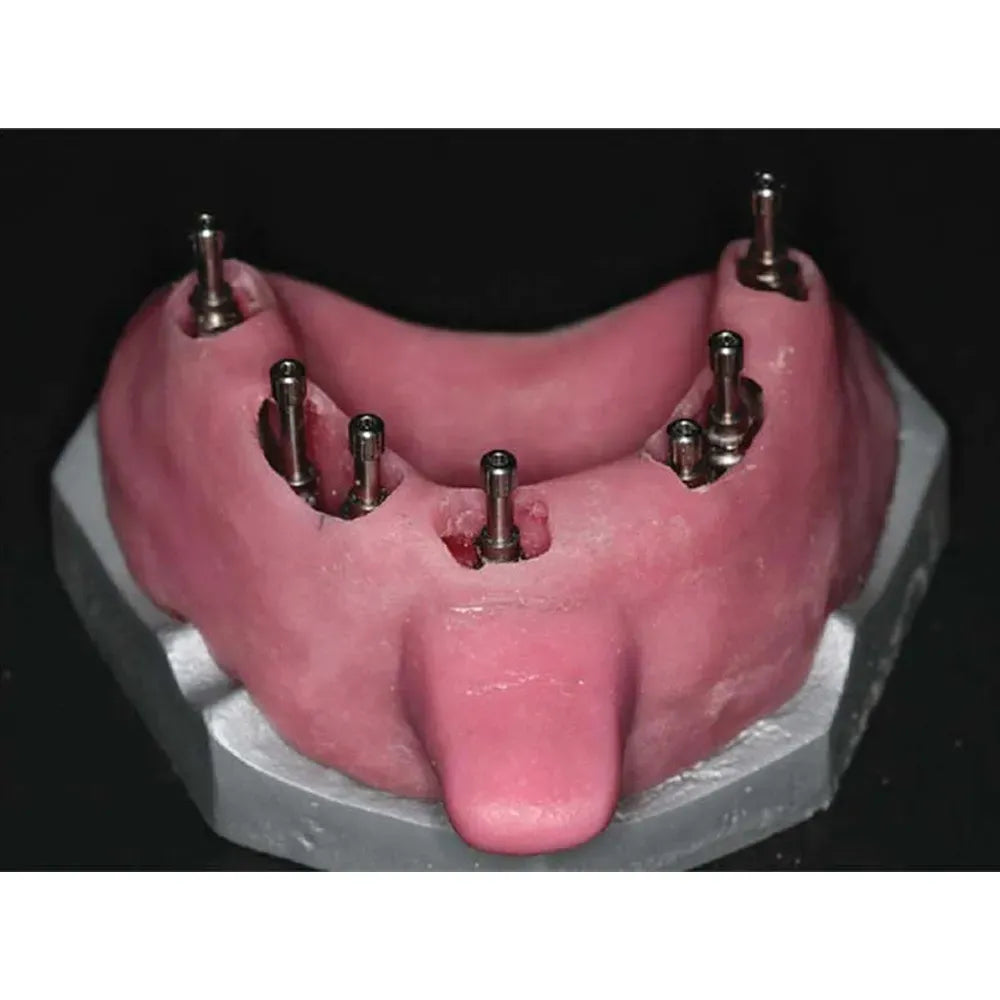

• Attach Implant Analogs: Insert implant analogs into each coping in the impression for laboratory processing
• Send for Fabrication: Send the impression with attached analogs to your dental laboratory for fabrication of prosthetic restorations

• Country of Origin: Israel
• Manufacturer: Adin

• Warranty is not applicable for this product.

Question : What is an open tray transfer impression coping?
Answer: An open tray transfer impression coping is a dental tool used to accurately capture the position of dental implants during the impression-taking process

Question : Can this coping be used with any implant system?
Answer: No, this coping is specifically designed for use with Adin CloseFit implants to ensure compatibility and accuracy.

Question : Can I use this coping for multiple patients?
Answer: Yes, as long as it is properly cleaned and sterilized between uses, it can be reused for different patients.

Question : What are the benefits of using a slim profile coping?
Answer: The slim profile is designed for cases with limited space, allowing for easier access and detailed impressions while maintaining patient comfort.
