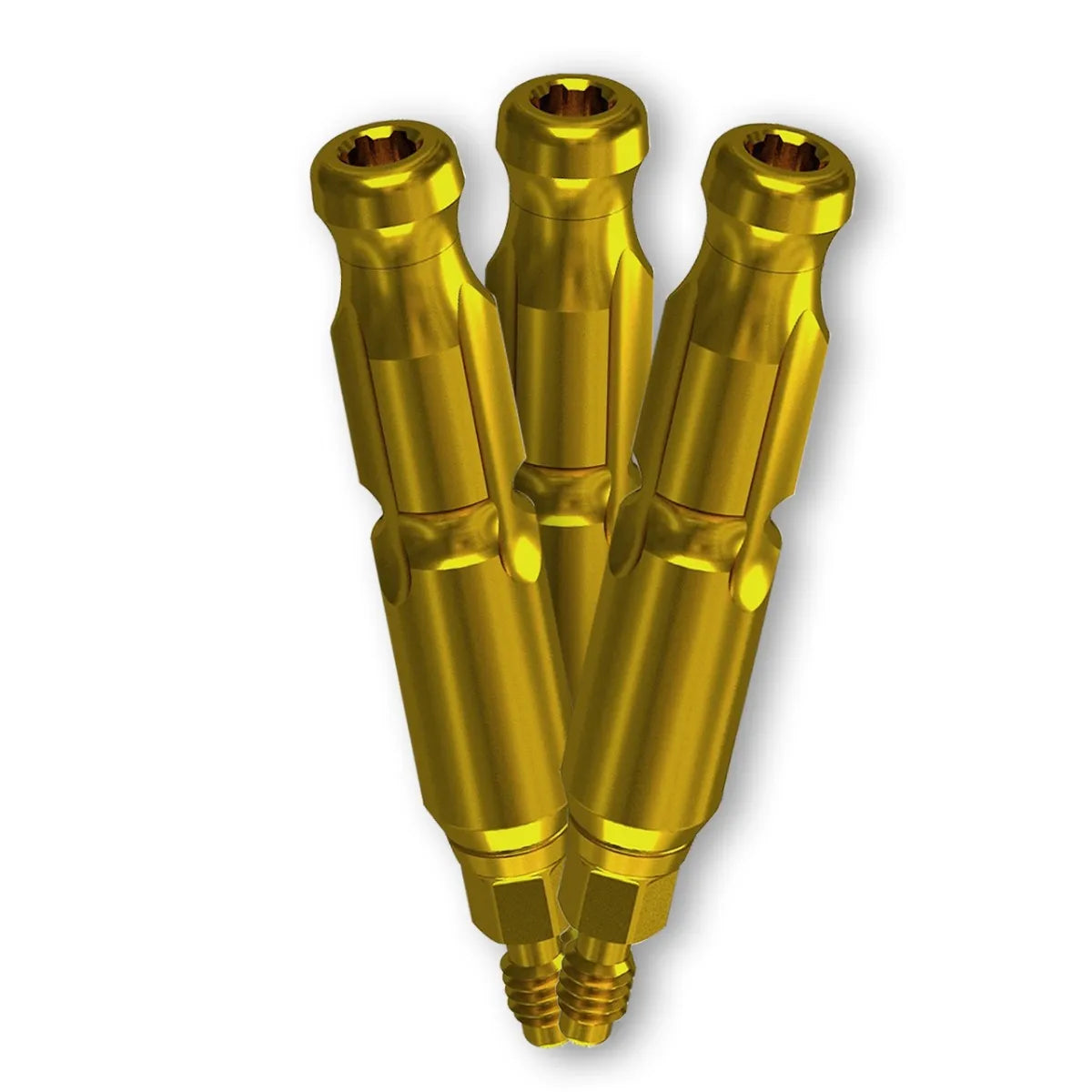

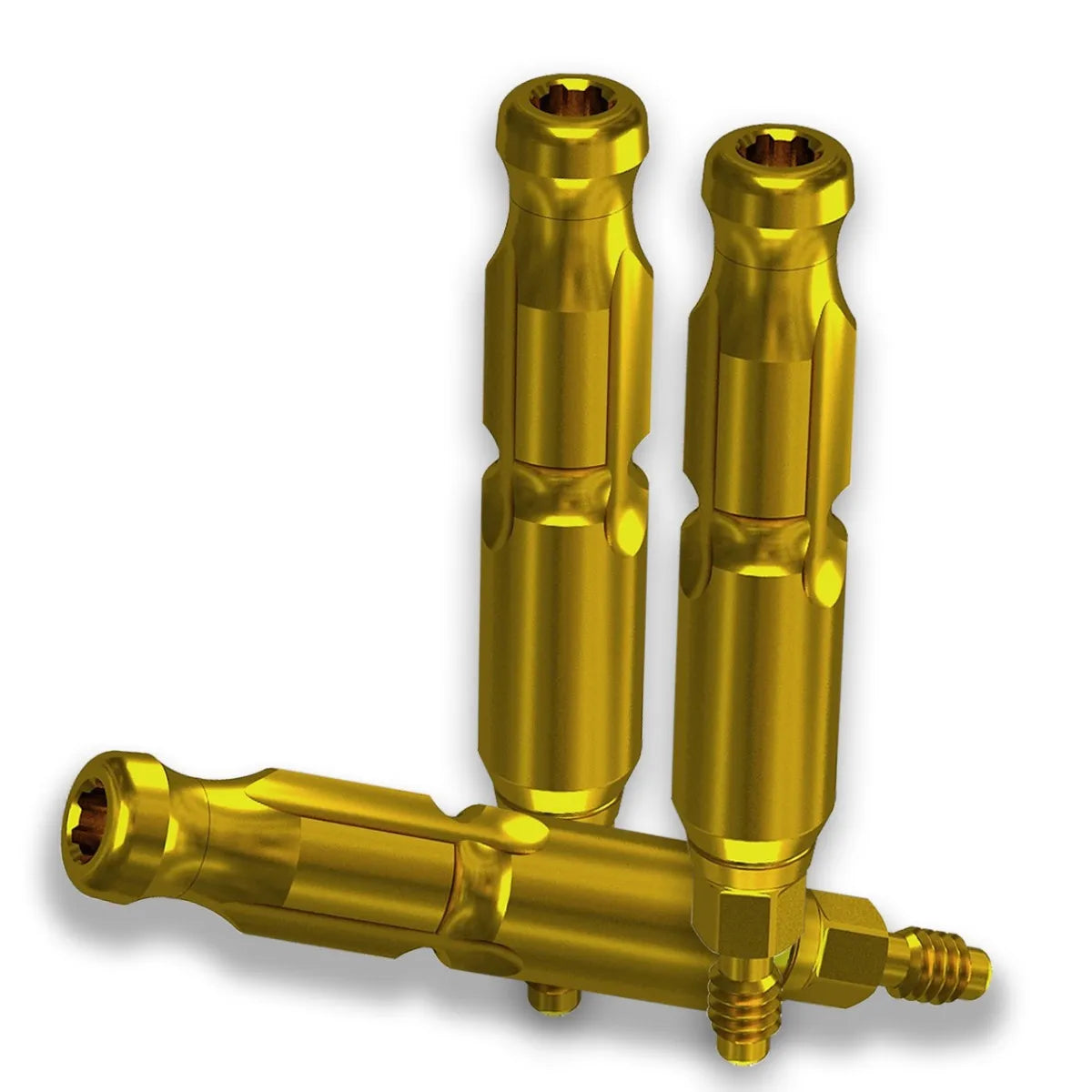

Adin CloseFit NP Slim Close Tray Transfer Impression Coping 3.2mm x 15.2mm (NP5113)

• Slim Profile: Designed to provide easier access in tight spaces, enhancing patient comfort during the impression process
• Closed Tray Technique: Specifically engineered for the closed tray impression method, ensuring accurate transfer of implant positions
• Secure Fit: Offers a stable connection to the implant abutment, minimizing distortion and ensuring precise impressions
• High-Quality Material: Constructed from durable titanium, ensuring biocompatibility and longevity for reliable clinical use
• User-Friendly Design: Easy to attach and detach, facilitating a streamlined workflow for dental professionals
• Versatile Application: Suitable for various clinical scenarios, including single-tooth restorations and multiple implant cases
• Optimized for Detail: Captures intricate details of both the implant and surrounding soft tissues for enhanced accuracy in prosthetic fabrication

• Type: Slim Close Tray Transfer Impression Coping
• Platform: Narrow Platform (NP)
• Material: Titanium Grade 5
• Length: 15.2mm
• Diameter: 3.2mm
• D1: 2.5mm
• Height: 13mm
• Connection Type: Conical connection
• Compatibility: Specifically designed for Adin CloseFit implants
• Design: Slim profile for better access in tight spaces, minimizing distortion

• 1 x Slim close tray transfer impression coping.

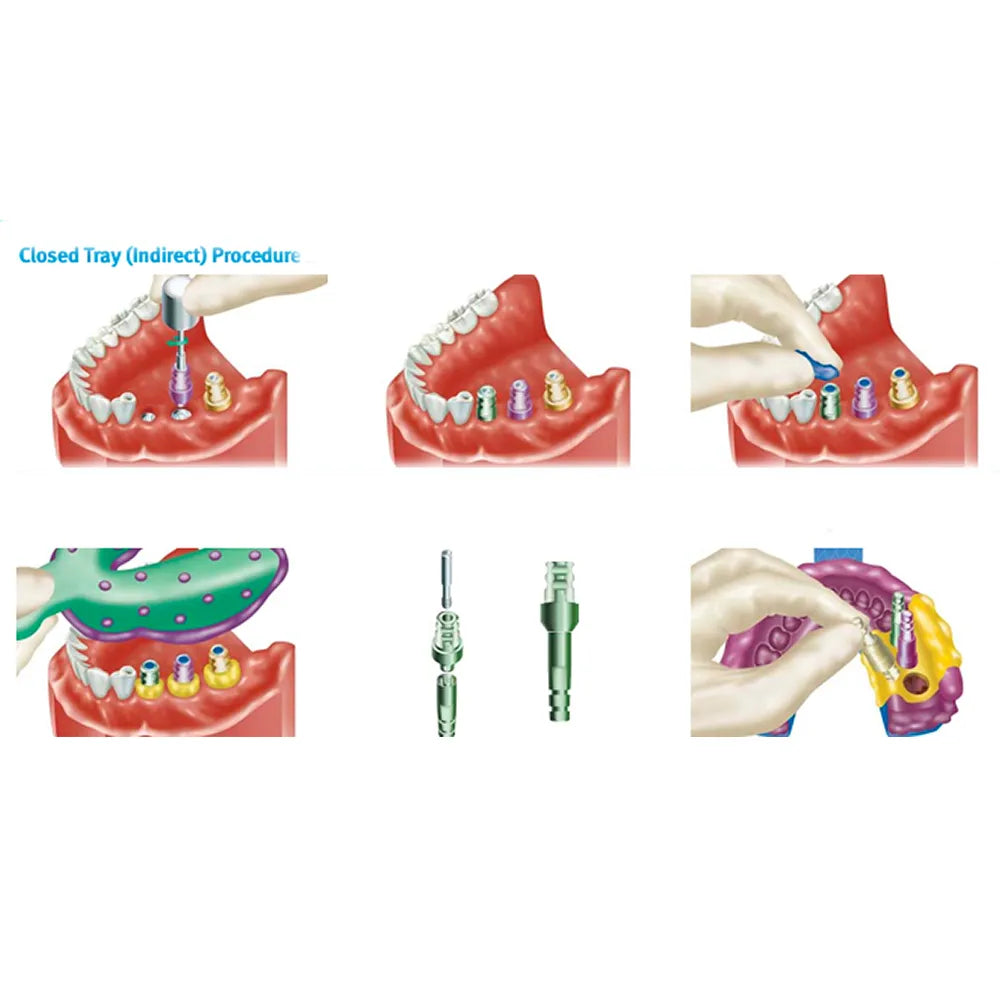

Preparation

• Gather Materials: Ensure you have the impression coping, a closed tray, impression material, and any necessary tools
• Prepare the Patient: Seat the patient comfortably and explain the procedure. Ensure proper access to the implant site
• Remove Healing Abutments: Carefully remove any healing caps from the implants to expose the implant fixtures

Attaching the Impression Coping

• Select the Coping: Choose the Adin CloseFit NP Slim Close Tray Transfer Impression Coping
• Attach the Coping: Securely screw the coping onto the implant using a hand torque or torque driver, ensuring it is fully seated
• Orientation: If applicable, orient any flat sides of the coping to align with adjacent teeth for optimal fit

Taking Impressions

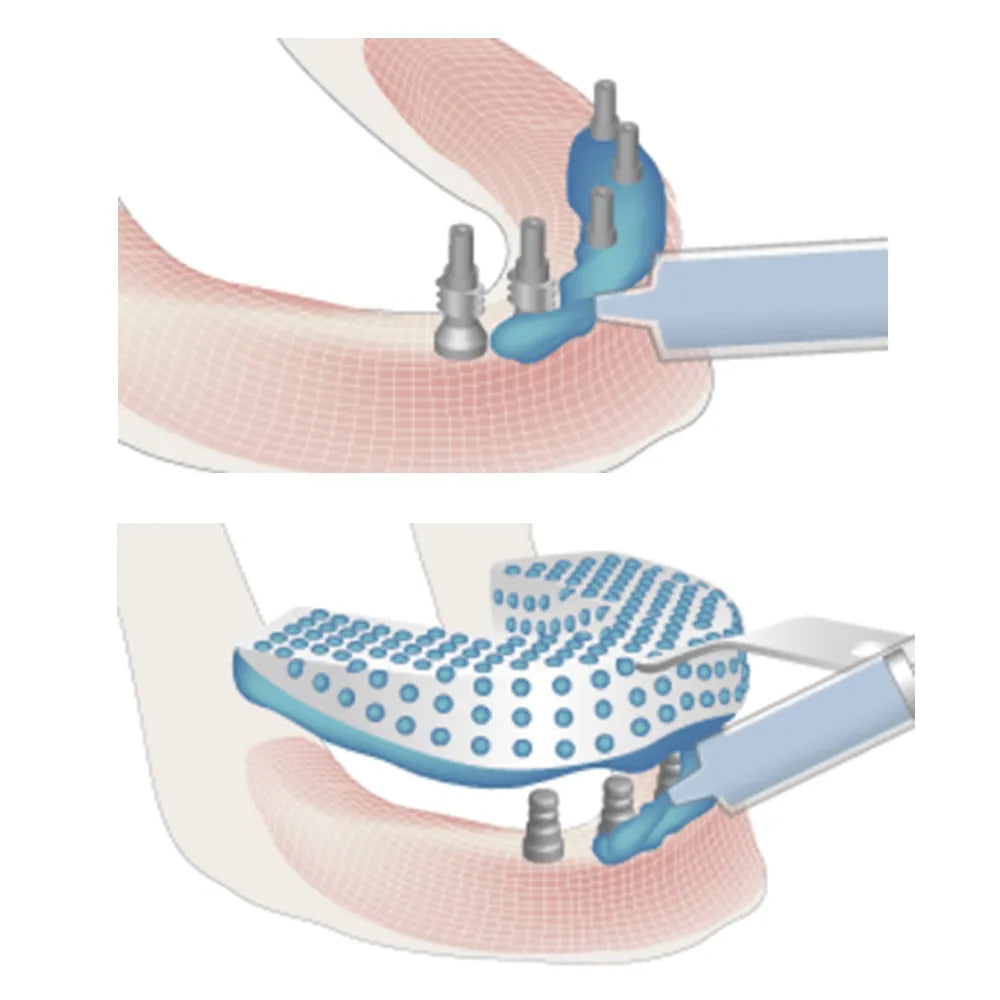

• Prepare the Tray: Apply adhesive to the impression tray to enhance retention of the impression material
• Load Impression Material: Fill the tray with heavy-body impression material and express light-body material around the coping for detailed capture
• Position the Tray: Carefully place the loaded tray into the patient's mouth, ensuring it is properly seated over all copings
• Allow Material to Set: Wait for the impression material to polymerize according to manufacturer instructions

Final Steps

• Remove the Impression Tray: Once set, gently remove the tray from the patient's mouth, leaving the coping attached to the implant
• Inspect for Accuracy: Check that all details of the implant and surrounding tissues are captured accurately in the impression
• Attach Analog: Insert implant analogs into each coping in the impression for laboratory processing
• Send for Fabrication: Send the impression with attached analogs to your dental laboratory for prosthetic restoration fabrication

• Country of Origin: Israel
• Manufacturer: Adin

• Warranty is not applicable for this product.

Question : What is the purpose of the Adin CloseFit NP Slim Close Tray Transfer Impression Coping?
Answer: This coping is designed to accurately capture implant positions during the impression-taking process using the closed tray technique.

Question : Can this coping be reused?
Answer: Yes, but it must be thoroughly cleaned and sterilized between uses to ensure safety and hygiene.

Question : What materials are used in this coping?
Answer: The coping is made from high-quality titanium (Ti-6AL-4V ELI), ensuring durability and biocompatibility.

Question : Is this coping compatible with all implant systems?
Answer: No, it is specifically designed for use with Adin CloseFit implants to ensure optimal fit and accuracy.

Question : What are the advantages of using a slim coping?
Answer: The slim profile allows for better access in tight spaces, making it ideal for patients with limited interarch space.
