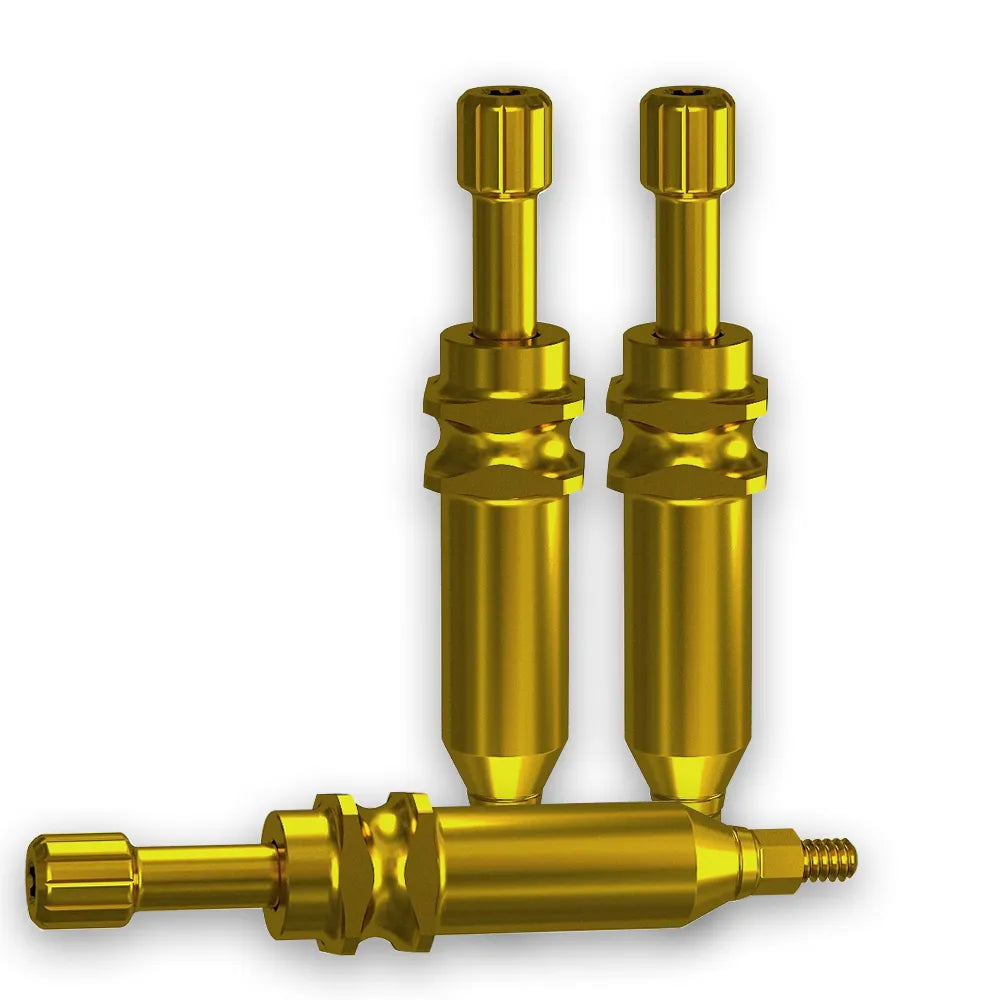

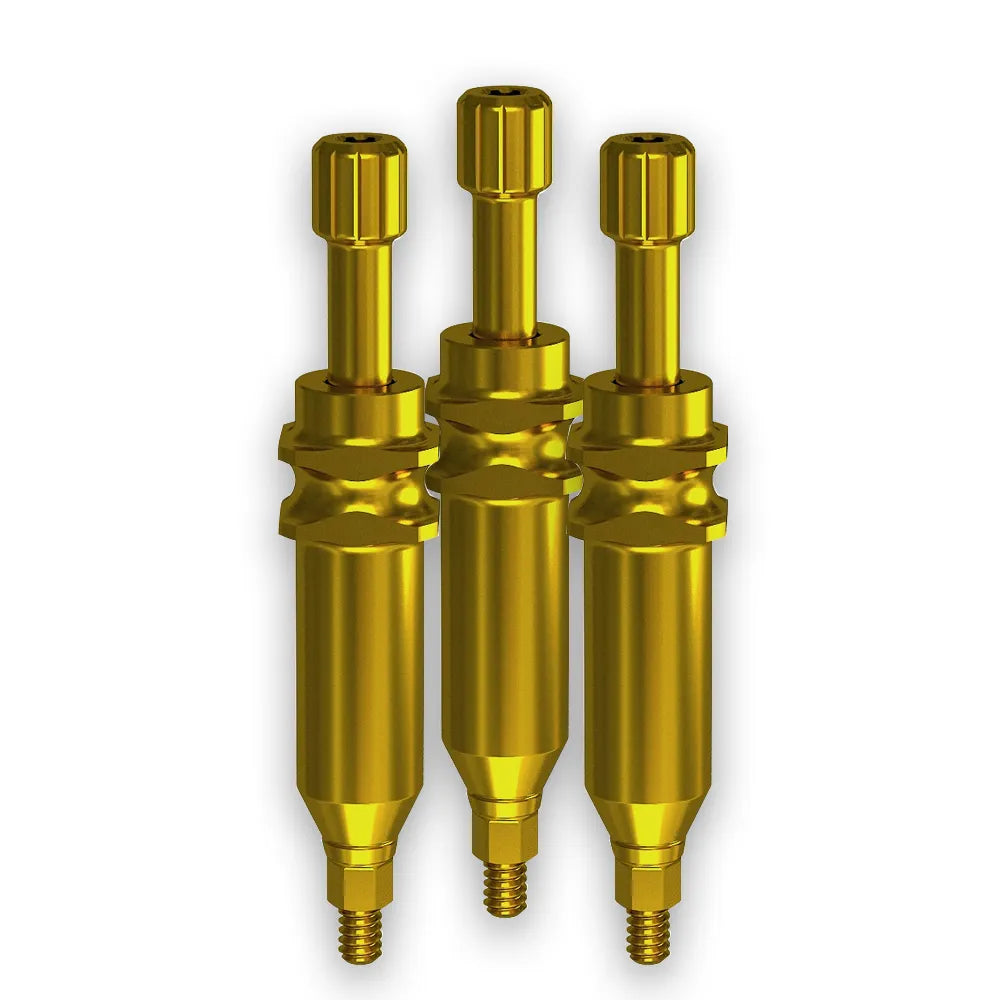

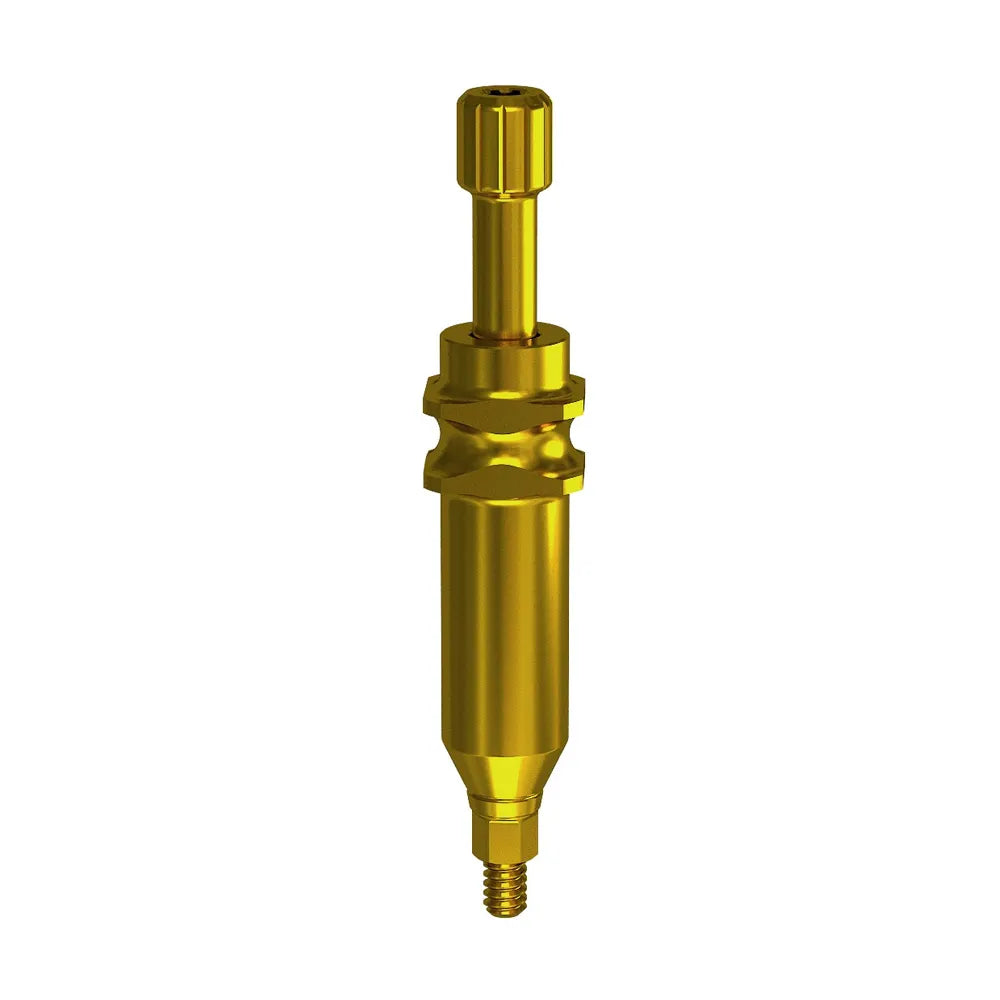

Adin CloseFit NP Open Tray Transfer Impression Coping 6mm x 18mm (NP5514)

• Open Tray Technique: Specifically designed for the open tray impression technique, allowing direct access to the implant abutment
• Precision Fit: Ensures a secure fit over the implant, enhancing the accuracy of impressions
• Titanium Construction: Made from Titanium Grade 5 (TI-6AL-4V ELI) alloy, providing durability and biocompatibility
• Easy Handling: Designed for straightforward attachment and removal, facilitating efficient workflow during procedures
• Retention Features: Incorporates sharp retentions to secure the coping within the impression material, preventing dislodgement
• Compatible Design: Works seamlessly with Adin's CloseFit implants, ensuring reliable integration in restorative procedures
• Radiographic Confirmation: Allows for radiographic checks to ensure proper seating and alignment before impression material sets

• Platform: Narrow Platform (NP)
• Diameter: 6mm
• D1: 2.5mm
• Height: 14mm
• Length: 18mm
• Material: Titanium Grade 5 (TI-6AL-4V ELI)
• Connection: Conical Connection
• Designed for: Open tray impression technique

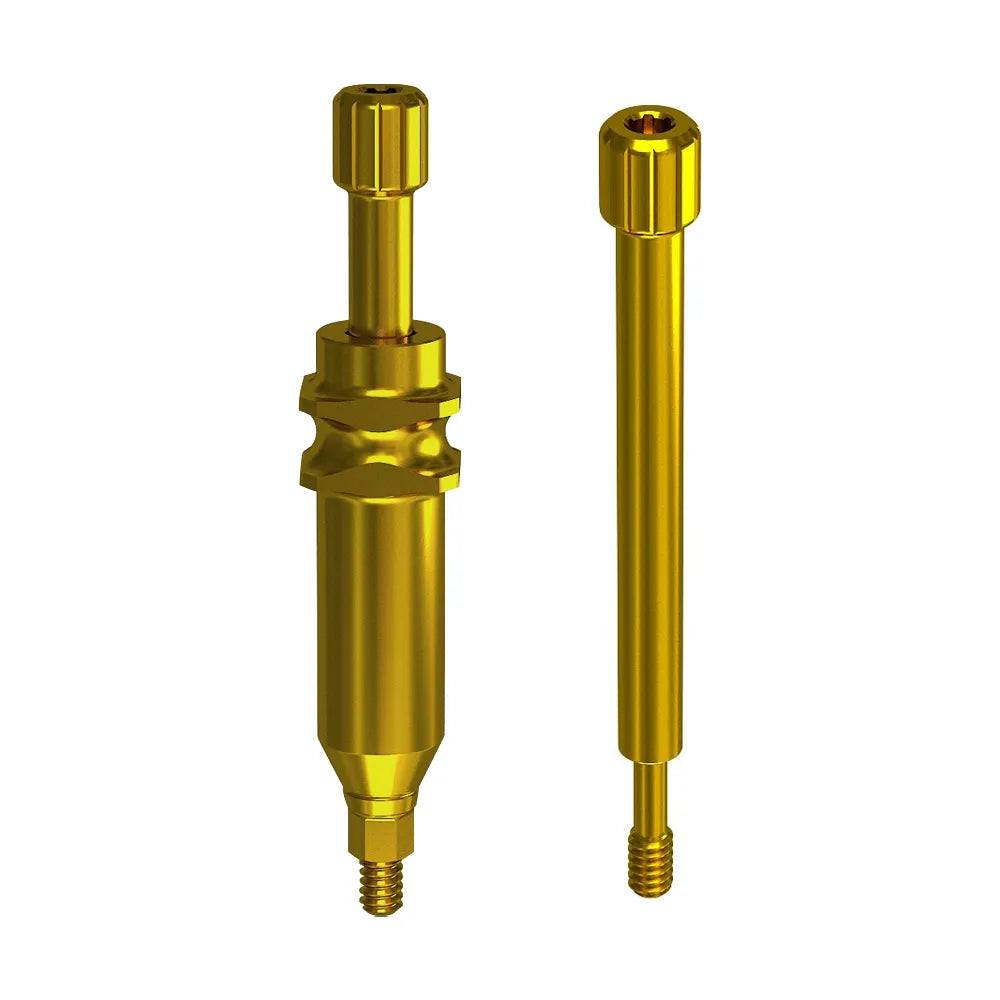

• 1 x Impression coping

• Prepare the Patient: Ensure the patient is comfortably seated and ready for the impression procedure
• Remove Healing Abutments: Carefully remove any healing abutments from the implants to expose the implant fixtures
• Attach the Coping: Securely attach the open tray transfer impression coping to each implant using the provided screws. Ensure that the coping is properly seated and aligned
• Coat the Impression Tray: Apply adhesive to the impression tray to enhance retention of the impression material
• Load Impression Material: Fill the impression tray with heavy-body impression material, ensuring it is adequately loaded
• Apply Light-body Material: Express light-body impression material around the copings to capture the detailed morphology of the soft tissue
• Position the Tray: Place the loaded custom tray into the patient’s mouth, ensuring that it is seated correctly over the copings
• Expose Coping Screws: Use a finger or a Q-tip to wipe away excess impression material from around the occlusal opening, exposing the coping screws for easy access later
• Allow Polymerization: Wait for the impression material to set according to manufacturer instructions
• Remove the Impression: Once set, carefully loosen and remove the screws from each coping and take out the impression tray, ensuring that the copings remain attached to the impression material
• Check Accuracy: Inspect the impression for accuracy and completeness, ensuring all details of the implants and surrounding tissues are captured

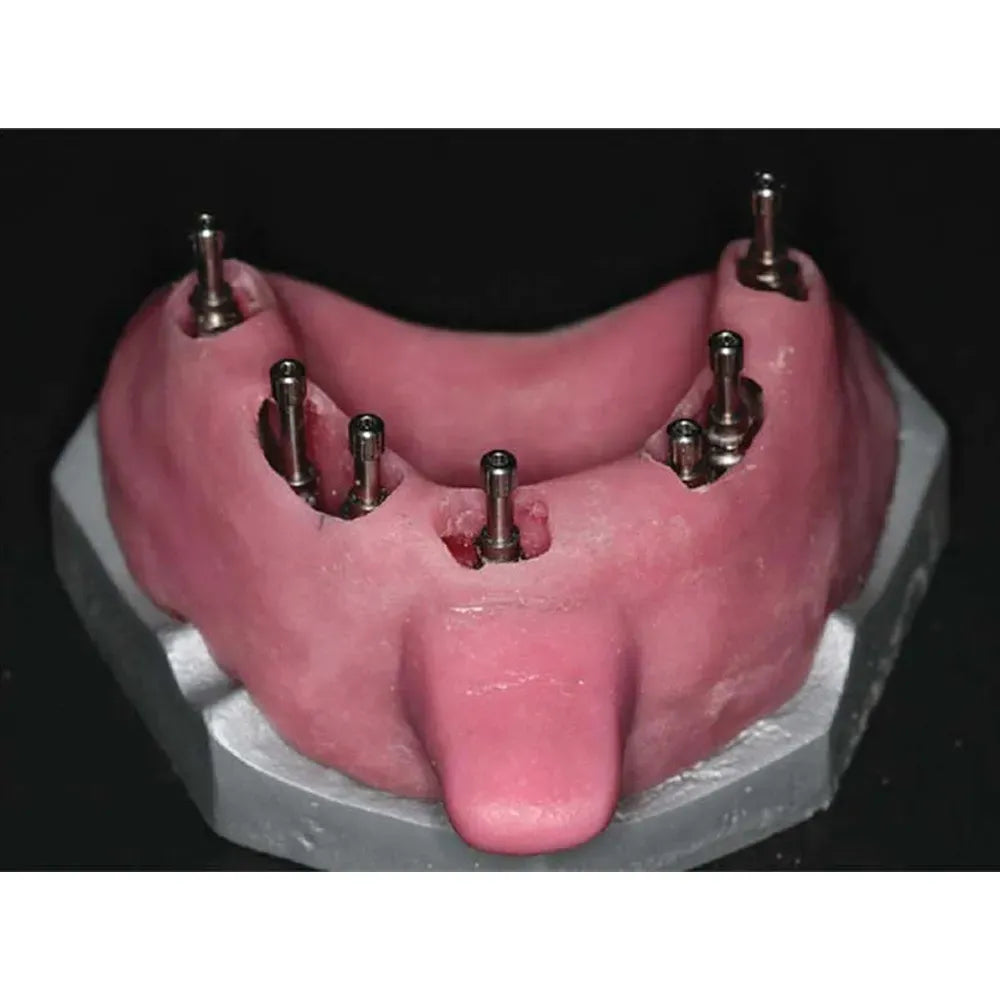

• Send for Fabrication: Attach implant analogs to the copings in the impression and send it to the laboratory for fabrication of definitive restorations

• Country of Origin: Israel
• Manufacturer: Adin

• Warranty is not applicable for this product.

Question : What is an open tray impression coping?
Answer: An open tray impression coping is a dental component designed for taking accurate impressions of implants using the open tray technique, allowing direct access to the implant abutment.

Question : What are the advantages of using an open tray technique?
Answer: The open tray technique allows for better visualization and verification of implant positions during impression-taking, leading to more accurate restorations compared to closed tray techniques.

Question : What materials should I use for the impression?
Answer: Use heavy-body impression material in the tray and light-body material around the copings to capture detailed soft tissue contours.
