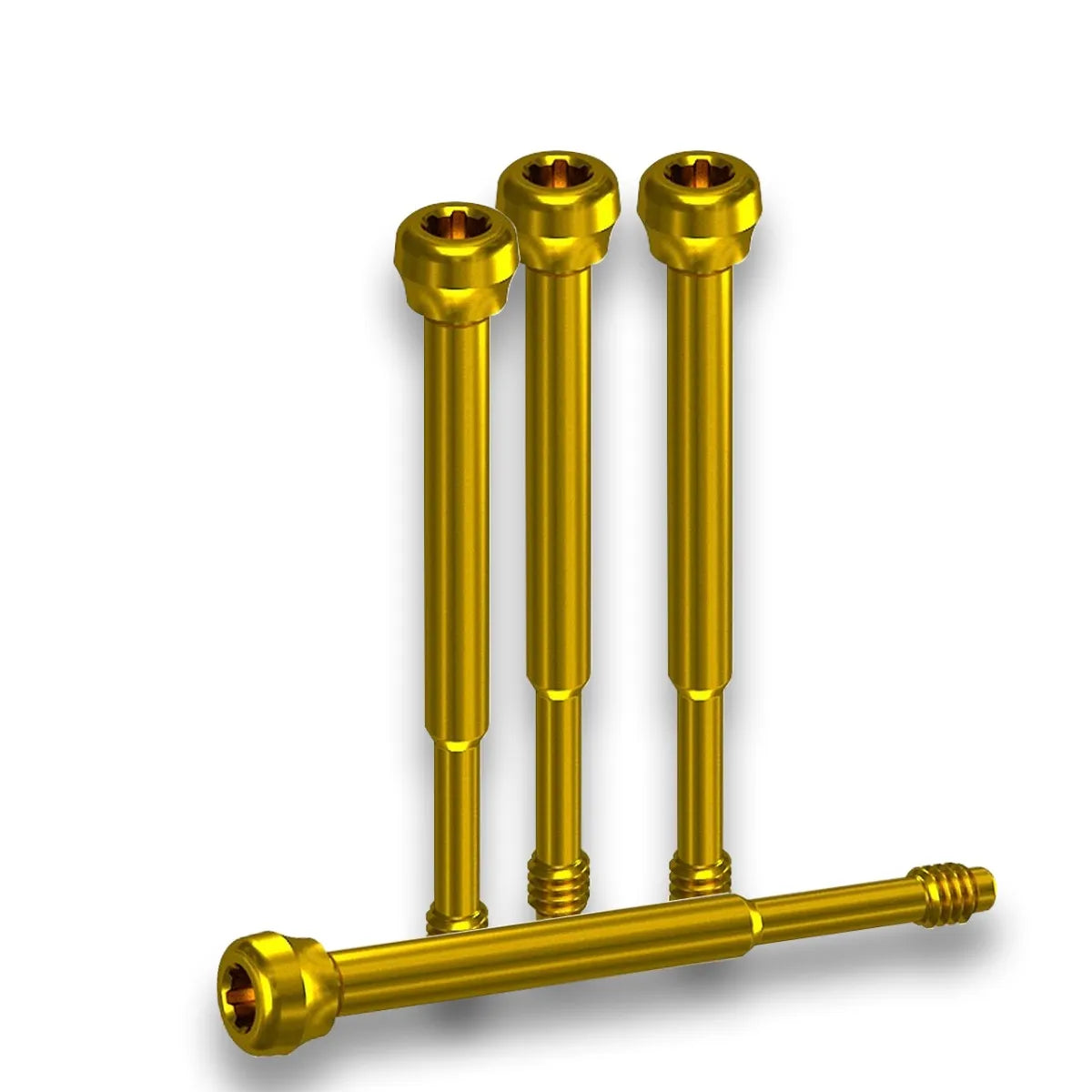

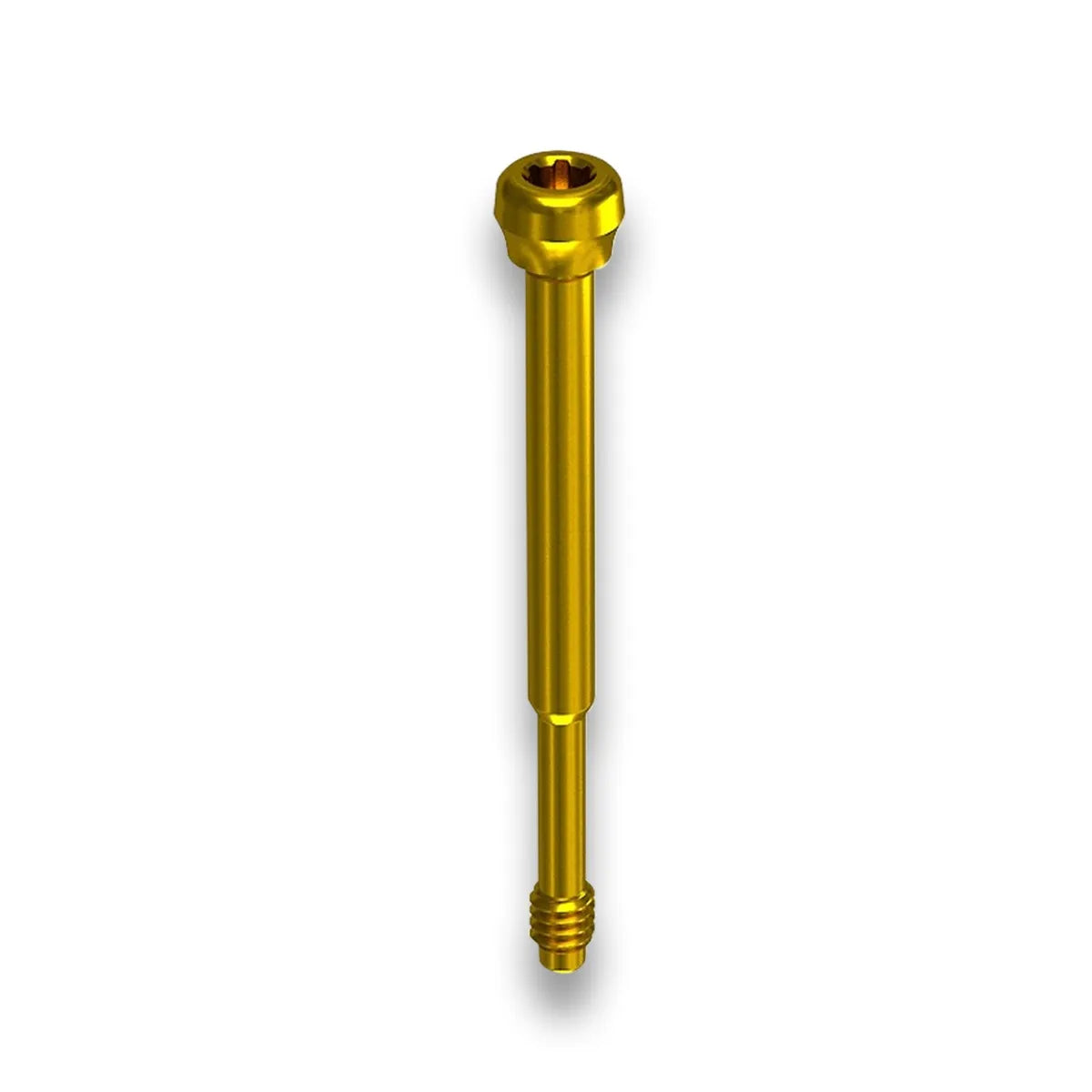

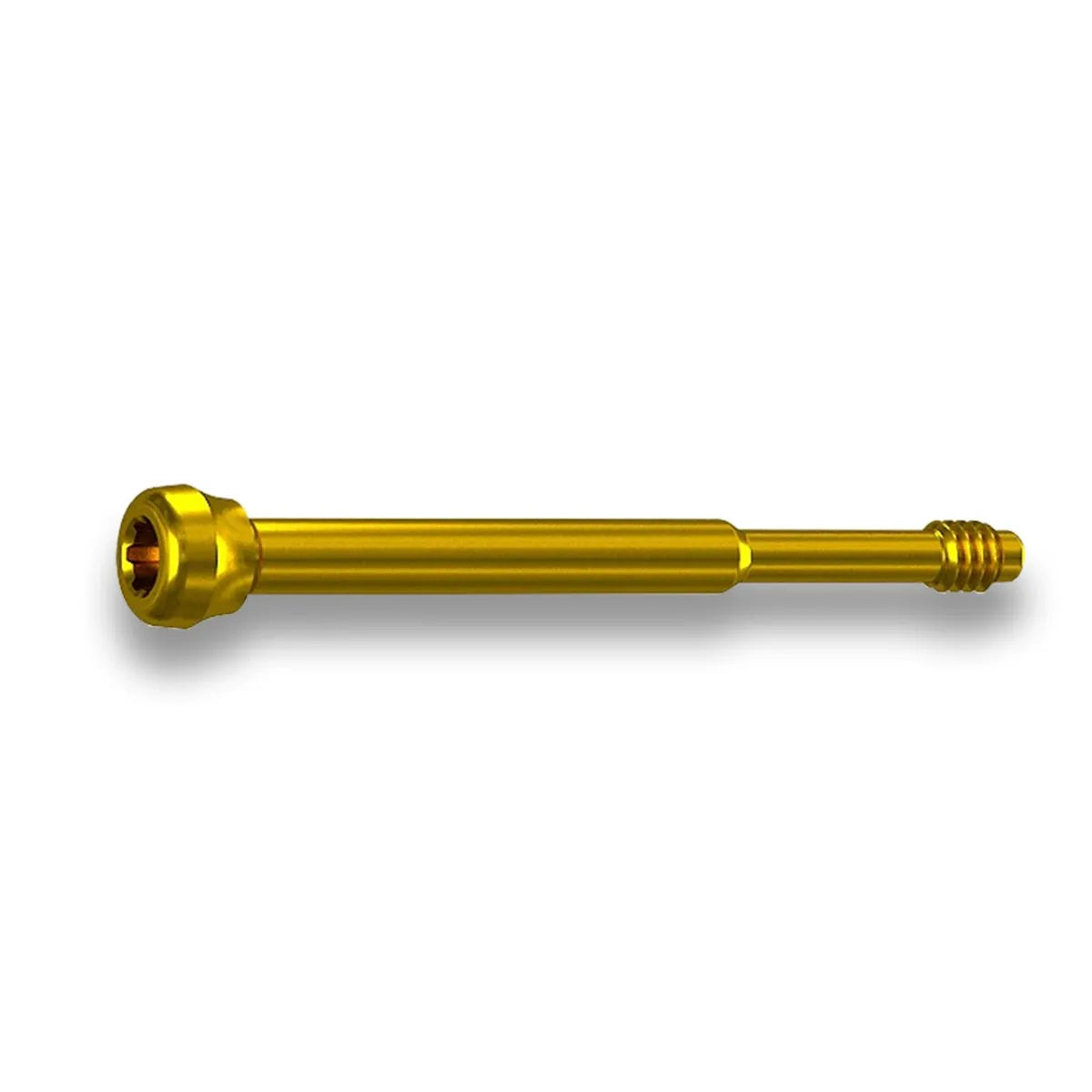

Adin CloseFit NP Close Tray Transfer Screw 2.8mm x 20mm (NP5127)

• Closed Tray Design: Specifically designed for use with the closed tray impression technique, ensuring accurate transfer of implant positions
• Secure Connection: Provides a stable and secure attachment between the impression coping and the implant, minimizing distortion during impression taking
• High-Quality Material: Made from durable titanium alloy, ensuring longevity and resistance to wear during repeated use
• User-Friendly: Easy to attach and detach, streamlining the workflow for dental professionals
• Versatility: Suitable for various clinical applications, including single-tooth restorations and multiple implant cases
• Optimized for Precision: Engineered to capture detailed impressions that accurately represent the implant's position relative to surrounding tissues
• Radiographic Compatibility: Allows for radiographic verification to confirm proper seating before taking impressions

• Type: Close Tray Transfer Screw
• Platform: Narrow Platform (NP)
• Material: Titanium Grade 5
• Length: 20mm
• Diameter: 2.8mm
• Connection Type: Conical connection
• Compatibility: Designed for use with Adin CloseFit implants

• 1 x Transfer screw

Preparation

• Gather Materials: Ensure you have the transfer screw, impression coping, impression tray, and impression material ready
• Prepare the Patient: Seat the patient comfortably and explain the procedure. Ensure proper access to the implant sites
• Remove Healing Abutments: If present, carefully remove any healing caps from the implants to expose the implant fixtures

Attaching the Transfer Screw

• Select the Transfer Screw: Choose the appropriate Adin Close Tray Transfer Screw for your specific case

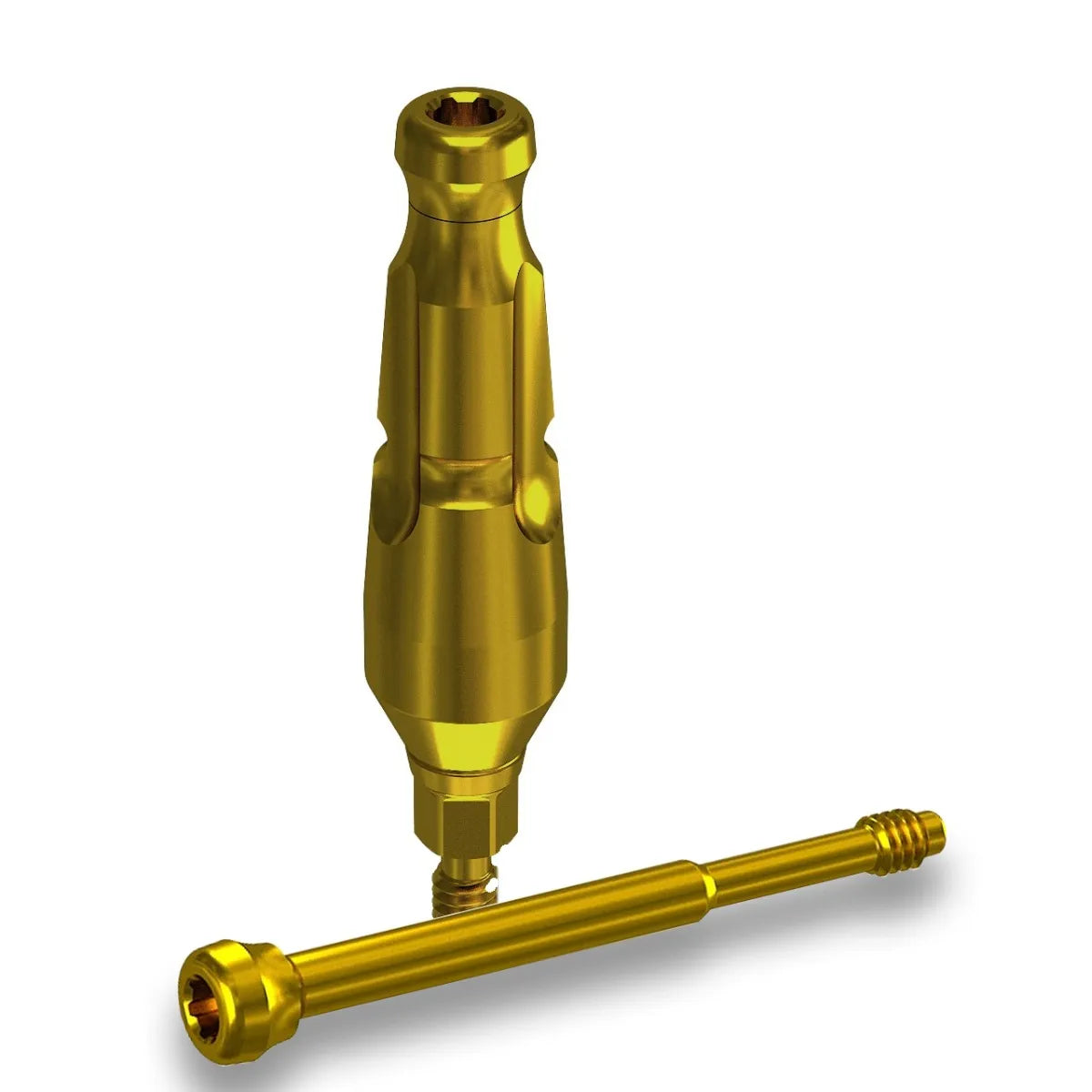

• Attach the Coping: Securely screw the impression coping onto each implant using the transfer screw, ensuring it is fully seated

Taking Impressions

• Prepare the Impression Tray: Apply adhesive to the impression tray to enhance retention of the impression material
• Load Impression Material: Fill the tray with heavy-body impression material, ensuring adequate coverage over the coping
• Express Light-body Material: Use light-body impression material around the coping for capturing detailed soft tissue contours
• Position the Tray: Carefully place the loaded tray into the patient's mouth, ensuring it is properly seated over all copings
• Check for Proper Seating: Verify that all copings are correctly positioned within the tray before proceeding
• Allow Material to Set: Wait for the impression material to polymerize according to manufacturer instructions

Final Steps

• Remove the Impression Tray: Once set, gently unscrew the transfer screws from each coping and carefully remove the tray from the patient's mouth.
• Inspect for Accuracy: Check that all details of the implants and surrounding tissues are captured accurately in the impression
• Attach Implant Analogs: Insert implant analogs into each coping in the impression for laboratory processing
• Send for Fabrication: Send the impression with attached analogs to your dental laboratory for prosthetic restoration fabrication

• Country of Origin: Israel
• Manufacturer: Adin

• Warranty is not applicable for this product.

Question : What is a close tray transfer screw?
Answer: A close tray transfer screw is a dental component used to secure impression copings to implants during the impression-taking process.

Question : What is the purpose of using this transfer screw?
Answer: It ensures accurate transfer of the implant position to the impression material, minimizing distortion and enhancing the precision of dental restorations.
Question : Is this transfer screw compatible with all implant systems?
Answer: No, it is specifically designed for use with Adin CloseFit implants to ensure optimal fit and function.

Question : How do I attach the transfer screw?
Answer: The transfer screw is attached by screwing it into the impression coping, which is then secured to the implant.
