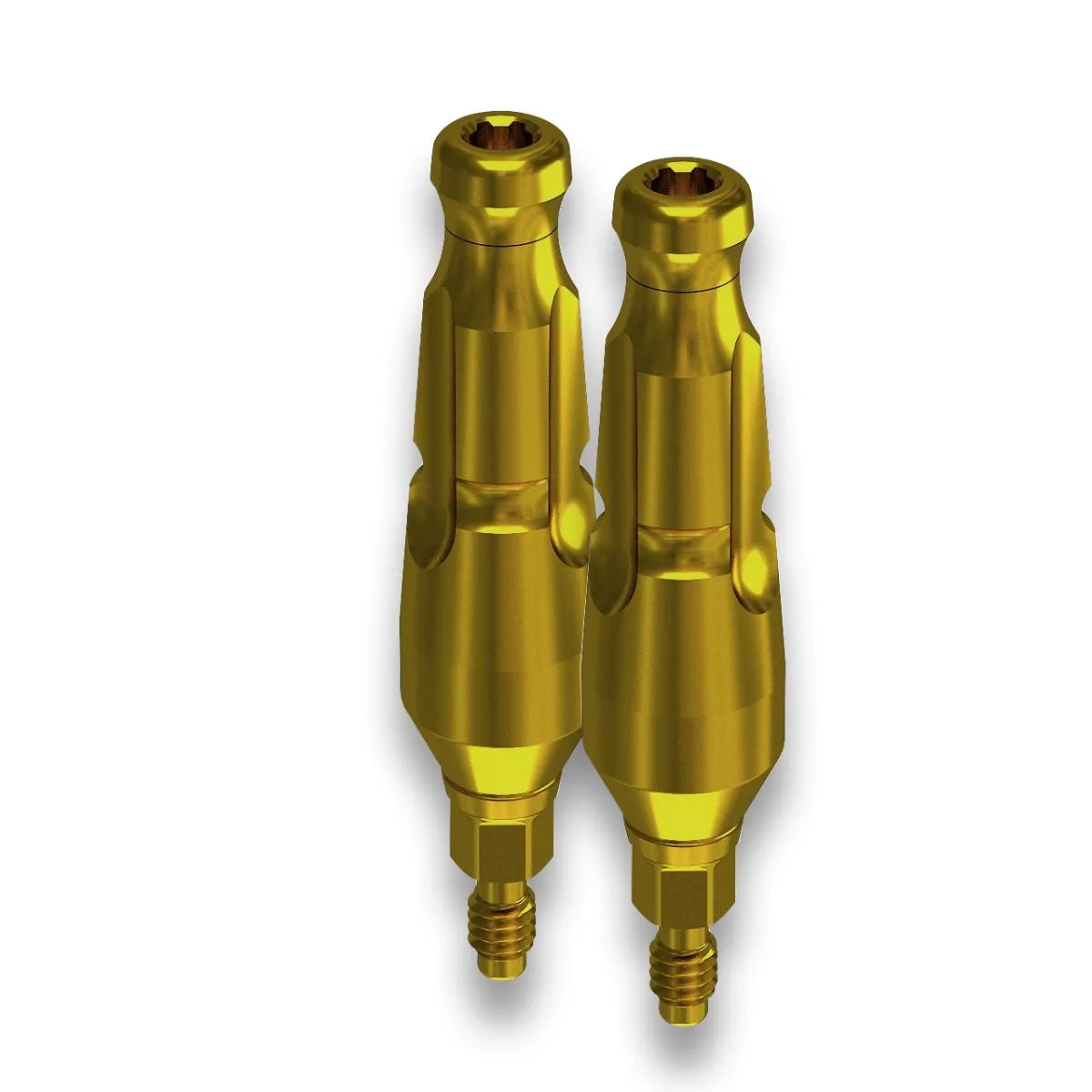

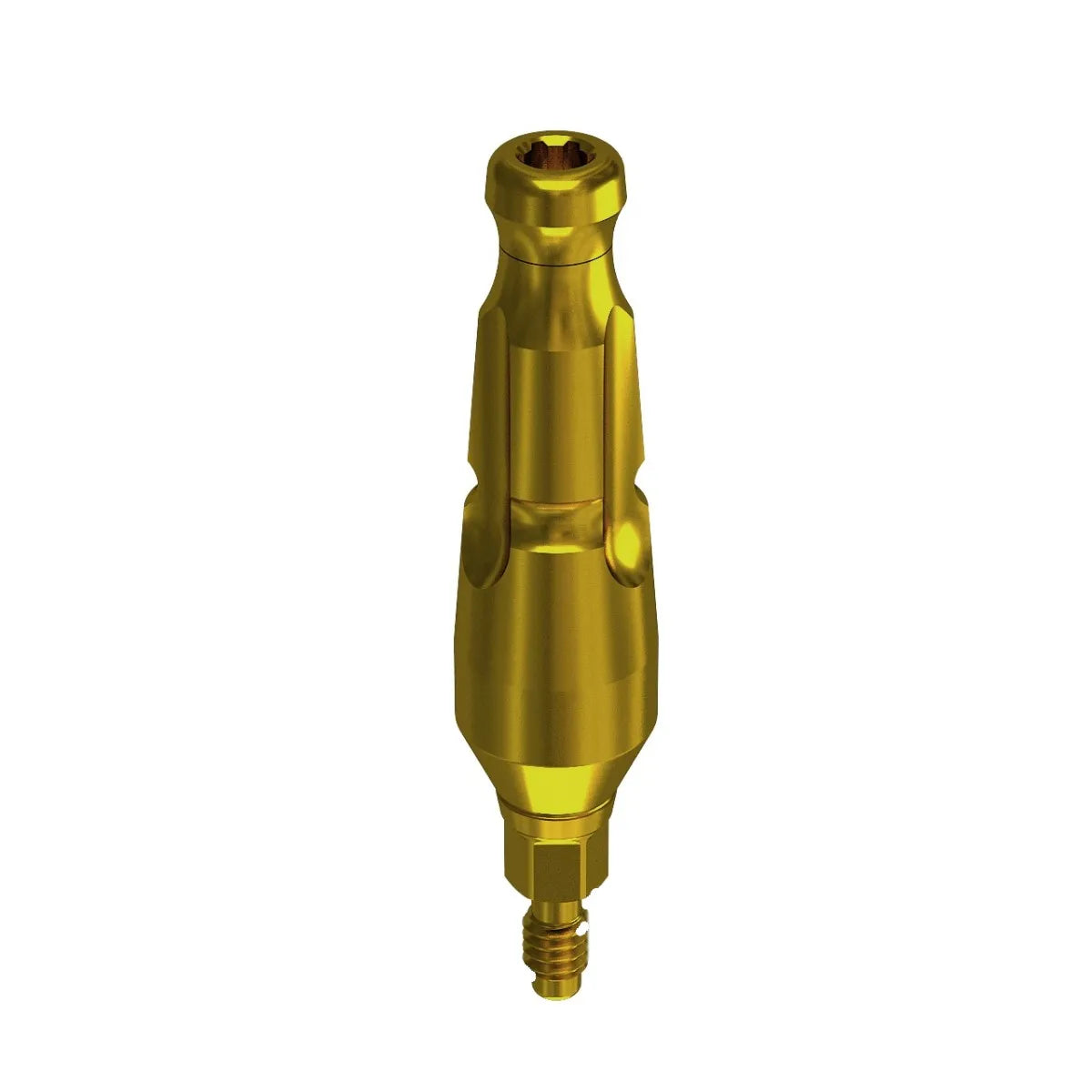

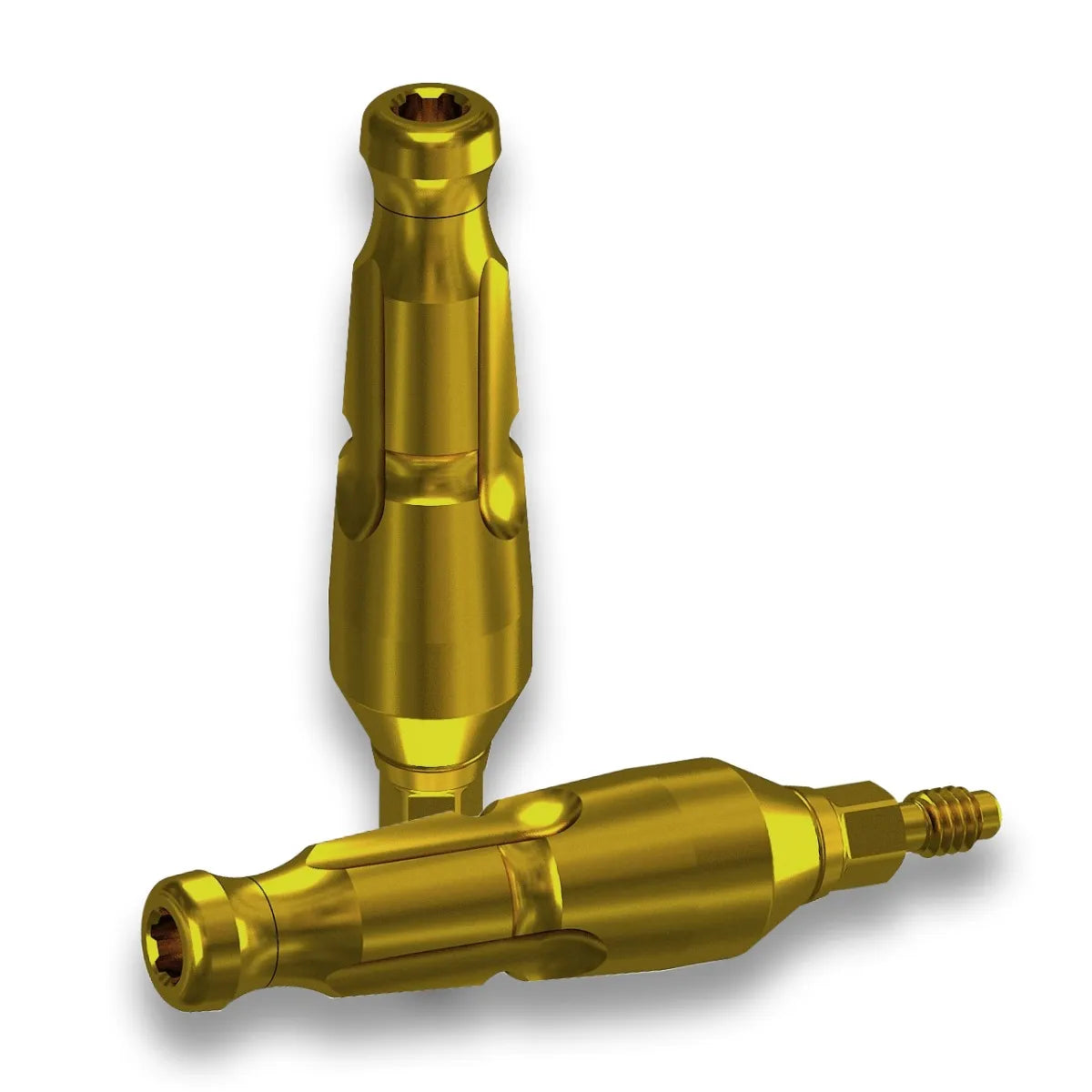

Adin CloseFit NP Close Tray Transfer Impression Coping 4.3mm x 15.2mm (NP5213)

• Closed Tray Design: Specifically designed for the closed tray impression technique, allowing for accurate transfer of implant positions.
• Secure Fit: Ensures a stable connection to the implant abutment, minimizing distortion during the impression process.
• High-Quality Material: Made from durable titanium, providing strength and biocompatibility for reliable use in dental procedures.
• User-Friendly: Easy to attach and detach, facilitating a streamlined workflow for dental professionals.
• Versatile Application: Suitable for various clinical scenarios, including single and multiple implant restorations.
• Optimized for Precision: Captures detailed impressions of both the implant and surrounding soft tissues for enhanced accuracy in prosthetic fabrication.
• Efficient Procedure: Reduces overall impression time compared to open tray techniques, making it a quicker option for practitioners.

• Type: Close Tray Transfer Impression Coping
• Platform: Narrow Platform (NP)
• Material: Titanium Grade 5
• Length: 15.2mm
• Diameter: 4.3mm
• D1: 2.5mm
• Height: 13mm
• Connection Type: Conical connection
• Compatibility: Specifically designed for Adin CloseFit implants
• Design: Minimizes distortion, ensures secure fit

• 1 x Transfer impression coping

Preparation

• Gather Materials: Ensure you have the transfer screw, impression coping, impression tray, and impression material ready
• Prepare the Patient: Seat the patient comfortably and explain the procedure. Ensure proper access to the implant sites
• Remove Healing Abutments: If present, carefully remove any healing caps from the implants to expose the implant fixtures

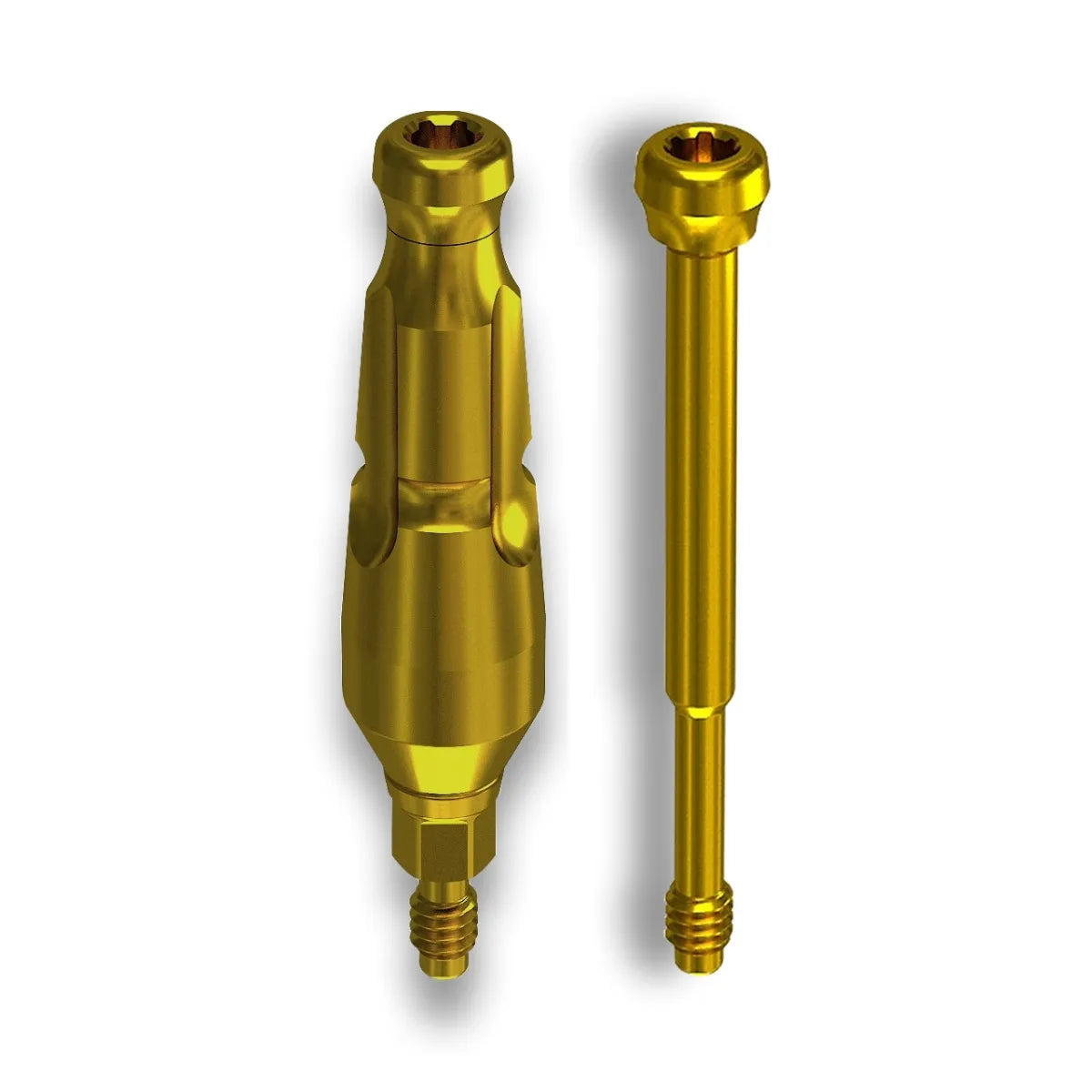

Attaching the Transfer Screw

• Select the Transfer Screw: Choose the appropriate Adin Close Tray Transfer Screw for your specific case
• Attach the Coping: Securely screw the impression coping onto each implant using the transfer screw, ensuring it is fully seated

Taking Impressions

• Prepare the Impression Tray: Apply adhesive to the impression tray to enhance retention of the impression material
• Load Impression Material: Fill the tray with heavy-body impression material, ensuring adequate coverage over the coping
• Express Light-body Material: Use light-body impression material around the coping for capturing detailed soft tissue contours
• Position the Tray: Carefully place the loaded tray into the patient's mouth, ensuring it is properly seated over all copings
• Check for Proper Seating: Verify that all copings are correctly positioned within the tray before proceeding
• Allow Material to Set: Wait for the impression material to polymerize according to manufacturer instructions

Final Steps

• Remove the Impression Tray: Once set, gently unscrew the transfer screws from each coping and carefully remove the tray from the patient's mouth.
• Inspect for Accuracy: Check that all details of the implants and surrounding tissues are captured accurately in the impression
• Attach Implant Analogs: Insert implant analogs into each coping in the impression for laboratory processing
• Send for Fabrication: Send the impression with attached analogs to your dental laboratory for prosthetic restoration fabrication

• Country of Origin: Israel
• Manufacturer: Adin

• Warranty is not applicable for this product.

Question : What is a closed tray transfer impression coping?
Answer: A closed tray transfer impression coping is a dental tool used to accurately capture implant positions during the impression-taking process, designed for the closed tray technique.

Question : Can this coping be used with any implant system?
Answer: No, it is specifically designed for use with Adin CloseFit implants to ensure compatibility and accuracy.

Question : What are the advantages of using a closed tray technique?
Answer: The closed tray technique is quicker, less costly, and ideal for cases with limited interarch space or parallel implants.

Question : What materials are used in this coping?
Answer: The coping is made from high-quality titanium, providing durability and biocompatibility.
