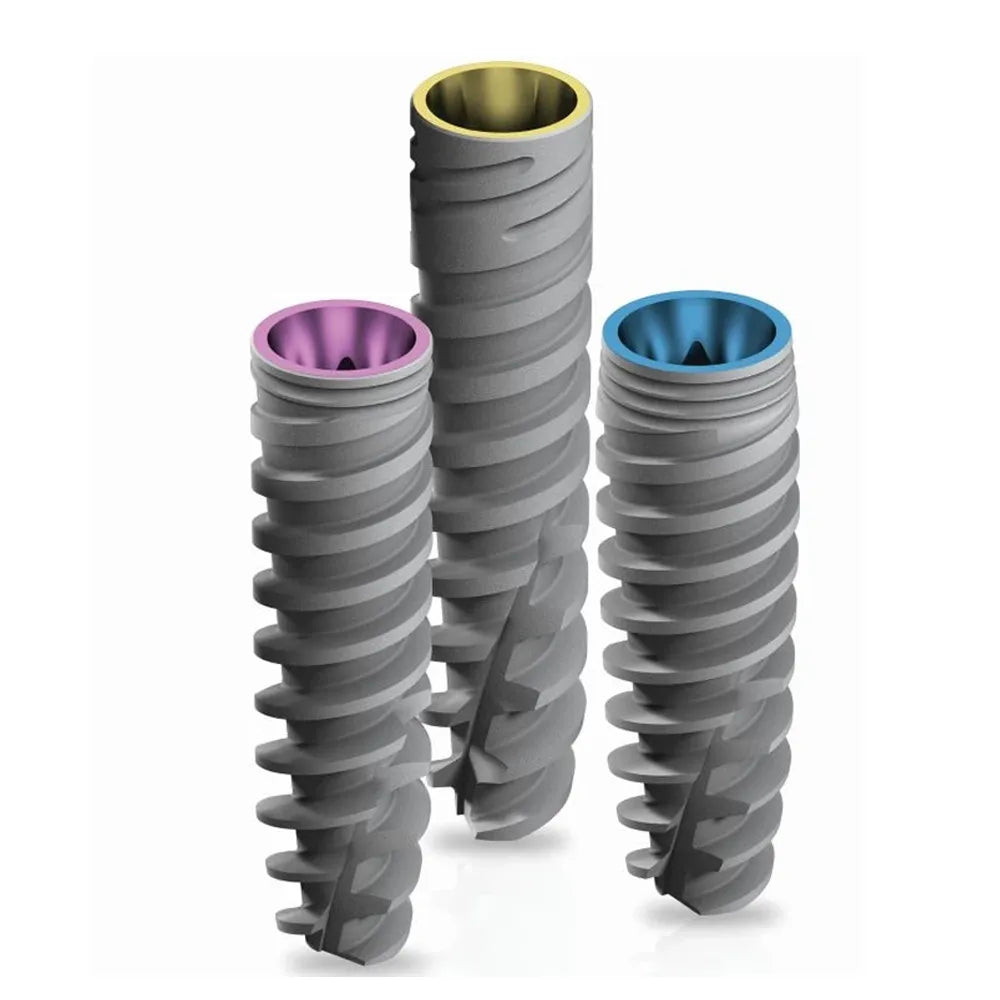

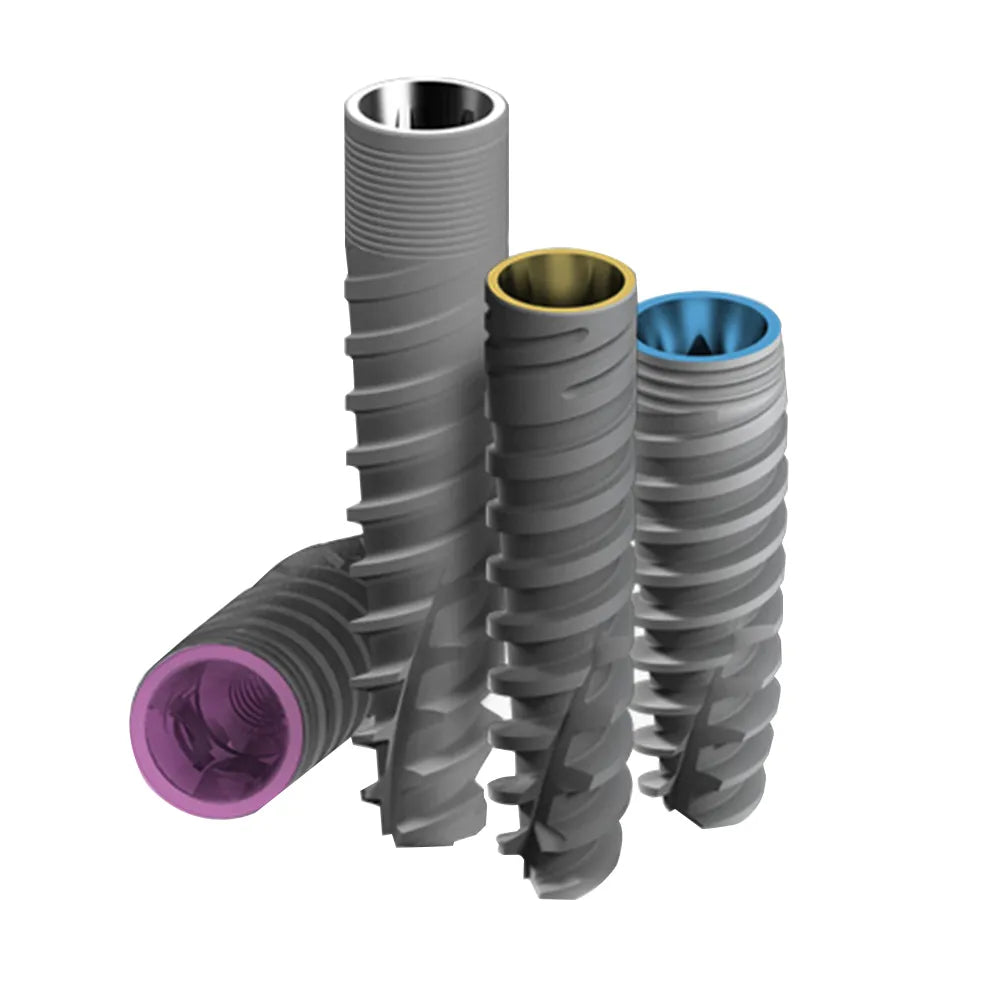

Adin CloseFit Dental Implants

• High Primary Stability: Ensures secure initial placement, even in challenging bone types like type IV
• Self-Tapping Design: Facilitates easy insertion and secure anchoring in the bone
• Conical-Hex Connection: Provides a stable connection with no micromovements, enhancing implant longevity
• Built-In Platform Switching: Supports optimal prosthetic outcomes and promotes tissue preservation
• Triple Lead Thread: 3.0mm (3x1mm) pitch for fast and efficient insertion
• Redirecting Capability: Allows for precise and accurate implant positioning during surgery
• OsseoFix™ Surface Treatment: Biocompatible, debris-free surface treatment that promotes optimal osseointegration
• Immediate Function/Loading: Suitable for immediate use in all bone types, enhancing patient satisfaction
• Minimal Invasive Surgery: Reduces patient discomfort and accelerates recovery
• Enhanced Loading Distribution: Effectively distributes load to prevent overloading and ensure implant stability
• High Torque Strengths: Provides robust strength to avoid fractures at the interface connection

• Connection Type: Internal hexagon
• Material: Titanium 6AL-4V-ELI alloy, ensuring biocompatibility and strength
• Sterile/ Non Sterile: Sterilized
• Triple Lead Thread: 3.0mm (3x1mm)
• Surface Treatment: OsseoFix: Biocompatible calcium phosphate grit-blasting for optimal osseointegration

Design:

• Tapered body with V-shaped threads for improved stability and load distribution
• Straight, flat-top implant head with micro threads for better bone maintenance
• Dome-shaped apex without a hole and with grooves for enhanced primary stability

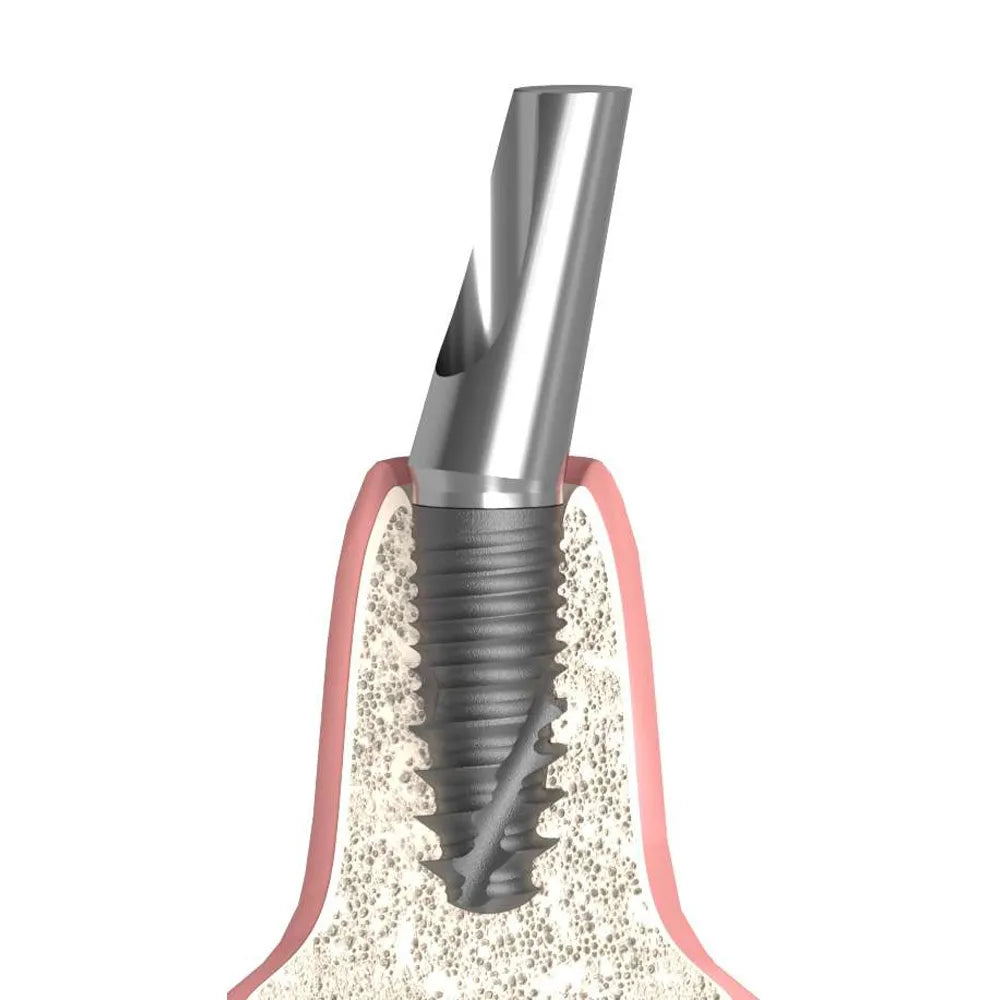

• Designed for subcrestal placement 1-2 mm below the crestal bone

• 1 x Closefit Dental Implant

Pre-Surgical Planning:

• Conduct a thorough clinical examination and radiographic analysis to determine the appropriate implant size and placement
• Select the suitable platform (UNP, NP, RP, or WP) based on the ridge dimensions and clinical requirements

Surgical Preparation:

• Ensure the surgical area is sterile and prepare the patient by administering local anesthesia
• Create an incision to expose the bone at the implant site

Drilling Protocol:

• Use the Adin CloseFit™ drilling kit to create the osteotomy. Follow the drilling sequence recommended for the specific implant platform
• Start with a pilot drill and progress through the subsequent drills to achieve the desired depth and diameter

Implant Placement:

• Insert the Adin CloseFit™ implant into the prepared osteotomy
• Utilize the self-tapping feature to facilitate easy insertion and secure anchoring
• Ensure the implant is placed at the correct depth, with the platform flush with the bone surface

Achieving Primary Stability:

• Confirm high primary stability by assessing the torque value during insertion
• Make any necessary adjustments to achieve optimal stability

Platform Switching and Connection:

• Ensure the built-in platform switching feature is properly engaged to enhance prosthetic outcomes
• Verify the Conical-Hex connection is secure and free from micro movements

Immediate Loading (if applicable):

• If immediate function/loading is planned, proceed with the temporary restoration
• Ensure the provisional restoration is designed to avoid overloading the implant during the healing phase

Soft Tissue Management:

• Suture the soft tissue around the implant site to promote proper healing
• Follow post-operative care instructions to manage any potential complications

Osseointegration Period:

• Allow the implant to osseointegrate with the surrounding bone, typically over a period of 3 to 6 months
• Monitor the healing process through regular follow-up appointments

Final Restoration:

• Once osseointegration is confirmed, proceed with the final prosthetic restoration
• Take impressions and fabricate the final crown, bridge, or denture to fit securely onto the implant
• Ensure the restoration provides optimal esthetics and functional outcomes

• Country of Origin: Israel
• Manufacturer: Adin

• Warranty is not applicable for this product.

Question : Do Adin CloseFit Dental Implants include an abutment in the packaging?
Answer: No, Adin CloseFit Dental Implants do not include an abutment in the packaging. The abutment must be purchased separately to ensure compatibility with your specific clinical requirements.

Question : What are Adin CloseFit™ Dental Implants?
Answer: Adin CloseFit™ Dental Implants are designed with a strong conical-hex connection and various platform sizes to ensure stability and precision in dental restorations.

Question : Are CloseFit™ implants suitable for all bone types?
Answer: Yes, CloseFit™ implants are designed to perform well across different bone types, including soft and hard bone conditions.

Question : What is OsseoFix™ surface treatment?
Answer: OsseoFix™ is a calcium phosphate surface treatment that enhances osseointegration by promoting better bone integration with the implant surface.

Question : What makes the CloseFit™ implants suitable for various ridge dimensions?

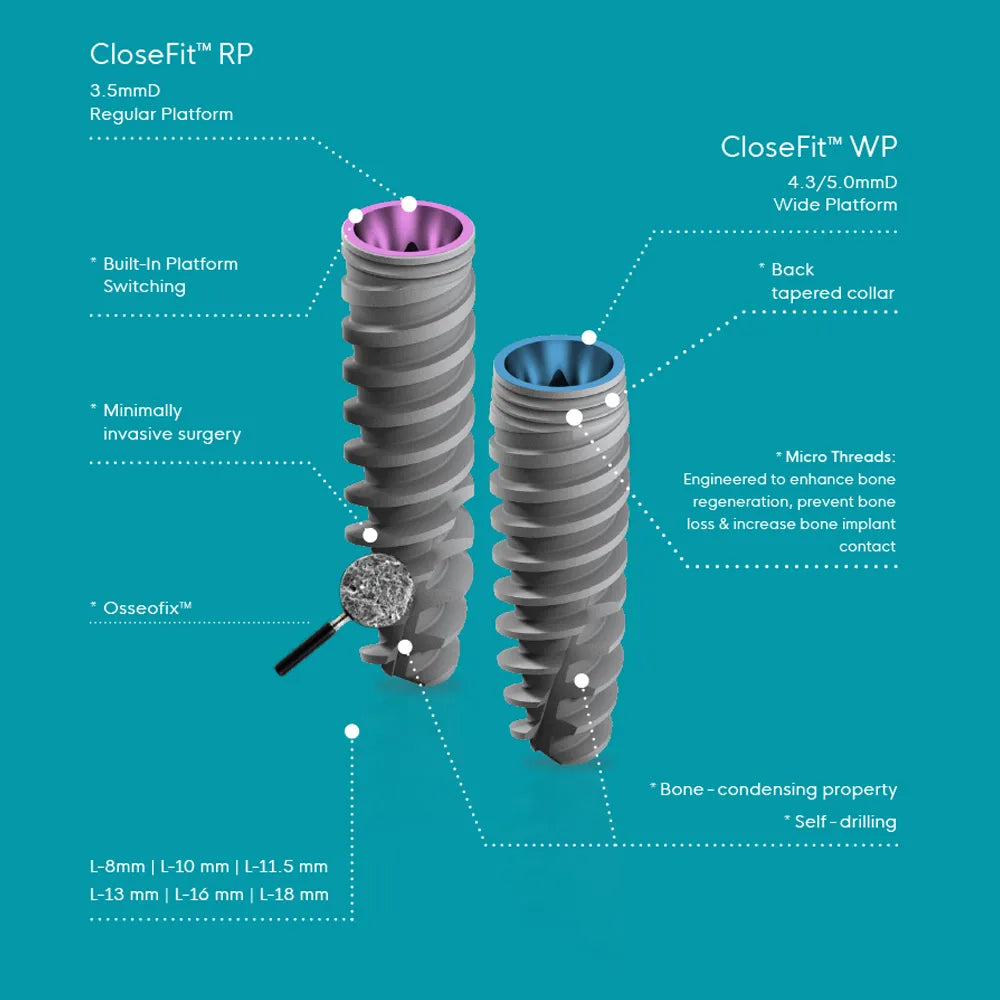

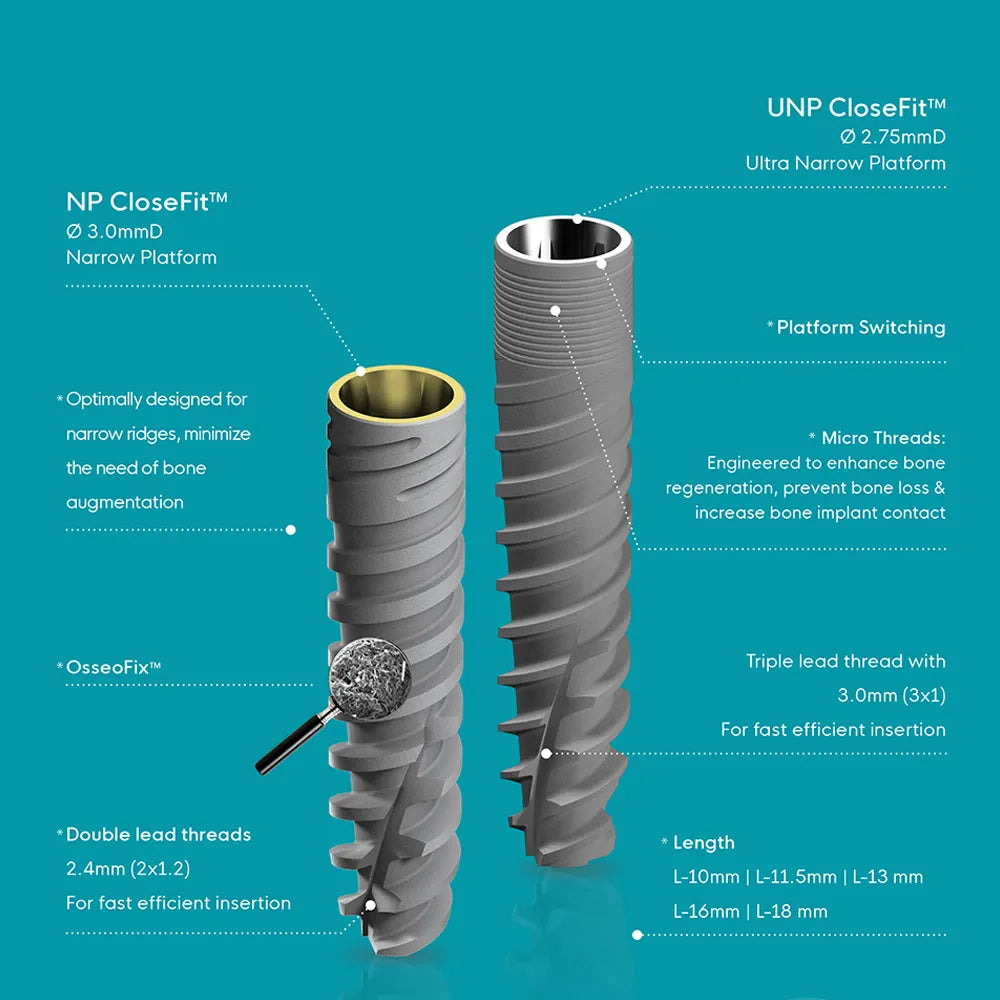

Answer: CloseFit™ implants come in four platform sizes (Ultra Narrow, Narrow, Regular, and Wide) to accommodate different ridge dimensions and clinical needs.

Question : What is the advantage of the conical-hex connection?
Answer: The conical-hex connection minimizes micromovements between the implant and abutment, which helps reduce potential bone loss and enhances implant stability.
