3-Way Syringe

3-Way Dental Syringe

The 3-way dental syringe comes with two nozzles in a box, operated by two control buttons.

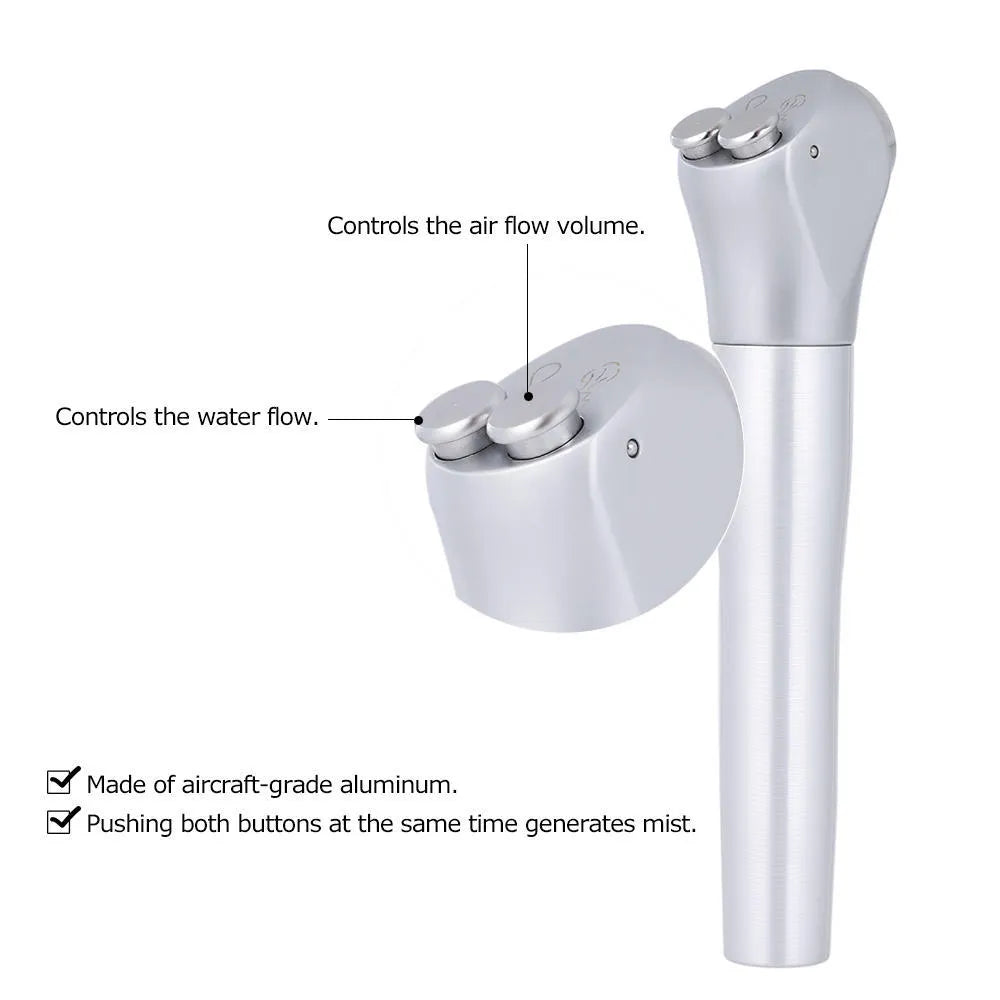

• The left button regulates the water flow volume.

• The right button controls the airflow volume.

• Pressing both buttons simultaneously produces a fine mist spray.


This 3-way syringe features an O-ring groove that securely locks the tip in place, ensuring patient safety and preventing leakage.

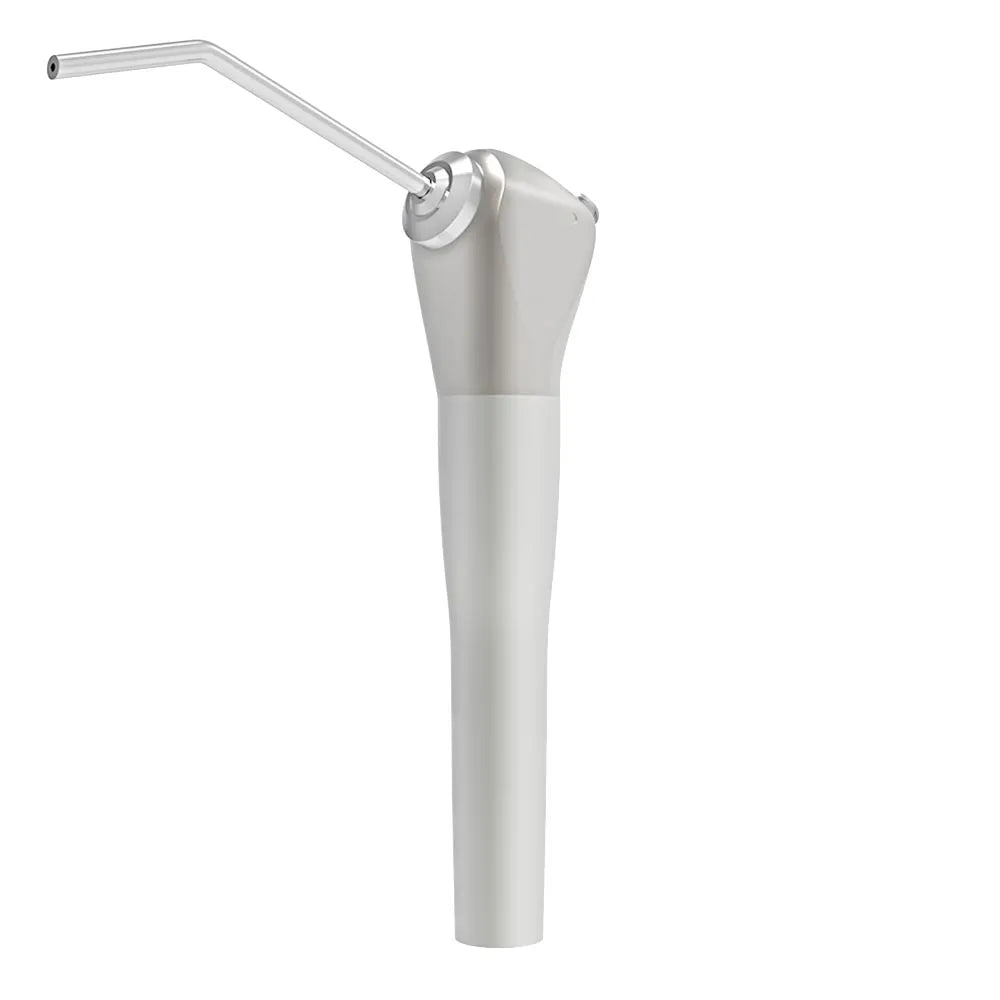

The angled tip design allows for easy positioning anywhere in the patient’s mouth and is strong enough to enable gentle retraction when needed.

Construction & Materials

• Box and housing: Made from premium-quality stainless steel for durability.

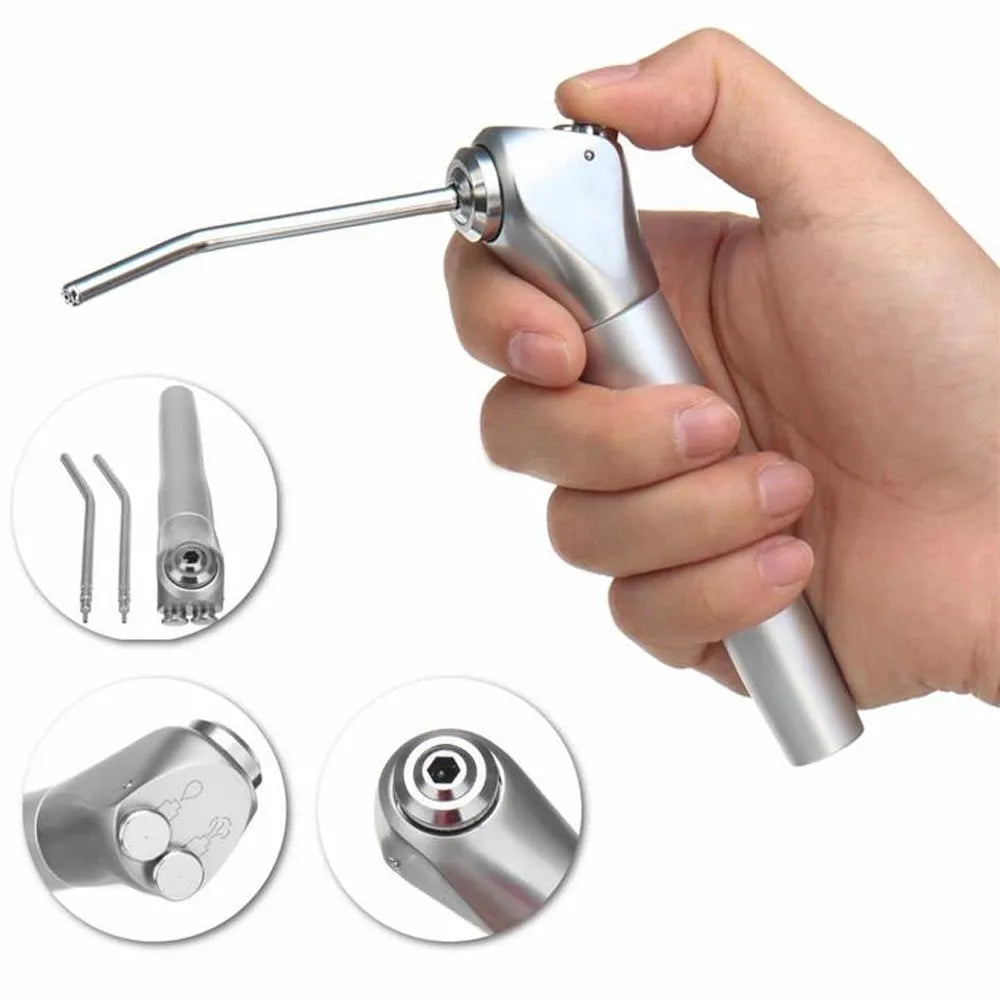

• Handle: Crafted from high-grade aluminum with an ergonomic, smooth design for a comfortable grip.

• Tips: Includes 2 autoclavable tips made from solid alloy for reliable, long-term performance.


Indications

The 3-way dental syringe delivers a precise stream of compressed air, water, or a combination of both.
It is commonly used to clean and dry teeth or surfaces during dental procedures, ensuring optimal visibility and hygiene.

• 6-Holes in the tip head for wider coverage
• Tip Size & Weight: ∅4*85mm, 6g
• Syringe Size & Weight: 31*118*20mm, 123g
• Autoclavable Tip (within 135℃)
• Compatible with all standard dental chairs available in market

• 3 Way Syringe - With Two Autoclavable Tips

USAGE -

• Left Button Controls the Water Flow Volume
• Right Button Controls the Air Flow Volume
• Pushing Both Buttons at the Same Time Generates Mist.

INSTALLATION GUIDE

While installing the 3-Way Syringe onto your dental chair shut your unit off and press both buttons of your existing syringe until all flow stops. Unscrew the syringe handle and cut the tubing as close as possible to the syringe head.

Discard the old syringe and the handle. Trace the lines of the syringe tubing to identify which is air and which is water. Once the lines are separated and trimmed, they are ready to be pushed on to the barbs of the syringe.

Unscrew the handle from your new syringe and slide the handle over the tubing. Next, attach the air and water lines of the syringe tubing to the barbs on the syringe head. The water line will attach to the left-hand button (when looking at the back of the syringe head) and the airline to the right-hand side. Attach the water line first (the sleeve clamp is pushed farther into the tubing) by sliding it over the barb.


You can dip the end of the tubing in hot water and/or lubricate the barb with some silicone lubricant to make it easier to slide the tubing on. You will want to slide the tubing only about 1/2-3/4 of the way on. Once the water line is attached you can then attach the airline using the same procedure. After both lines are attached to the barbs, use a plier to push the tubing, the rest of the way onto the barbs when they are seated.

Slide the syringe handle up and hand-tighten it onto the head. Turn your unit on and test the syringe for function. Put the cover back on your unit and your chair got a new syringe!

• This product does not carry any manufacturing warranty.
