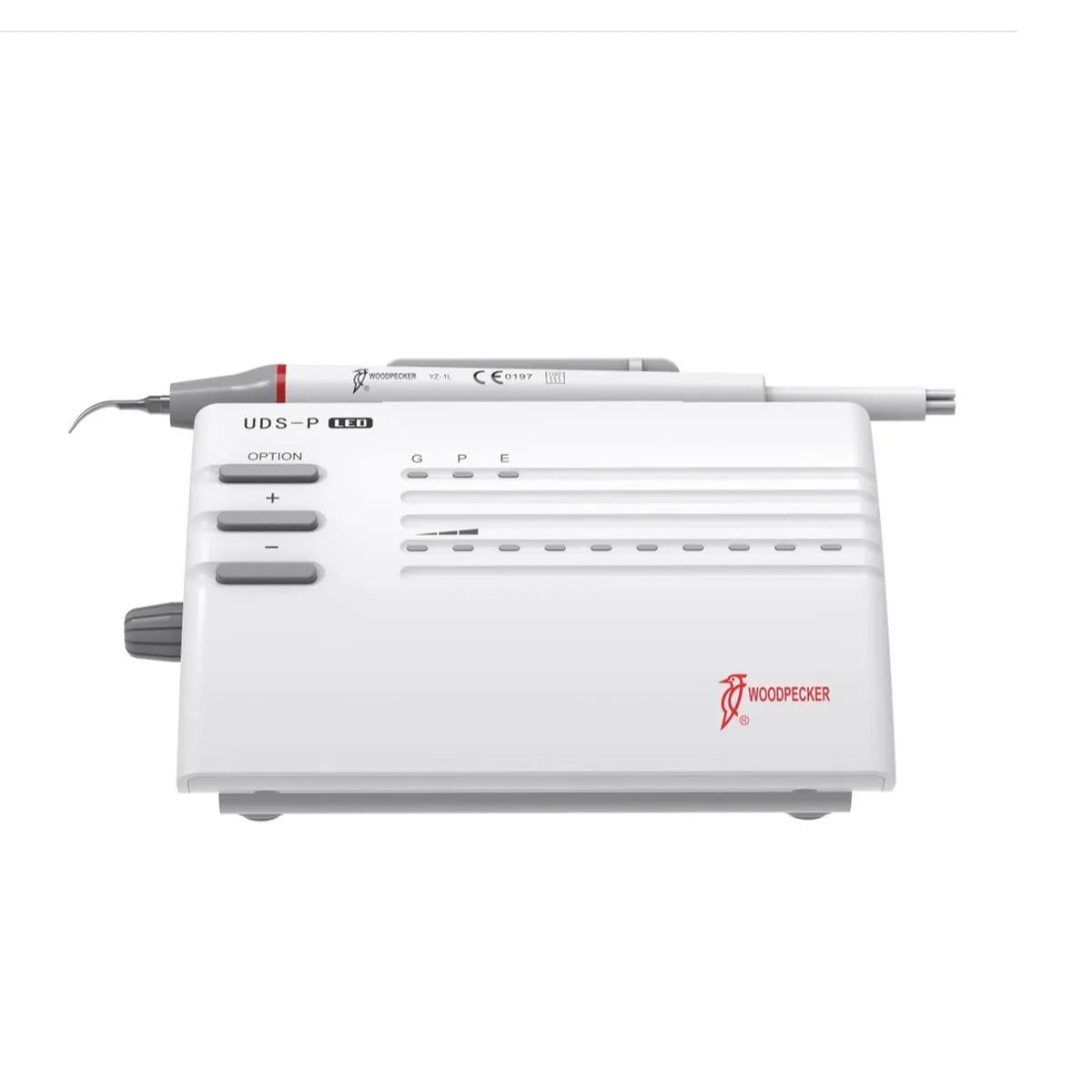

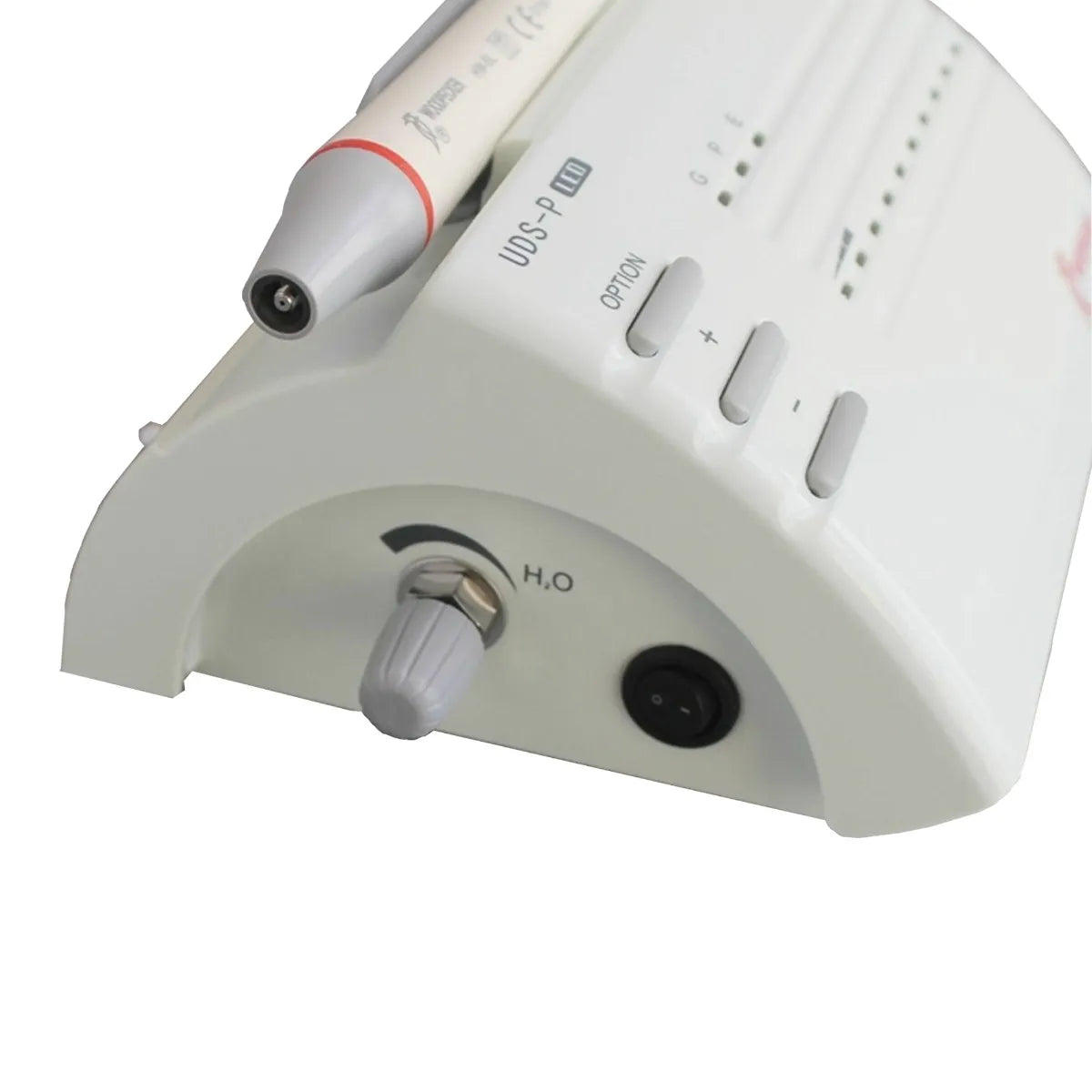

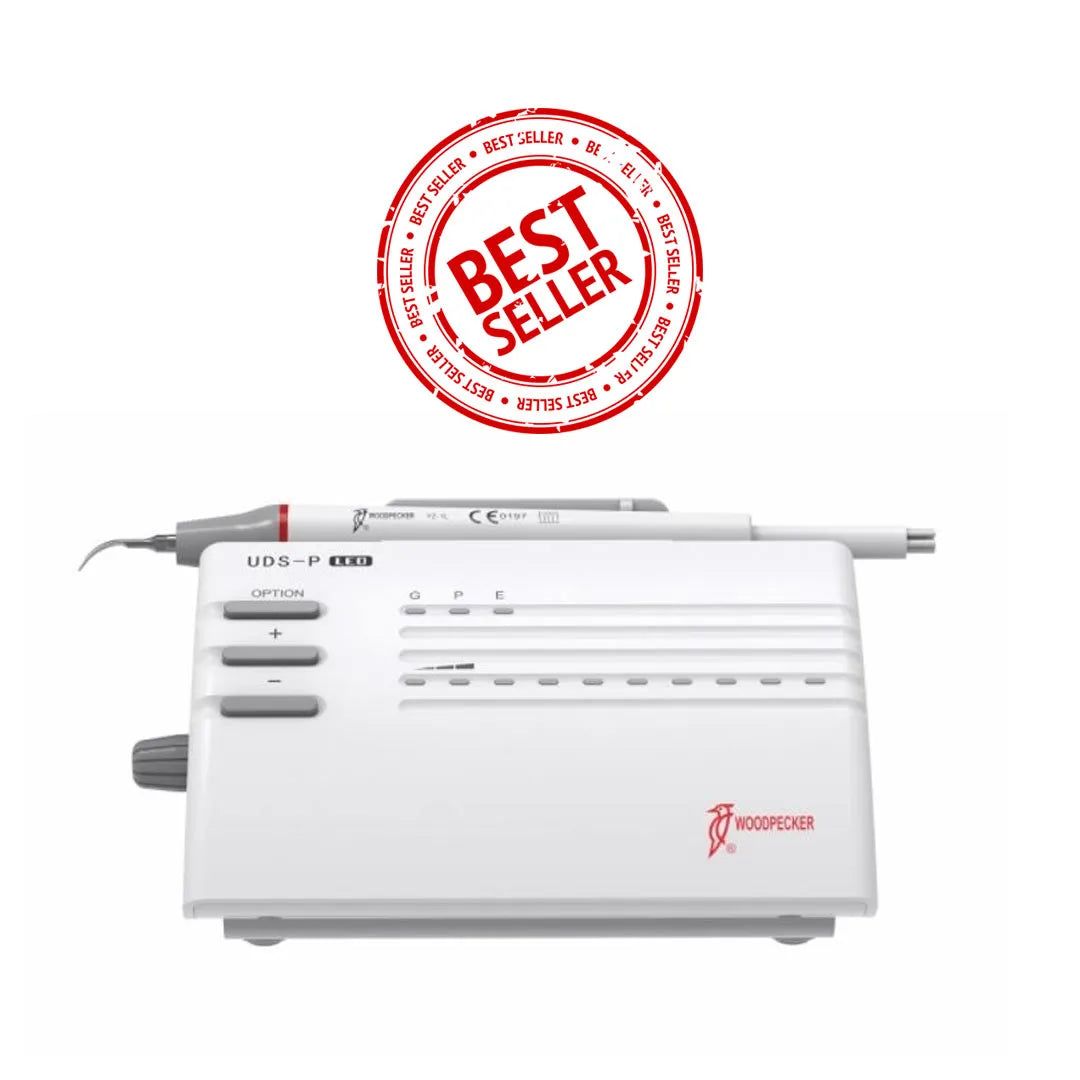

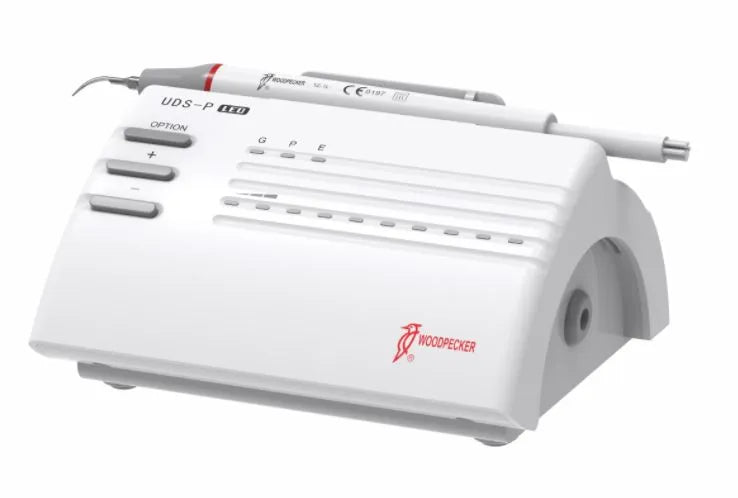

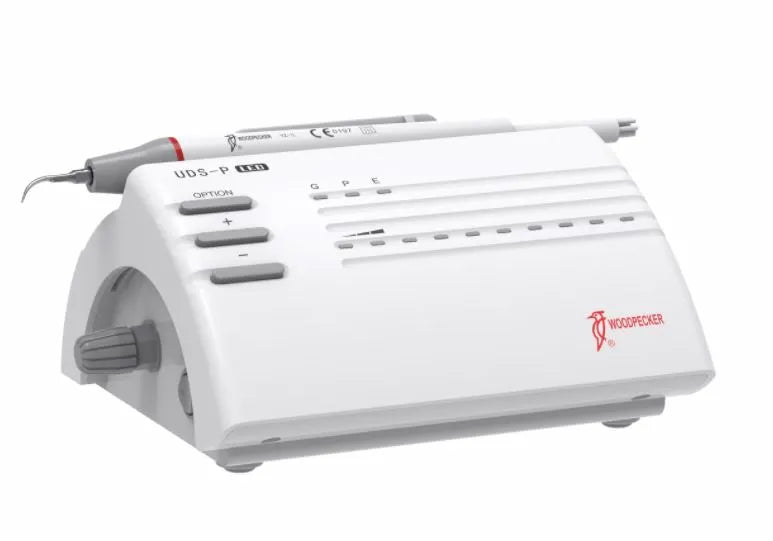

Woodpecker Uds P LED Ultrasonic Scaler

• Performs Multi-function: Scaling, perio and endo.
• Optical handpiece, more convenient for clinical operation.
• The handpiece is detachable and can be autoclaved to 135℃ and 0.22MPa.
• The handpiece is cast from Titanium alloy to ensure sound mechanical function and durability.
• The cable is made from silica gel tube which is soft and durable.
• The scaling tip is made of special material.The cavitation produced at the end of scaling tip helps in easy cleaning of the teeth.
• It Eliminates dental calculus, bacterial plaque and tea stains on the teeth quickly without hurting the gum or the enamel.
• Automatic frequency tracking ensures that the machine always works on the best frequency and performs functions more steadily.
• Digitally controlled, easy operation and more efficient in scaling.
• Compatible with EMS, you could connect your EMS handpiece with this control box, and you could also connect this Woodpecker UDS handpiece with EMS control box.
• CE and FDA certificated.

• Power input         110V~ 50Hz/60Hz    220 - 240V~  50Hz/60Hz
• Main unit input     24V~   l.3A
• Output power       3W ~ 20W
• Frequency           28kHz ± 3kHz
• Water pressure    0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
• Main unit weight   0.68kg
• Adapter weight     1.2kg
• Dimensions         178mm×145mm×89mm

• 1 x Main unit
• 1 x Handpiece
• 1 x Foot switch
• 6 x Tip
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual

• Ensure the power supply input is within the range of 220-240V~ 50Hz/60Hz 150mA.
• Connect the main unit input to a 24V~ 50Hz/60Hz 1.3A power source.
• Attach the handpiece securely and ensure it is detachable for sterilization.
• Before each treatment, sterilize the handpiece, scaling tip, torque wrench, endo wrench, and endochuck using recommended autoclaving methods.
• Install the scaling tip by holding the handpiece and turning the tip in the specified direction using the torque wrench.
• After each treatment, sterilize the handpiece separately, ensuring the scaling tip and endo chuckare unscrewed.
• Allow the handpiece to cool naturally before the next use to prevent scalding.
• Maintain a continuous water flow during operation to keep the scaling tip cool and efficient.
• Operate the scaler in continuous mode, adjusting the power gradually according to treatment needs.
• Follow proper sterilization protocols, including using sterile gauze or bags for packaging the handpiece, and avoid forbidden sterilization methods such as boiling or using disinfectors like iodine or alcohol.
• Regularly check the handpiece for any damage or wear, lubricate the "O" rings with dental lube, and keep the connector and cable socket dry.
• Prioritize cleanliness by cleaning the scaler before and after each operation to ensure optimal performance and infection control.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Does this have LED?
Answer: Yes, the Woodpecker UDS P LED Ultrasonic Scaler features integrated LED lighting. This built-in LED enhances visibility during procedures, providing better illumination of the treatment area and improving overall precision and efficiency.

Question: Does this UDS-P LED dental Scaler contain an Endodontic tip?
Answer: Yes, the Woodpecker UDS P LED Ultrasonic Scaler comes with an Endodontic tip. One E1 endodontic tip is included with the scaler.

Question: Can the UDS-P LED scaler eliminate the dental calculus, plaque, and stains without causing harm?
Answer: Yes, the scaler is designed to effectively eliminate dental calculus, bacterial plaque, and tea stains on teeth. Its advanced technology ensures thorough cleaning while minimizing potential harm to the gum or enamel.

Question: Canthe handpiece of the UDS-P LED dental scaler to sterilized?
Answer: Yes, the handpiece is detachable and can be autoclaved at a high temperature of 135℃ and a pressure of 0.22MPa. This allows for proper sterilization and ensures infection control.

Question: What are the main functions of the UDS-P LED dental scaler?
Answer: The UDS-P LED scaler performs multiple functions, including scaling, periodontal treatment (perio), and endodontic treatment (endo). It is a versatile tool that can address various dental needs.

Question: Is the UDS-P LED scaler compatible with other handpieces or control boxes?
Answer: Yes, the scaler is compatible with EMS handpieces and control boxes. This provides flexibility for dental professionals who may already have EMS equipment and allows them to integrate the UDS-P LED scaler into their existing setup.

Question: Does the UDS-P LED scaler meet safety standards?
Answer: Absolutely. The scaler holds CE and FDA certifications, ensuring that it meets the required safety and quality standards. This provides peace of mind for dental professionals and patients alike.

Question: Are there any specific precautions or maintenance requirements for the UDS-P LED scaler?
Answer: It is important to follow the recommended sterilization procedures, maintain cleanliness, and adhere to the precautions outlined in the user manual. Regular maintenance, such as lubricating the handpiece and checking for any damage, is also advised for optimal performance and longevity of the equipment.
