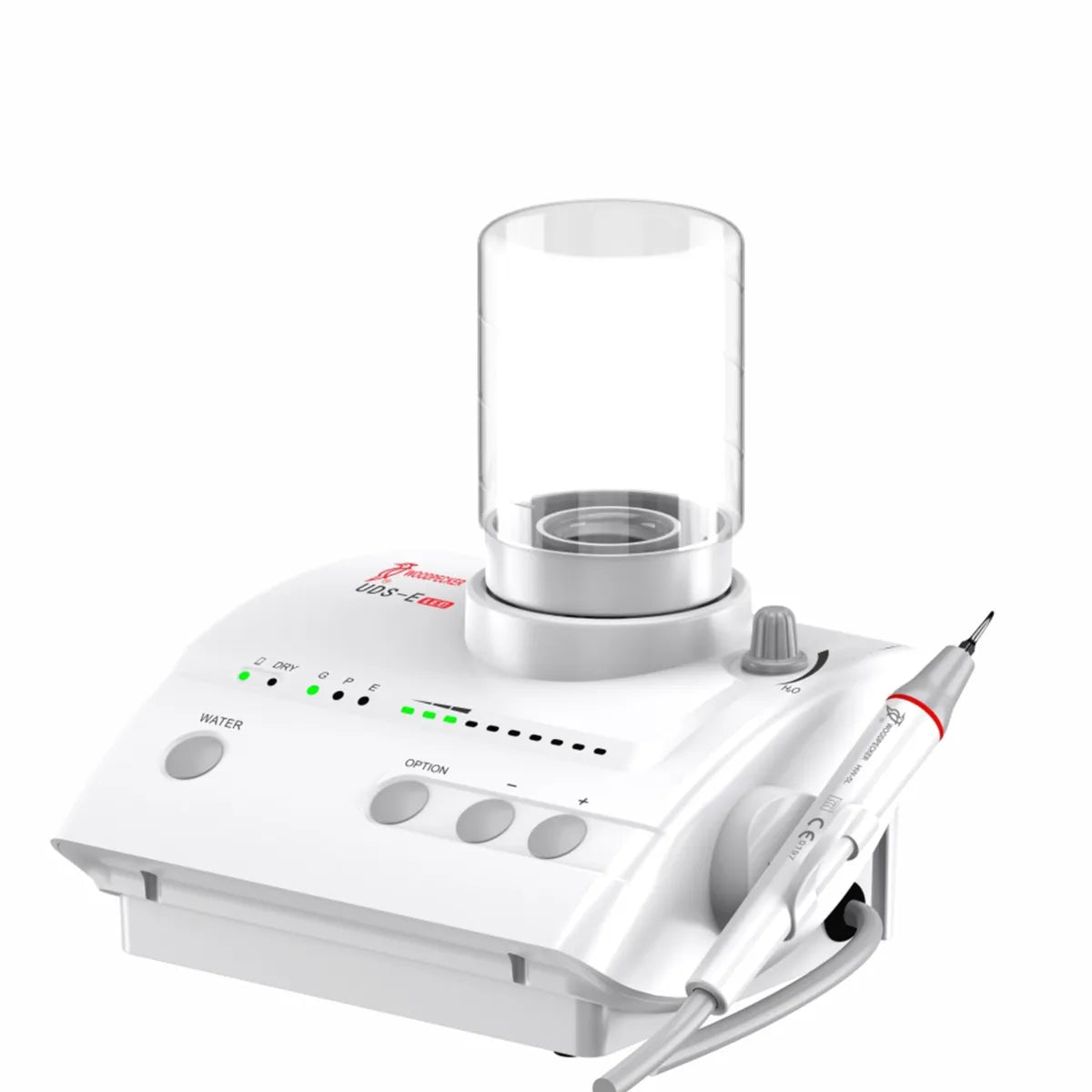

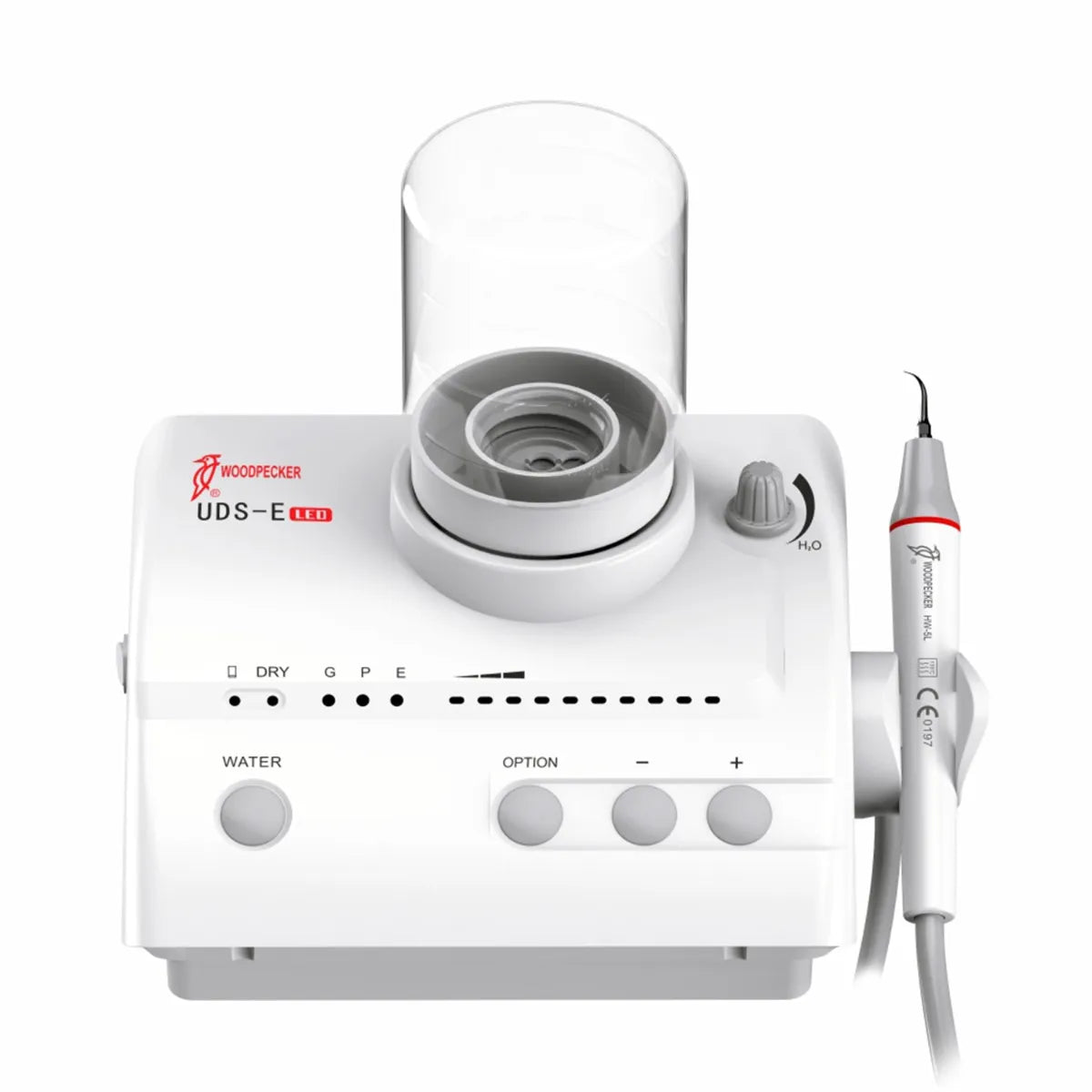

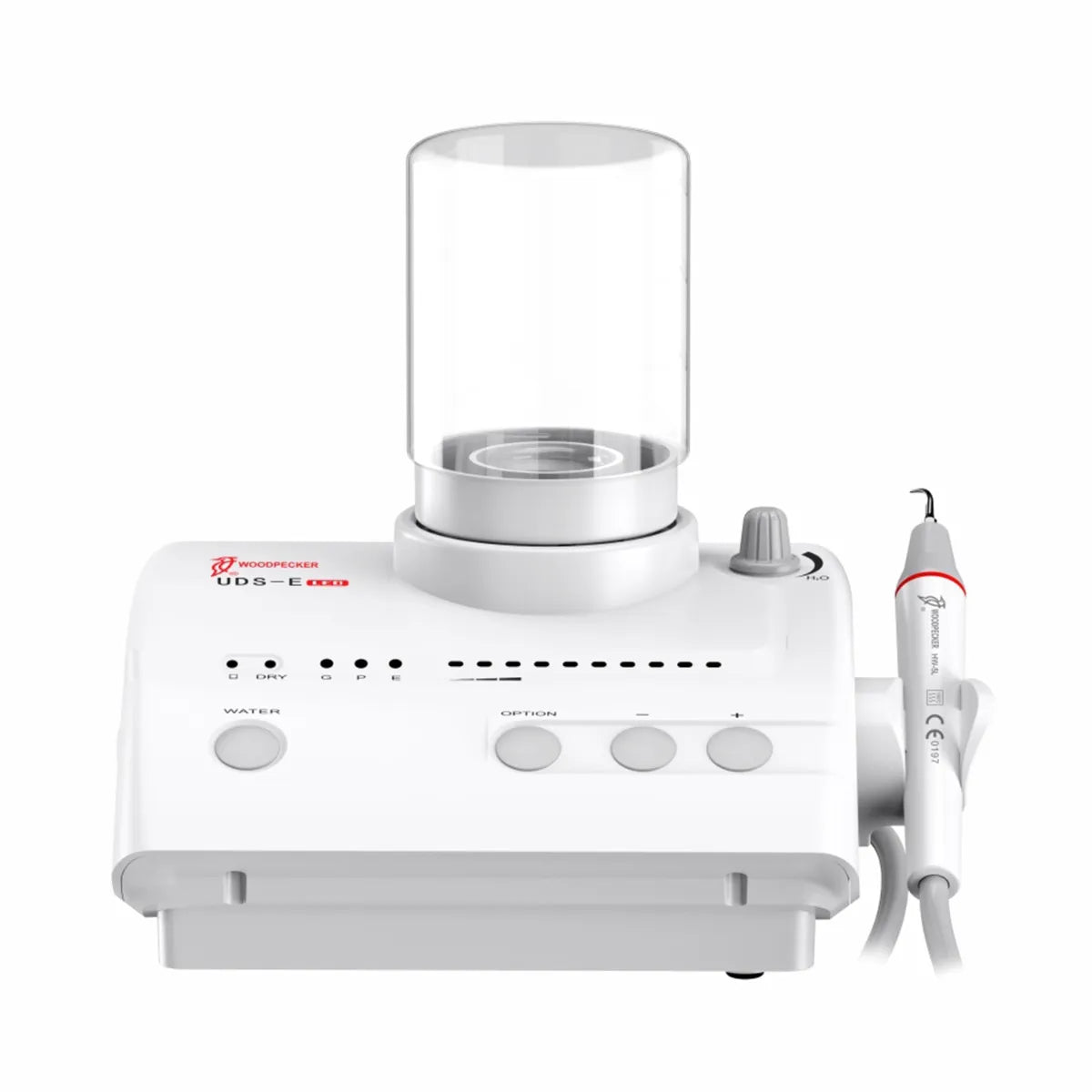

Woodpecker Uds E Led Ultrasonic Scaler (8 Tips Free)

• Multi-function scaler with three modes: general, perio, and endo.
• Automatic frequency tracking system for stable and reliable performance.

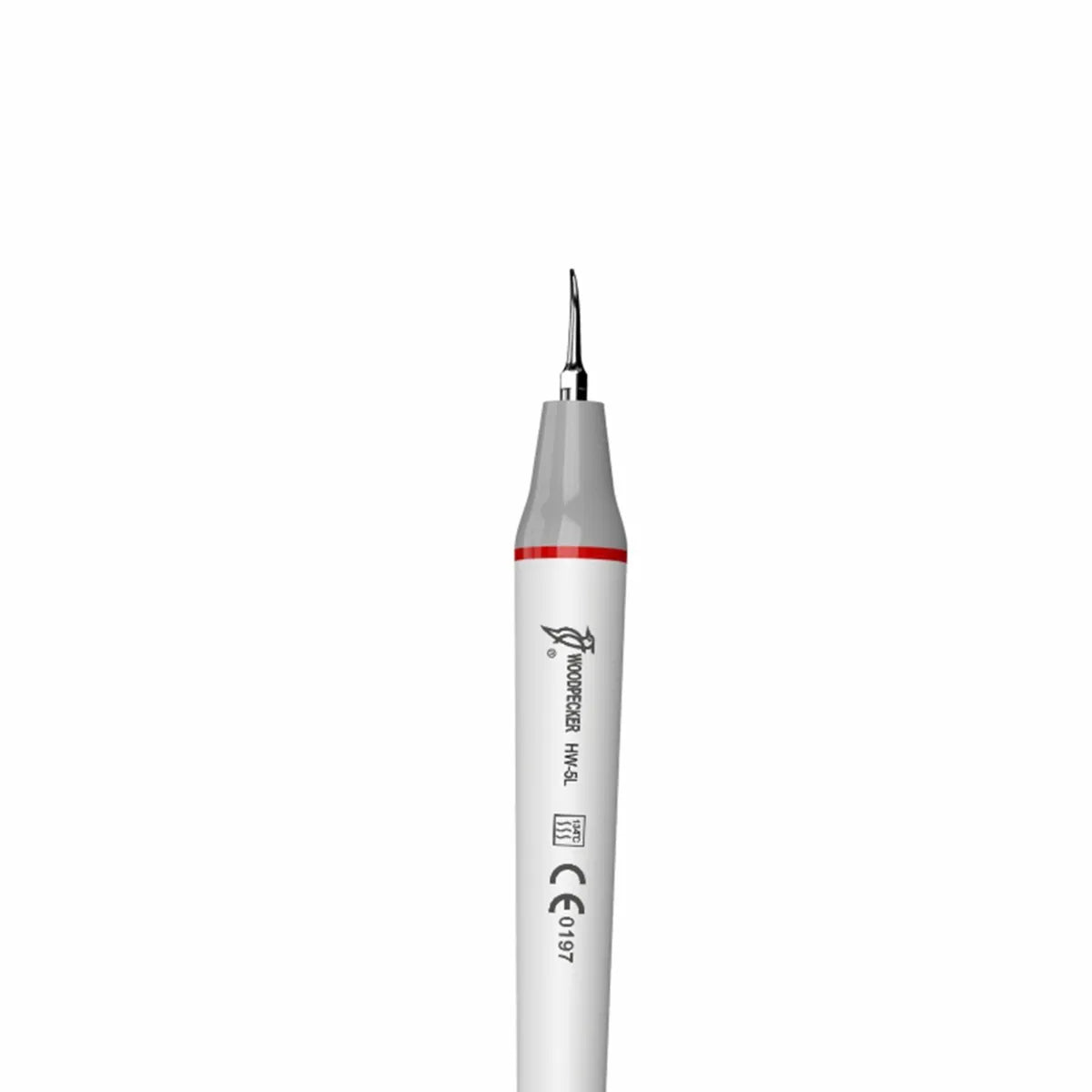

• Optical handpiece for easy handling and maneuverability.
• The inner water pipe allows the use of various clinical fluids with an auto-water supply.
• The detachable handpiece can be autoclaved for proper sterilization.
• Enhances perio and endo procedures.
• Cutting-edge design and functionality for exceptional performance.

• Power Supply Input: 220-240V, 50Hz/60Hz, 150mA
• Main Unit Input: 24V, 50Hz/60Hz, L3A
• Primary Tip Vibration Excursion: ≤100μm
• Half-Excursion Force: <2N
• Output Tip Vibration Frequency: 28kHz+3kHz
• Output Power: 3W to 20W

• 1 x Main Unit
• 1 x Detachable Handpiece
• 1 x Power Supply
• 1 x Foot Switch
• 1 x Scaling Tip G1
  1 x Scaling Tip G4
• 1 x Scaling Tip G5
• 1 x Scaling Tip G6
• 1 x Scaling Tip P1
• 1 x Scaling Tip P3
• 1 x Scaling Tip P4D
• 1 x Endo Chuck E1
• 1 x Tip Holder 2#
• 1 x Torque Wrench
• 1 x Endo Wrench
• 1 x Water Bottle 500ml
• 1 x Water Bottle 350ml
• 1 x LED Lamp
• 1 x Instruction of LED Lamp Replacement
• 1 x Instruction Manual
• 1 x Qualified Certification
• 1 x Packing List

O-ring Pack

• Handpiece Decoration Ring
• Waterproof O-Ring
• Sealed Ring

Preparation:

• Ensure that the power supply is properly connected to the scaler unit and is receiving the recommended voltage (220-240V, 50Hz/60Hz).
• Connect the handpiece and the scaling tip to the scaler unit securely.

Patient Preparation:

• Provide the patient with protective eyewear.
• Place a dental bib or protective covering over the patient's chest and neck to protect against any splatter.

Operation:

• Press the power button on the scaler unit to turn it on.
• Adjust the power level according to the treatment requirements. Use the intensity control knob to increase or decrease the power output.
• Ensure that the scaling tip is properly seated and firmly held to avoid any vibration or movement during operation.

Scaling Procedure:

• Begin the scaling procedure by gently placing the tip on the tooth surface, targeting the area to be treated.
• Use a moderate amount of pressure and move the tip in a controlled, sweeping motion along the tooth surface, following the contour of the teeth and gums.
• Pay close attention to the calculus or plaque deposits and aim to remove them effectively.
• Adjust the power level or select different tip options based on the patient's comfort and the nature of the deposit being treated.
• Rinse the treatment area frequently to remove debris and maintain visibility.
• Continue scaling until the desired result is achieved.

Post-Scaling Care:

• Once the scaling procedure is complete, switch off the scaler unit.
• Instruct the patient to rinse their mouth thoroughly with water to remove any remaining debris.
• Provide appropriate post-scaling instructions for oral hygiene maintenance, such as brushing and flossing techniques.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Does it require an air connection with the chair?

Answer: No, the Woodpecker UDS E Led Ultrasonic Scaler does not require an air connection with the dental chair. It is a portable ultrasonic scaler that operates independently and only requires a power socket for operation. The package includes a water bottle attachment for added convenience.

Question: What are the different modes of operation for the UDS-E LED Ultrasonic Scaler?
Answer: The UDS-E LED scaler operates in three modes: general, perio, and endo. These modes allow for versatile dental treatment options depending on the specific procedure requirements.

Question: What are the advantages of the optical handpiece on the UDS-E LED scaler?
Answer: The optical handpiece offers greater convenience during clinical procedures. It enables easy handling and maneuverability, allowing dental professionals to perform precise and efficient operations on patients.

Question: What fluids can be used with the auto-water supply system of the UDS-E LED scaler?
Answer: The scaler's inner water pipe, made from antiseptic material, allows for the use of various clinical fluids such as hydrogen peroxide, chlorhexidine, and sodium hypochlorite. This capability significantly improves the performance of perio and endo procedures.

Question: How does the automatic frequency tracking feature contribute to the performance of the scaler?
Answer: The automatic frequency tracking system of the UDS-E LED scaler ensures that the machine operates consistently at the optimal frequency. This technology provides stable and reliable performance throughout dental procedures, resulting in effective and efficient treatment.

Question: What is the half-excursion force of the scaler?

Answer: The UDS-E LED scaler generates a half-excursion force of less than 2N. This force level ensures patient comfort during dental procedures.
