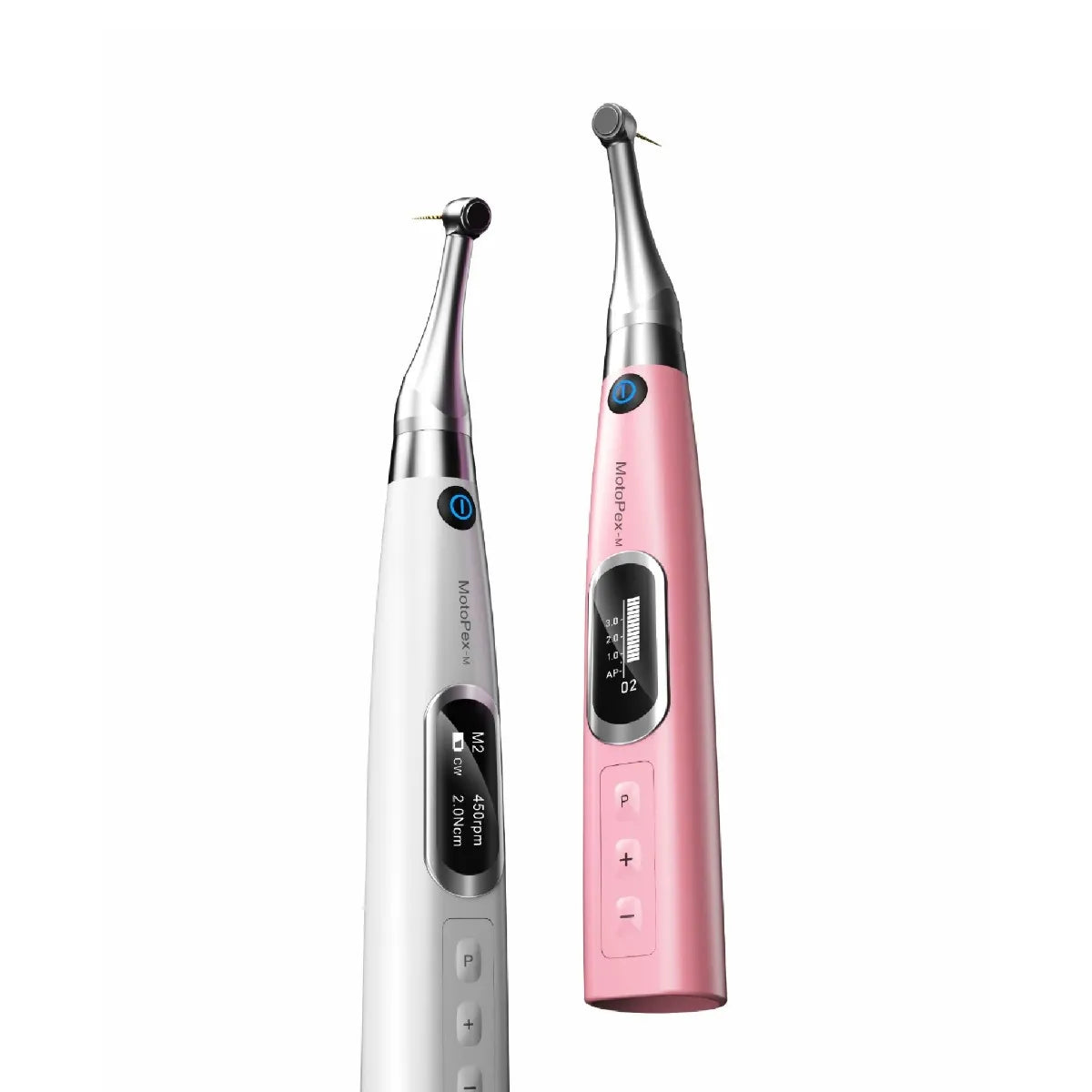

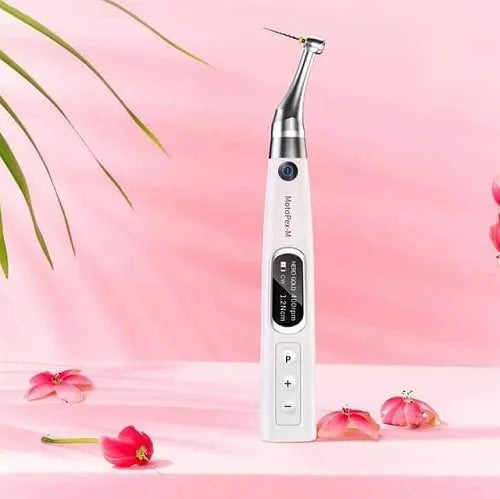

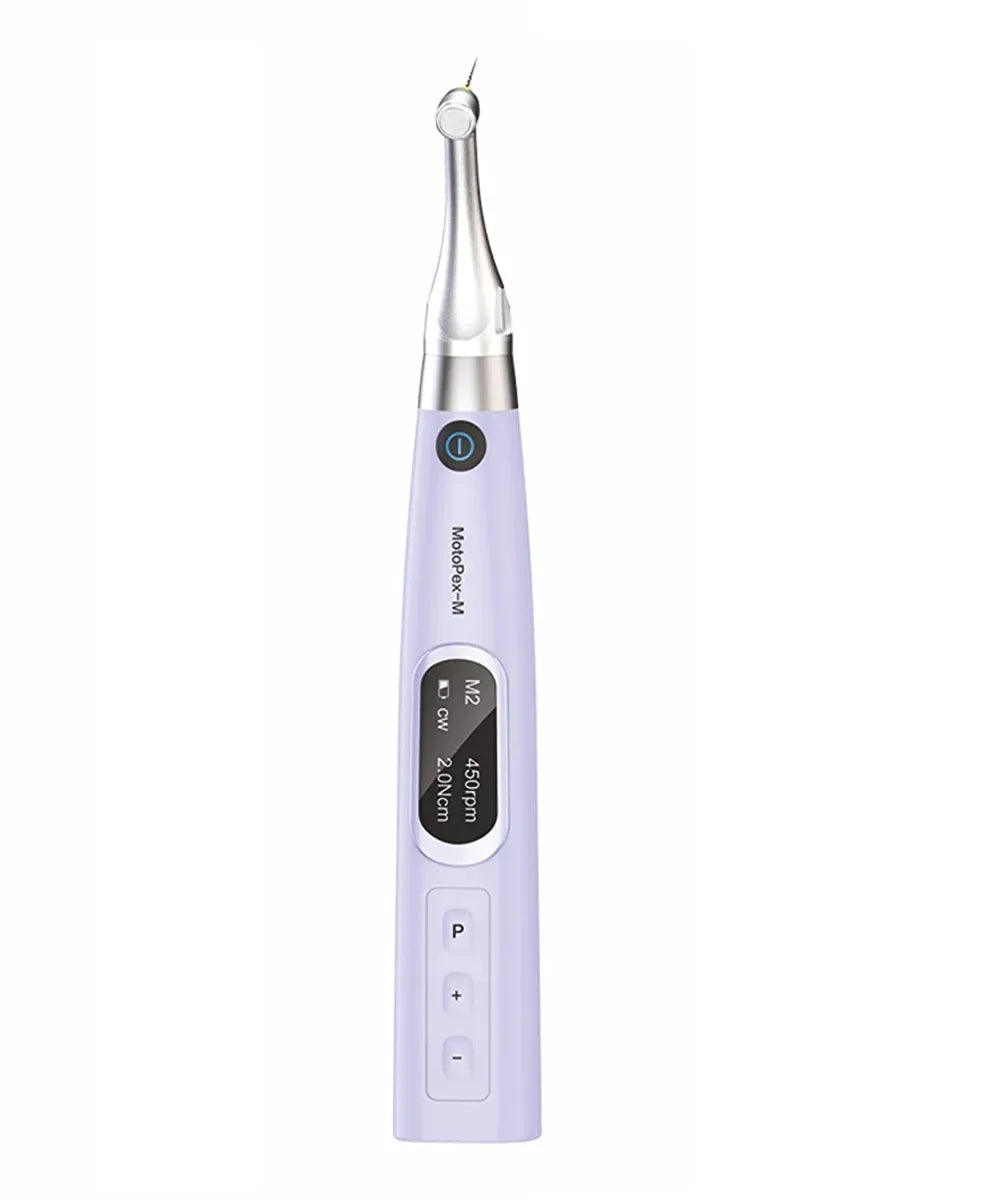

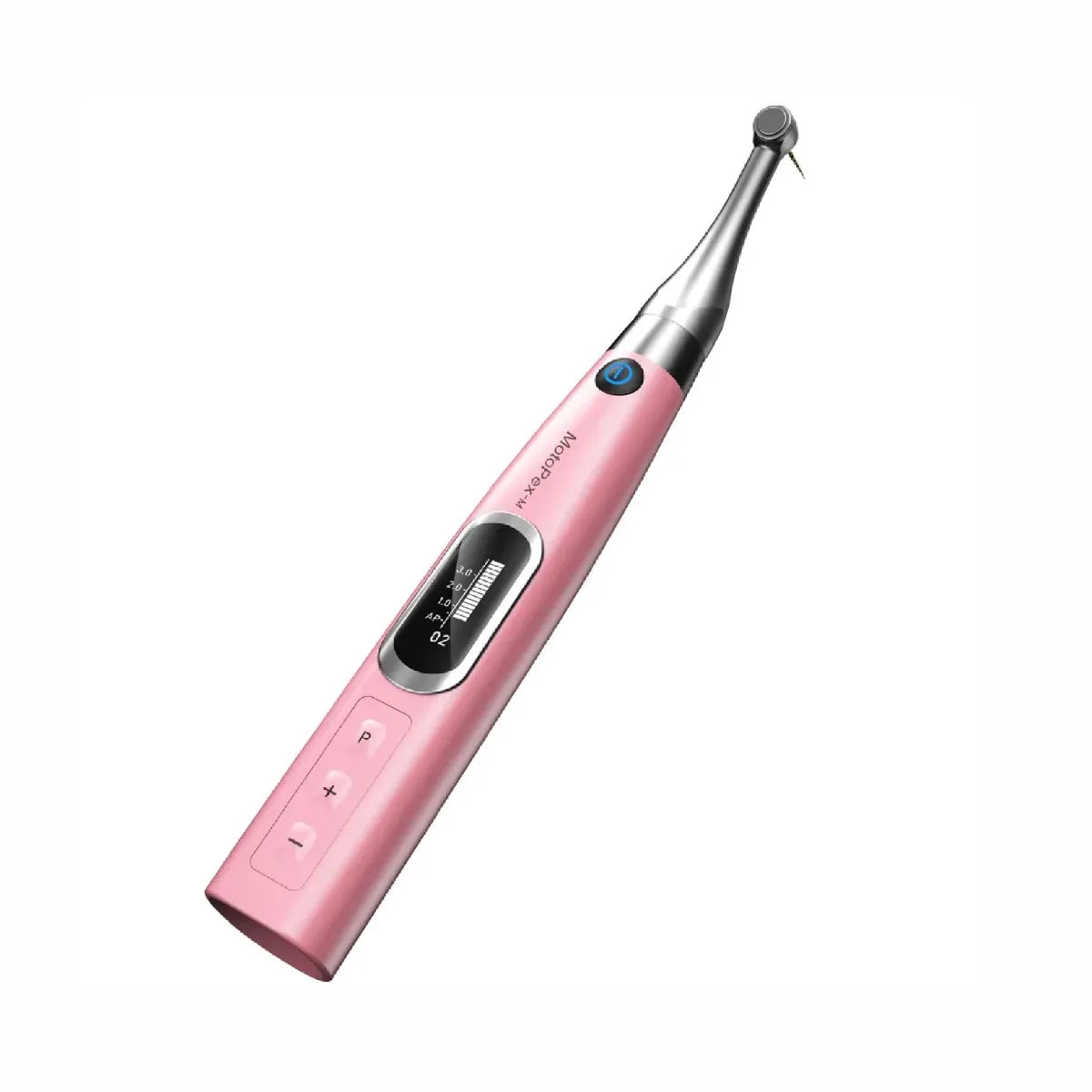

Woodpecker Motopex-M Endo Motor (2 Packet Wal-Flex Free)

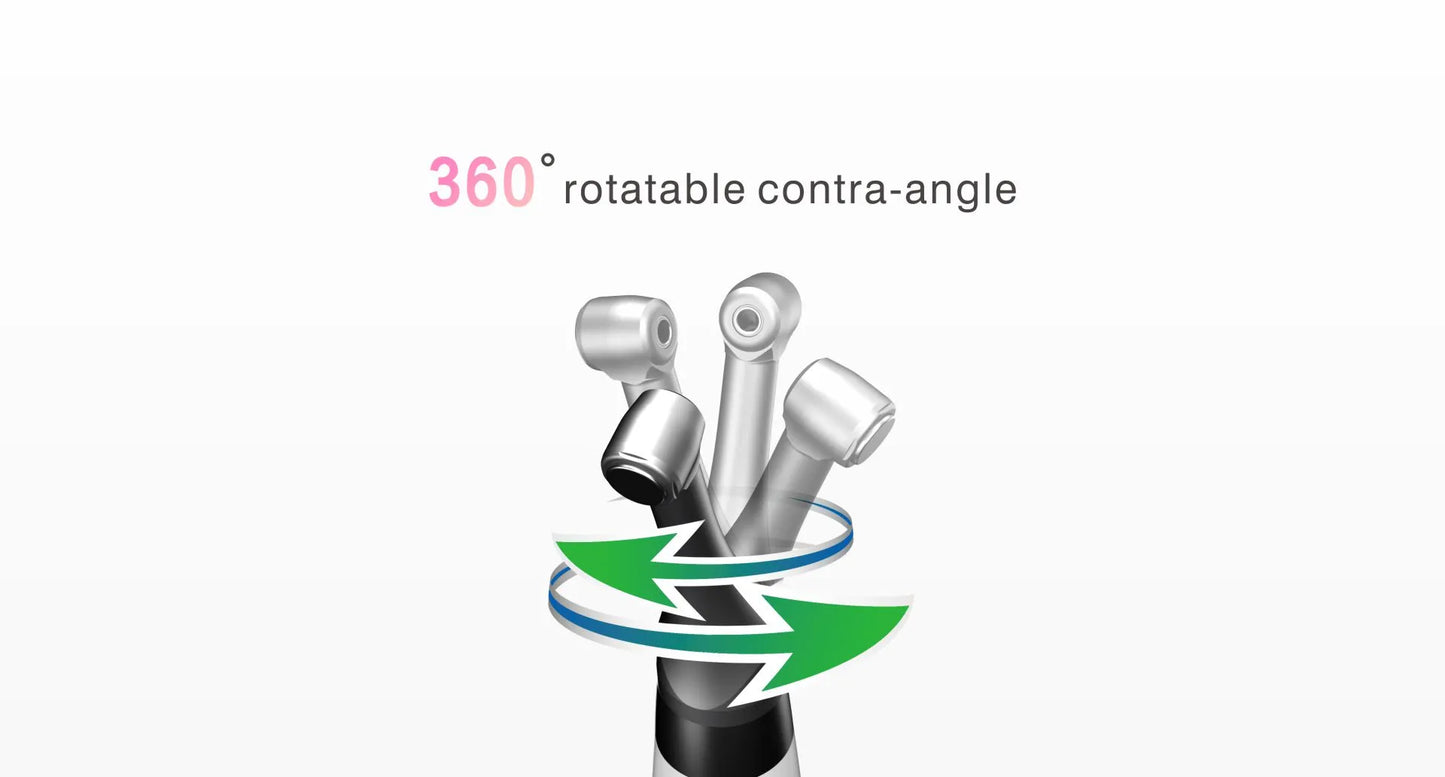

• 360 Degree rotatable contra-angle.
• Built-in mainstream file system.
• 3 times longer service life.
• 2000 mAh lithium battery.
• The front center of gravity.
• 6:1 contra-angle.
• Software update.
• Adaptive Torque Reverse
• Reciprocation

TECHNICAL SPECIFICATION:

LITHINIUM BATTERY IN MOTOR HANDPIECE

3.7 V / 2000 mAH

INPUT

100V-240V 50Hz/60Hz 400mA m

TORQUE RANGE

0.4Ncm – 5.0 Ncm

SPEED RANGE

100 rpm – 1200 rpm

• 1 x Endo motor Unit
• 1 x Charging Unit
• 1 x Power Adapter

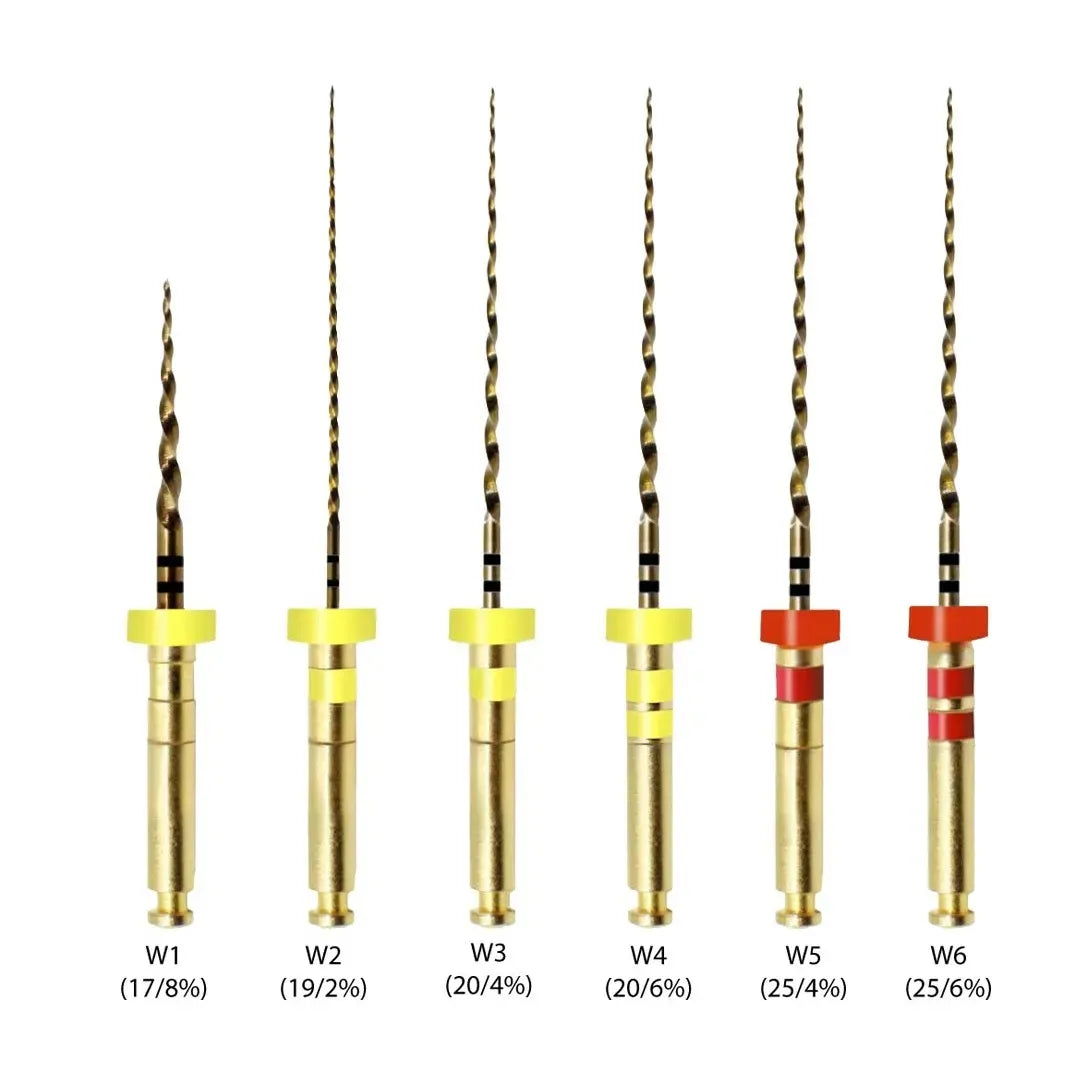

• 1 x Waldent Wal-flex Gold Rotary Files 21mm Assorted
• 1 x Waldent Wal-flex Gold Rotary Files 25mm Assorted
• Instruction manual

Note : Any available colour of the endomotor can go on delivery

• Assembly: Attach the desired contra-angle head to the motor handpiece by aligning the connectors and gently twisting them until they are securely locked in place. Ensure that the contra-angle head is properly seated before proceeding.
• Charging the device: Before starting, ensure that the MotoPex-M is fully charged. Connect the charging cable to the charging port on the motor handpiece, and plug the other end into a power source. Allow the device to charge until the battery is fully replenished.
• Powering on/off: To power on the MotoPex-M, press and hold the power button located on the motor handpiece. Release the button when the device turns on. To power off the device, repeat the same process.
• Speed and torque adjustment: Use the speed and torque adjustment buttons located on the motor handpiece to set the desired rotation speed and torque level. Press the respective buttons to increase or decrease the values until you reach the desired settings.
• Inserting the instrument: Prepare the root canal by following standard endodontic protocols. Once ready, gently insert the endodontic instrument into the root canal, taking care not to exert excessive force. Ensure that the Rotary File is properly secured within the contra-angle head.
• Rotation direction: The MotoPex-M allows for forward and reverse rotation. Choose the appropriate rotation direction based on the specific requirements of the procedure. Use the rotation direction switch located on the motor handpiece to change the direction of rotation.
• Procedure execution: As you navigate through the root canal, maintain a steady and controlled hand movement. Monitor the instrument's progress and adjust the speed and torque settings as necessary to ensure optimal performance and patient comfort. Take breaks as needed to irrigate and clean the canal during the procedure.
• Adaptive torque reverse reciprocation: The MotoPex-M's adaptive torque reverse reciprocation feature automatically adjusts the torque and direction of rotation based on the resistance encountered in the root canal. This feature enhances safety and efficiency. Allow the device to respond to the resistance and adjust the instrument's movement accordingly.
• Battery monitoring: Keep an eye on the battery level indicator on the motor handpiece. If the battery is running low during the procedure, consider pausing and recharging the device before continuing.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Is there inbuilt apex locator in this endomotor ?
Answer: The Woodpecker Motopex-M Endo Motor does not have an inbuilt apex locator. It is designed as an endomotor without the integrated apex locator feature, focusing on providing efficient and precise endodontic procedures without the apex locator functionality.

Question: Which colour is in stock how can I check?
Answer: The color of the Woodpecker Motopex-M Endo Motor dispatched depends on the current availability of particular color in the warehouse at the time of your order. Color Selection option is not available for this.

Question: Can I use motopex m with any apex locator ?
Answer: No, the Woodpecker Motopex-M Endo Motor is not designed to be connected to any apex locator.

Question: How long does the battery of the MotoPex-M last?
Answer: The MotoPex-M is equipped with a 2000mAh lithium battery, which provides a sufficient power supply. The battery life will depend on factors such as the intensity and duration of use. However, on average, the battery can last for several procedures before requiring recharging.

Question: How do I clean and sterilize the MotoPex-M?
Answer: To clean the MotoPex-M, detach the contra-angle head from the motor handpiece and clean it using a recommended disinfectant or cleaning solution. Follow the manufacturer's instructions for proper cleaning and sterilization procedures. Ensure that all removable parts are thoroughly disinfected and sterilized before the next use.

Question: Can I use the MotoPex-M with any endodontic instrument?
Answer: Yes, the MotoPex-M is compatible with a variety of endodontic Rotary File. However, it is advisable to use instruments recommended by the manufacturer or those that are compatible with the specific contra-angle head provided with the endo motor. Using appropriate instruments ensures optimal performance and prevents potential damage to the device.

Question: Can I use the MotoPex-M in pediatric patients?
Answer: The MotoPex-M can be used in pediatric patients, but it requires proper care and adjustment of settings according to the patient's age, size, and specific dental procedure.

Question: Is the MotoPex-M compatible with different file systems?
Answer: Yes, the MotoPex-M is designed with a built-in mainstream file system, allowing it to be compatible with various file systems commonly used in endodontic procedures. This ensures flexibility and adaptability when using different types of endodontic files.
