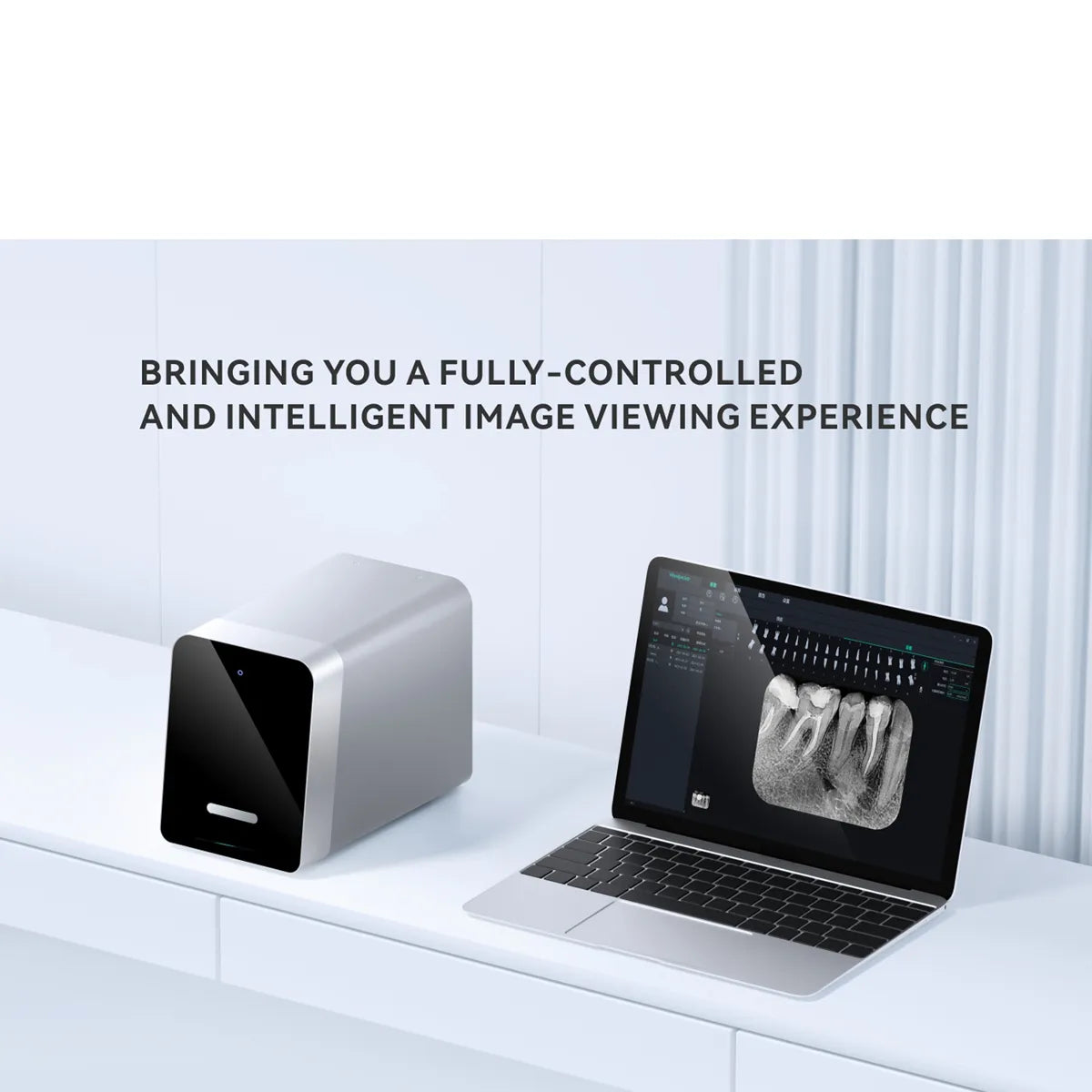

Woodpecker Free Scan Phosphor Plate Scanner

• Remarkable imaging sharpens each detail
• Good-looking and handy
• Advanced algorithm leads to intelligence
• Quick image viewing
• Easy to operate
• Powerful chip Intelligent scanning
• Real-time intellige

• Grid power input：100-240Vac, 50/60HZ,1.1A
• Main unit power input：DC 15V 3.2A
• Model of IP imaging plate：0、 1、 2、 3
• Threshold contrast: It can distinguish all four holes of 1.0mm, 1.5mm, 2.0mm and 2.5mm
• Image uniformity: ＜ 2%
• Ambient temperature：5℃～ 40℃
• Relative humidity：30% ～ 75%
• Atmospheric pressure：70kPa ～ 106kPa

Here are the PC configuration requirements for the Woodpecker Free Scan Phosphor Plate Scanner:

• Operating System: Windows® 7, Windows® 8, Windows® 10
• Processor: Main frequency 3.0GHz, 4 cores or equivalent
• Memory: 8 GB RAM or above
• Hard Disk: 500 GB or above
• USB Port: 4 high-speed USB 2.0 ports
• Display Panel: NVIDIA GT710 or equivalent
• USB Chip: Intel or NEC® /RENESAS®
• Display Resolution: 1920x1080 pixels or above

• 1 x Main Unit
• 1 X Power adapter
• 4 X IP imaging plate
• 1 X IP imaging plate protective bag
• 4 X IP imaging plate protection card
• 1 X Power line
• 1 X USB cable

Certainly, here are the directions for using the Woodpecker Free Scan Phosphor Plate Scanner in a concise bullet-point format without headings:

• Ensure the scanner is connected to a power source and press the power button to turn it on.
• Position the phosphor plate according to the area to be scanned and instruct the patient to bite gently on the plate if required.
• Launch the Woodpecker scanner software on your PC, select the patient's information and settings as needed, and click the "Start Scan" button.
• The scanner will emit radiation to capture the X-ray image. Wait for the scanning process to complete.
• Once scanning is done, the image will appear on the software interface. Review the image for quality and accuracy.
• Choose to save the image if it meets your requirements or discard it and repeat the scan if necessary.
• Ensure the patient's comfort and safety during the process, and remove the phosphor plate gently from the patient's mouth.
• Utilize the software's image enhancement and analysis tools as needed and add notes or annotations to the image for documentation.
• Save the final image in the patient's electronic health record (EHR) or designated storage.
• Properly shut down the scanner and your PC, and disconnect the scanner from the power source.
• Regularly clean and disinfect the scanner components, and ensure the phosphor plates are properly stored and protected.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• Warranty does not apply  against any physical damage to the product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What are the safety considerations when using this scanner?
Answer: The device should be used with caution in pregnant women and children. It is classified as a Class II device in terms of anti-electric shock proof type and complies with safety standards and regulations to ensure patient and user safety.

Question: Does it come with dedicated software for image processing?
Answer: Yes, it comes with dedicated software, Ai-Dental V1 for PC and Free Scan V1 for embedded use, ensuring seamless integration into a dental office's digital infrastructure.

Question: Is the Woodpecker Free Scan Phosphor Plate Scanner easy to use?
Answer: Yes, it features a user-friendly interface designed to simplify the image capturing and reading processes, making it easy for dental professionals to operate.

Question: What is the resolution of the images produced by this scanner?
Answer: The scanner offers ultra-high image resolution, providing exceptionally clear diagnostic images for accurate and reliable diagnoses.

Question: What is the Woodpecker Free Scan Phosphor Plate Scanner used for?
Answer: The Woodpecker Free Scan Phosphor Plate Scanner is used in dentistry to create digital X-ray images from IP (Imaging Plate) dental imaging plates. It provides a convenient way to capture and process dental X-ray images.

Question: How many scan can be done?
Answer: The Woodpecker Free Scan Phosphor Plate Scanner doesn't have a specified limit on the number of scans, while the imaging plate it uses can be reused more than 1000 times.

Question: Is the cleaner constructed with durable materials?
Answer: Yes, it features a durable stainless steel body, ensuring long-lasting performance in various environments.

Question: How much does the Woodpecker Free Scan Phosphor Plate Scanner weigh and how much space does it occupy?
Answer: The scanner has a compact structure and weighs 5.2 kilograms, making it a convenient and space-saving addition to any dental setting.

Question: What are the system requirements for connecting this scanner to a PC?
Answer: The PC configuration requirements include the operating system, processor, memory, hard disk space, USB ports, display panel, USB chip, and display resolution. Ensure your PC meets these requirements for seamless integration.
