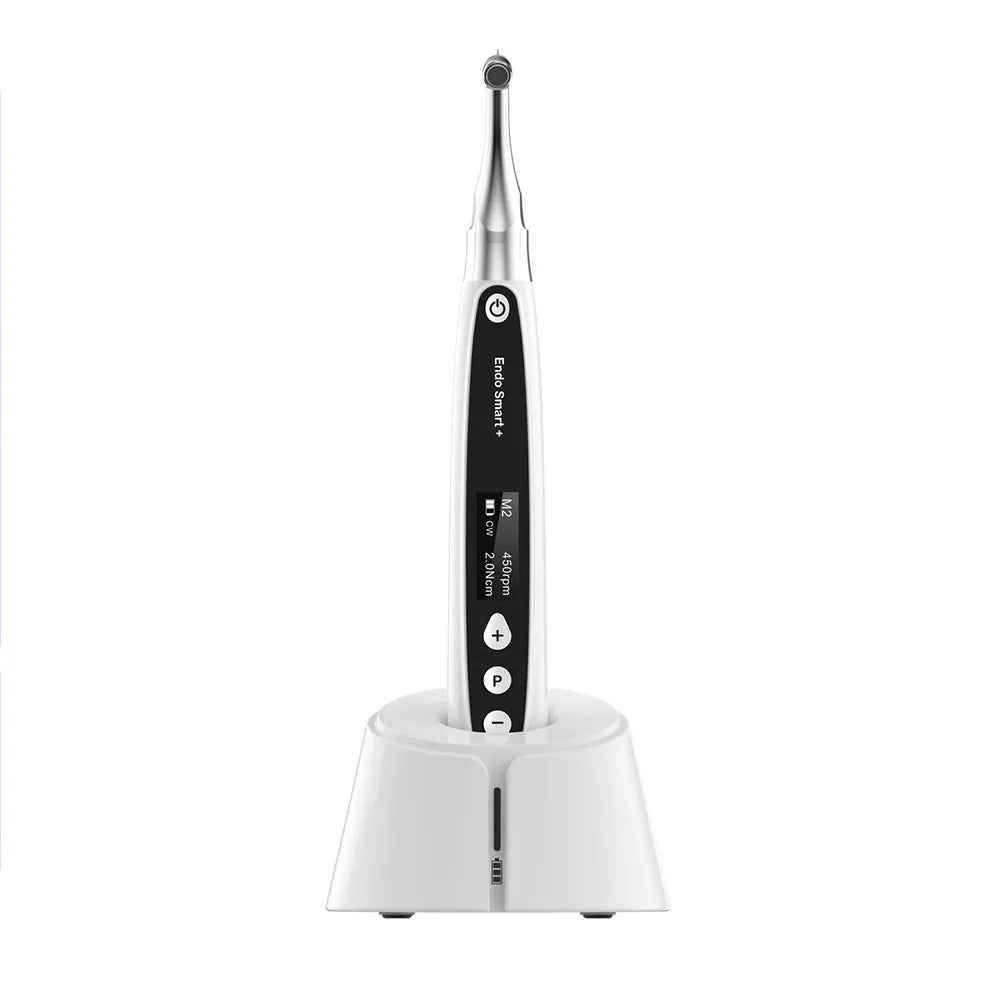

Woodpecker DTE Endo Smart Plus Cordless Endomotor

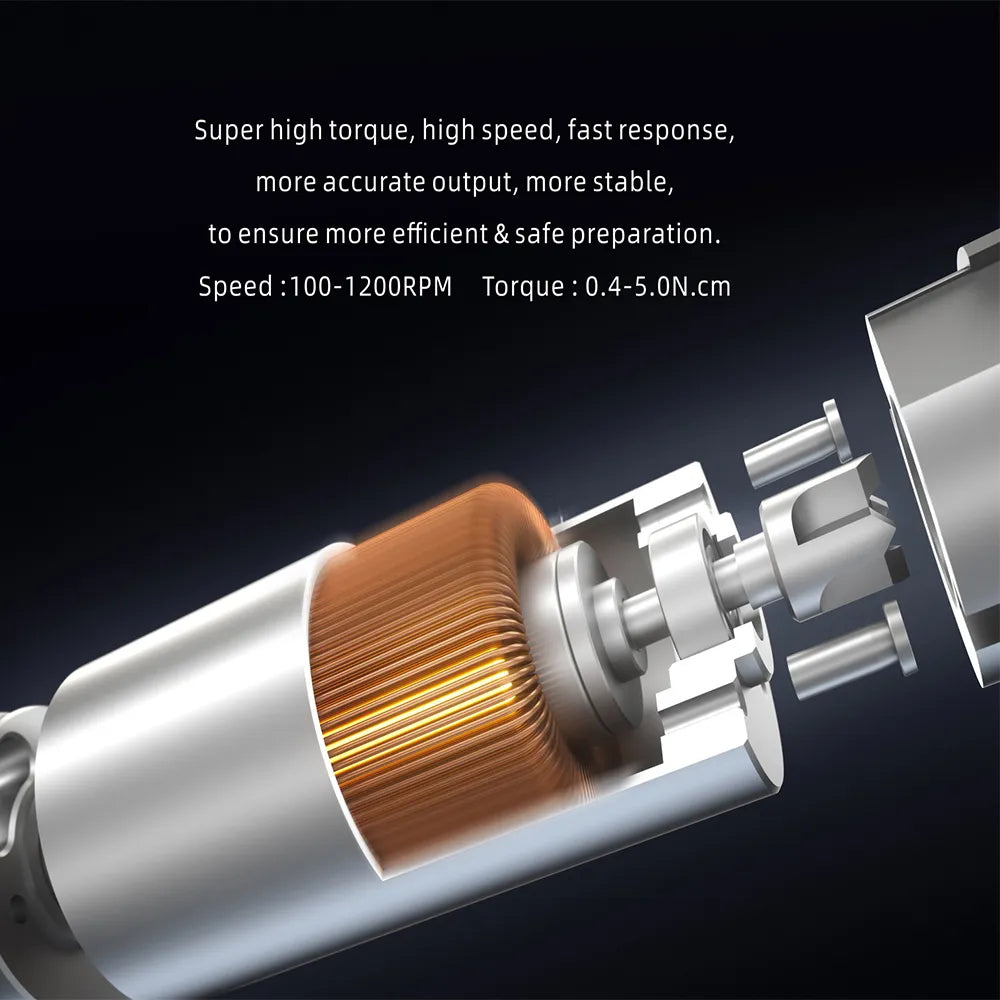

• High performance brushless motor

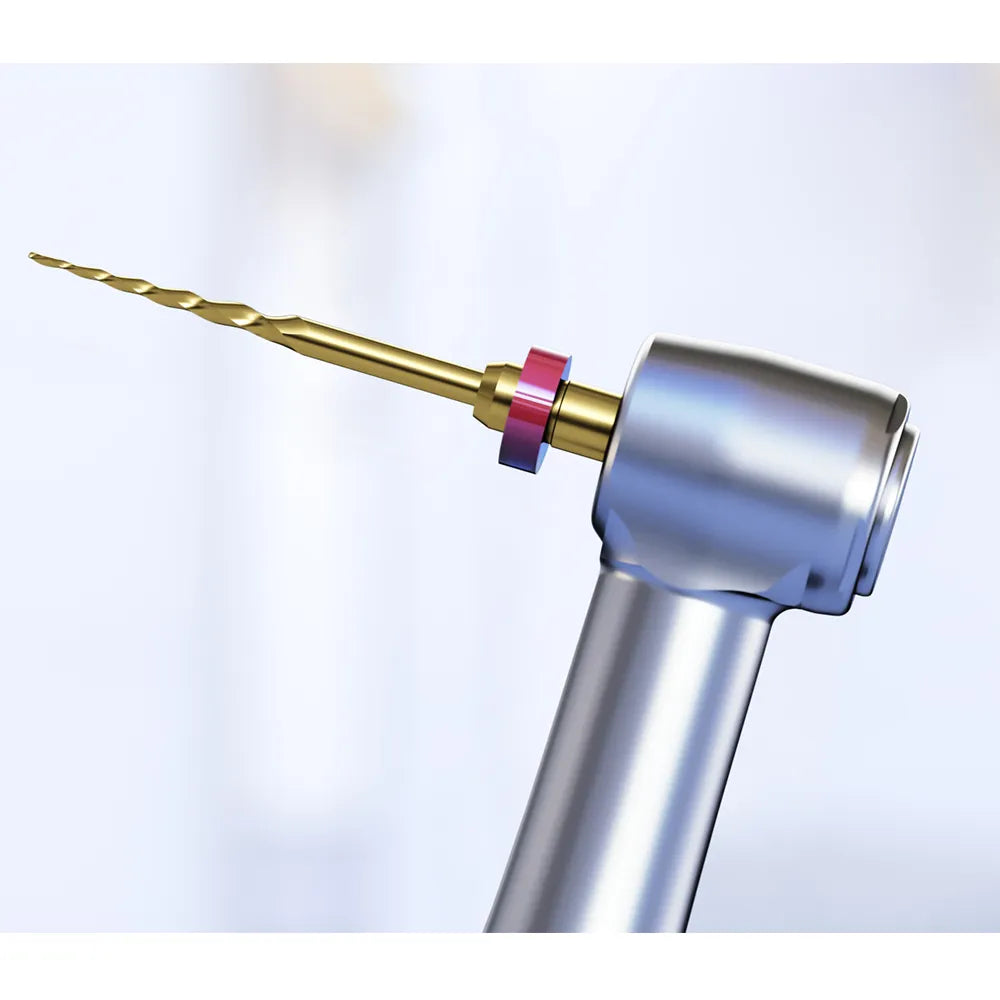

• 6:1 Super mini contra-angle

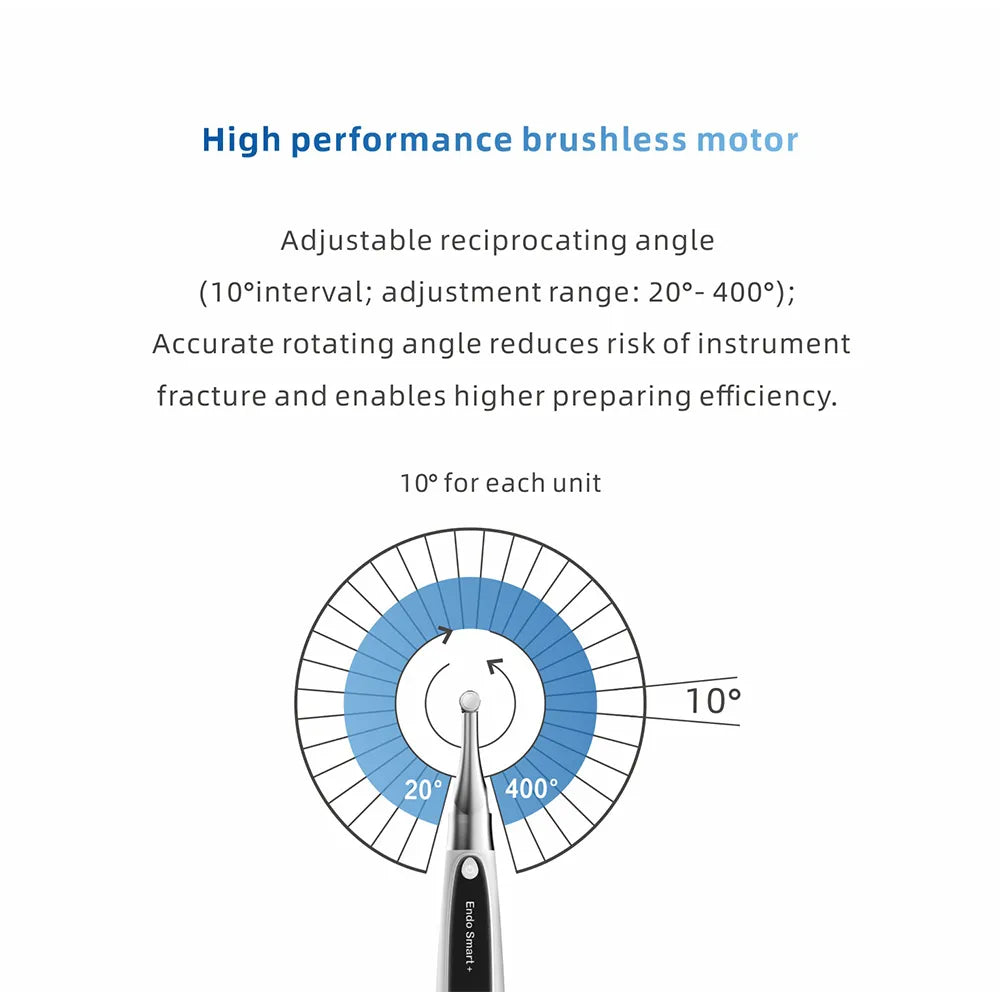

• Adjustable reciprocating angle
• Super high torque
• Smooth rotations

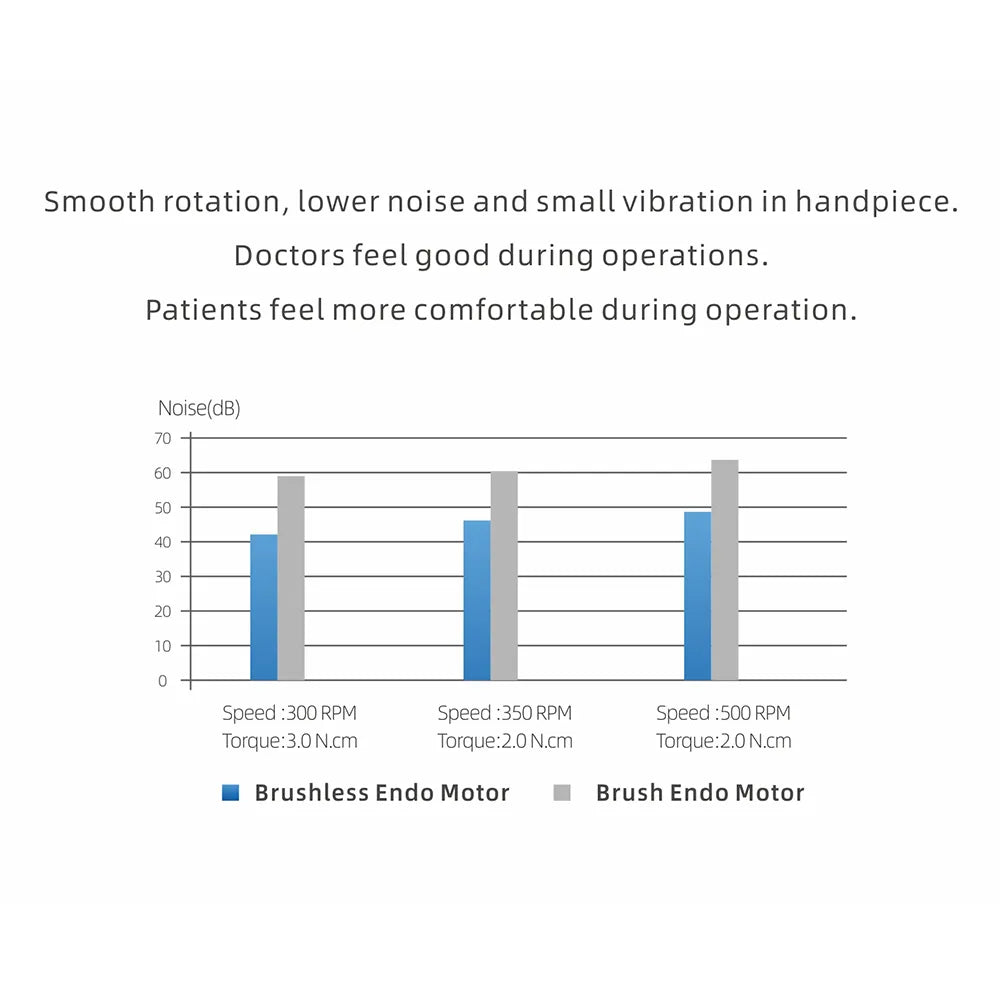

• Less noise with low vibrations
• Wireless charging

• Lithium battery in motor handpiece: 3.7V /2000mAh
• Power adapter (Model: ADS-6AM-06N 05050/UE08WCP- 050100SPA)
• Input: ~100V-240V 50Hz/60Hz 0.4A Max
• Output: DC5V/1A
• Torque range: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm)
• Speed range: 100rpm~1200rpm
• Wireless charging
• Frequency range: 112-205KHz
• Maximum RF output power of the product: 9.46dBuA/m@3m
• 360° rotatable contra angle
• Environment temperature: +5°C ~+40°C

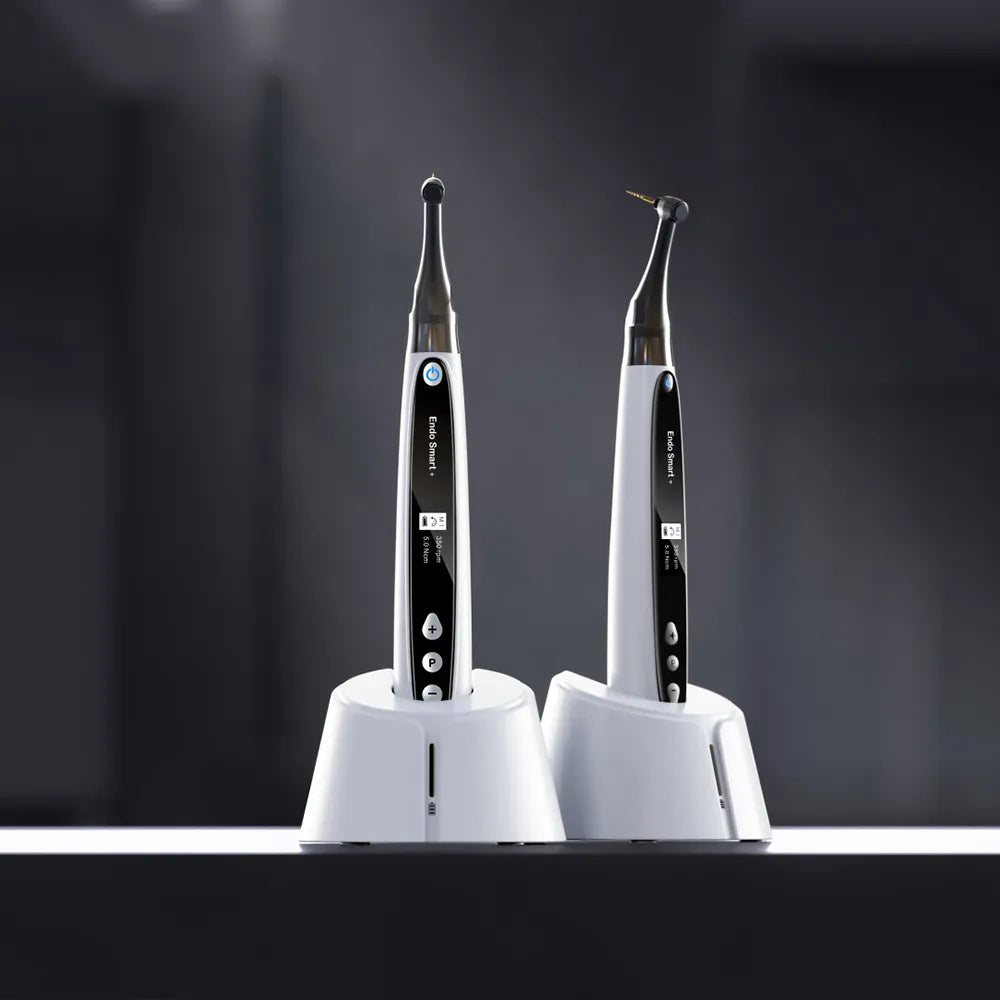

• 1 X Charging Base

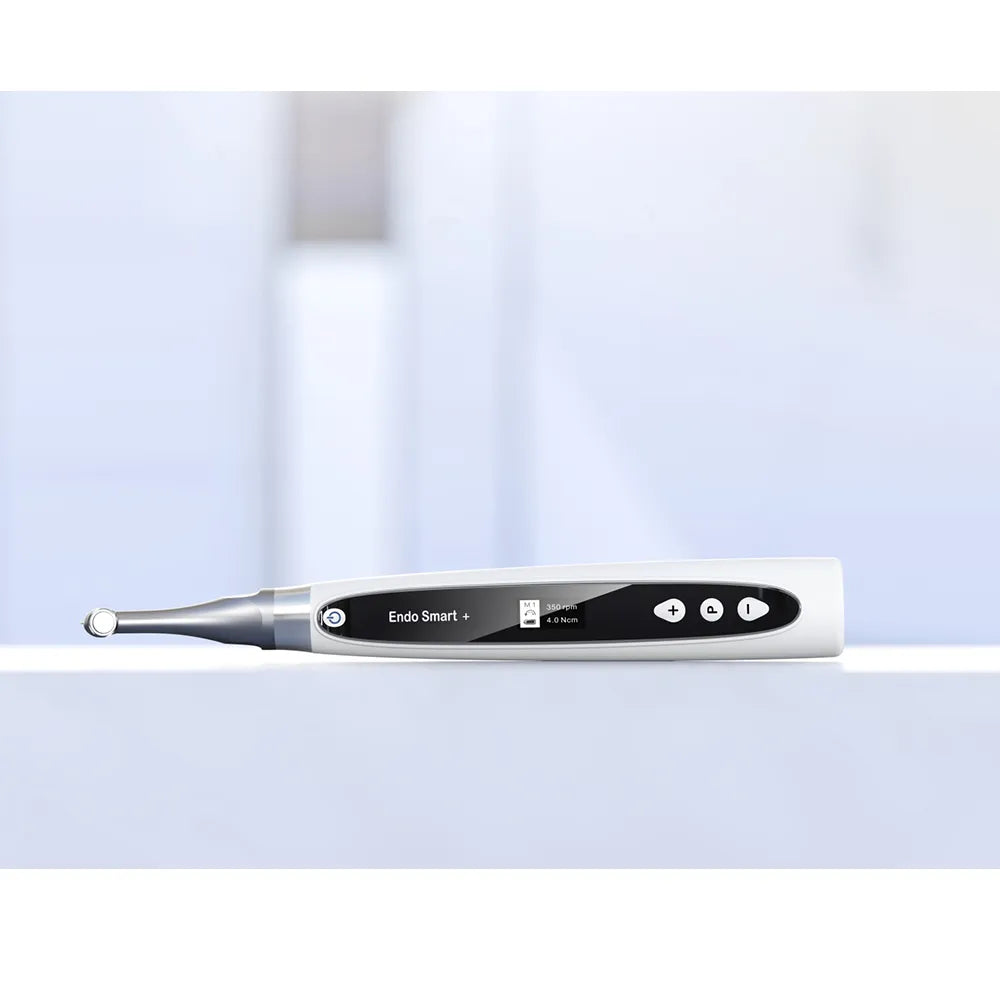

• 1 X Motor Handpiece
• 1 X Contra angle
• 1 X Spray nozzle
• 2 X "O" ring
• 1 X Adapter
• 1 X Disposable insulation sleeves
• 2 X Protective silicon cover
• 1 X Mini8P cable
• 1 X Instruction manual
• 1 X Qualified certificate
• 1 X Warranty card
• 1 X Packaging list

Function and operation of the product:

Button functions and settings

• Turn the power on- Press the Main button to turn on the motor handpiece.
• Turn the power off- Hold down the Setting button “P”, then press the Main button to turn off the motor handpiece.
• Customized program change- Press the Adjusting button “+”/“-” during the standby state.
• Parameter setting- Press the Setting button “P” till the target parameters, press the Adjusting button- “+”/“-” to change, then press a Main button or wait 5 seconds to confirm.
• Preset program selection- Long press the Setting button “P” to enter the preset program during standby state, press the Adjusting button “+”/“-” to select the file system, press the Setting button “P” to enter select file number, press Adjusting button “+”/“-” to
  select the file number, then press the Main button to confirm.

Speed Setting - The speed setting can be adjusted from 100 rpm to 1200 rpm.

• Press the Adjusting button “+”/“-” to increase or decrease speed.
• Long press to fast increase or fast decrease speed.
• In ATR mode, speeds of 100~500rpm are available.
• In REC mode, speeds of 100~500rpm are available.

Torque Setting - The torque setting can be adjusted from 0.4Ncm to 5Ncm.

• Press the Adjusting button “+”/“-” to increase or decrease torque.
• Long press to fast increase or fast decrease torque.
• In ATR mode, the Trigger Torque of 0.4Ncm~4.0Ncm is available.
• In REC mode, the torque of 2.0Ncm~5.0Ncm is available.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• The Base, handpiece, power adapter have two years of warranty period from the date of purchase. The contra angle has one year warranty period. Other spare parts have six months warranty period.
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Does the Woodpecker DTE Endo Smart Plus Cordless Endomotor feature a reciprocating mode?
Answer: Yes, the Woodpecker DTE Endo Smart Plus Cordless Endomotor offers a reciprocating mode with adjustable forward and reverse angles every 10 degrees, ranging from 20° to 40°. For optimal root canal preparation, the difference between these angles should be at least 120 degrees. This functionality allows for effective use with various reciprocating files, enhancing the efficiency of your endodontic procedures.

Question: Does it have apical slow down feature?
Answer: Yes, the Woodpecker DTE Endo Smart Plus Cordless Endomotor features an Apical Slow Down function, along with several other automatic functions. This feature enhances control during endodontic procedures by preventing overextension at the apex, ensuring safer and more effective root canal treatments.

Question: Does this endomotor has LED ?
Answer: The Woodpecker DTE Endo Smart Plus Cordless Endomotor does not have an LED feature. This endomotor is designed to provide efficient root canal preparation with strong power, accurate torque output, and smooth rotation for patient comfort.

Question: Can I connect woodpecker 5th gen Apex locator with it?
Answer: Yes, the Woodpecker DTE Endo Smart Plus Cordless Endomotor can be connected to the Woodpecker 5th Gen Apex Locator.

Question: What is the weight of this endomotor ?
Answer: The weight of the Woodpecker DTE Endo Smart Plus Cordless Endomotor handpiece, including the contra-angle, is 159.1g.

Question: When apex locator connected to endomotor than there is also need to connect lip hook and file clip?
Answer: When connecting an apex locator to the Woodpecker DTE Endo Smart Plus Cordless Endomotor, it is essential to connect the lip hook. However, there is no need to connect the file clip in this setup.

Question: When we need to charge the battery of Endomotor?
Answer: If the battery icon turns into display that as the picture shown,it indicates that the battery capacity is very low. Please charge. When the battery capacity is the too low, the device may indicate “Low Battery!” and automatically power off.
