Woodpecker D3 Ultrasonic Scaler Handpiece

• Detachable design for easy removal and replacement of scaler tips
• Compatibility with EMS ultrasonic scalers for seamless integration
• Autoclavable construction for effective sterilization
• Durable and reliable materials for long-lasting performance
• Ergonomic design for comfortable handling and precise control
• Lightweight for reduced hand fatigue during extended use
• High-frequency vibration mechanism for efficient plaque and tartar removal
• Quick and easy tip replacement system for efficient workflow
• Low noise and minimal vibration for a comfortable patient experience

• Type: Detachable ultrasonic scaler handpiece
• Power Source Input: ~190V-230V
• Diamension: 117mmxΦ21mm
• Weight: 57g
• Compatible: Satelec/DTE scalers
• Output Primary Tip Vibration Excursion: 1μm~100μm
• Output Tip Vibration Frequency: 28kHz±3kHz
• Output Half-Excursion Force: 0.1N~2N
• Tip's Output Power: 3W~20W
• Water Pressure: 0.01MPa~0.5MPa
• Environmental Temperature: +5°C~+40°C
• Relative Humidity: 30%~75%
• Atmospheric Pressure: 70kPa~106kPa
• Autoclavable: Yes, suitable for sterilization

• 1 x Scaler Handpiece

• Prepare the handpiece: Connect the handpiece to the appropriate power source or dental unit. Ensure that the connections are secure and stable.
• Select the scaler tip: Choose the appropriate scaler tip based on the specific dental procedure and patient needs. Ensure that the tip is clean and in good condition.

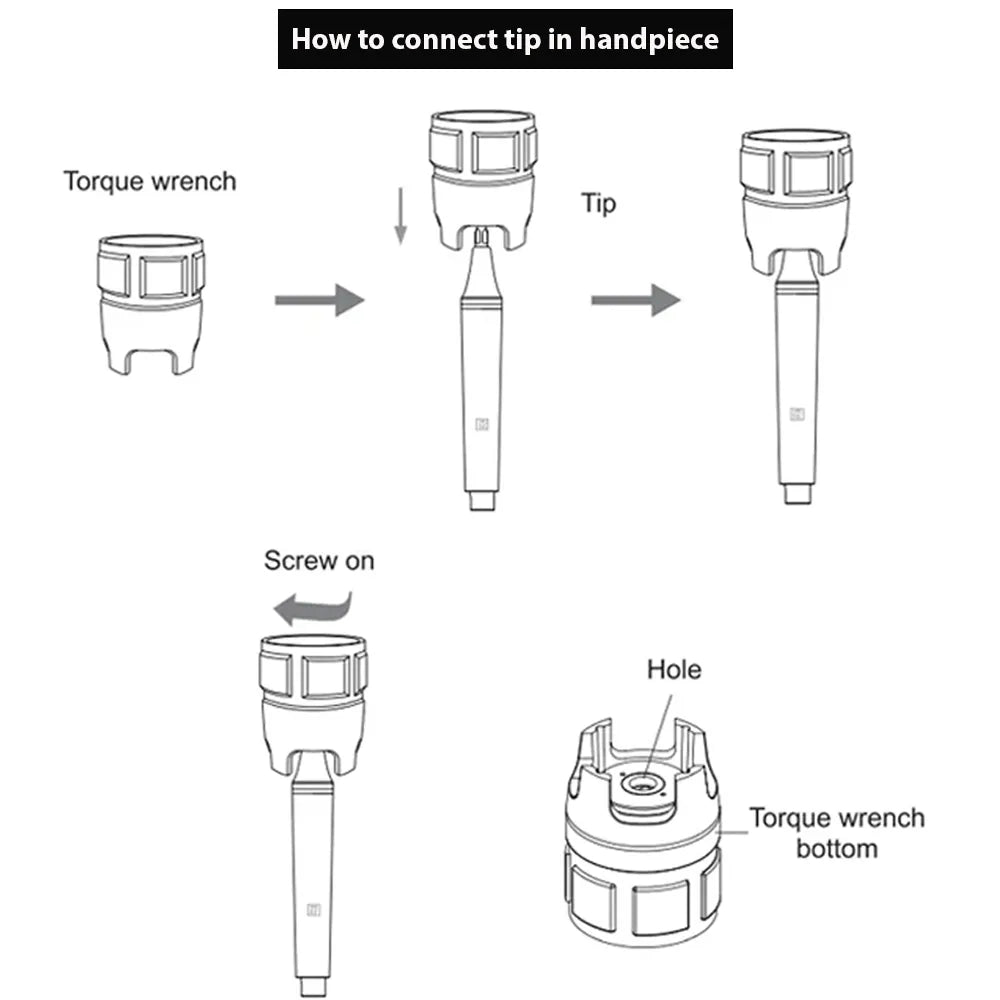

• Insert the scaler tip: Align the tip with the handpiece's tip replacement mechanism. Gently push the tip into the handpiece until it clicks into place. Verify that the tip is securely attached.

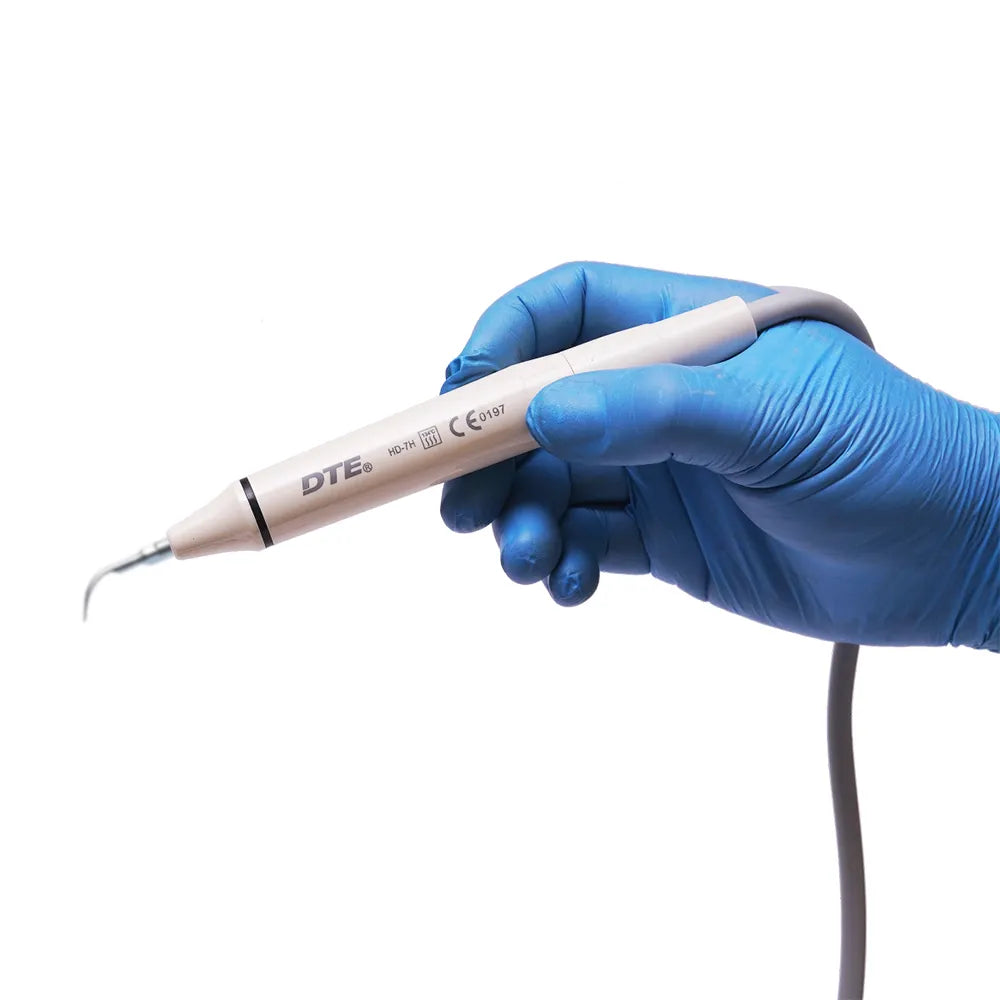

• Position the handpiece: Hold the handpiece in a comfortable grip, ensuring a firm grasp while maintaining control and maneuverability. Adjust the angle of the handpiece to achieve the desired access to the treatment area.

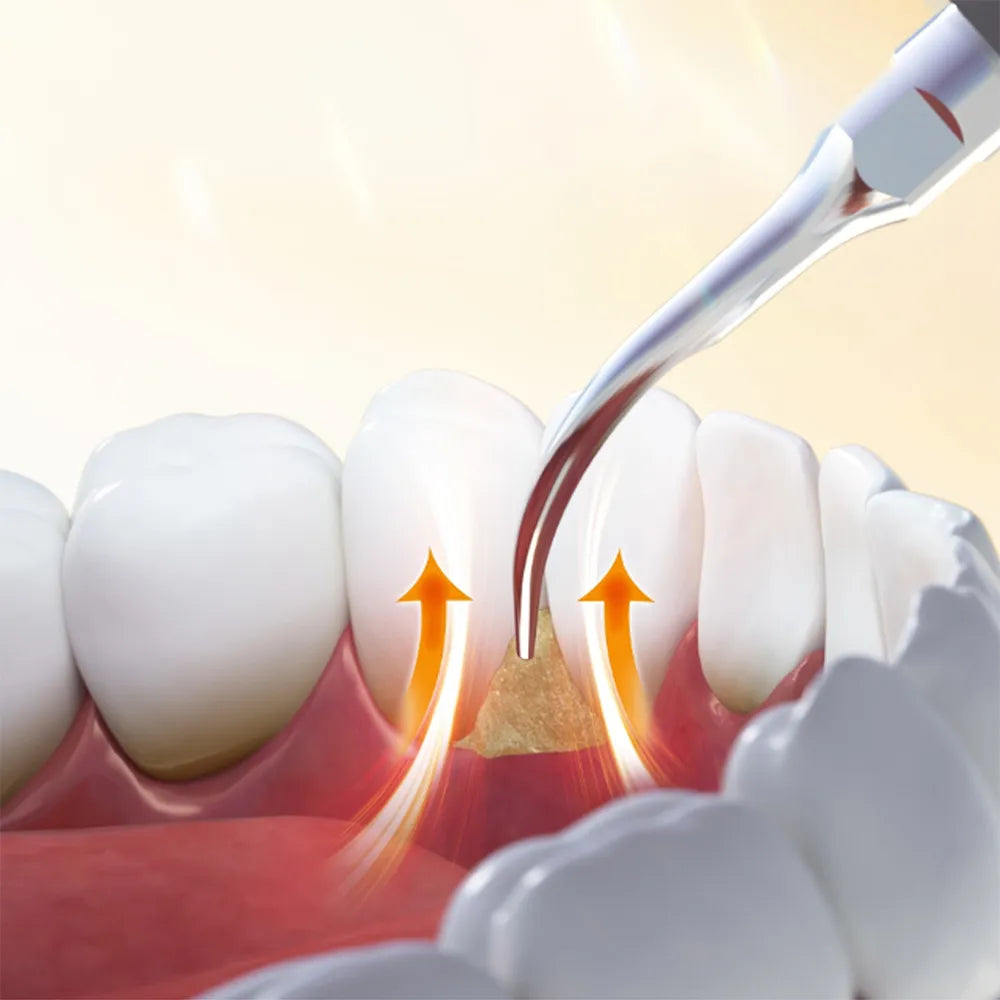

• Begin scaling: Gently place the scaler tip on the tooth surface or along the gum line. Apply light pressure and move the tip in a controlled, sweeping motion. Avoid excessive pressure to prevent discomfort or damage to the tooth structure.
• Cover the treatment area: To minimize the spread of water and debris, use appropriate suction or a rubber dam to isolate the treatment area.
• Maintain a consistent motion:  Maintain a smooth and continuous motion with the scaler tip, overlapping each stroke slightly to ensure thorough cleaning. Pay attention to areas with heavy plaque or tartar buildup.
• Rinse and inspect: Periodically rinse the treatment area and inspect the progress of the scaling procedure. Continue scaling until the desired level of cleanliness is achieved.
• Clean and sterilize: After completing the procedure, detach the scaler tip from the handpiece. Thoroughly clean and sterilize the handpiece and scaler tip according to the manufacturer's instructions and recommended guidelines.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 year as applicable for this product.
• Physical Damage is not covered in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Can the Woodpecker D3 Non-LED Scaler Handpiece be used with LED-compatible scaler tips?
Answer: Yes, the Woodpecker D3 handpiece is compatible with a variety of scaler tips, including LED-compatible ones. Ensure that the tip you choose is compatible with the D3 handpiece.

Question: How often should I replace the scaler tip?
Answer: The frequency of tip replacement depends on factors such as usage, wear, and individual clinic protocols. It is generally recommended to inspect the tip regularly for signs of wear or damage and replace it when necessary to maintain optimal performance.

Question: Can the Woodpecker D3 handpiece be autoclaved?
Answer: Yes, the Woodpecker D3 scaler handpiece is autoclavable. It is recommended to follow the manufacturer's guidelines for proper sterilization procedures to maintain hygiene standards and prolong the lifespan of the handpiece.

Question: Is the Woodpecker D3 Non-LED Scaler Handpiece suitable for all dental procedures?
Answer: The Woodpecker D3 handpiece is primarily designed for scaling and cleaning teeth. However, its versatility allows for compatibility with various scaler tips, making it suitable for a range of dental procedures such as periodontal debridement and stain removal.

Question: How can I ensure proper maintenance of the Woodpecker D3 handpiece?
Answer: To maintain the Woodpecker D3 handpiece's performance, it is important to follow the manufacturer's guidelines for maintenance and care. This may include regular cleaning, lubrication of moving parts, and proper storage to protect the handpiece from damage.

Question: Can the Woodpecker D3 handpiece be used with any dental unit?
Answer: The Woodpecker D3 handpiece can be connected to most dental units or scaler control panels that support EMS-type connections. However, it is advisable to verify compatibility with your specific dental unit or consult the manufacturer for further guidance.

Question: How can I reduce hand fatigue when using the Woodpecker D3 handpiece for extended periods?
Answer: The Woodpecker D3 handpiece is designed with an ergonomic and lightweight construction to minimize hand fatigue. However, taking regular breaks, maintaining a relaxed grip, and using proper posture during use can further reduce fatigue and discomfort.
