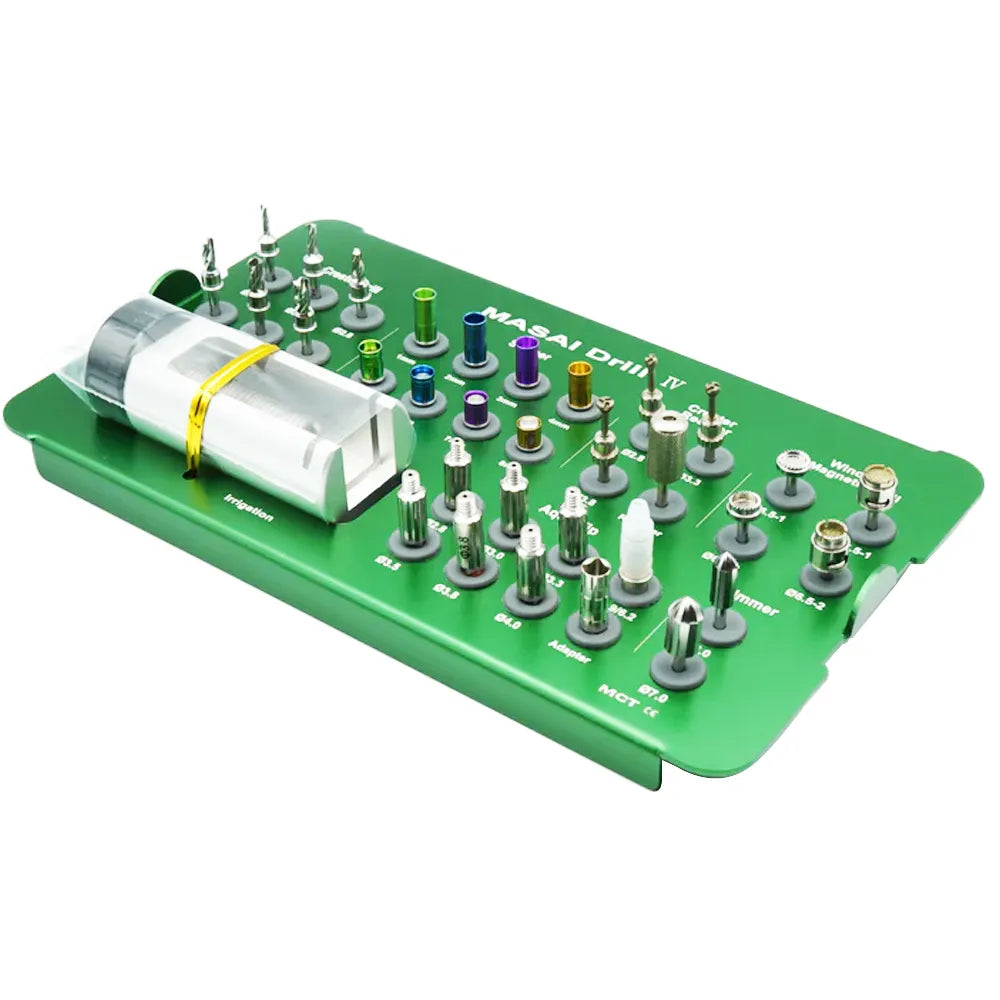

MCTBIO Masai Drill Kit- 4 (MAS4-01)

• Magnetic Technology: Utilizes Alnico magnets, heat-resistant up to 400°C, ideal for autoclaving, ensuring optimal sterilization.
• Sinus Membrane Safety: Grooves in the diamond bar of the drill provide excellent safety and cutting force without damaging the sinus membrane.
• Triple Safety Devices: Features three safety mechanisms to enhance precision and minimize risks during maxillary window preparation.
• Sill Tripping Mechanism: The Masai drill is tripped
  against the sill created by the initial drill, preventing accidental
  penetration during bone punching.
• Instant Halt Mechanism: At the moment of bone
  punching, magnetic force causes separation between the upper and lower parts, instantly stopping the operation for enhanced safety.
• User Perception: The separation is perceivable by hand, allowing easy identification and separation of the gear during procedures.

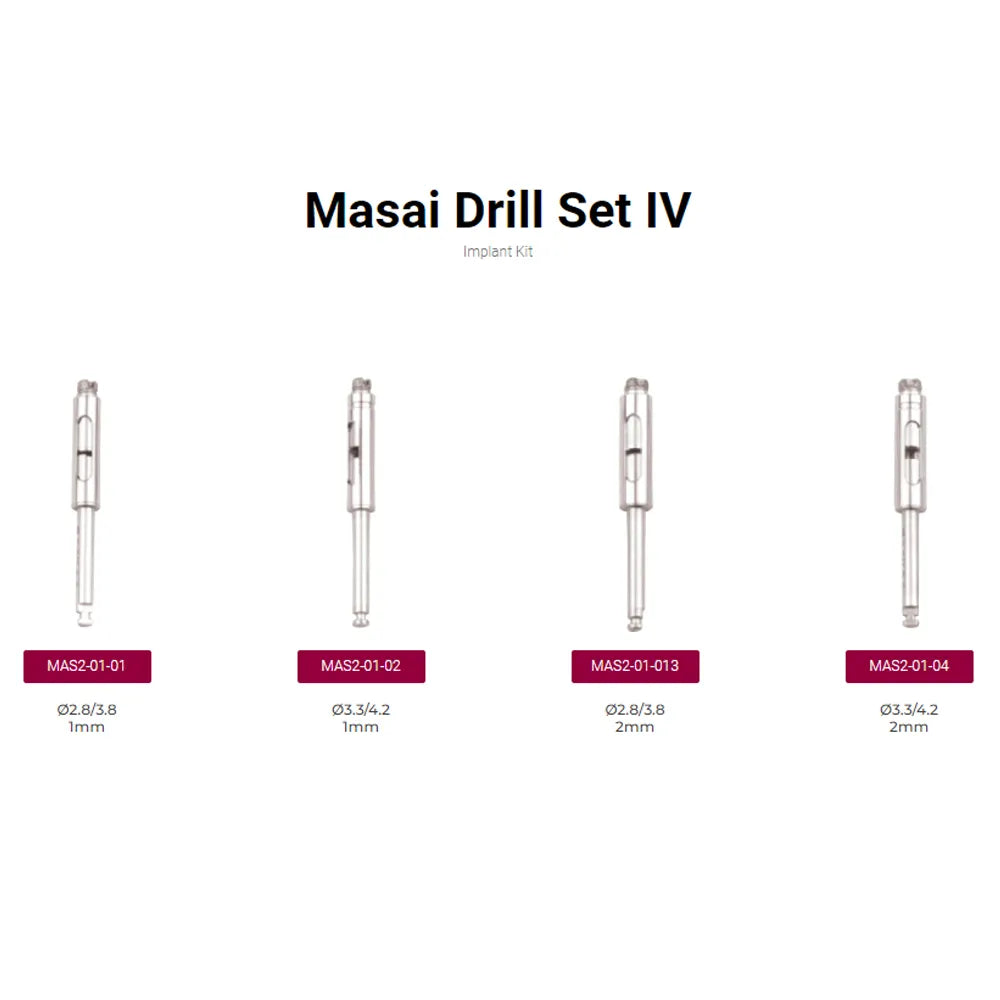

• Cutting-edge Technology: Incorporates Magnetic Sinus Artificial Intelligence Drill for advanced and precise maxillary window preparation.
• Dental Procedure Precision: Engineered to ensure meticulous and safe preparation of maxillary windows without compromising sinus membrane integrity.

• Crester Reamer Diameter: ∅2.8, ∅3.3, ∅3.8

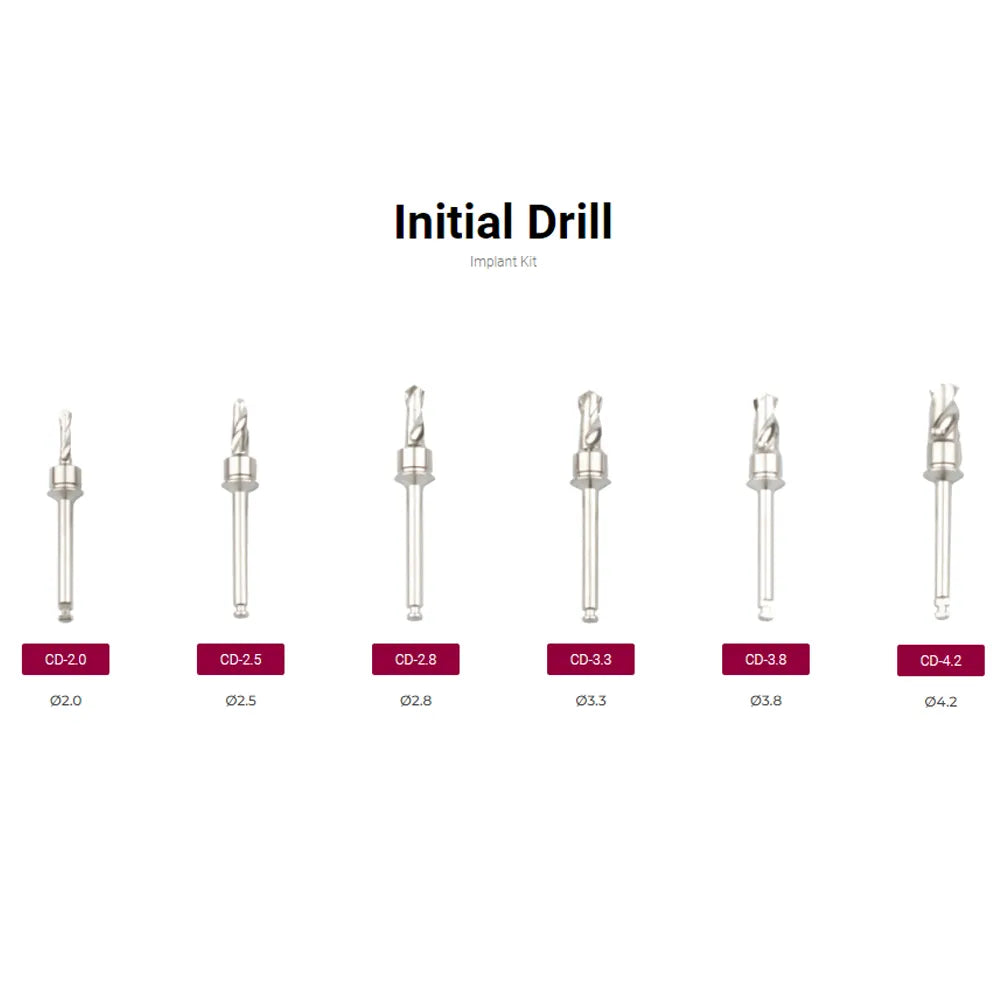

• Crester Dill Diameter: ∅2.0, ∅2.5, ∅2.8, ∅3.3, ∅3.5, ∅3.8

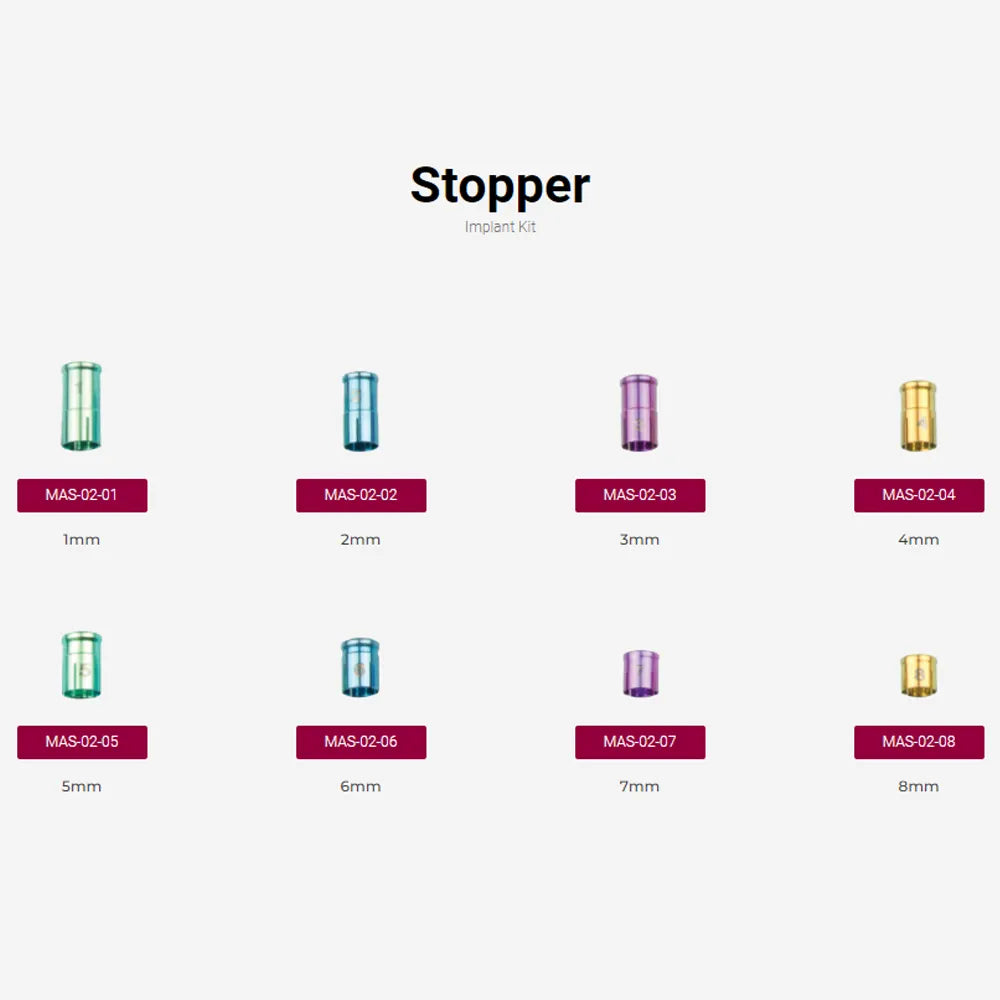

• Stopper Lenght: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm

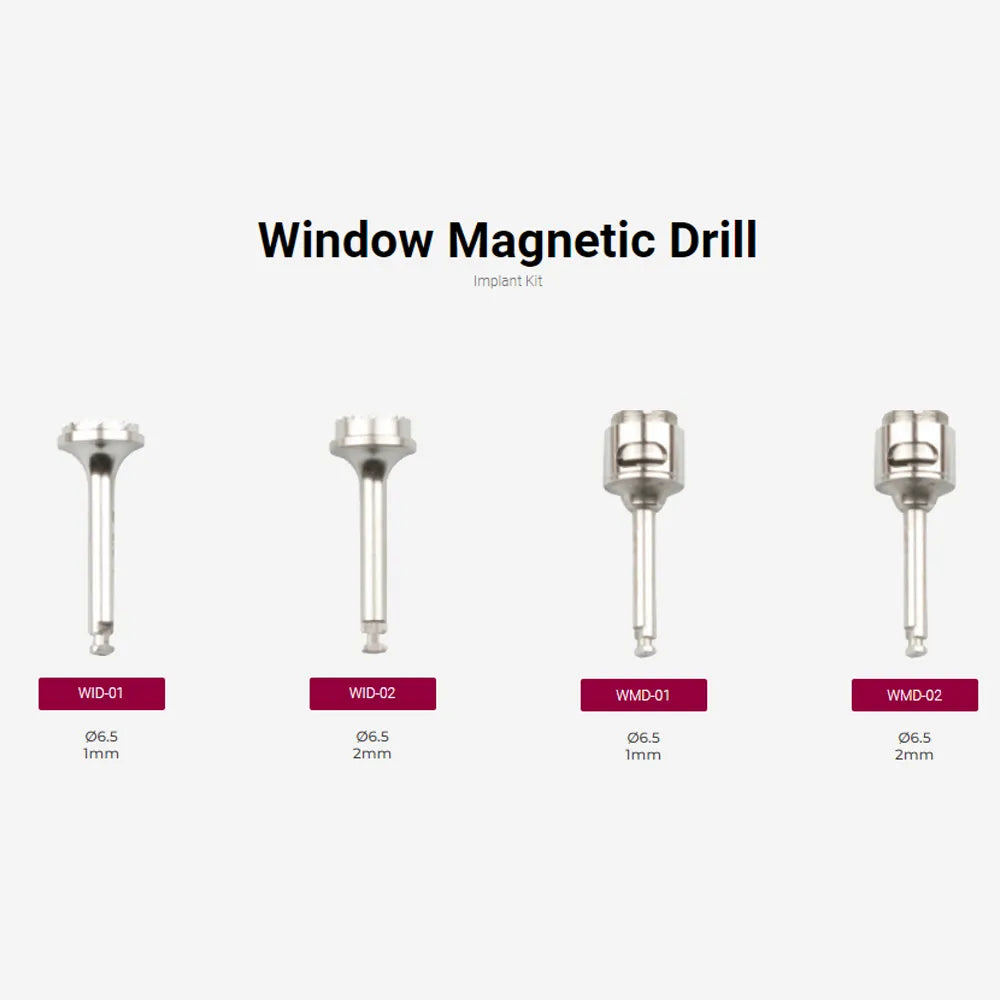

• Window Magnetic Drill Diameter:  ∅6.5, 6.5-2∅
• Window Magnetic Drill Length: 1mm, 2mm
• Trimmer Diameter: ∅5.0, ∅7.0

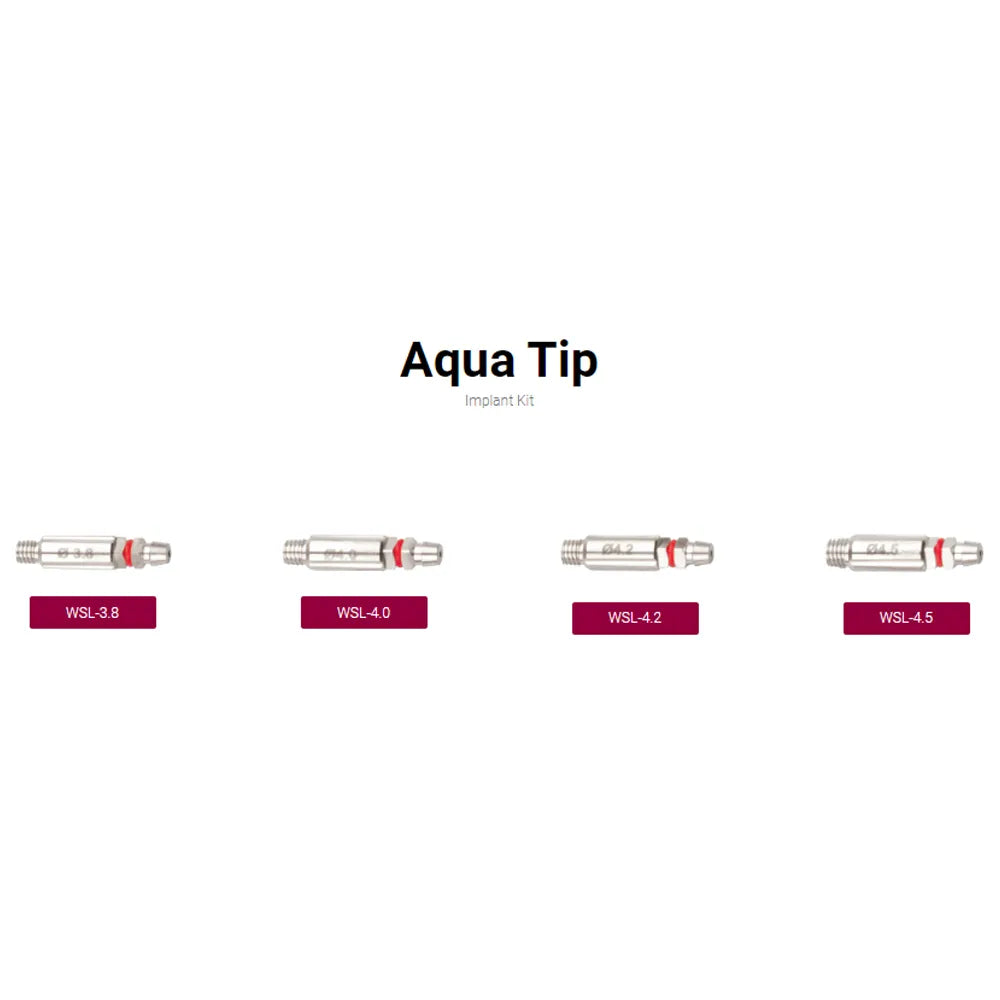

• Aqua Tip Diameter: ∅2.8, ∅3.0, ∅3.3, ∅3.5, ∅3.8, ∅4.0, ∅2.9/6.2

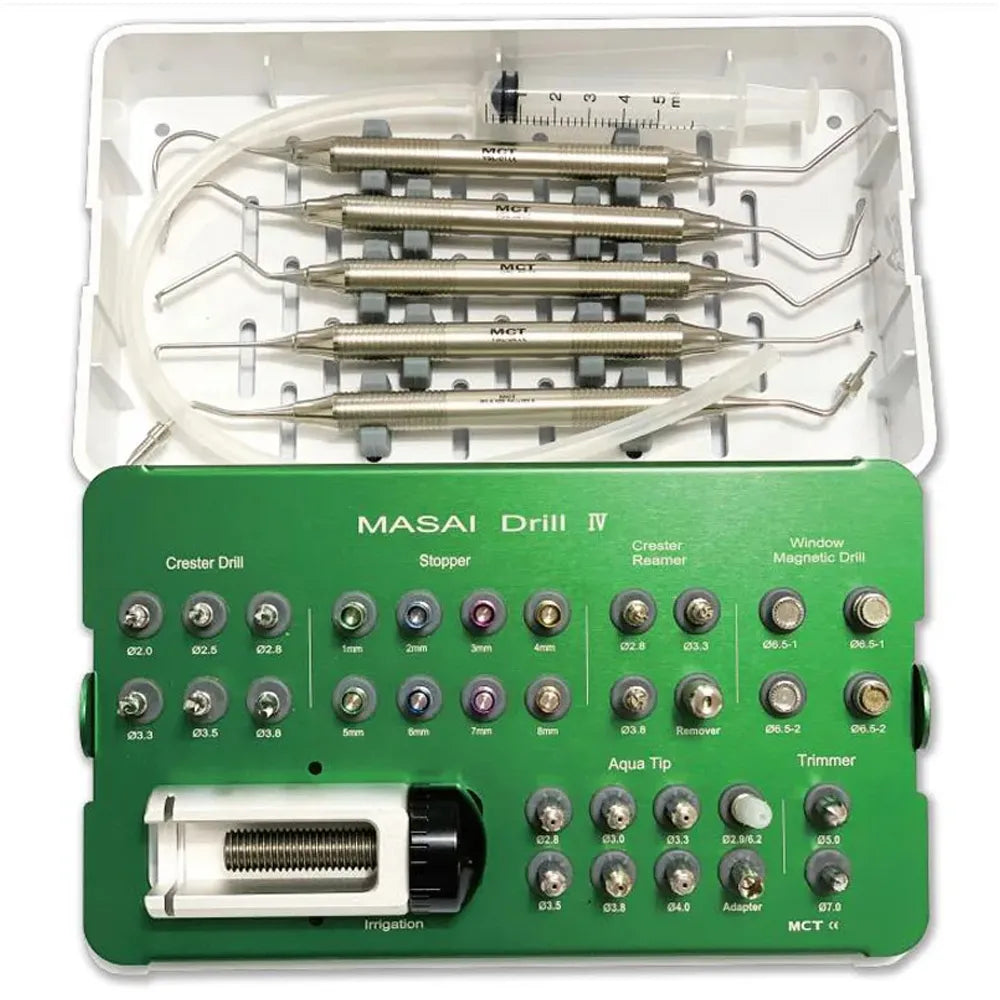

• 1 x Irrigation Tube
• 1 x Adapter
• 1 x Remover
• 2 x Trimmer
• 3 x Crester Reamer
• 4 x Window Magnetic Drill

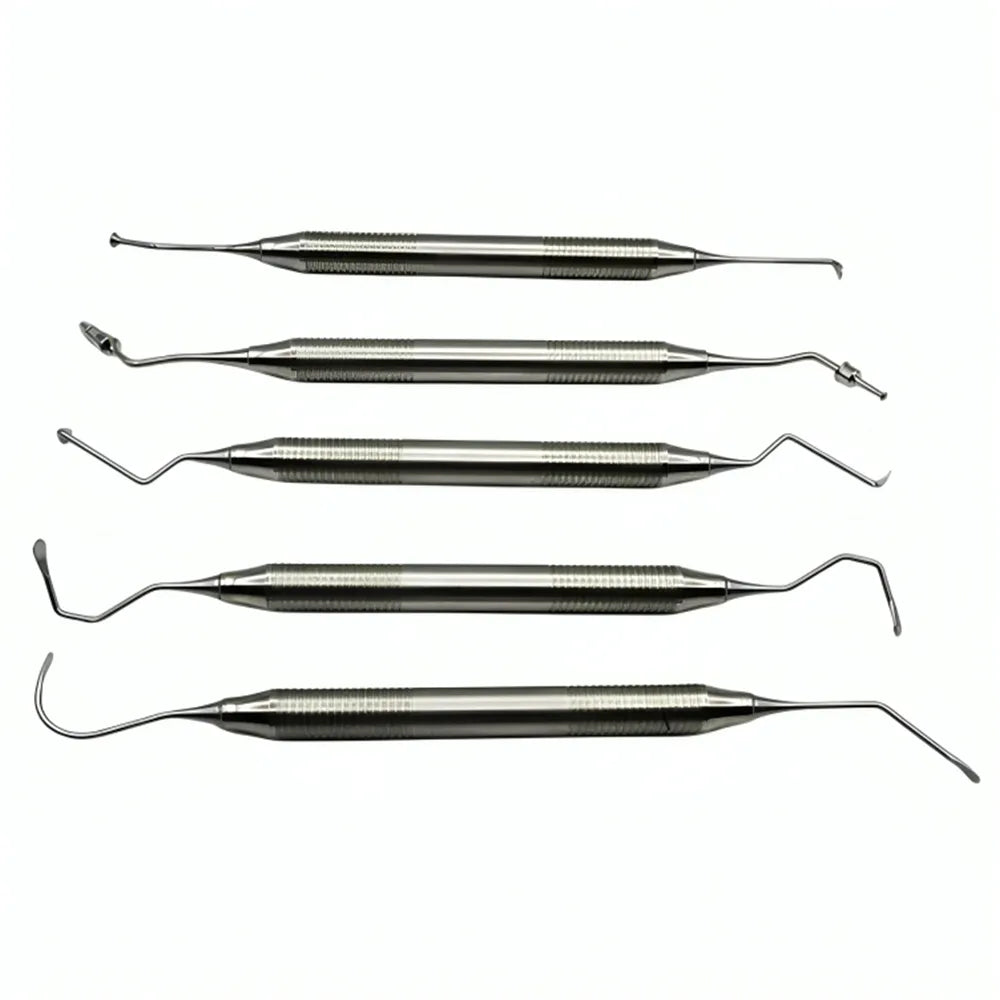

• 5 x Sinus Lift Instruments
• 6 x Crester Drill
• 7 x Aqua Tip
• 8 x Stoppers

• Preparation: Sterilize the Masai Drill components using autoclaving, taking advantage of the heat-resistant Alnico magnets.
• Selection of Drill Bit: Choose the appropriate Masai drill bit for the desired maxillary window preparation, considering size and specifications.
• Patient Positioning: Ensure proper patient positioning for effective and safe sinus augmentation.
• Safety Check: Confirm the three safety mechanisms are operational: grooved diamond bar, sill tripping, and instant halt with magnetic force.
• Drilling Procedure: Perform the maxillary window
  preparation with the Masai Drill, allowing the grooves in the diamond bar to ensure safety and cutting force without damaging the sinus membrane.
• Sill Tripping Mechanism: Allow the Masai drill to
  trip against the sill created by the initial drill, preventing
  unintended penetration during bone punching.
• Instant Halt Mechanism: Be aware that at the moment of bone punching, the magnetic force will cause the upper part of the Masai drill to separate from the lower part, instantly stopping the operation.
• User Perception and Separation: Perceive the separation by hand and easily separate the gear to enhance control during procedures.
• Post-Procedure Steps: Thoroughly clean and sterilize the Masai Drill components after each use, adhering to recommended hygiene protocols.

Country of Origin: South Korea

Manufacturer: Mctbio Co. Ltd.

• 3 months warranty against manufacturing defects.
