J Morita Root Zx Mini Apex Locator

• Accurate Measurement: Root ZX mini provides a highly accurate indication of the file's location. The accuracy of the measurement is not affected by the presence or absence of blood, other discharges, electrolytes, saline, tap water, or hydrogen peroxide.
• No Zero Adjustment: Setting the device to zero is unnecessary before measuring each canal.
• Automatic Calibration: Ensures accuracy and eliminates the effect of changes in temperature, moisture, etc. inside the canal, even during treatment.

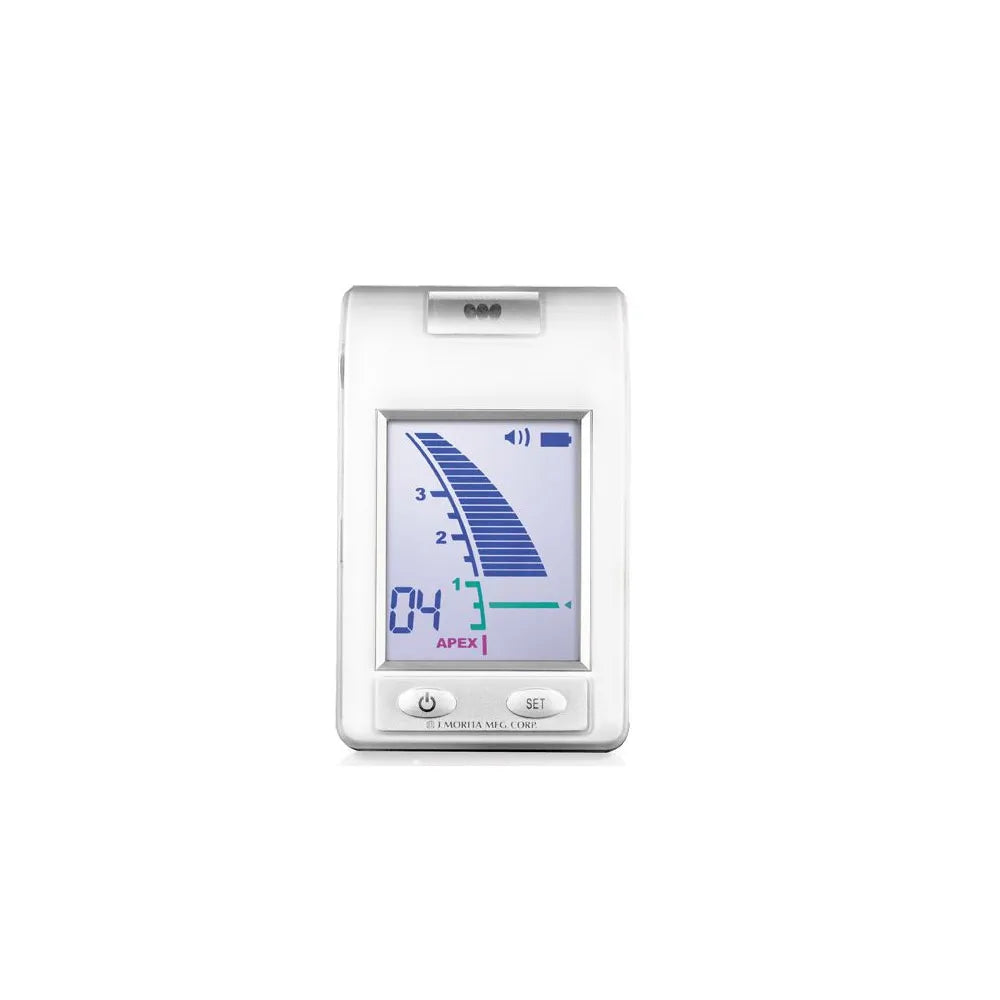

• Clear Liquid Crystal Display: The clear LC display is easy to read, providing a clear progressive display and high contrast.

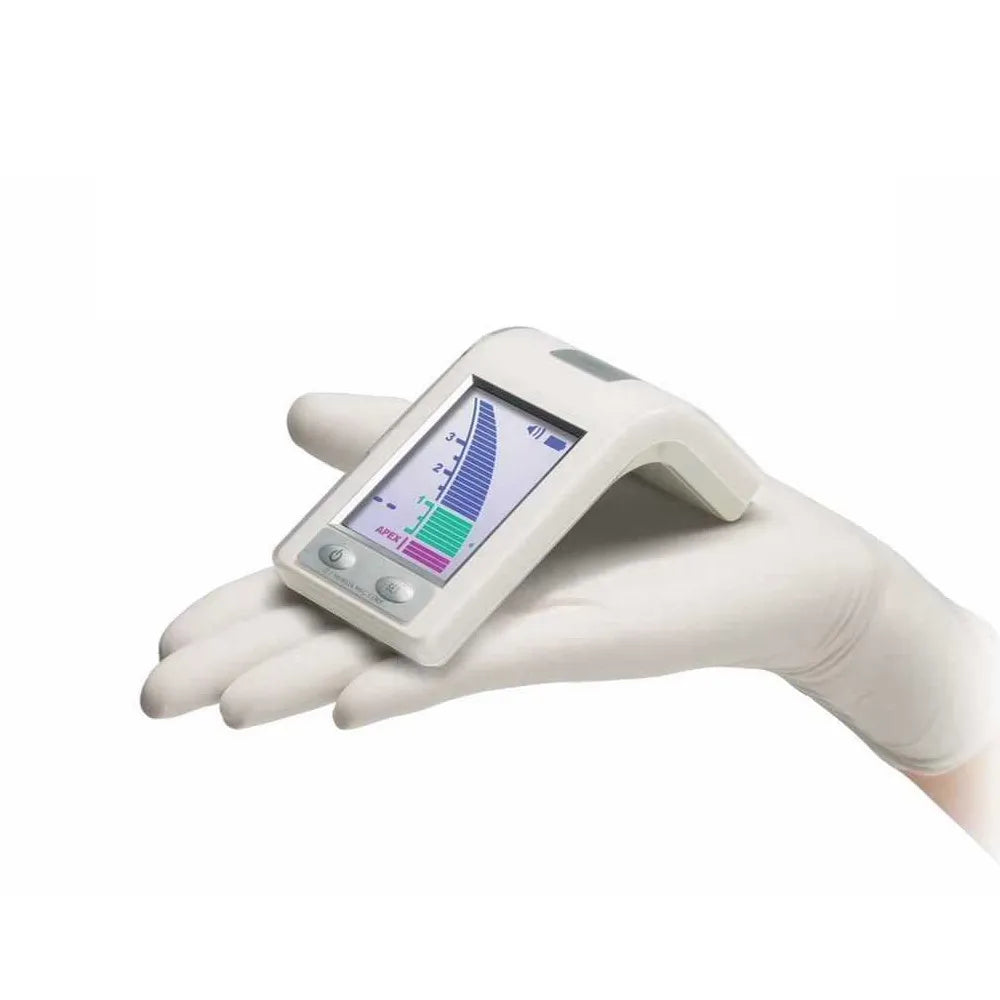

• Compact and Lightweight Design allow for excellent flexibility during procedures. it can be placed easily on the tray or any other convenient location.

• Model: RCM-7
• Rating: DC 4.5 V
• Power Consumption: 0.2 W
• Size: W 60 mm × D 103 mm × H 57 mm
• Weight: 110 g

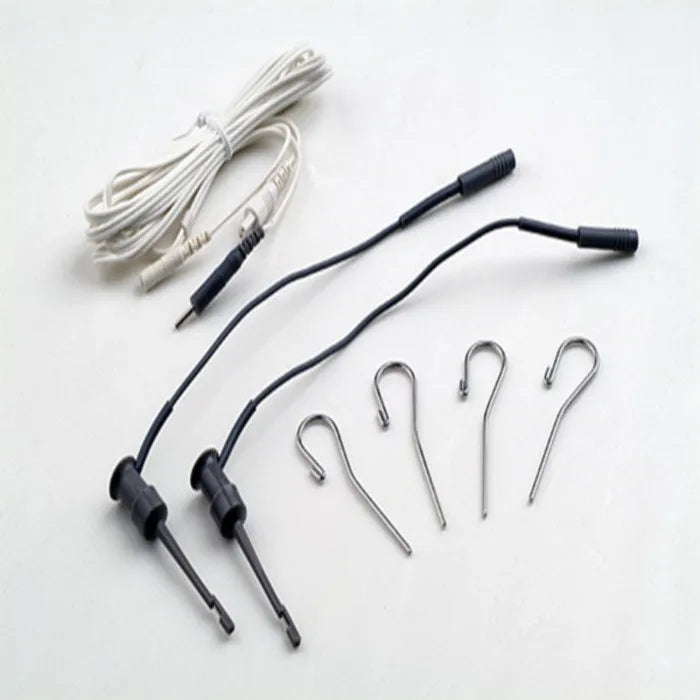

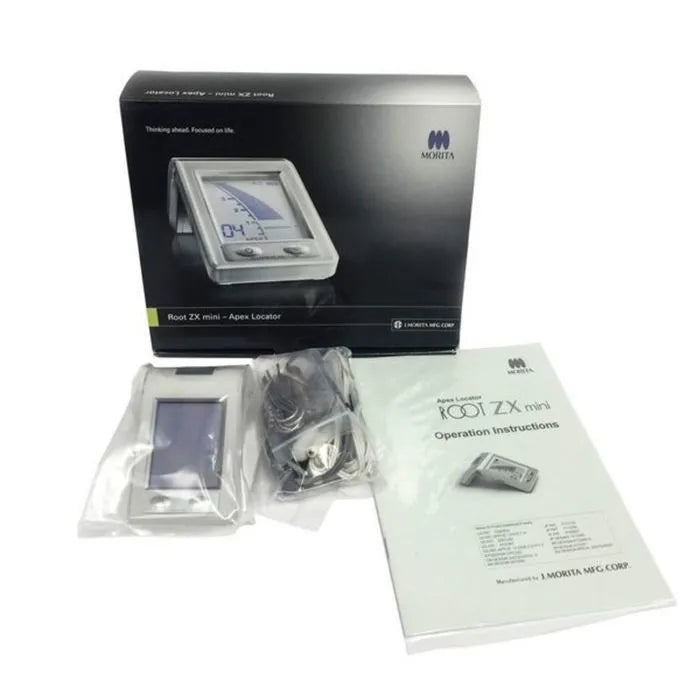

• 1 × Probe cord
• 3 × File holders
• 5 × Contrary electrodes
• 1 × Canal-length tester
• 3 × DC 1.5 V AAA size battery

Preparation:

• Ensure that the device is clean and in good working condition.
• Connect the apex locator to the power source as specified in the user manual.

Placement of Electrode:

• Attach the electrode or file holder to the patient, typically using a conductive gel to ensure a good connection.
• Insert the endodontic file into the root canal until it reaches the apex.

Turn On the Apex Locator:

• Power on the Root Zx Mini Apex Locator

Automatic Calibration:

• Some apex locators, including the ROOT ZX MINI, have automatic calibration features. Allow the device to calibrate itself for accurate measurements.

Measurement:

• Gently advance the endodontic file into the canal while observing the device's display.
• The apex locator will indicate when the file tip reaches the apex with a specific signal or change in display.

Recording Measurements:

• Note the measurement displayed on the device. Some apex locators may have a memory function to store readings.

Zero Adjustment (if necessary):

• Depending on the model, zero adjustment may not be required. Follow the user manual's instructions if adjustment is needed.

Repeat if Necessary:

• In multi-rooted teeth, repeat the process for each canal.

Power Off:

• Power off the apex locator when finished.

• Country of origin: Japan
• Manufacturer: J-Morita

• Manufacture/importer of 1 year as applicable for this products
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR )
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Is the device portable and easy to store?
Answer: Yes, the J. Morita Root Zx Mini apex locator is generally designed to be portable and easy to store. It's a compact electronic apex locator, which makes it convenient for dental practitioners to transport between different treatment rooms or even between dental clinics if needed. Additionally, its compact size makes it easy to store when not in use, helping to save space in a dental office.

QuestionIs it easy to use for dental practitioners?
Answer: Yes, the J. Morita Root ZX Mini apex locator is designed to be user-friendly and is generally considered easy to use for dental practitioners. It comes with clear instructions, and dental professionals typically receive training during their education on how to operate apex locators like this one effectively. However, like any dental equipment, proper training and practice are essential to ensure accurate and reliable results during endodontic procedures.

Question: How does root J Morita Root Zx Mini Apex Locator work?
Answer: J Morita Root Zx Mini Apex Locator is an electronic apex locator used in dentistry. It operates by sending a low-frequency electrical signal through a tooth's root canal. When the device detects changes in the electrical impedance as it nears the root tip, it signals the position of the root's apex, helping dentists accurately determine the length of the tooth's canal, which is crucial during root canal procedures.
