3m Espe Elipar Deepcure S Led Curing Light

• High Light Intensity: Delivers 1200 mW/cm² intensity for efficient polymerization of dental restorative materials.
• Increased Optical Power: Provides up to 50% more optical power compared to previous models.
• Larger Curing Surface: Features a light guide with an 10 mm diameter, offering up to 80% more curing surface area and reducing the number of exposures needed.
• Deeper Curing: Optimized optics ensure a deep, uniform cure from the surface to the cavity bottom, even at clinically relevant distances.
• Improved Depth of Cure: Significantly better depth of cure, even when light positioning is difficult.
• Uniform Light Distribution: Provides better light uniformity and intensity distribution at clinically relevant distances.
• Easy Access: Updated light guide geometry allows easy access to all tooth surfaces.

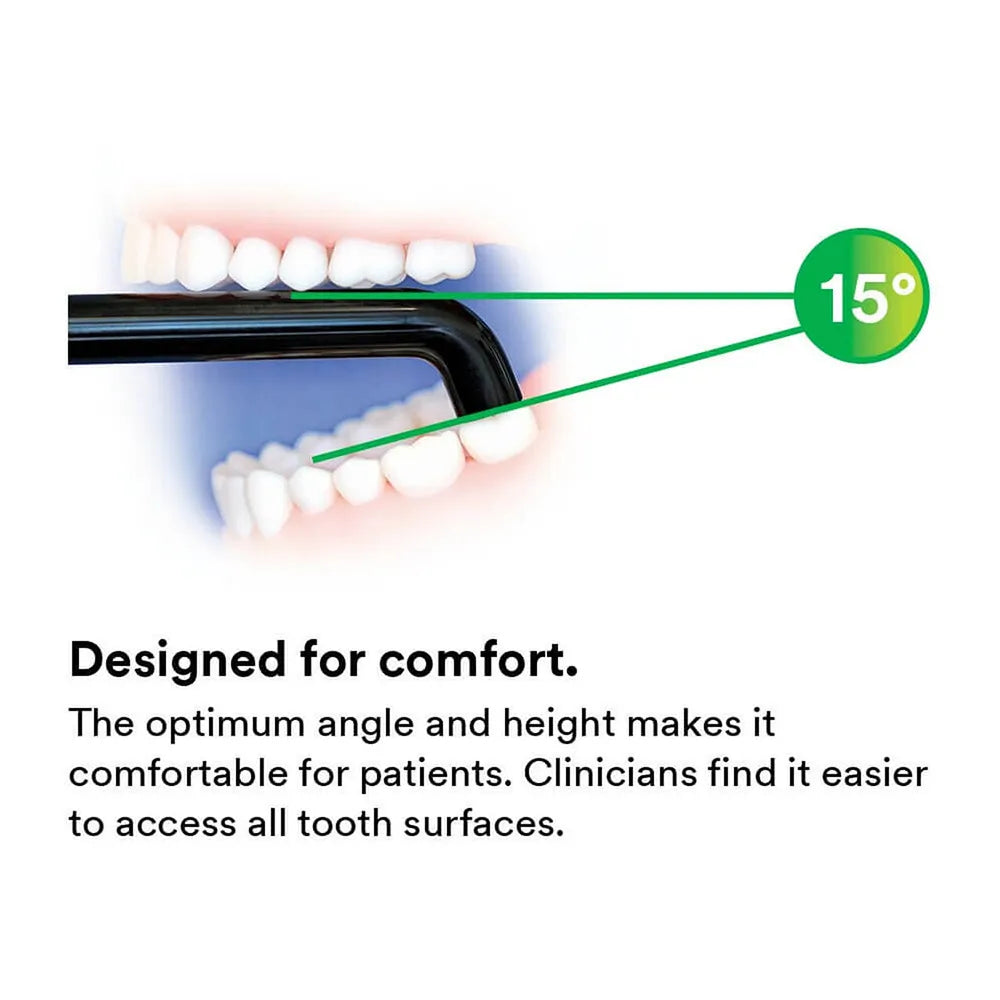

• Patient Comfort: The angle of the light guide is designed for patient comfort, even with limited mouth-opening abilities.

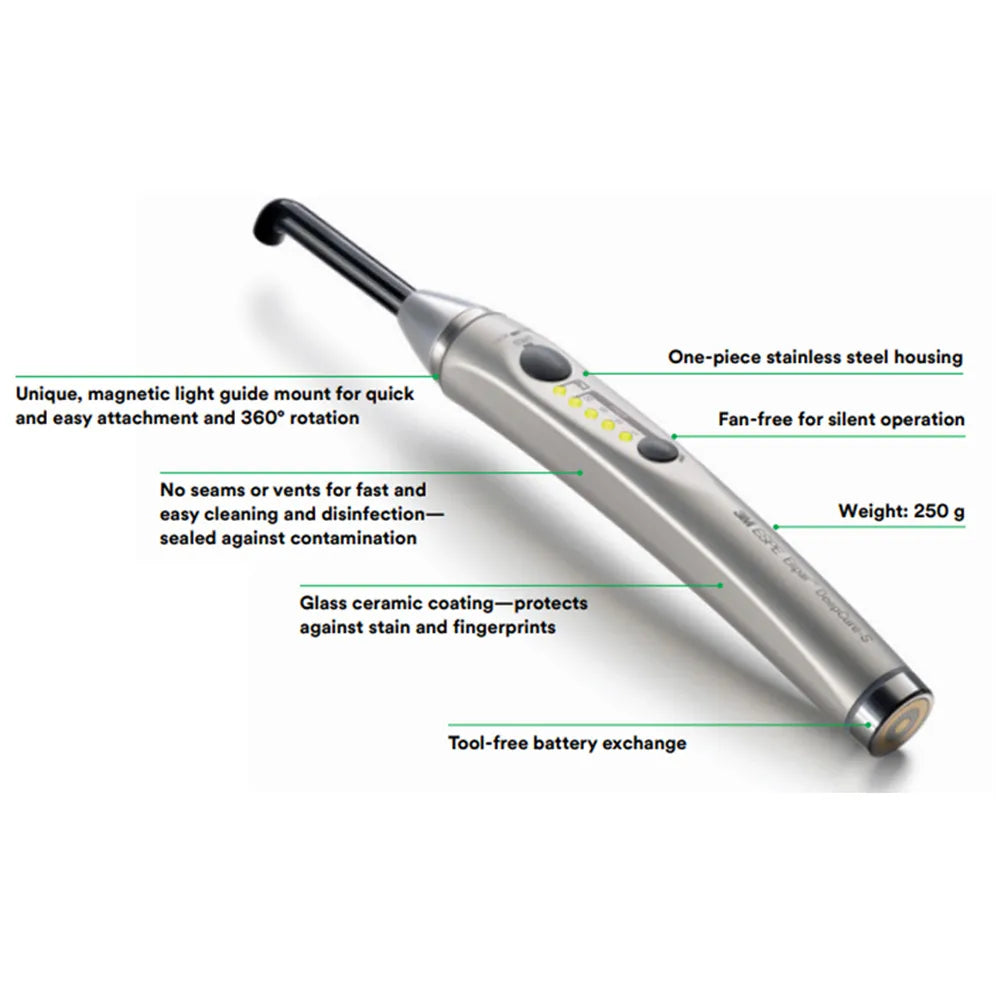

• Robust and Easy to Disinfect: One-piece, high-quality stainless steel casing is virtually unbreakable and sealed against contamination, making it robust and easy to disinfect.
• Simple Operation: Features two-button operation with one cure mode for all indications.

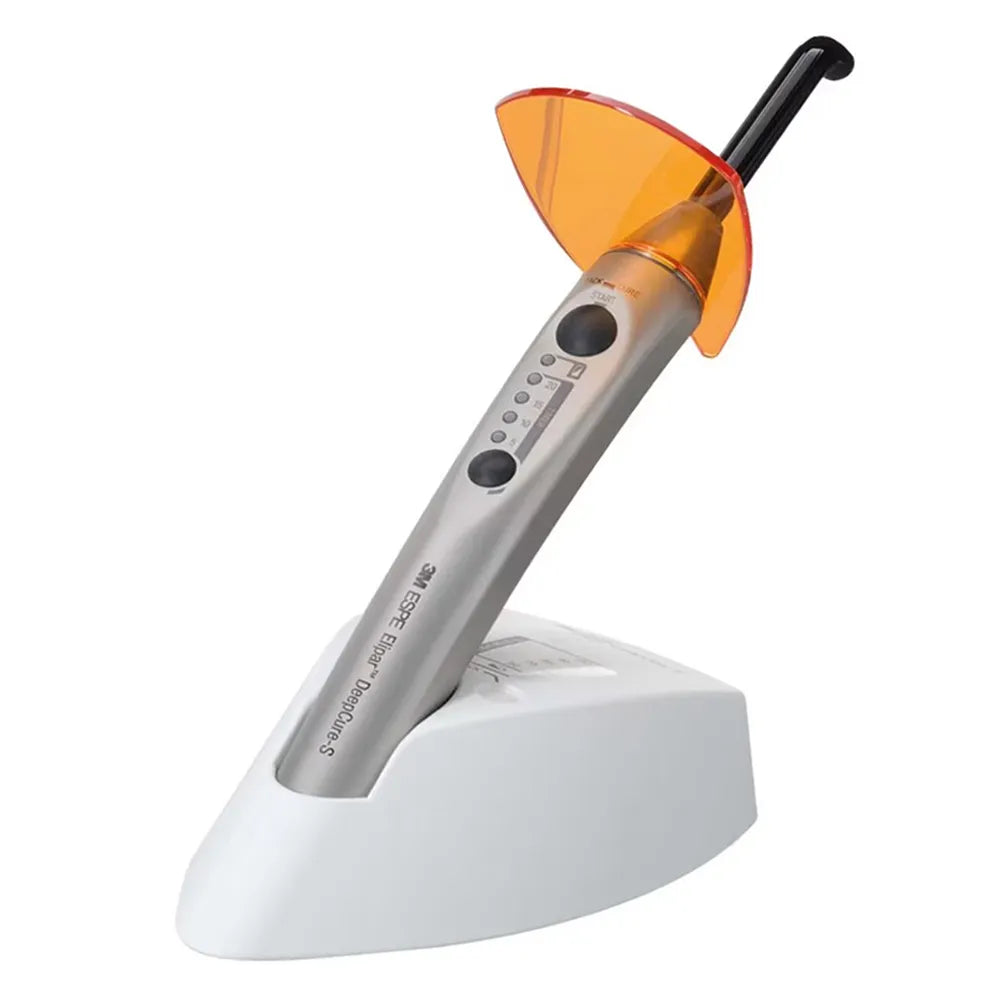

• Charging Base: Includes a charging base with a built-in light intensity meter and battery charge indicator.

• Wavelength: 430–480 nm
• Number of Curing Modes: 6
• Voltage: 110 V - 240 V, 120 V
• Maximum Light Wavelength: 480 nm
• Minimum Light Wavelength: 430 nm
• Light intensity: 1,470 mW/cm2 (-10%/+20%)
• Power supply: Lithium-ion battery Approx. 120 min. battery runtime (~720 10-sec. cures) with constant light output regardless of battery charge
• Operation: Intuitive two-button and single-mode operation Pre-set cure times: 5, 10, 15, and 20 sec. continuous mode (120 sec.) and tack cure mode
• Curing time: Refer to material instructions; 10 sec. for many composites
• Light guide: 10 mm, black coated, autoclavable, optimal intraoral reach due to the user- and patient-friendly geometry.

• 1 x Handpiece (Cordless)
• 1 x Charging Base (230 V)
• 1 x Li-ion Battery Rechargeable
• 1 x 10mm Light Guide

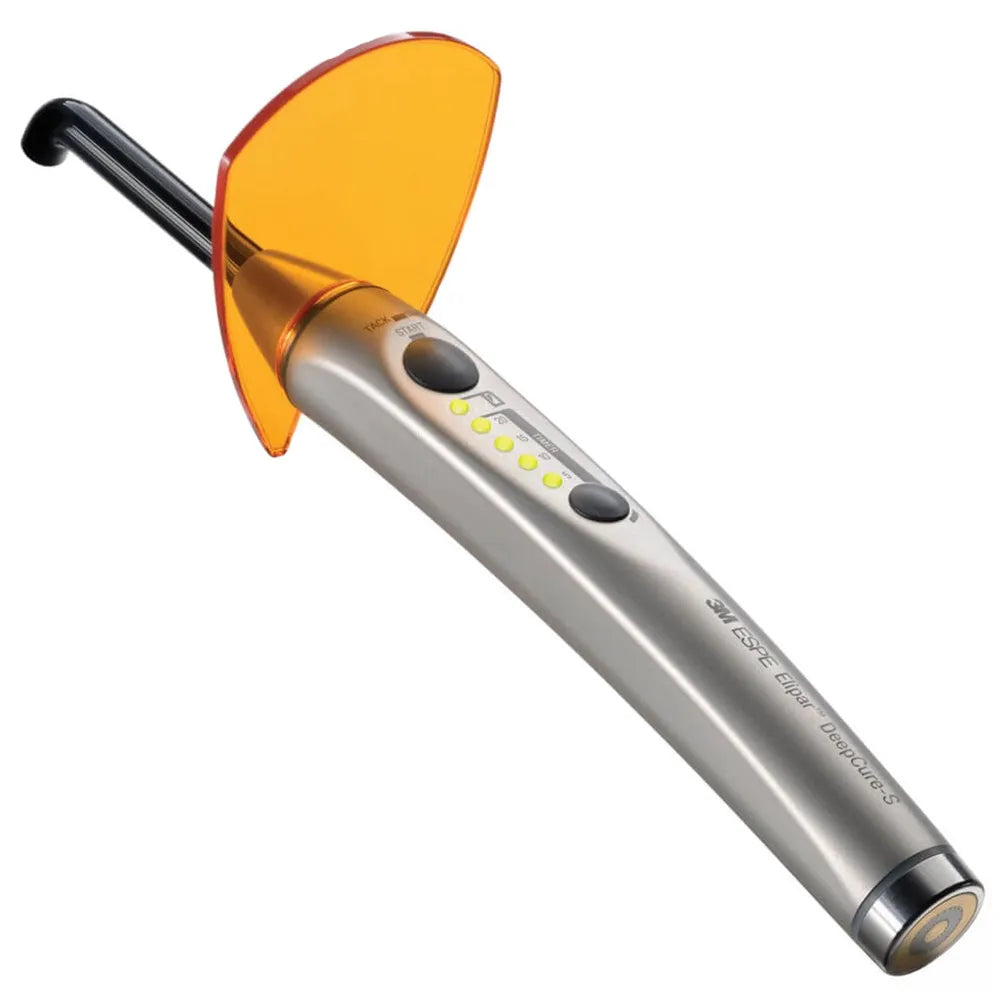

• 1 x  Eye Shield

• Charge the Curing Light: Place the curing light handpiece in the charging base to ensure it is fully charged before use.
• Attach the Light Guide: Securely attach the 10mm diameter light guide to the front of the curing light handpiece.
• Select the Curing Mode: The Elipar DeepCure-S has a single curing mode suitable for all light-curable dental materials.
• Position the Light Guide: Carefully position the light guide as close as possible to the restoration or material to be cured, while ensuring patient comfort.
• Activate the Curing Light: Press the single button on the handpiece to activate the curing light. The light will automatically turn off after the pre-set curing time.
• Observe the Curing Process: Monitor the curing process and ensure the light guide remains in the correct position throughout the exposure.
• Disinfect the Light Guide: After use, remove and disinfect the light guide according to the manufacturer's instructions.
• Charge the Curing Light: Place the handpiece back in the charging base to recharge the battery for the next use.

• Manufacturer/Importer warranty of 12 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be.

Question : What is the purpose of the Elipar DeepCure-S LED Curing Light?
Answer: The Elipar DeepCure-S is a high-performance light-curing unit designed for efficient polymerization of a variety of dental restorative materials, including composites, cements, and sealants.

Question : What is the charging system for the Elipar DeepCure-S?
Answer: The curing light comes with a charging base that includes a built-in light intensity meter and battery charge indicator.

Question : Is the Elipar DeepCure-S easy to use?Answer: Yes, the curing light has a simple two-button operation and an ergonomic design for easy handling and access to all tooth surfaces.

Question : What are the key features of the Elipar DeepCure-S?
Answer: Key features include high light intensity (1200 mW/cm²), a large 10mm light guide for broader curing, uniform light distribution, and improved depth of cure.

Question : What materials is the Elipar DeepCure-S compatible with?
Answer: The curing light is suitable for use with a wide range of light-curable dental materials, including composites, cements, and sealants.
